WhisperKOOL Ceiling Mount Twin 12000 Split Wine Cellar Cooling System (220V Condenser)

$13,135.00
WhisperKOOL  |  SKU: S-WKCM12000-220

Est. ship date: Nov 23 – Nov 25

Choose your size · Ceiling Mount

Want it priced as a complete system?

Tell us your cellar size and where the condenser can go. We'll recommend the evaporator, condenser and add-ons, and send you an itemized quote.

Request a quoteor call 888-589-1833
  • Authorized WhisperKOOL dealerGenuine system, full factory warranty
  • Free system sizingHeat-load check before you order
  • Best price guaranteedFound it lower? We will match it
  • Secure checkoutEncrypted payment, cards and Shop Pay

Two ceiling-mounted evaporators with a 220V condenser, rated 11,306–12,779 BTU/h for the largest cellars.

Cooling
11,306–12,779 BTU/hconfirm with a heat-load calc
Evaporators
2 ceiling-mountedflush with the ceiling
Condenser
Up to 100 line ft awayindoors or outdoors
Install
HVAC/R technicianrequired

Installed by a licensed HVAC/R technician. Line set not included. Ratings assume an insulated cellar held at 55°F.

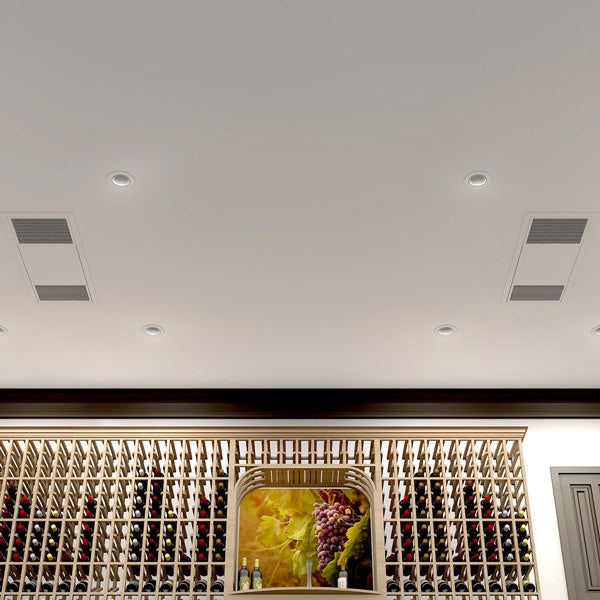

  • Two ceiling evaporatorsFlush with the ceiling, walls stay free for racking
  • Bottle probeReads the wine's liquid temperature, not just the air
  • Standard or 24V thermostatUse the WhisperKOOL control or your own smart thermostat

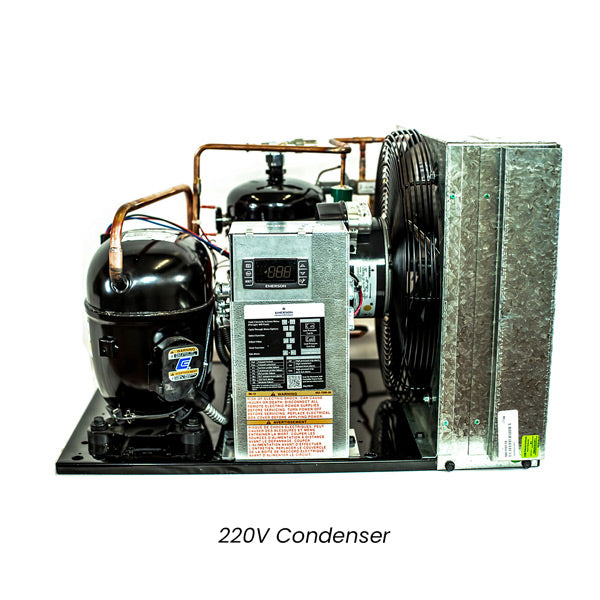

  • 220V condenserBuilt for high-capacity cellars

Your best price is a call away. Volume pricing and system design help: 888-589-1833

How it works

Buying a split system, step by step

A split system is a two-part install, so it pays to plan it before you order. Here is what happens, and where we help.

  1. Size the cellar

    Split systems are sized to the room, not just the cubic feet. Glass, stone, lighting and the temperature outside the cellar all change the load. Send us the details for a free heat-load check.

    Use the cellar calculator
  2. Choose the system

    Pick the evaporator style (wall-mounted, ceiling, ducted or concealed) and the condenser. The 220V Advanced H.E. condenser is built for outdoor installs; the 110V condenser suits indoor spaces like a garage, attic or mechanical room.

  3. Plan the install

    A licensed HVAC/R technician runs the line set between the two units, charges the system and starts it up. The line set, drain line and any ducting are sourced separately. Your installer will confirm the run length and power.

  4. Activate the warranty

    The 2-year limited warranty starts on the purchase date and is activated once your technician submits WhisperKOOL's Product Warranty Checklist and WhisperKOOL approves it. We help you with the paperwork.

Request a quotePrefer to talk it through? Call 888-589-1833

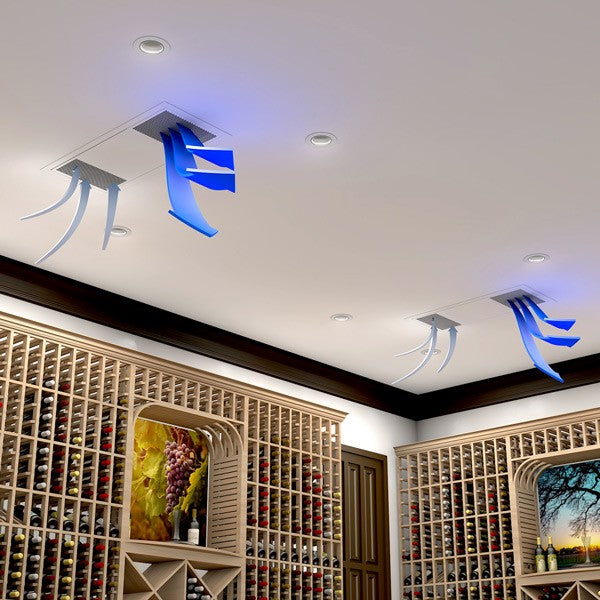

  • Offers excellent efficiency by drawing in the warmer air which accumulates at the ceiling, cooling and dispersing the air throughout the environment
  • Virtually invisible inside the cellar
  • Flare fittings for easy installation
  • Duramax coils
  • Standard and 24V thermostat options are available
  • 2-speed fan switch

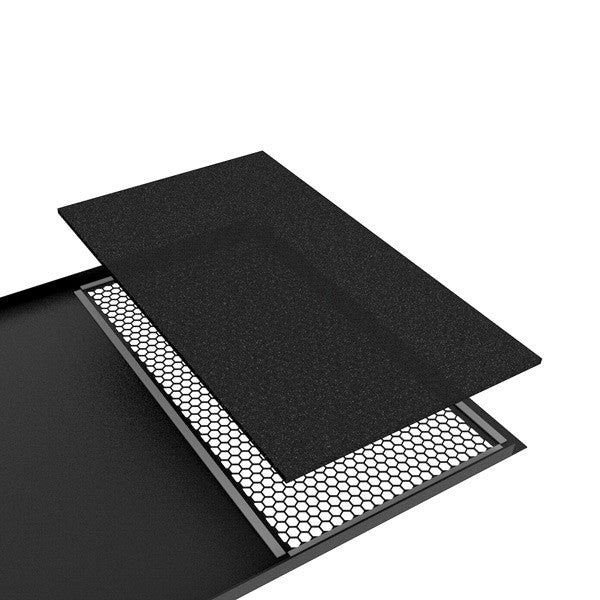

  • Hex mesh grille with air filter
  • KDT Digital Controller/Thermostat with 50-ft. cable

At WhisperKOOL, we have created a Twin Ceiling Mount 12000 split system with dual evaporators for larger capacities. Keep your wine at the center of attention and your cooling unit out of sight.

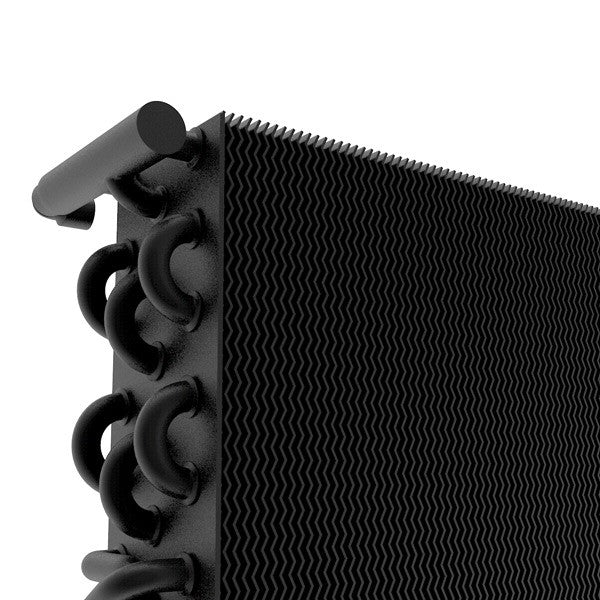

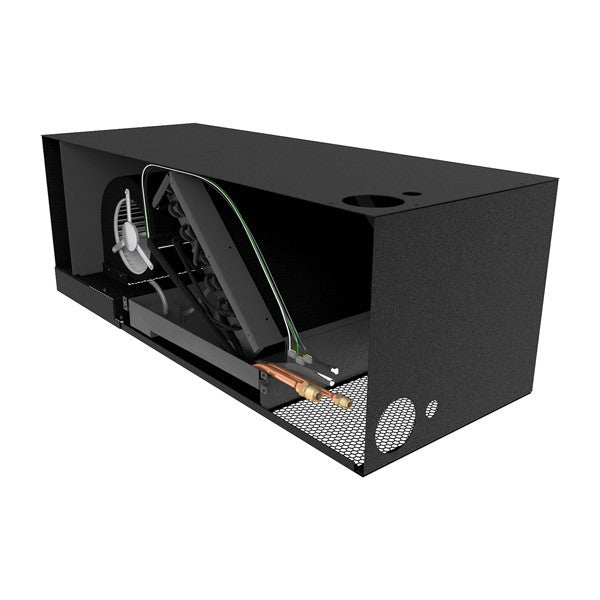

Technicians and installers will be happy to hear that the electrical wiring, bottle probe wiring, and the line set are all located at the bottom of the unit, rather than the top. Not only are the essential components relocated and easier to access, but flare fittings will also now be utilized so that there is no brazing needed in the field. The redesign includes e-coated Duramax evaporator coils which will improve system performance, and a new-looking hex mesh grille with an air filter to protect the unit from the intake of potentially harmful debris during the initial start-up.

Is this the right-sized unit for your wine cellar? Visit our Cellar Wizard to ensure that this cooling system is best suited for your needs.

Need some wine racks to pair with your cooling system? Visit our sister company Ultra Wine Racks & Cellars for all your modern wine racking needs.

Have some more questions? Feel free to contact our client support team or visit our FAQ page for frequently asked questions about our cooling systems.

Note: A qualified HVAC-R technician is required for the installation of your Twin Ceiling Mount. Failure to have the system installed by a qualified technician will void the warranty.

*PLEASE NOTE: WhisperKOOL does not provide a smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.

Owner Manuals & Tech Sheets

WhisperKOOL Ceiling Mount Twin 12000 Split Wine Cellar Cooling System Owners Manual - 220V

WhisperKOOL Ceiling Mount Twin 12000 Split Wine Cellar Cooling System Owners Manual - 220V H.E.

WhisperKOOL Ceiling Mount Twin 12000 Split Wine Cellar Cooling System Product Sheet - 220V

WhisperKOOL Ceiling Mount Twin 12000 Split Wine Cellar Cooling System Product Sheet - 220V H.E.

Specifications:

BTU/H Rating

11,306 – 12,779

The BTU/h value shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.) that do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An undersized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.

Payment & Security

Payment methods

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Questions, answered

WhisperKOOL split system FAQ

Straight answers from the team that sizes, installs and services wine cellar cooling every day.

Do I need an HVAC technician to install a split system?

Yes. A split system has two units joined by refrigerant lines, so a licensed HVAC/R technician has to install it, charge it and start it up. Installing it any other way voids the WhisperKOOL warranty.

What is not included in the box?

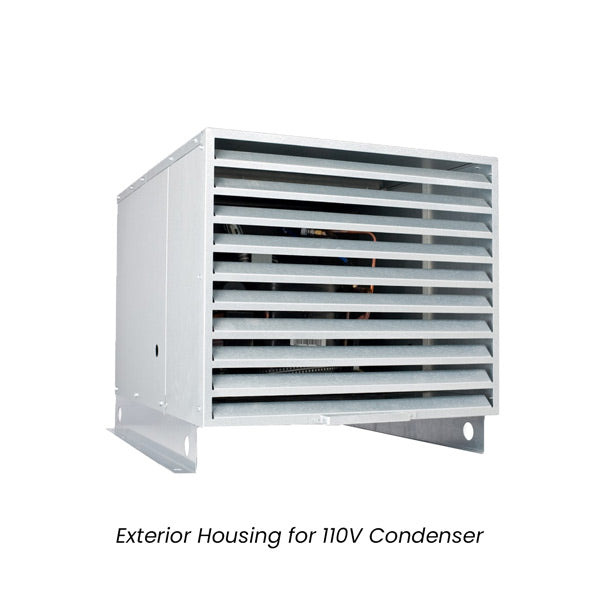

The copper line set that connects the evaporator and condenser is not included, and neither is the drain line or any ducting for ducted models. An exterior housing for an outdoor condenser is available as an option. Your technician will size the line set for your run.

How far can the condenser be from the cellar?

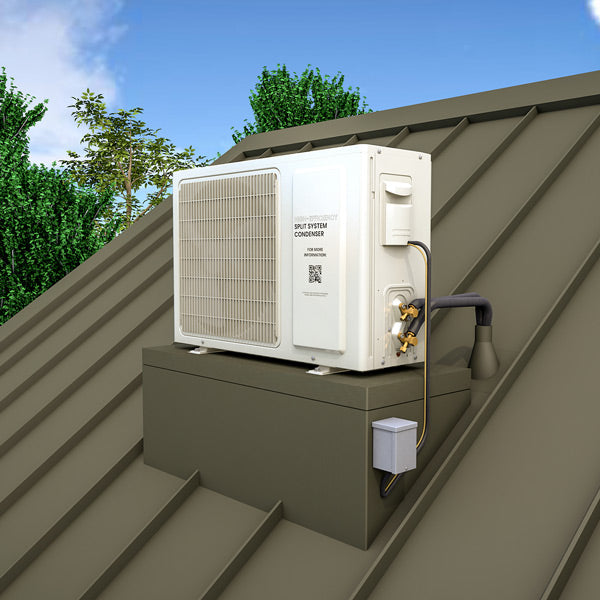

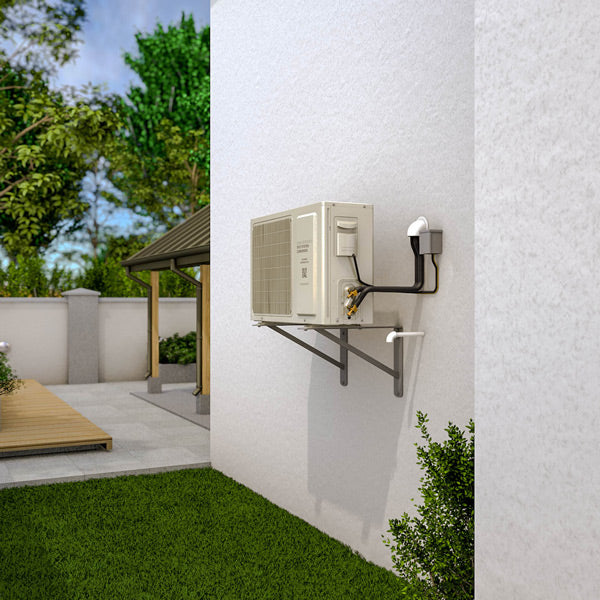

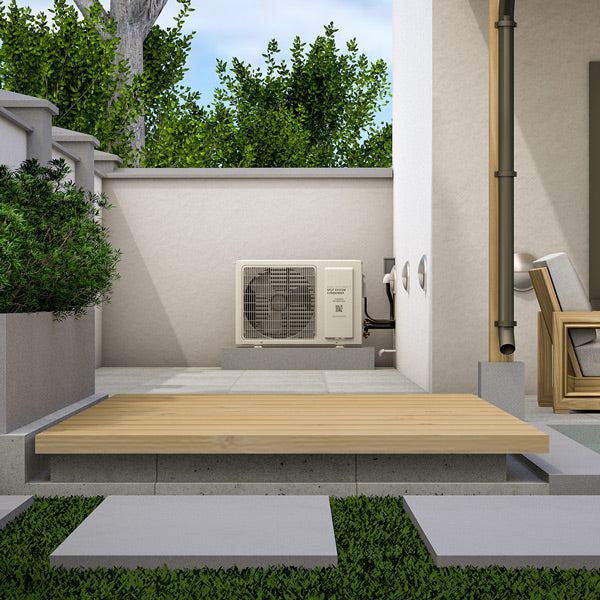

On Platinum, Ceiling Mount and Quantum systems the condensing unit can sit up to 100 line feet from the evaporator, so it can go outdoors, in a garage, attic or mechanical room. Ducted evaporators can sit up to 25 duct feet from the cellar. Exact limits for each model are in its owner's manual.

110V or 220V Advanced H.E. condenser: which one?

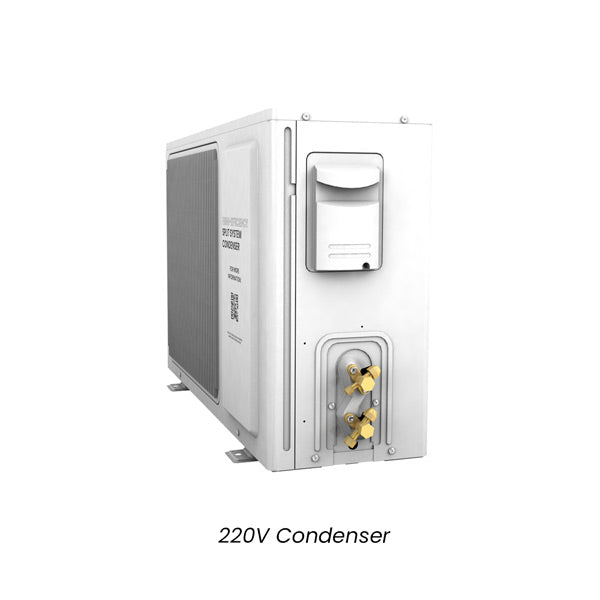

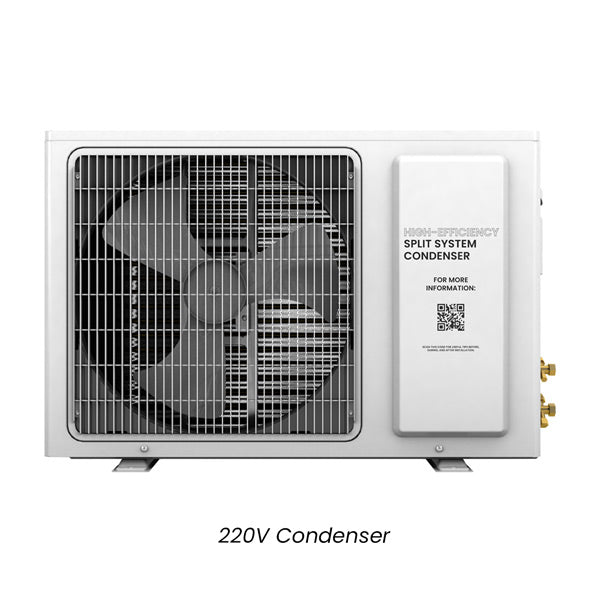

The 220V Advanced H.E. condenser is made for outdoor installs: a larger coil, quieter fans and lower power use, and it copes with extreme temperatures. The 110V condenser suits indoor spaces such as a garage, attic or mechanical room. If you are unsure, tell us where it will go and we will recommend one.

Will it run in cold weather?

Split condensers are designed for roughly 20°F to 110°F. For colder locations, WhisperKOOL's cold weather start kit keeps the system running well below freezing, and it is included with many models. Check the product description, or ask us before you order.

How does the warranty work on a split system?

WhisperKOOL split systems carry a limited 2-year product warranty from the purchase date. It is activated once the installing technician submits the Product Warranty Checklist and WhisperKOOL approves it. As an authorized dealer, we help you register the system and file any claim.

Can I order online or do I need a quote?

Both work. If you already know the model, condenser and options, you can add it to your cart. If you want help choosing or want the full system priced in one place, request a quote and our team will send you an itemized recommendation.
