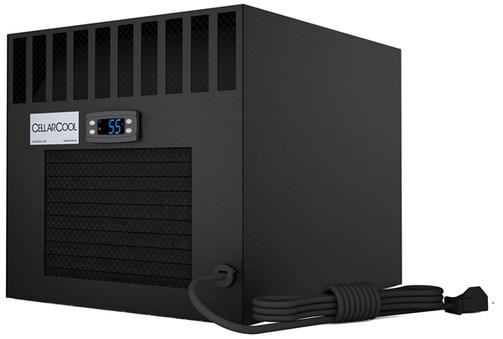

CellarCool CX3300 Wine Cellar Cooling Unit (Up to 650 cubic feet)
Have questions? Contact Us or Schedule a Free Consultation with a wine cellar specialist.
Have questions? Contact Us or Schedule a Free Consultation with a wine cellar specialist.
The CellarCool CX3300 with its amazing humidity( 50% - 70%) and temperature(55°F - 58°F) management capability, it creates a stable environment for the development and maturation of your precious wine collection. The main qualities of these units are reliability, longevity, and durability. Modern design allows a simple through-the-wall installation that lets the unit fit between the standard wall studs and eliminates the need for support shelves.
This CellarCool CX3300 self-contained unit is manufactured to cool down up to 650 cubic feet of cellar space. It has a 30°F temperature differential. It requires that the area in which the unit is exhausting its hot air does not exceed 85°F, in order to keep the cellar at 55°F.
The fans are angled at 45° which provides efficient air circulations and requires minimal machine run time.
FEATURES:
2049
The BTU/h value shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.) which do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An undersized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.
Model |
CX3300/CX3300-RPC |
Cellar Size |
650 |
BTUh (w/85°F air entering the condenser coil) |
2049 |
CFM |
126 |
Dimensions |
14.25”W x 19.75”H x 21.63”D |
Refrigerant |
R-134a |
HP |
0.8 |
Voltage Rating (20 amp dedicated circuit required) |
115V; 230V (subject to availability) |
Weight (lbs) |
66 |
AMPS |
4.9 (running amps) |
dBA (Evaporator/Condenser) |
63 / 64 |
Drainline |
3/8” Condensate (rear location only) |
Installation |
Through-the-Wall, Partially Ducted |
Thermostat |
Advanced electronic control system |
Temp. Delta |
Can maintain a 55°F cellar temperature with up to 85°F condenser air intake temperature |
This cooling unit can be classed as Self-Contained. It's a Through the Wall unit, so it sends exhaust fumes into an adjacent room.
