CELLAR COOL CX SERIES - designed for wine collectors who are looking for an economical and budget cooling solution - MADE IN THE U.S.A.

With its amazing humidity( 50% - 70%) and temperature(55°F - 58°F) management capability, it creates a stable environment for the development and maturation of your precious wine collection. The main qualities of these units are reliability, longevity, and durability. Modern design allows a simple through-the-wall installation that lets the unit fit between the standard wall studs and eliminates the need for support shelves.

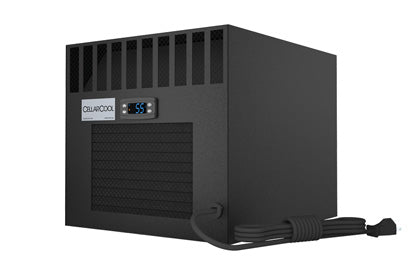

This CellarCool CX8000 self-contained unit is manufactured to cool down up to 2000 cubic feet of cellar space. It has a 30°F temperature differential. It requires that the area in which the unit is exhausting its hot air does not exceed  85°F, in order to keep the cellar at  55°F.

The fans are angled at 45° which provides efficient air circulations and requires minimal machine run time.

FEATURES:





  • Simple Installation procedure
  • Heavy Duty Coils
  • State of the Art Controller
  • Dynamic Air-Flow Circulation
  • 30° F temperature differential
  • Durable and Attractive Housing
  • Multiple Mounting Positions
  • Excellent Customer Service
  • Made in the USA
  • Two-year parts and labor warranty





4754


The BTU/h value shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.) which do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An undersized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.





Model

CX8800/CX8800-RPC

Cellar Size

2000

BTUh (w/85°F air entering the condenser coil)

4754

CFM

216

Dimensions

16.25” W x 22” H x 22.25” D

Refrigerant

R-134a

HP

1.86

Voltage Rating (20 amp dedicated circuit required)

115V; 230V (subject to availability)

Weight (lbs)

74

AMPS

10 (running amps)

dBA (Evaporator/Condenser)

68 / 68

Drainline

3/8” Condensate (rear location only)

Installation

Through-the-Wall, Partially Ducted

Thermostat

An advanced electronic control system

Temp. Delta

Can maintain a 55°F cellar temperature with up to 85°F condenser air intake temperature

Customer Reviews

Based on 1 review
0%
(0)
0%
(0)
100%
(1)
0%
(0)
0%
(0)
R
Ramon Guerrero
Too noisy

Very noisy unit

This cooling unit can be classed as Self-Contained. It's a Through the Wall unit, so it sends exhaust fumes into an adjacent room.

Our range includes both Small and Large sized units.
