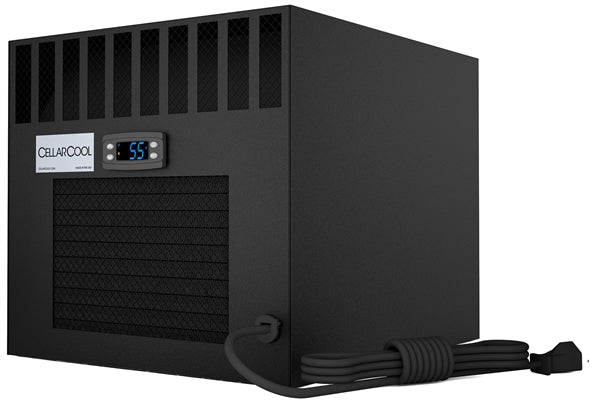

CellarCool CX2200 Wine Cellar Cooling Unit (Up to 265 cubic feet)

Save 10%
Original price $1,383.00
Current price $1,245.00

CELLAR COOL CX SERIES - designed for wine collectors who are looking for an economical and budget cooling solution - MADE IN THE U.S.A.

With its amazing humidity( 50% - 70%) and temperature(55°F - 58°F) management capability, it creates a stable environment for the development and maturation of your precious wine collection. The main qualities of these units are reliability, longevity, and durability. Modern design allows a simple through-the-wall installation that lets the unit fit between the standard wall studs and eliminates the need for support shelves.

This self-contained unit is manufactured to cool down up to 265 cubic feet of cellar space. It has a 30°F temperature differential, and the digital controller with system safety management and anti-frost features. It requires that the area in which the unit is exhausting its hot air does not exceed  85°F, in order to keep the cellar at  55°F.

The fans are angled at 45° which provides efficient air circulations and requires minimal machine run time.

FEATURES:

  • Simple Installation procedure
  • Heavy Duty Coils
  • Top-notch Controller
  • Dynamic Air-Flow Circulation
  • 30° F temperature differential
  • Durable and Attractive Housing
  • Various Mounting Positions
  • Made in the USA
  • Two-year parts and labor warranty
  •





    1453

    The BTU/h value shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.) which do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An undersized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.





    Model

    CX2200/CX2200-RPC



    Cellar Size

    300



    BTUh (w/85°F air entering the condenser coil)

    1453



    CFM

    118



    Dimensions

    14.25”W x 13.25”H x 16.38”D



    Refrigerant

    R-134a



    HP

    0.57



    Voltage Rating (20 amp dedicated circuit required)

    115V; 230V (subject to availability)

    Weight (lbs)

    65



    AMPS

    4.5 (running amps)



    dBA (Evaporator/Condenser)

    63 / 63



    Drainline

    3/8” Condensate (rear location only)

    Installation

    Through-the-Wall, Partially Ducted

    Thermostat

    Advanced electronic control system

    Temp. Delta

    Can maintain a 55°F cellar temperature with up to 85°F condenser air intake temperature
