About The Wine Square
Not Just a Cellar.
A Statement of Craft.
Most glass wine cellars look impressive but fail where it matters — temperature stability, air infiltration, and long-term cork integrity. The Wine Square was engineered to solve exactly that.
As an authorized North American dealer, WineCellarHQ brings The Wine Square's full IsoCase enclosure system with Cube LT cooling to your home — the only complete glass cellar solution purpose-built for full-height installations. Ready to install in 1–2 days.
180
Standard Sizes
1–2
Day Install
100ft
Compressor Range
Featured Systems
Choose Your Configuration.
Shop 3 WCHQ The Wine Square Glass Enclosed Wine Cellar Products

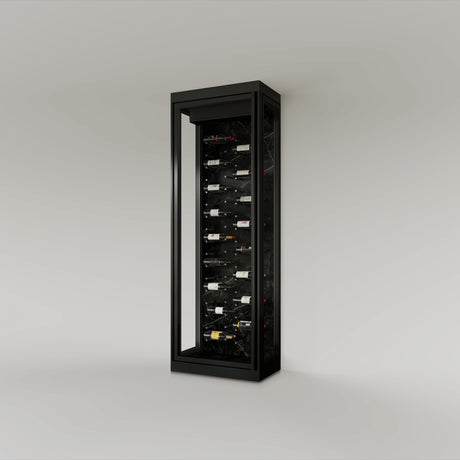

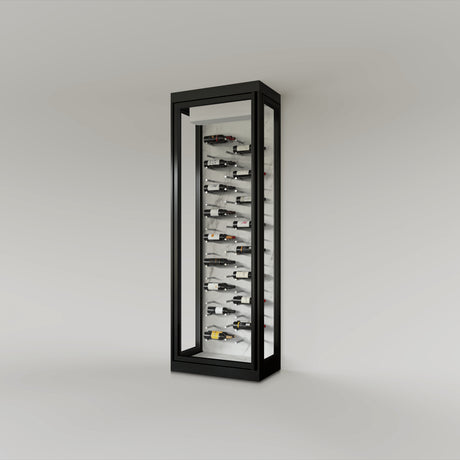

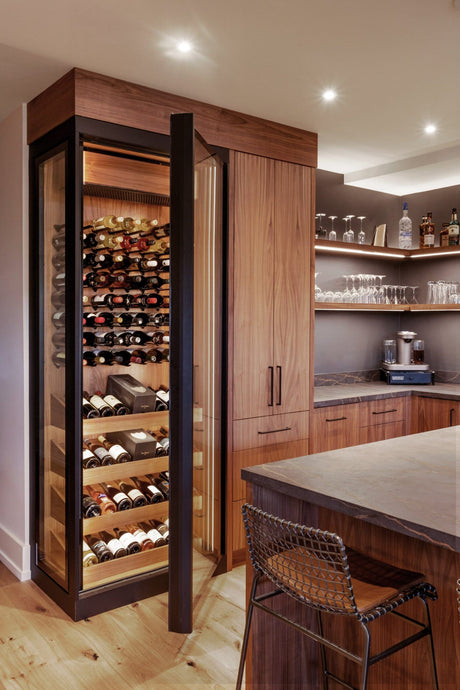

Single Door
The entry point into The Wine Square ecosystem. Perfect for a kitchen nook, dining room feature, or under-stair installation.
Configure →Most Popular

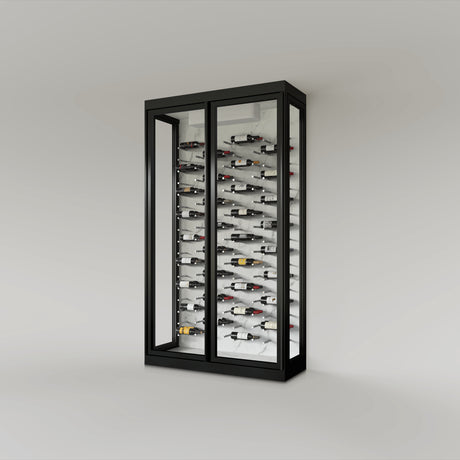

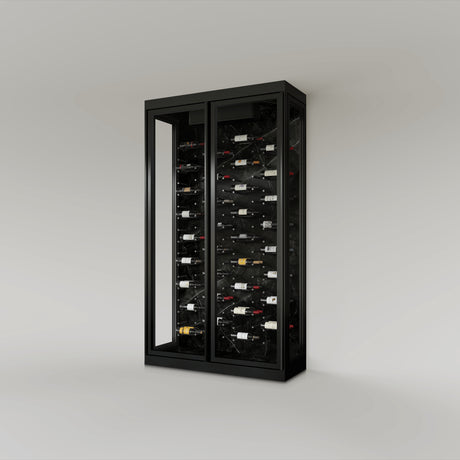

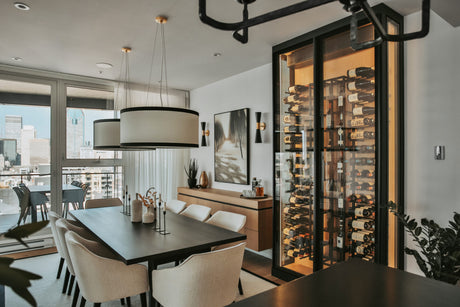

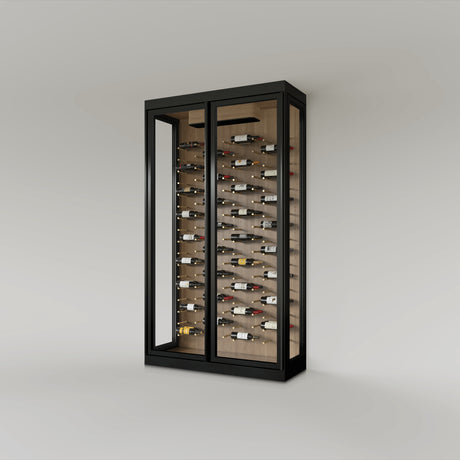

Double Door
The most versatile configuration — works beautifully as a living room centrepiece, kitchen feature, or custom alcove installation.
Configure →

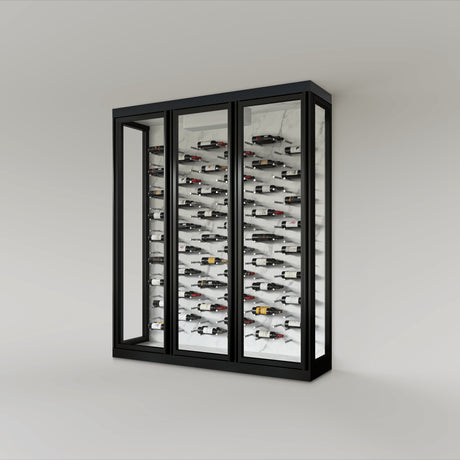

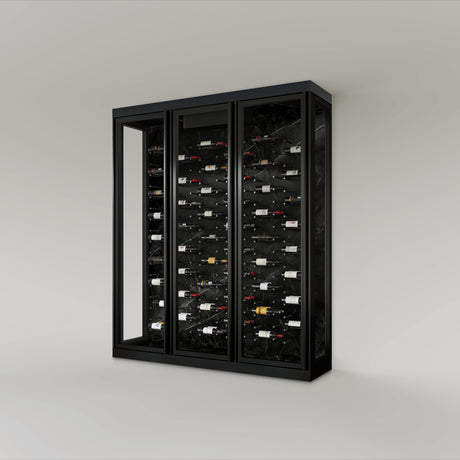

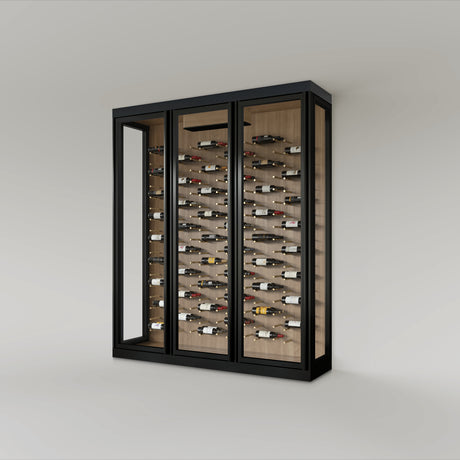

Triple Door
A statement installation for serious collectors. Fills a full wall with 144 bottles behind three floor-to-ceiling glazed panels.
Configure →All configurations: CAVEA A45 glass · Cube LT cooling included · Handle position & finish customizable at no extra cost
The Enclosure
IsoCase. Prefab Precision at Scale.
Traditional custom glass cellars take weeks. The IsoCase arrives as a precision-manufactured modular system — airtight, insulated, and ready to assemble in 1–2 days. Available in 180 standard configurations.
01
Rapid Installation
Ready-to-assemble — fully installed in 1–2 days vs. weeks for traditional custom builds. The IsoCase arrives as a complete prefabricated system with all components ready to connect.
02
Airtight & Moisture-Proof
High-density EPS insulation with moisture-barrier coating creates a perfectly stable aging environment. Completely airtight — prevents the air infiltration that causes temperature swings and mold growth.
03
180 Standard Sizes
15 widths × 4 standard heights (83"–119") × 3 depths (18"–32") — plus custom configurations up to 12 feet tall, ideal for architects and custom homes. Single, double, and triple door available.
04
Custom Interior Finishes
Ready for Stone, Meadow, or Mist finishes with built-in blocking for secure racking installation. Pair with custom cabinetry for a fully bespoke, screw-free finished look.
Glass Technology
CAVEA A45 vs CAVEA One.
Both systems deliver UV and infrared protection with argon-filled panes for superior insulation. The frame can be painted any color to match your design intent — and enclosures can be produced up to 12 feet in height for custom homes.
CAVEA A45
Double-Glazed · Argon-Filled · Custom Frame Color
A cost-effective premium option delivering true collection-grade protection. The dual-pane unit is filled with argon gas for superior insulation value, and the frame can be painted any color to perfectly match your design intent.
UV and infrared protection — shields wine from full light spectrum
Argon gas-filled dual pane — higher insulation value than air-filled units
Frame paintable in any color to match your design intent
Completely airtight — prevents air infiltration and humidity loss
Ideal for residential and light commercial use
CAVEA One
Triple-Glazed · Frameless Front · Custom Frame Color
The highest-quality option. A third pane creates an additional air gap for superior thermal protection and humidity retention — with a sleek frameless front. Includes full UV and infrared protection with frame paintable in any custom color.
Triple-pane glass with argon fill — maximum thermal insulation
UV and infrared protection — full light spectrum shielding
Frameless front — completely seamless appearance
Frame paintable in any color for total design flexibility
Recommended for high-value collections and serious long-term aging
The Cooling System
Speak with a Specialist →
Cube LT. Silent. Smart. 100ft Away.
The Cube LT is the only water-loop cooling system purpose-built for full-height glass wine cellars. The noisy compressor installs up to 100 feet away in a garage or mechanical room — as shown. Only the sleek RC4LT ceiling-mounted radiator is visible inside your cellar.
Whisper Quiet
Compressor up to 100ft away. Only a silent ceiling radiator inside your cellar.
Water Loop
Operates up to 50°F — reduces thermal shock and preserves humidity for cork integrity.
Eco R290
Non-toxic refrigerant with zero ozone depletion potential and extremely low GWP.
Wi-Fi Smart
7-inch touchscreen + internet connectivity for real-time remote monitoring.
Technical Specifications
Built for Serious Collectors.
Temperature Range
54°F – 65°F (12°C – 18°C)
Humidity Range
50% – 80% relative humidity
Power Requirements
120V 60Hz · NEMA 5-15P
Noise Level
Comparable to a dehumidifier
Compressor Distance
Up to 100 feet from cellar
Refrigerant
R290 — zero ODP, low GWP
Wall Insulation Min.
R-15 walls · R-7.5 floor/ceiling
Glass Insulation Min.
R-4.5 (CAVEA A45 or One)
Heights Available
83" · 95" · 107" · 119" · Up to 144" custom
Depths Available
18" · 24" · 32"
Installation Requirements.
Vapor BarrierAll cellar surfaces require a vapor/moisture barrier to maintain warranty and performance.
RC4LT Radiator PlacementAt the highest point of the cellar with 8" clearance below for maintenance access.
Water Chiller PlacementWell-ventilated area (50°F–100°F). Never installed outdoors.
PEX PipingInsulated ½" PEX tubing connects the water loop between all components.
Cat 6 CablingRJ45 Cat 6 cable for system communication between all units.
Dedicated Circuit120V 60Hz dedicated circuit with NEMA 5-15P outlet required.
Elegant
Flexible
Silent
Precise
Ecological
Connected

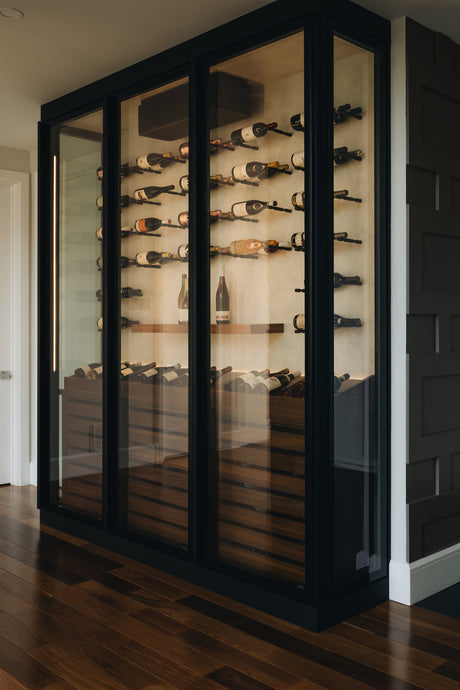

Client Installations
Book a Design Consultation
Built for Every Space.
Single Door
Open Plan
Dining Room
Modern Kitchen
Luxury Residence
Frequently Asked Questions
Everything You Need to Know.
Common questions about The Wine Square IsoCase, CAVEA glass options, Cube LT cooling, and installation requirements.
What is The Wine Square IsoCase?
The Wine Square IsoCase is a modular, prefabricated glass wine cellar enclosure system engineered for full-height glazed installations. It combines CAVEA glass (double-glazed A45 or triple-glazed One) with the Cube LT water-loop cooling system in 180 standard configurations — heights 83" to 119", widths 36" to 91", depths 18", 24", or 32".
How much does a Wine Square cellar cost?
The Wine Square IsoCase is a premium, engineer-grade glass wine cellar system — pricing varies based on configuration (single, double, or triple door), glass type (CAVEA A45 or CAVEA One), height, depth, and whether the Cube LT cooling system is included. All standard configurations include your choice of handle position and interior finish (Stone, Meadow, or Mist) at no additional cost. The frame can also be painted in any custom color to match your design intent. Book a free consultation with one of our specialists to get an exact quote for your space, or explore our pre-configured systems to find the right fit.
What is the difference between CAVEA A45 and CAVEA One?
CAVEA A45 is double-glazed with a 45mm matte black frame — excellent for most installations. CAVEA One is triple-glazed with a frameless front, offering superior thermal insulation and humidity retention. CAVEA One is recommended for high-value collections where long-term aging conditions are critical.
How long does installation take?
The IsoCase is a prefabricated modular system that installs in 1 to 2 days — significantly faster than traditional custom-built glass wine cellars which can take weeks. A dedicated 120V circuit, vapor barrier, and PEX water loop must be prepared in advance by your contractor.
How far can the Cube LT compressor be placed?
The Cube LT water chiller can be installed up to 100 feet away from the wine cellar — in a garage, utility room, or mechanical space. Only the silent RC4LT ceiling-mounted radiator is visible inside the cellar, connected via insulated ½" PEX tubing and Cat 6 RJ45 cabling.
Does the Wine Square include a cooling system?
Yes — all featured configurations include the Cube LT cooling system. It maintains 54°F–65°F and 50%–80% humidity. A version without cooling is also available for buyers with an existing compatible system.
What sizes are available?
The IsoCase is available in 180 standard configurations: 15 width options, 4 standard heights (83", 95", 107", 119"), and 3 depths (18", 24", 32"). Custom configurations up to 12 feet (144") in height are also available — particularly useful for architects and custom home builds. The frame can be painted in any color to match your design intent. Use our configurator to explore standard options, or book a consultation for custom sizing.
Is WineCellarHQ an authorized dealer?
Yes. WineCellarHQ is an authorized North American dealer for The Wine Square IsoCase systems and Cube LT cooling. We offer expert guidance, competitive pricing, and post-sale support. Call 888-589-1833 or book a consultation.
Ready to Build?
Design Your Dream Cellar.
Use our interactive configurator to explore every size, glass type, and finish option — or book a meeting with a specialist to design the perfect system for your space.
180Size Options
1–2Day Install
100ftCompressor Range
CustomFrame Colors
WineCellarHQ is an authorized North American dealer for The Wine Square — the only glass wine cellar system engineered specifically for full-height glazed installations. The Wine Square IsoCase is a modular, prefabricated glass wine cellar enclosure available in 180 standard configurations, combining CAVEA glass (double-glazed A45 or triple-glazed One) with the Cube LT water-loop cooling system. CAVEA glass provides both UV and infrared protection, with argon gas-filled dual panes for superior insulation value. The frame can be painted in any color to match the client's design intent. Standard installations are completed in 1–2 days. Standard heights range from 83 to 119 inches; custom configurations up to 12 feet (144 inches) are available for architects and custom homes. Depths of 18, 24, or 32 inches. Single door configurations start at $22,736. For expert guidance, call 888-589-1833 or book a consultation.
