WhisperKOOL Ceiling Mount 8000 Wine Cellar Cooling System
WhisperKOOL Ceiling Mount 8000 Wine Cellar Cooling System - 110V H.E. OMEGA is backordered and will ship as soon as it is back in stock.
Est. ship date: Nov 19 – Nov 23
Couldn't load pickup availability
Choose your size · Ceiling Mount
Cellar near the top of the 2,000 cu. ft. range? Step up to the Twin (3,000 cu. ft.) for $3,194 more.
Want it priced as a complete system?
Tell us your cellar size and where the condenser can go. We'll recommend the evaporator, condenser and add-ons, and send you an itemized quote.
- Authorized WhisperKOOL dealerGenuine system, full factory warranty
- Free system sizingHeat-load check before you order
- Best price guaranteedFound it lower? We will match it
- Secure checkoutEncrypted payment, cards and Shop Pay

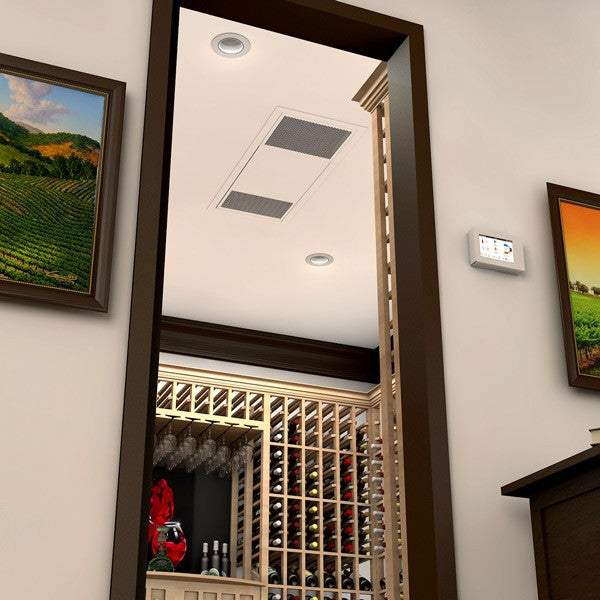

A ceiling-mounted split system for wine cellars up to 2,000 cu. ft. The evaporator sits flush with the ceiling, leaving the walls for racking.
- Cellar size
- Up to 2,000 cu. ft.insulated cellar
- Evaporator
- Ceiling-mountedflush with the ceiling
- Condenser
- Up to 100 line ft awayindoors or outdoors
- Install
- HVAC/R technicianrequired
Installed by a licensed HVAC/R technician. Line set not included. Ratings assume an insulated cellar held at 55°F.
-
Flush with the ceilingLeaves every wall free for racking
-
Pulls warm air from the topDraws the warm air that collects at the ceiling and cools it
-
Condensate pump includedRemoves condensate without a gravity drain
-
Cold weather start kitIncluded, keeps the condenser running down to -15°F
Spec sheets & manuals
Your best price is a call away. Volume pricing and system design help: 888-589-1833
How it works
Buying a split system, step by step
A split system is a two-part install, so it pays to plan it before you order. Here is what happens, and where we help.
Size the cellar
Split systems are sized to the room, not just the cubic feet. Glass, stone, lighting and the temperature outside the cellar all change the load. Send us the details for a free heat-load check.
Use the cellar calculatorChoose the system
Pick the evaporator style (wall-mounted, ceiling, ducted or concealed) and the condenser. The 220V Advanced H.E. condenser is built for outdoor installs; the 110V condenser suits indoor spaces like a garage, attic or mechanical room.
Plan the install
A licensed HVAC/R technician runs the line set between the two units, charges the system and starts it up. The line set, drain line and any ducting are sourced separately. Your installer will confirm the run length and power.
Activate the warranty
The 2-year limited warranty starts on the purchase date and is activated once your technician submits WhisperKOOL's Product Warranty Checklist and WhisperKOOL approves it. We help you with the paperwork.

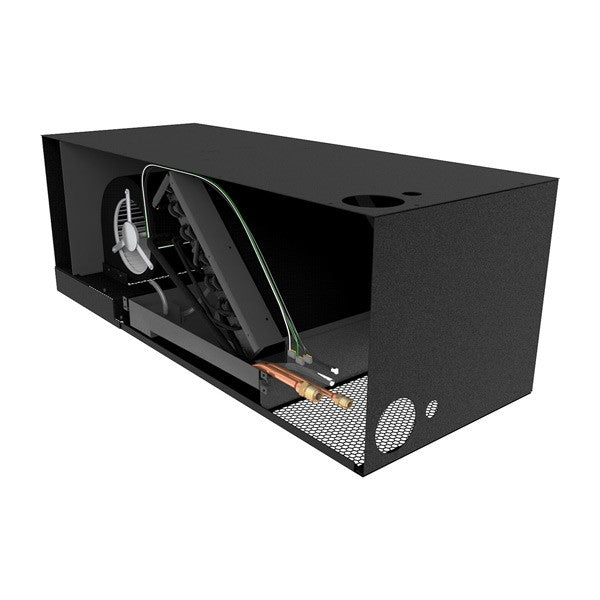

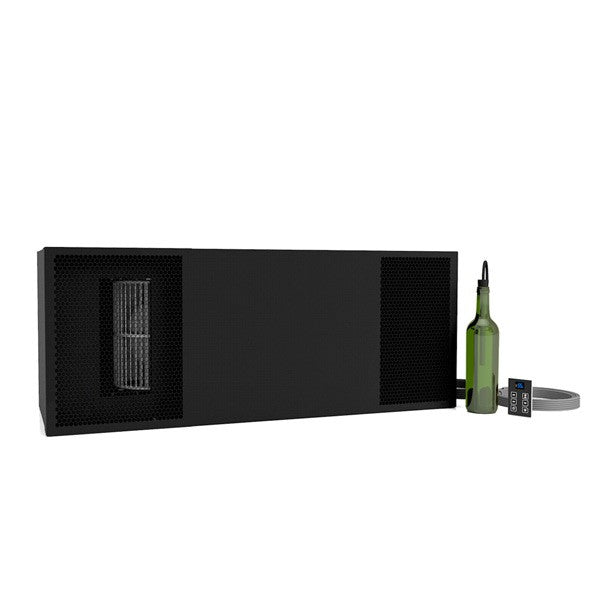

WhisperKOOL Ceiling Mount Split System Evaporator for Wine Cellar Cooling
2020 Upgrades
- IMPROVED PERFORMANCE - Revamped and addition of several internal components improves the overall system performance.

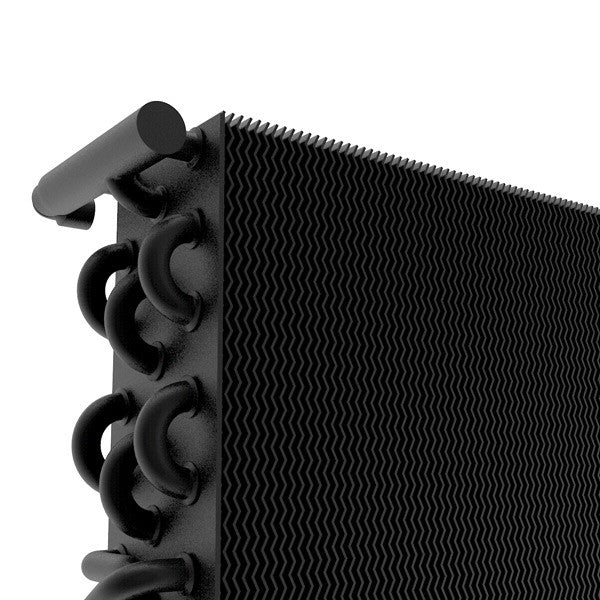

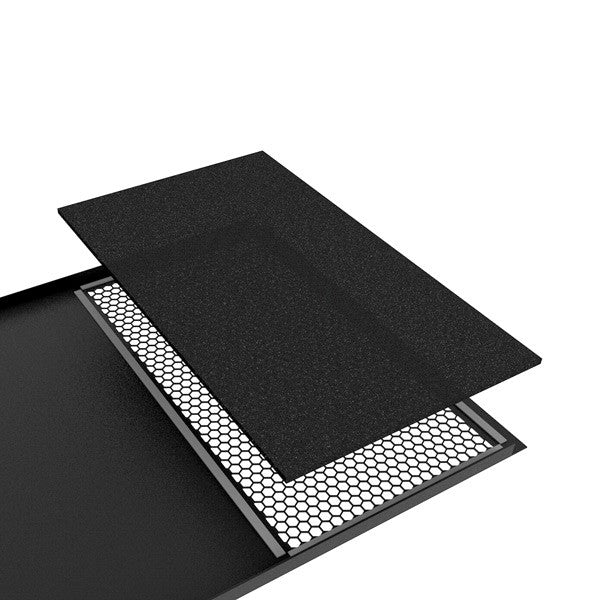

- OPTIMIZED DESIGN - A hex mesh grille accompanied by a filter not only improves airflow but also improves coil, performance, and longevity.
- EASY INSTALLATION - Relocated system components makes system access and installation easier than ever.
- QUIETER OPERATION - 2 speed fan switch, with the option to have a medium or high speed setting, the system can now operate quieter than ever.
- ADDED AIR FILTER - Often times, units are installed before cellar construction has been completed. A filter has now been added behind the grille to protect the unit from the intake of potentially harmful debris during the initial start-up.
- HEX MESH GRILLE - The Ceiling Mount grill will no longer feature louvres. Instead, the louvres will be replaced with a hex mesh design. By replacing the louvres with a hex mesh, air will be directed down into the cellar rather being directed off to the side.
The WhisperKOOL Ceiling Mount 8000 is a serious cooling unit for wine enthusiasts who demand only the best for their wine cellar. If you've got a large cellar this should be the top of your list.
This split system evaporator allows a flush fit with the ceiling of your wine cellar which in turn allows you to use the maximum space available in your cellar for racking. More storage space = more wine!
The 8000 doubles down by not just saving you space but also by providing a sleek and modern design which will add to the design of your cellar. The housing is supplied in a smooth, black primed finish which means you can easily paint it to your desired colour. Looks count and basically most other units on the market are ugly!
Space and Looks are great but we need to get down to the nitty gritty of how this awesome system is going to ensure your wine is stored in the optimum conditions for years to come.

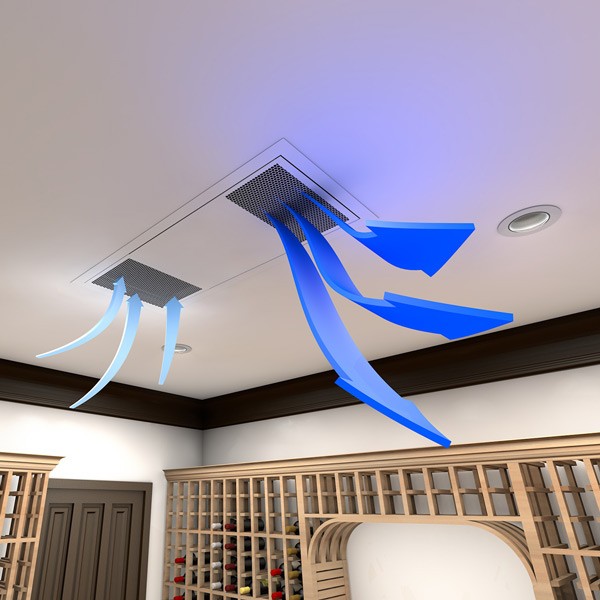

The benefit of a ceiling mounted split system is that it pull the warmer air out of the top of the room where such air accumulates and then pumps back in cooler which in turn will settle into the cellar where you need it most.
The unit is supplied with an advanced electronic display system which gives you fingertip control over what is happening in your cellar.
If you're serious about creating optimal wine storage conditions in your wine cellar you can't afford to go with second best. Buy your WhisperKOOL 8000 online today.
Features:
- Offers excellent efficiency by drawing in the warmer air which accumulates at the ceiling, cools and disperses the air throughout the environment.
- Allows for maximum racking space.
- Is virtually invisible in the cellar.
- Designed with the highest quality, professional grade parts for longevity and performance.
- Designed for ease of installation and accessibility.
- Includes a condensate pump system.
- Smooth, black primered finish, excellent for painting and color matching.
- Low ambient control.
- Grille of unit comes with a smooth, primered finish
Note: The systems do not include a line set.
Owner Manuals & Tech Sheets
WhisperKOOL Ceiling Mount 8000 Wine Cellar Cooling Unit Owners Manual - 110V
WhisperKOOL Ceiling Mount 8000 Wine Cellar Cooling Unit Owners Manual - 220V H.E.
WhisperKOOL Ceiling Mount 8000 Wine Cellar Cooling Unit Product Sheet - 110V
WhisperKOOL Ceiling Mount 8000 Wine Cellar Cooling Unit Product Sheet - 220V H.E.
Specifications
New Cold Weather Start Kit:
WhisperKOOL is proud to present our cold weather start kit. INCLUDED FOR FREE FOR THIS UNIT, This kit was designed exclusively for our split systems where the condensing unit will be installed in extremely cold environments. Our split systems are designed to be adaptable to almost any install, as the condensing unit can be located in a variety of locations such as a mechanical room, basement, back yard, or even a rooftop. Our split systems were designed to operate with the condensing unit exposed to temperatures between 20°F and 110°F. However, there are some areas in the country that may drop below 20°F. Due to these conditions WhisperKOOL designed the Cold Weather Start Kit.
So, when the outside temperatures drop, the pressure in the system drops as well. This presents a challenge because our systems operate using a pump down cycle and a low-pressure switch to turn the compressor on and off. However when the temperature drops below 20°F, the pressure in the system is too low to start the compressor. The use of an electronic bypass is needed to start the compressor and temperature controlled heaters installed on the receiver are needed to raise the pressure in the system to optimal levels.
The Cold Weather Start Kit will bypass the low-pressure switch on startup and keep the pressure in the system high enough to operate correctly for environments as cold as -15°F.
It is important that the cooling system stays operational during cold weather conditions, as heating the house using the central HVAC system will indirectly increase the temperature of the wine cellar. This kit will ensure that the cooling system will continue to operate efficiently in cold weather environments to maintain an optimal wine storage temperature.
New 24V Thermostat Conversion Kit:
Tap into the latest technology to manage and monitor your wine cellar environment with WhisperKOOL.
Introducing our new 24-volt thermostat conversion kit for WhisperKOOL split systems**.
Utilize the industry leading technology from major manufacturers to monitor the environment of your cellar. (see individual thermostat manufactures features and benefits for details.)
- Connect your thermostat to Wi‑Fi to control the temperature from your phone, tablet or laptop.
- Monitor temperature and humidity through smart phones.
- Monitor run time and energy usage.
- Set alarm notifications
- View your cellar conditions from your cellular device.
The use of the 24-volt thermostat conversion kit eliminates the thermostat normally included with the system and allows your contractor to select, purchase and install the thermostat technology of your choice, including but not limited to:
- Nest
- Ecobee.
- Honeywell.
Note:
- Not utilizing the thermostat from WhisperKOOL also eliminates the use of the bottle probe.
- WhisperKOOL does not provide SMART thermostats. Those must be purchased separately.
- WhisperKOOL customer service staff does not provide technical support for the customers selected thermostat.
**The 24-volt Thermostat conversion kit is currently available as an option for all Platinum and Ceiling Mount Split System models.**
Exterior Housing:

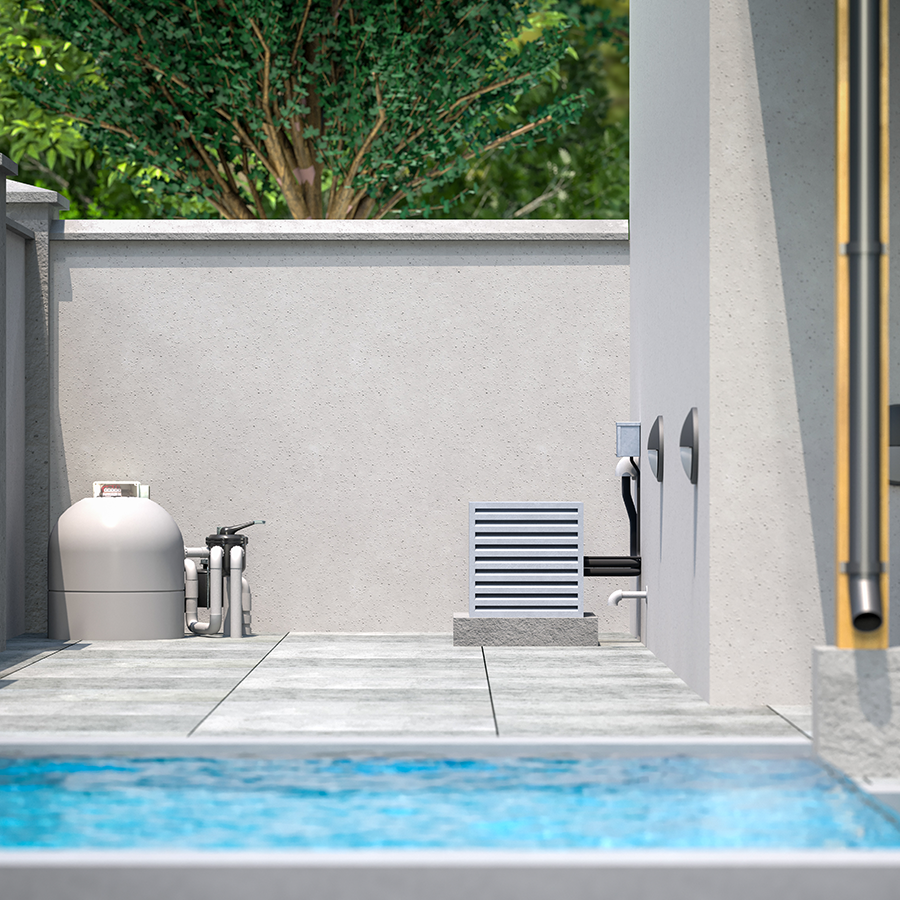

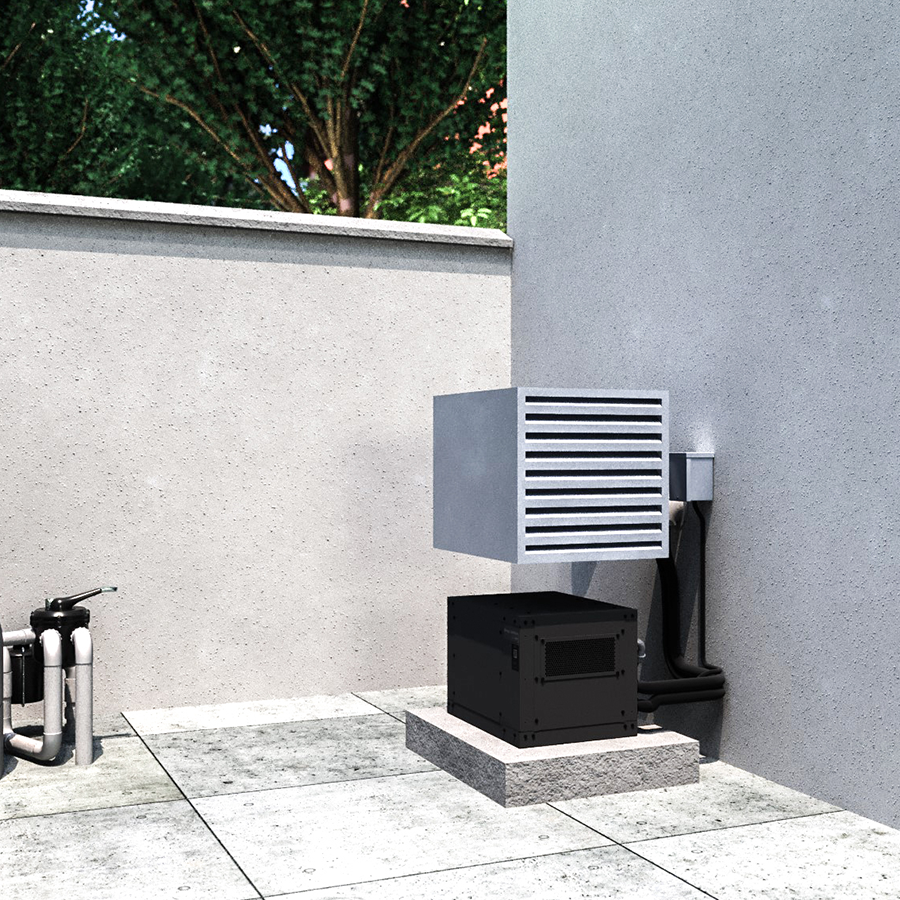

The Exterior Housing protects the condenser portion of the split system from the elements when installed outdoors.
Warranty Information
Warranty Overview:
- Self-Contained System Warranty: A limited 2-year product/5-year compressor warranty is offered with all self-contained cooling units at the date of purchase.
- Split System Warranty: A limited 2-year product warranty is offered with all split systems. While the warranty starts at the date of purchase, this warranty is not activated until a Product Warranty Checklist has been submitted and approved by WhisperKOOL.
- Warranty Claims: All warranty claims must be filed directly through WhisperKOOL customer service. WhisperKOOL performs warranty repairs at its manufacturing facility in Stockton, CA, or, with WhisperKOOL's prior permission, through a licensed HVAC/R technician. If a unit can't be repaired in the field and is still under warranty, WhisperKOOL covers the shipping costs to return it (excluding customs fees and duties). As an authorized WhisperKOOL dealer, Wine Cellar HQ is glad to help you file your claim.
- Limited Warranty: Limited warranty applies only to wine cooling units purchased directly from WhisperKOOL or through an authorized dealer. Damage caused by others or beyond the control of WhisperKOOL shall not be considered defects in material or workmanship and is not covered by the warranty. The limited warranty does not cover any parts or labor to correct any defect caused by negligence, commercial use, accident, maintenance, installation, service/repair, or improper use.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Questions, answered
WhisperKOOL split system FAQ
Straight answers from the team that sizes, installs and services wine cellar cooling every day.
Do I need an HVAC technician to install a split system?
Yes. A split system has two units joined by refrigerant lines, so a licensed HVAC/R technician has to install it, charge it and start it up. Installing it any other way voids the WhisperKOOL warranty.
What is not included in the box?
The copper line set that connects the evaporator and condenser is not included, and neither is the drain line or any ducting for ducted models. An exterior housing for an outdoor condenser is available as an option. Your technician will size the line set for your run.
How far can the condenser be from the cellar?

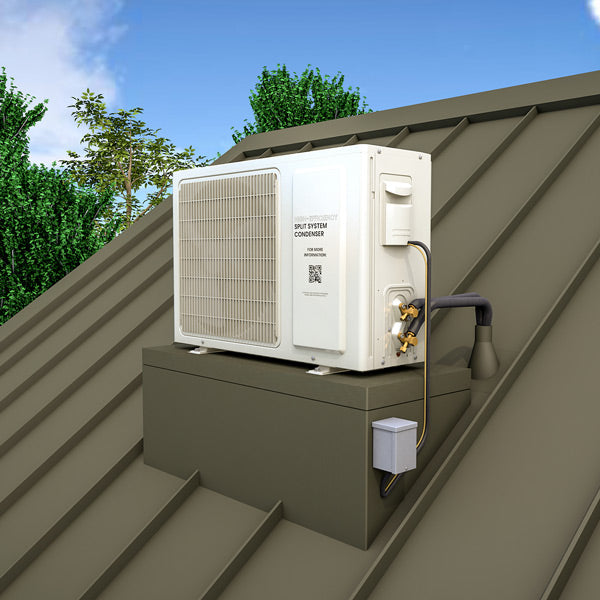

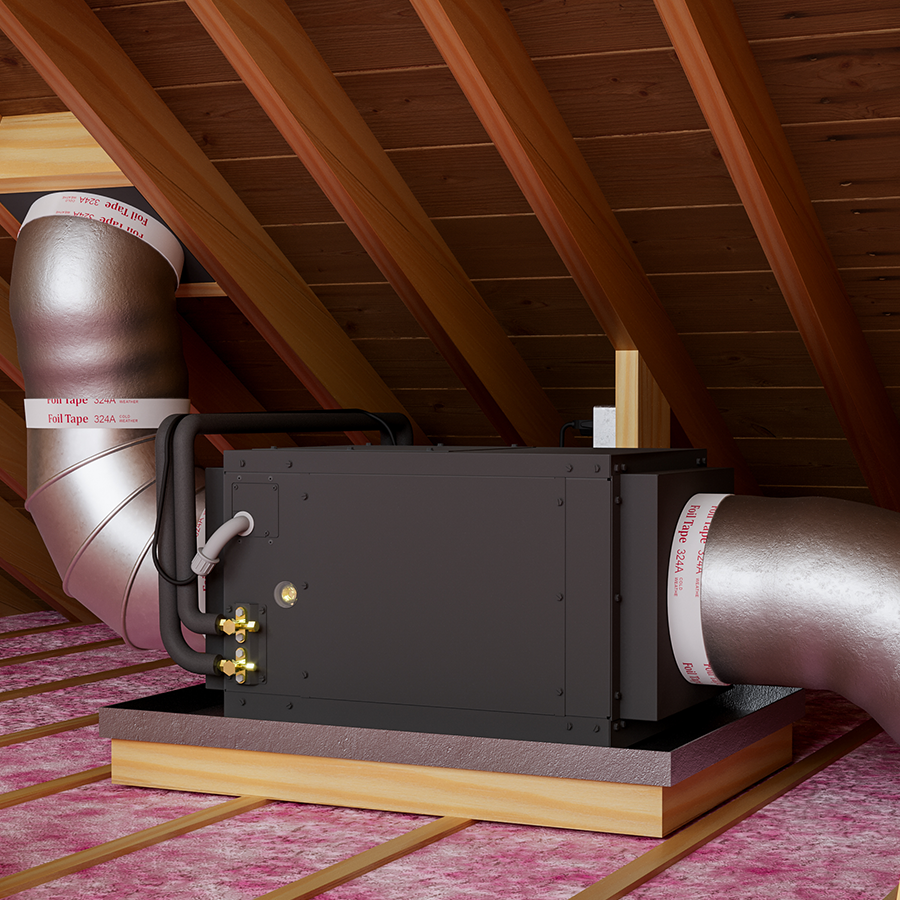

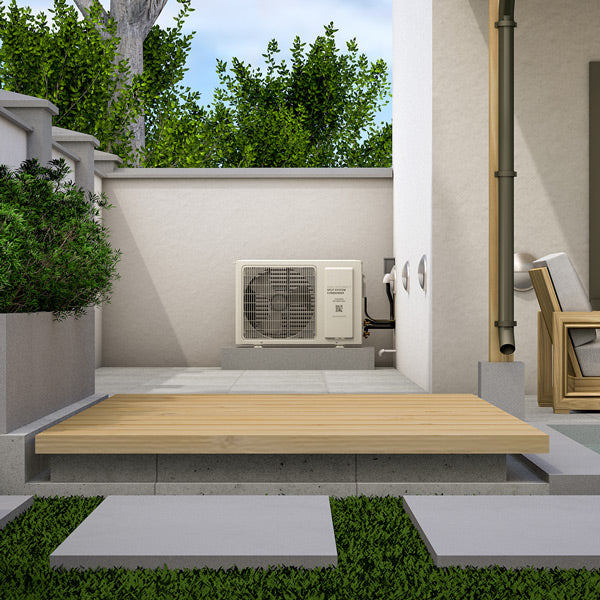

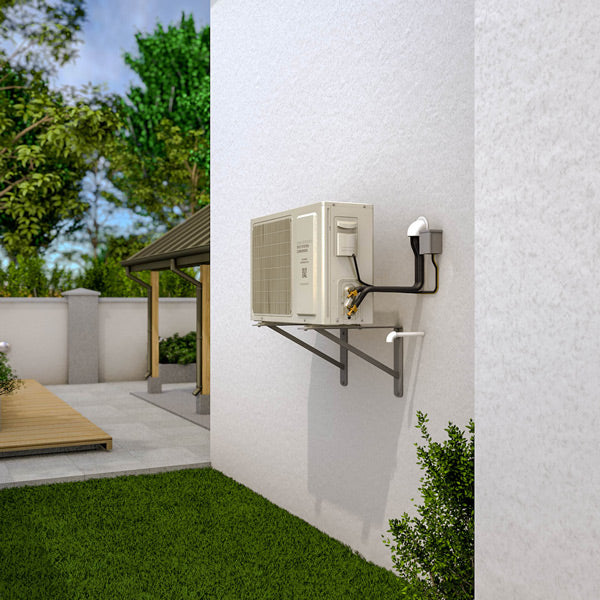

On Platinum, Ceiling Mount and Quantum systems the condensing unit can sit up to 100 line feet from the evaporator, so it can go outdoors, in a garage, attic or mechanical room. Ducted evaporators can sit up to 25 duct feet from the cellar. Exact limits for each model are in its owner's manual.

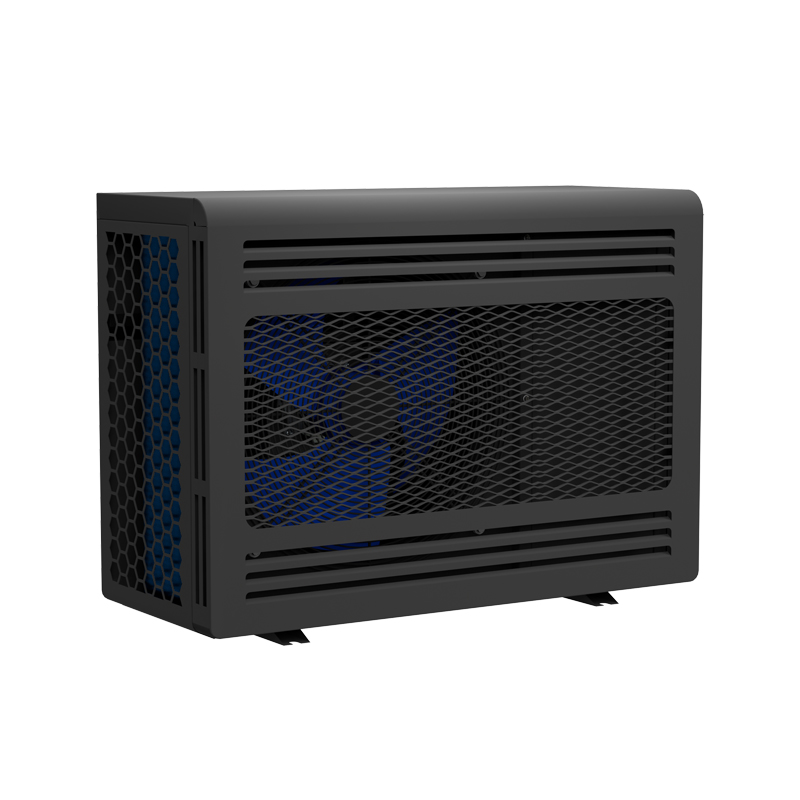

110V or 220V Advanced H.E. condenser: which one?

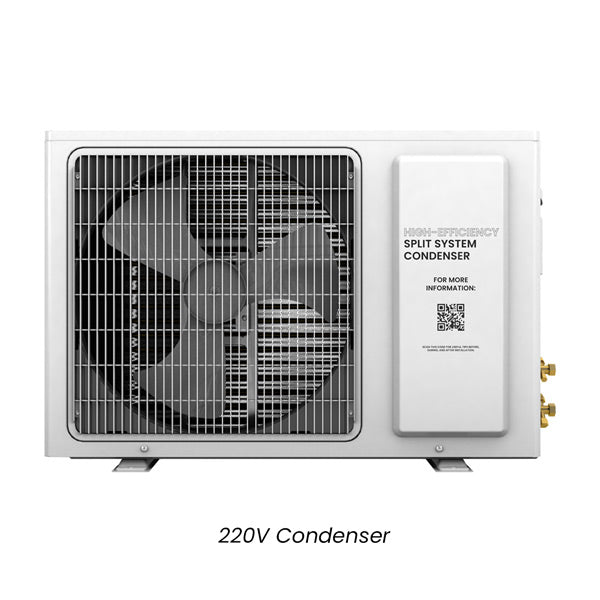

The 220V Advanced H.E. condenser is made for outdoor installs: a larger coil, quieter fans and lower power use, and it copes with extreme temperatures. The 110V condenser suits indoor spaces such as a garage, attic or mechanical room. If you are unsure, tell us where it will go and we will recommend one.
Will it run in cold weather?
Split condensers are designed for roughly 20°F to 110°F. For colder locations, WhisperKOOL's cold weather start kit keeps the system running well below freezing, and it is included with many models. Check the product description, or ask us before you order.
How does the warranty work on a split system?
WhisperKOOL split systems carry a limited 2-year product warranty from the purchase date. It is activated once the installing technician submits the Product Warranty Checklist and WhisperKOOL approves it. As an authorized dealer, we help you register the system and file any claim.
Can I order online or do I need a quote?
Both work. If you already know the model, condenser and options, you can add it to your cart. If you want help choosing or want the full system priced in one place, request a quote and our team will send you an itemized recommendation.
