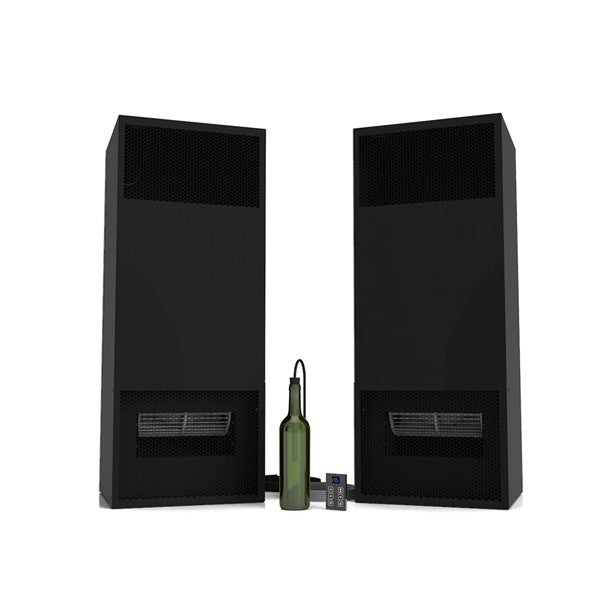

WhisperKOOL Ceiling Mount Twin Split Wine Cellar Cooling System

$11,849.00
WhisperKOOL  |  SKU: S-WKCM9000-000-CW3
Condenser

Est. ship date: Nov 27 – Dec 1

Want it priced as a complete system?

Tell us your cellar size and where the condenser can go. We'll recommend the evaporator, condenser and add-ons, and send you an itemized quote.

Request a quoteor call 888-589-1833
  • Authorized WhisperKOOL dealerGenuine system, full factory warranty
  • Free system sizingHeat-load check before you order
  • Best price guaranteedFound it lower? We will match it
  • Secure checkoutEncrypted payment, cards and Shop Pay

Two ceiling-mounted evaporators on one condenser for cellars up to 3,000 cu. ft. (8,500 BTU/h), with no ducting needed.

Cellar size
Up to 3,000 cu. ft.insulated cellar
Evaporators
2 ceiling-mountedflush with the ceiling
Condenser

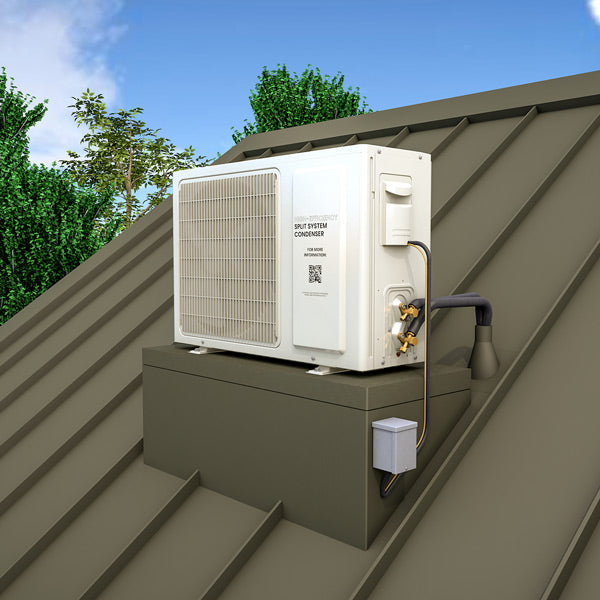

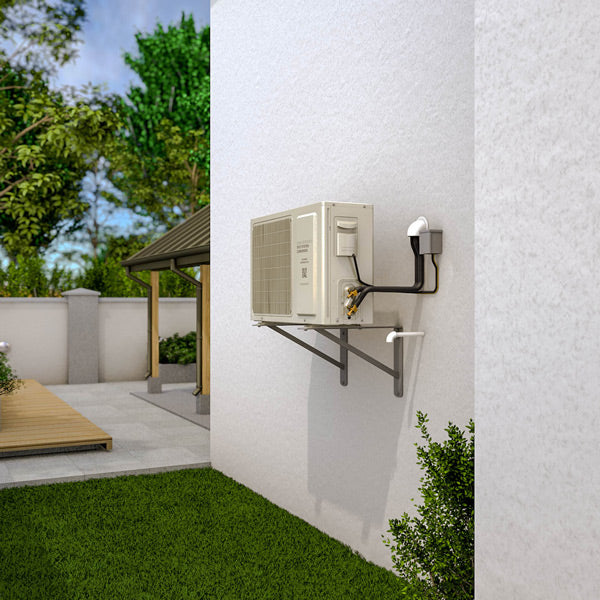

Up to 100 line ft awayindoors or outdoors
Install
HVAC/R technicianrequired

Installed by a licensed HVAC/R technician. Line set not included. Ratings assume an insulated cellar held at 55°F.

  • Two ceiling evaporatorsTwice the cooling of a single Ceiling Mount
  • Built for cold climatesR-404a condenser runs down to -15°F, no cold weather kit needed
  • Condensate pump includedRemoves condensate without a gravity drain
  • Paintable grillePrimed finish you can paint to match the cellar

Your best price is a call away. Volume pricing and system design help: 888-589-1833

How it works

Buying a split system, step by step

A split system is a two-part install, so it pays to plan it before you order. Here is what happens, and where we help.

  1. Size the cellar

    Split systems are sized to the room, not just the cubic feet. Glass, stone, lighting and the temperature outside the cellar all change the load. Send us the details for a free heat-load check.

    Use the cellar calculator
  2. Choose the system

    Pick the evaporator style (wall-mounted, ceiling, ducted or concealed) and the condenser. The 220V Advanced H.E. condenser is built for outdoor installs; the 110V condenser suits indoor spaces like a garage, attic or mechanical room.

  3. Plan the install

    A licensed HVAC/R technician runs the line set between the two units, charges the system and starts it up. The line set, drain line and any ducting are sourced separately. Your installer will confirm the run length and power.

  4. Activate the warranty

    The 2-year limited warranty starts on the purchase date and is activated once your technician submits WhisperKOOL's Product Warranty Checklist and WhisperKOOL approves it. We help you with the paperwork.

Request a quotePrefer to talk it through? Call 888-589-1833

Ceiling Mounted Twin Split System for Wine Cellar Cooling by WhisperKOOL

2020 Upgrades

  • IMPROVED PERFORMANCE - Revamped and addition of several internal components improves the overall system performance.

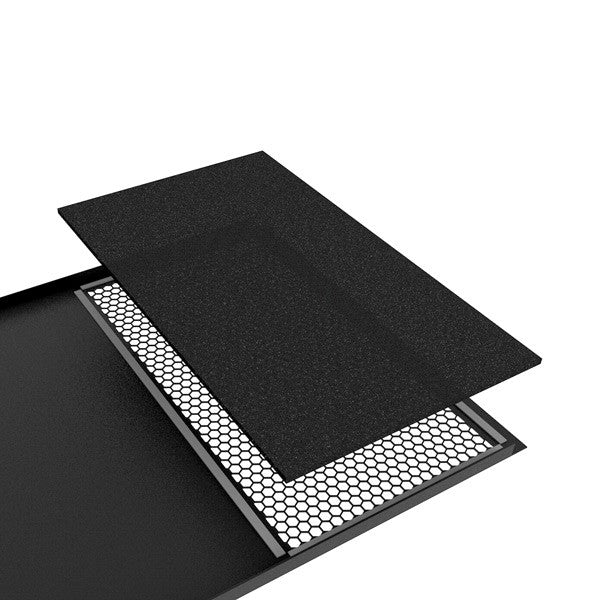

  • OPTIMIZED DESIGN - A hex mesh grille accompanied by a filter not only improves airflow but also improves coil, performance, and longevity.
  • EASY INSTALLATION - Relocated system components makes system access and installation easier than ever.
  • QUIETER OPERATION - 2 speed fan switch, with the option to have a medium or high speed setting, the system can now operate quieter than ever.
  • ADDED AIR FILTER - Often times, units are installed before cellar construction has been completed. A filter has now been added behind the grille to protect the unit from the intake of potentially harmful debris during the initial start-up.
  • HEX MESH GRILLE - The Ceiling Mount grill will no longer feature louvres. Instead, the louvres will be replaced with a hex mesh design. By replacing the louvres with a hex mesh, air will be directed down into the cellar rather being directed off to the side.

The WhisperKOOL Ceiling Mount Twin Split System is a serious cooling unit for wine enthusiasts who demand only the best for their wine cellar. If you need to cool a monster cellar this is the system for you.

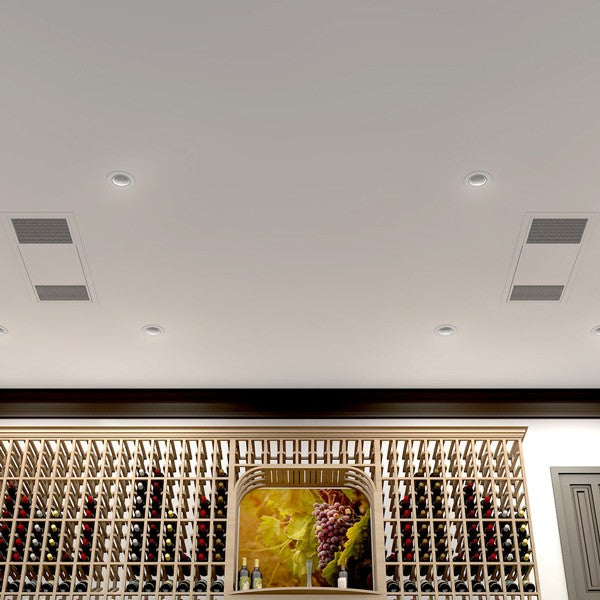

This dual split system evaporator allows a flush fit with the ceiling of your wine cellar which in turn allows you to use the maximum space available in your cellar for racking. More storage space = more wine!

The twin split system doubles down by not just saving you space but also by providing a sleek and modern design which will add to the design of your cellar. The housing is supplied in a smooth, black primed finish which means you can easily paint it to your desired colour. Looks count and basically most other units on the market are ugly!

Space and Looks are great but we need to get down to the nitty gritty of how this awesome system is going to ensure your wine is stored in the optimum conditions for years to come.

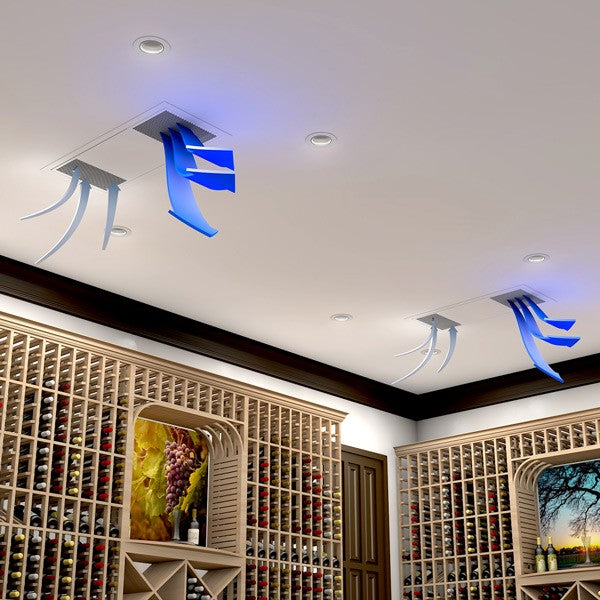

The benefit of a ceiling mounted split system is that it pulls the warmer air out of the top of the room where such air accumulates and then pumps back in cooler which in turn will settle into the cellar where you need it most.

The dual unit is supplied with an advanced electronic display system which gives you fingertip control over what is happening in your cellar.

If you're serious about creating optimal wine storage conditions in your wine cellar you can't afford to go with second best. Buy your WhisperKOOL Twin Split Wine Cellar Cooling System online today.

Not convinced yet? Check out these great features.

1. Greater Cooling Capacity
Higher-capacity unit cools cellars up to 3000 cubic feet.

2. Dual Evaporators
The Ceiling Mount Twin's dual evaporators have twice the cooling power of the single-evaporator Ceiling Mount split system, ideal for cooling larger cellars. The evaporator units come with a durable black powder-coated finish and can be painted to match the cellar.

3. No Ducting Required
The two evaporators are mounted in the cellar. As a result, the Ceiling Mount Twin doesn't suffer a loss of cooling capacity (as a fully ducted unit might).

4. Standard and 24V Thermostat Options Available
This unit can be controlled using the sleek WhisperKOOL remote control or any 24V thermostat of your choice.

5. Allows for maximum racking space.

6. Various mounting options, including an aesthetic "fully recessed" option

7. HVAC/R Technician required for installation

8. Includes a pump system to remove excess condensate

9. Grille of unit comes with a durable black powder-coated finish, which can be painted to match the cellar

Owner Manuals & Tech Sheets

WhisperKOOL Ceiling Mount Twin Split Wine Cellar Cooling System Owners Manual - 220V

WhisperKOOL Ceiling Mount Twin Split Wine Cellar Cooling System Owners Manual - 220V H.E.

WhisperKOOL Ceiling Mount Twin Split Wine Cellar Cooling System Product Sheet - 220V

WhisperKOOL Ceiling Mount Twin Split Wine Cellar Cooling System Product Sheet - 220V H.E.

Specifications
Cellar Size: 3000 cu. ft.
BTUh: 8500

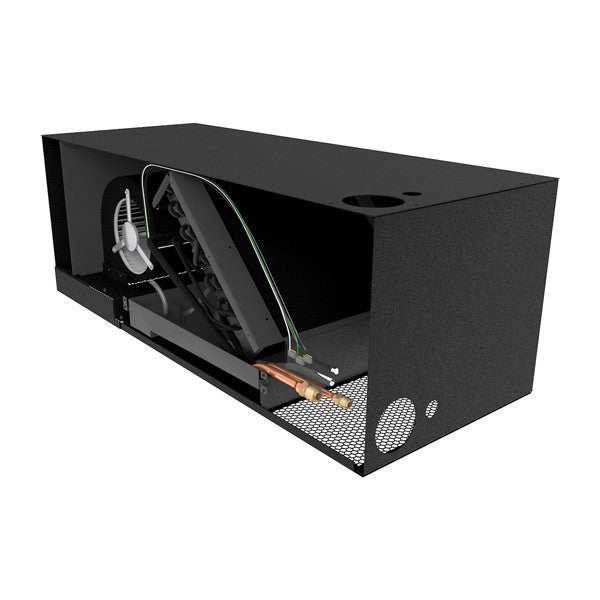

Dimensions (Evaporator): 12.75”H x 14.5”W x 35.75”D (2 units)
Dimensions (Condensing Unit): 24”L x 17.5”W x 13.4”H
AMPS (starting/running): 2/1 (per evaporator)
Installation: Evaporator coils installed in the cellar
Temp. Delta: 55°F temperature differential between the cellar temperature and condenser air intake temperature.
Thermostat: Remote digital display
Warranty: 2 year (parts and labor)


Expedited Shipping:
Please contact our sales department at (888) 589-1833 or info@winecellarhq.com for quotes on expedited shipping.

Our new Ceiling Mount Twin system combines versatile installation options with the proven power of dual evaporators, ideal for the aging of fine wines. Also included is the quality and reliability that contractors have come to expect from WhisperKOOL.

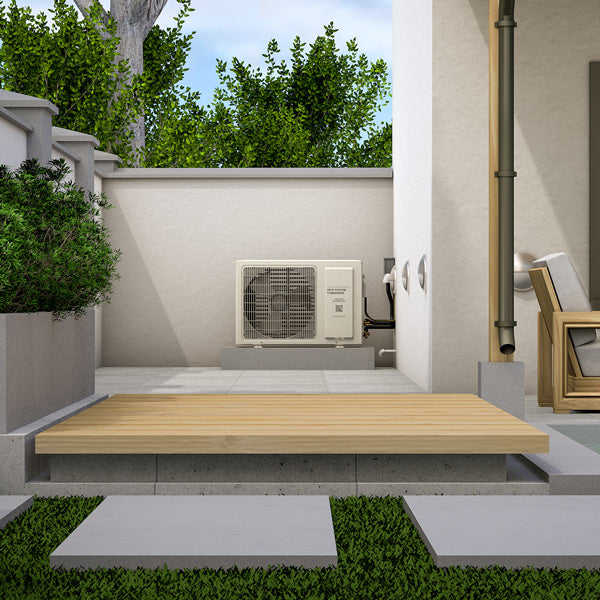

The Ceiling Mount Twin utilizes R-404a refrigerant and has the built in capacity to be installed outside in cold weather climates where temperatures get as low as -15 degrees. Therefore, no cold weather start kit is required.

BTUh Rating:
There are circumstances in which a cellar design may require a larger unit due to existing restrictions. Building materials such as glass, stone, concrete, etc. do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for design limitations. * Please utilize our Cellar Wizard in order to ensure you are selecting the proper cooling unit for your application. Undersized cooling units can lead to premature failure and/or prevent the system from reaching the desired set temperature. As a result, they are not covered under warranty.

Our split systems are "pump-down" systems, providing our customers with the most professional and reliable split cooling systems for wine cellars.

Note: The systems do not include a line set.

New 24V Thermostat Conversion Kit:

Tap into the latest technology to manage and monitor your wine cellar environment with WhisperKOOL.

WhisperKOOL presents the new 24-volt thermostat conversion kit for split systems**.

Utilize the industry-leading technology from major manufacturers to monitor the environment of your cellar. (visit individual thermostat manufacturers' websites for details).

  • Connect your thermostat to Wi‑Fi to control the temperature from your phone, tablet or laptop.
  • Monitor temperature and humidity through smart phones.
  • Monitor run time and energy usage.
  • Set alarm notifications.
  • View your cellar conditions from your mobile device.

The 24-volt thermostat conversion kit replaces the thermostat normally included with the system and allows your contractor to select, purchase, and install the thermostat technology of your choice. Popular 24-volt thermostat brands include but are not limited to:

  • Nest
  • Ecobee
  • Honeywell

Note:

  • Forgoing the standard WhisperKOOL thermostat also eliminates the use of the bottle probe.
  • WhisperKOOL does not provide smart thermostats. Those must be purchased separately.
  • WhisperKOOL customer service staff do not provide technical support for the customers' selected thermostat.

**The 24-volt thermostat conversion kit is currently available as an option for all Platinum and Ceiling Mount split systems.**








Warranty Information
A limited 2-year parts and labor

Warranty Overview:

  • Self-Contained System Warranty: A limited 2-year product/5-year compressor warranty is offered with all self-contained cooling units at the date of purchase.

  • Split System Warranty: A limited 2-year product warranty is offered with all split systems. While the warranty starts at the date of purchase, this warranty is not activated until a Product Warranty Checklist has been submitted and approved by WhisperKOOL.

  • Warranty Claims: All warranty claims must be filed directly through WhisperKOOL customer service. WhisperKOOL performs warranty repairs at its manufacturing facility in Stockton, CA, or, with WhisperKOOL's prior permission, through a licensed HVAC/R technician. If a unit can't be repaired in the field and is still under warranty, WhisperKOOL covers the shipping costs to return it (excluding customs fees and duties). As an authorized WhisperKOOL dealer, Wine Cellar HQ is glad to help you file your claim.

  • Limited Warranty: Limited warranty applies only to wine cooling units purchased directly from WhisperKOOL or through an authorized dealer. Damage caused by others or beyond the control of WhisperKOOL shall not be considered defects in material or workmanship and is not covered by the warranty. The limited warranty does not cover any parts or labor to correct any defect caused by negligence, commercial use, accident, maintenance, installation, service/repair, or improper use.

Payment & Security

Payment methods

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Questions, answered

WhisperKOOL split system FAQ

Straight answers from the team that sizes, installs and services wine cellar cooling every day.

Do I need an HVAC technician to install a split system?

Yes. A split system has two units joined by refrigerant lines, so a licensed HVAC/R technician has to install it, charge it and start it up. Installing it any other way voids the WhisperKOOL warranty.

What is not included in the box?

The copper line set that connects the evaporator and condenser is not included, and neither is the drain line or any ducting for ducted models. An exterior housing for an outdoor condenser is available as an option. Your technician will size the line set for your run.

How far can the condenser be from the cellar?

On Platinum, Ceiling Mount and Quantum systems the condensing unit can sit up to 100 line feet from the evaporator, so it can go outdoors, in a garage, attic or mechanical room. Ducted evaporators can sit up to 25 duct feet from the cellar. Exact limits for each model are in its owner's manual.

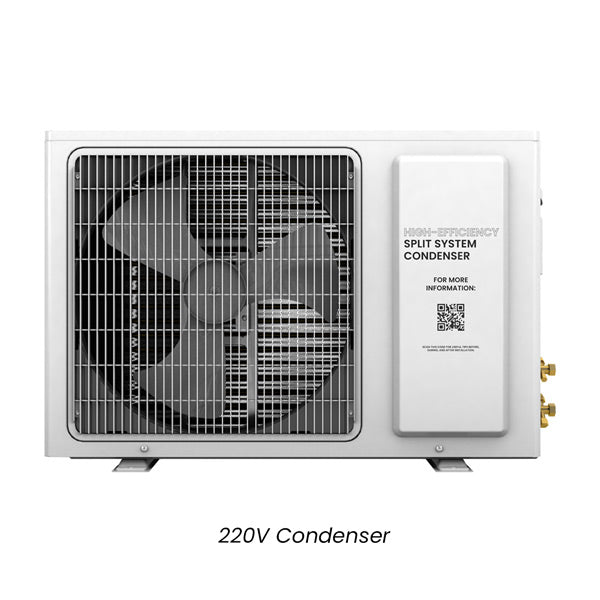

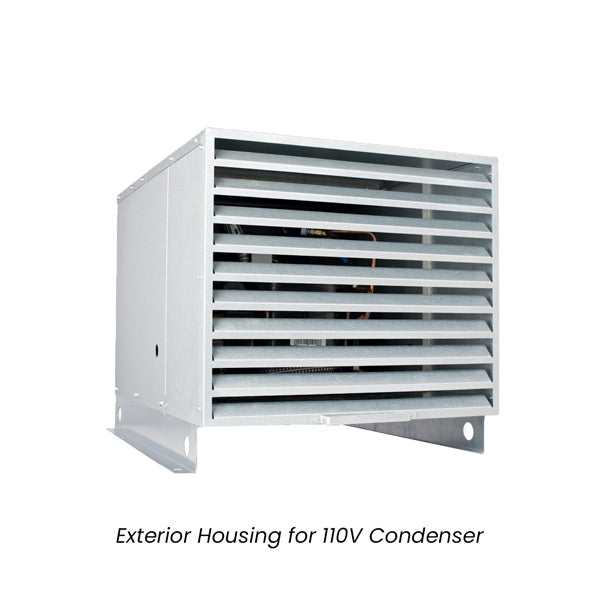

110V or 220V Advanced H.E. condenser: which one?

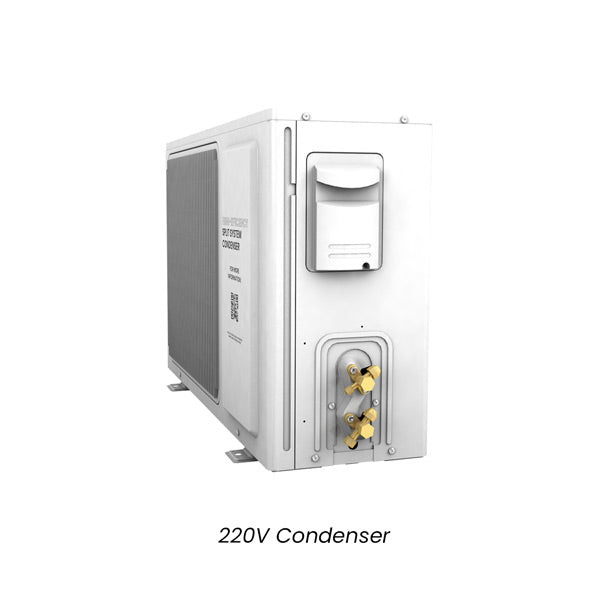

The 220V Advanced H.E. condenser is made for outdoor installs: a larger coil, quieter fans and lower power use, and it copes with extreme temperatures. The 110V condenser suits indoor spaces such as a garage, attic or mechanical room. If you are unsure, tell us where it will go and we will recommend one.

Will it run in cold weather?

Split condensers are designed for roughly 20°F to 110°F. For colder locations, WhisperKOOL's cold weather start kit keeps the system running well below freezing, and it is included with many models. Check the product description, or ask us before you order.

How does the warranty work on a split system?

WhisperKOOL split systems carry a limited 2-year product warranty from the purchase date. It is activated once the installing technician submits the Product Warranty Checklist and WhisperKOOL approves it. As an authorized dealer, we help you register the system and file any claim.
