WhisperKOOL Platinum Split Twin Wall Mounted Wine Cellar Cooling System

$12,609.00
WhisperKOOL  |  SKU: S-WKPS9000-000-WMCW
Condenser

Est. ship date: Nov 23 – Nov 25

Choose your size · Platinum Split

Want it priced as a complete system?

Tell us your cellar size and where the condenser can go. We'll recommend the evaporator, condenser and add-ons, and send you an itemized quote.

Request a quoteor call 888-589-1833
  • Authorized WhisperKOOL dealerGenuine system, full factory warranty
  • Free system sizingHeat-load check before you order
  • Best price guaranteedFound it lower? We will match it
  • Secure checkoutEncrypted payment, cards and Shop Pay

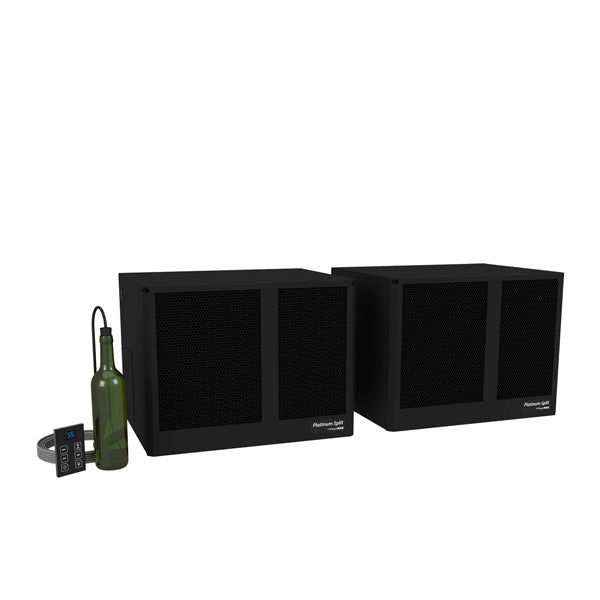

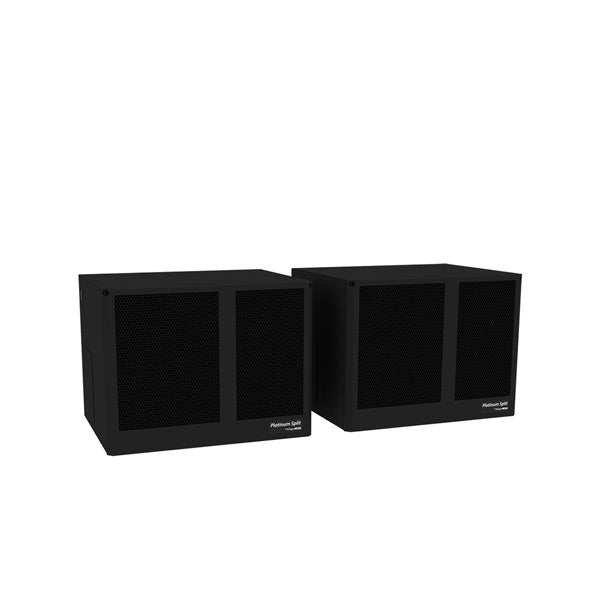

Two wall-mounted evaporators on one condenser for large cellars up to 3,000 cu. ft. (8,500 BTU/h).

Cellar size
Up to 3,000 cu. ft.insulated cellar
Evaporators

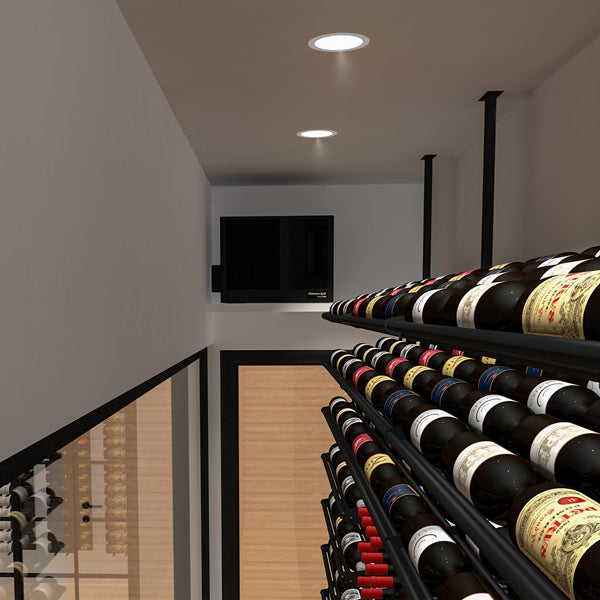

2 wall-mountedin the cellar
Condenser

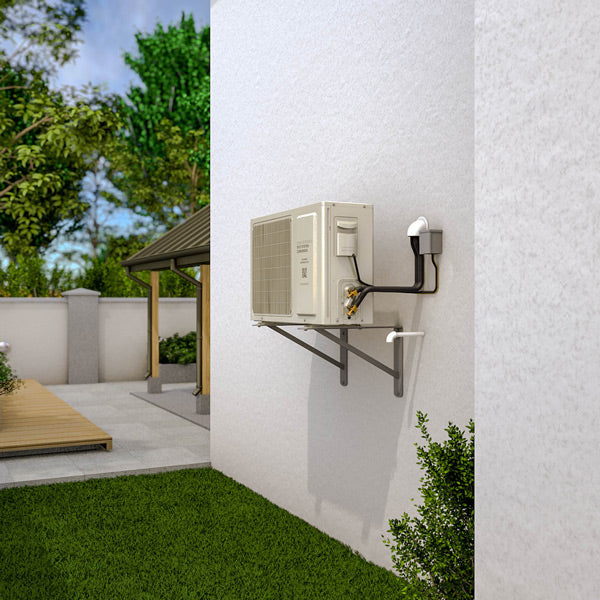

Up to 100 line ft awayindoors or outdoors
Install
HVAC/R technicianrequired

Installed by a licensed HVAC/R technician. Line set not included. Ratings assume an insulated cellar held at 55°F.

  • Two evaporatorsTwice the air movement for large cellars
  • Quiet in the cellarThe compressor lives in the condenser, up to 100 line feet away
  • Bottle probeReads the wine's liquid temperature, not just the air
  • Pump-down systemBuilt for longer compressor life

Your best price is a call away. Volume pricing and system design help: 888-589-1833

How it works

Buying a split system, step by step

A split system is a two-part install, so it pays to plan it before you order. Here is what happens, and where we help.

  1. Size the cellar

    Split systems are sized to the room, not just the cubic feet. Glass, stone, lighting and the temperature outside the cellar all change the load. Send us the details for a free heat-load check.

    Use the cellar calculator
  2. Choose the system

    Pick the evaporator style (wall-mounted, ceiling, ducted or concealed) and the condenser. The 220V Advanced H.E. condenser is built for outdoor installs; the 110V condenser suits indoor spaces like a garage, attic or mechanical room.

  3. Plan the install

    A licensed HVAC/R technician runs the line set between the two units, charges the system and starts it up. The line set, drain line and any ducting are sourced separately. Your installer will confirm the run length and power.

  4. Activate the warranty

    The 2-year limited warranty starts on the purchase date and is activated once your technician submits WhisperKOOL's Product Warranty Checklist and WhisperKOOL approves it. We help you with the paperwork.

Request a quotePrefer to talk it through? Call 888-589-1833

Platinum Series wine cellar cooling split system by WhisperKOOL for up to 3000 cubic feet with twin evaporators.

You know how important maintaining the optimum conditions for your wine storage space is. You also know that you can't trust any old cooling unit to maintain those optimum conditions.

You need a premium solution, the WhisperKOOL Platinum Split Twin Wine Cellar System. And it's the big one.

Designed for large cellars, this split system is one of the best on the market today and it's just been given a design update by WhisperKOOL.

You can now gain access to the systems from the front of the unit via removable grills. This new access significantly increases the ease of installation and maintenance access.

What we love most about the Platinum series wine cellar coolers in the extensive features that are going to make effective wine storage a breeze for you.

Check them out...

WhisperKOOL Platinum Split Twin Features:

  • Double evaporators for cooling larger spaces
  • Quiet and efficient operation
  • Advanced electronic display

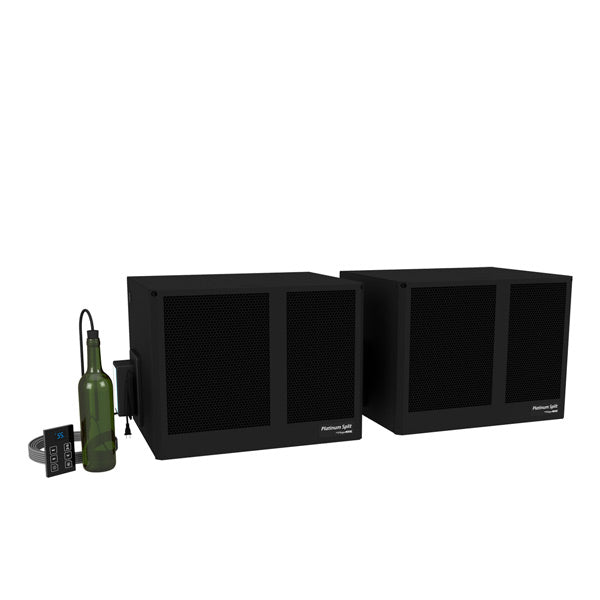

  • Liquid bottle probe
  • Alarm capabilities
  • Flexible installation
  • 55°F temperature differential

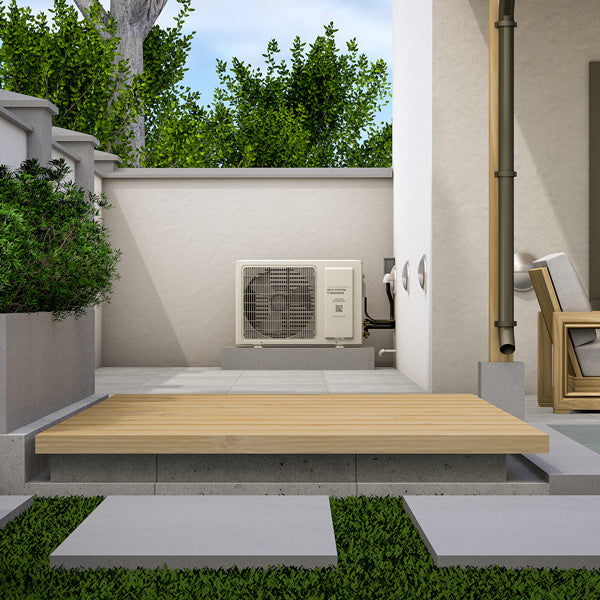

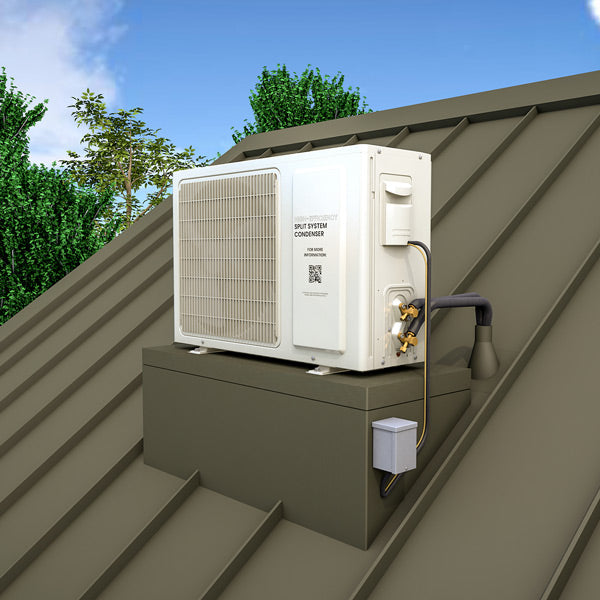

  • Condensing unit can be placed outdoors w/optional housing
  • Low ambient control
  • Pump down system for longer compressor life*

If you're serious about creating the right environment for your wine to retain it's quality and/or age successfully you need a serious wine cooling solution.

Owner Manuals & Tech Sheets

WhisperKOOL Platinum Split Twin Wall Mounted Wine Cellar Cooling System Owners Manual - 110V

WhisperKOOL Platinum Split Twin Wall Mounted Wine Cellar Cooling System Owners Manual - 220V H.E.

WhisperKOOL Platinum Split Twin Wall Mounted Wine Cellar Cooling System Product Details Sheet - 110V

WhisperKOOL Platinum Split Twin Wall Mounted Wine Cellar Cooling System Product Details Sheet - 220V H.E.

    Specifications
    • Cellar Size: Approx. 3000 cu. ft. (Each wine cellar is unique and has specific cooling requirements. Heat load calculations should always be performed prior to selecting a cooling unit. Cellar Wizard)
    • BTUh w/90°F air entering the condenser coil: 8500
    • dBA: Evaporator: 58.5 Decibels (per unit)
    • Dimensions: Evaporator: 20.5”W x 15.5”H x 16.1”D (x2) Condensing Unit: 20.5”W x 15.5”H x 16.1”D
    • Weight: Evaporator: 80lbs, Condensing Unit: 67 lbs
    • AMPS (starting/running): Evaporator: 2/1, Condensing Unit: 27/7.3
    • Installation: Evaporator units are installed in the cellar. Condensing unit is installed outside in a protective enclosure.
    • Temp. Delta: 55°F temperature differential
    • Thermostat: Remote digital display (connected to master)

    BTUh Rating:
    There are circumstances in which a cellar design may require a larger unit due to existing restrictions.

    Building materials such as glass, stone, concrete, etc. do not offer the insulation capacity required to maintain the optimal cellar environment.

    We recommend purchasing a unit with a larger capacity to compensate for design limitations. * Please utilize our Cellar Wizard in order to ensure you are selecting the proper cooling unit for your application.

    Undersized cooling units can lead to premature failure and/or prevent the system from reaching the desired set temperature. As a result, they are not covered under warranty.

    Note: The systems do not include a line set.

      Available Upgrades

      Exterior Housing:
      When installed outdoors, the exterior housing protects the condenser portion of the split system from the elements.



      Warranty Information
      A limited 2-year parts and labor

      Warranty Overview:

      • Self-Contained System Warranty: A limited 2-year product/5-year compressor warranty is offered with all self-contained cooling units at the date of purchase.

      • Split System Warranty: A limited 2-year product warranty is offered with all split systems. While the warranty starts at the date of purchase, this warranty is not activated until a Product Warranty Checklist has been submitted and approved by WhisperKOOL.

      • Warranty Claims: All warranty claims must be filed directly through WhisperKOOL customer service. WhisperKOOL performs warranty repairs at its manufacturing facility in Stockton, CA, or, with WhisperKOOL's prior permission, through a licensed HVAC/R technician. If a unit can't be repaired in the field and is still under warranty, WhisperKOOL covers the shipping costs to return it (excluding customs fees and duties). As an authorized WhisperKOOL dealer, Wine Cellar HQ is glad to help you file your claim.

      • Limited Warranty: Limited warranty applies only to wine cooling units purchased directly from WhisperKOOL or through an authorized dealer. Damage caused by others or beyond the control of WhisperKOOL shall not be considered defects in material or workmanship and is not covered by the warranty. The limited warranty does not cover any parts or labor to correct any defect caused by negligence, commercial use, accident, maintenance, installation, service/repair, or improper use.

      Payment & Security

      Payment methods

      • Amazon
      • American Express
      • Apple Pay
      • Diners Club
      • Discover
      • Google Pay
      • Mastercard
      • PayPal
      • Shop Pay
      • Visa

      Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

      Questions, answered

      WhisperKOOL split system FAQ

      Straight answers from the team that sizes, installs and services wine cellar cooling every day.

      Do I need an HVAC technician to install a split system?

      Yes. A split system has two units joined by refrigerant lines, so a licensed HVAC/R technician has to install it, charge it and start it up. Installing it any other way voids the WhisperKOOL warranty.

      What is not included in the box?

      The copper line set that connects the evaporator and condenser is not included, and neither is the drain line or any ducting for ducted models. An exterior housing for an outdoor condenser is available as an option. Your technician will size the line set for your run.

      How far can the condenser be from the cellar?

      On Platinum, Ceiling Mount and Quantum systems the condensing unit can sit up to 100 line feet from the evaporator, so it can go outdoors, in a garage, attic or mechanical room. Ducted evaporators can sit up to 25 duct feet from the cellar. Exact limits for each model are in its owner's manual.

      110V or 220V Advanced H.E. condenser: which one?

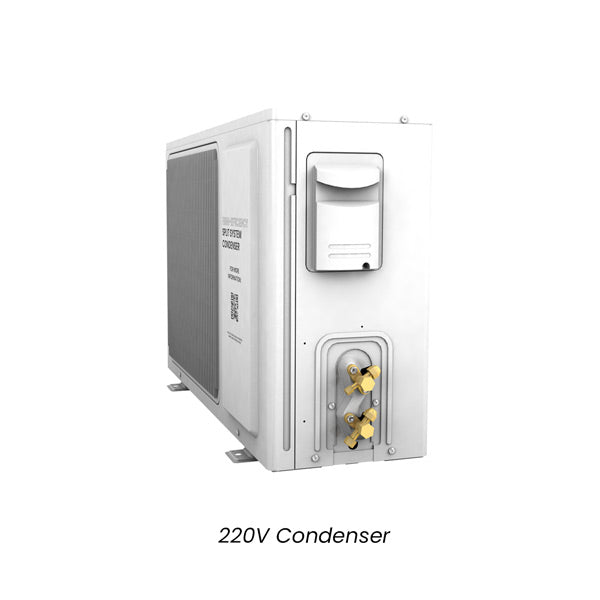

      The 220V Advanced H.E. condenser is made for outdoor installs: a larger coil, quieter fans and lower power use, and it copes with extreme temperatures. The 110V condenser suits indoor spaces such as a garage, attic or mechanical room. If you are unsure, tell us where it will go and we will recommend one.

      Will it run in cold weather?

      Split condensers are designed for roughly 20°F to 110°F. For colder locations, WhisperKOOL's cold weather start kit keeps the system running well below freezing, and it is included with many models. Check the product description, or ask us before you order.

      How does the warranty work on a split system?

      WhisperKOOL split systems carry a limited 2-year product warranty from the purchase date. It is activated once the installing technician submits the Product Warranty Checklist and WhisperKOOL approves it. As an authorized dealer, we help you register the system and file any claim.

      Can I order online or do I need a quote?

      Both work. If you already know the model, condenser and options, you can add it to your cart. If you want help choosing or want the full system priced in one place, request a quote and our team will send you an itemized recommendation.
