Specifications
-
Cellar Size: 1750 cu. ft. (properly Insulated and vapor barrier)
-
BTUh: 5211 with 90°F air entering the condenser coil
-
dBA: Evaporator: 54 Decibels, Condenser: 65 Decibels
-
Dimensions: Evaporator: 16.1"L x 20.5”W x 15.5”H, condenser: 16.08”L x 16.23”W x 12.61"H
-
Weight: Evaporator: 57lbs Condenser: 66lbs
-
AMPS (starting/running): Evaporator: 1 (running amps), compressor: LRA 50, RLA 9.3
- Line Set: Liquid line 1/4"; suction line 1/2" (less than 50 ft.), 5/8" (greater than 50 ft.)
-
Drain Line: 1/2" ID clear plastic tubing (not provided)
-

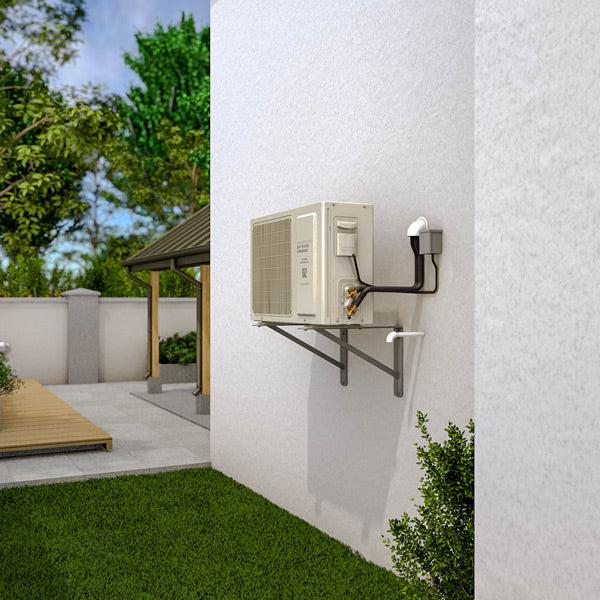

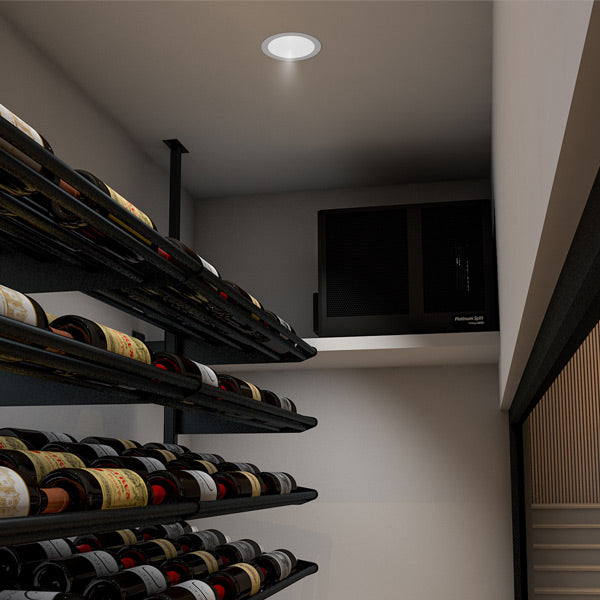

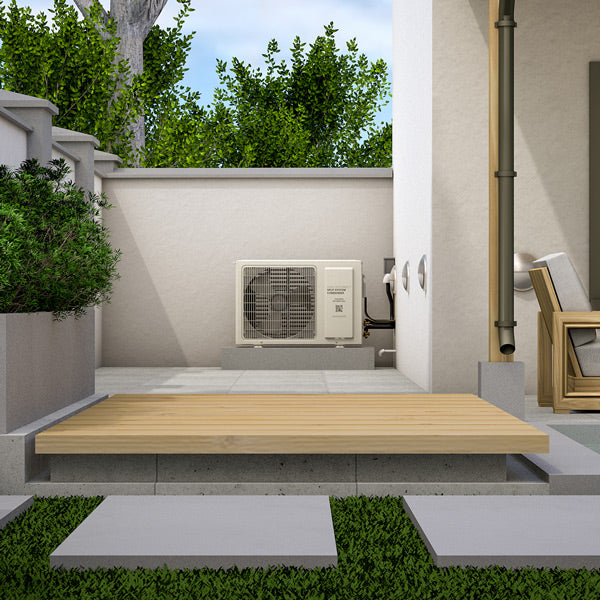

Installation: Evaporator is installed in the cellar, Condenser is installed up to 100 line ft. away.
-
Temp. Delta: 55°F temperature differential
-

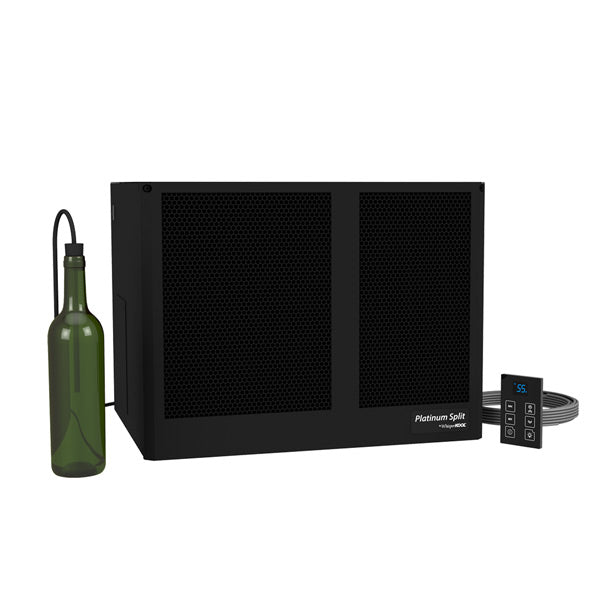

Thermostat: Advanced digital display (50-ft. cable), liquid-temperature-measuring bottle probe (retractable cable)
5211
The BTU/h value shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.) which do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An undersized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.
There are circumstances in which a cellar design may require a larger unit due to some existing design restrictions.
There are several factors such as glass, stone, concrete, etc. which will seem adequate but do not offer the insulation capacity required to maintain the optimum environment.
We recommend purchasing a unit with a larger capacity to compensate for the design limitations.
Please utilizing our Cellar Wizard in order to ensure you are selecting the proper cooling unit for your application.
Under sized cooling units can lead to pre-mature failure and/or prevent the system from reaching the desired set temperature. As a result they are not covered under warranty.
Note: The systems do not include a line set.
New Cold Weather Start Kit:

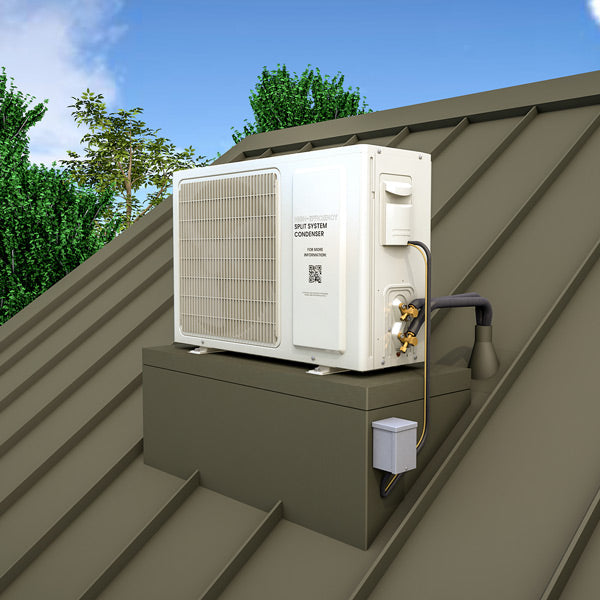

WhisperKOOL is proud to present our cold weather start kit. INCLUDED FREE FOR THIS UNIT, This kit was designed exclusively for our split systems where the condensing unit will be installed in extremely cold environments. Our split systems are designed to be adaptable to almost any install, as the condensing unit can be located in a variety of locations such as a mechanical room, basement, back yard, or even a rooftop. Our split systems were designed to operate with the condensing unit exposed to temperatures between 20°F and 110°F. However, there are some areas in the country that may drop below 20°F. Due to these conditions WhisperKOOL designed the Cold Weather Start Kit.
So, when the outside temperatures drop, the pressure in the system drops as well. This presents a challenge because our systems operate using a pump down cycle and a low-pressure switch to turn the compressor on and off. However when the temperature drops below 20°F, the pressure in the system is too low to start the compressor. The use of an electronic bypass is needed to start the compressor and temperature controlled heaters installed on the receiver are needed to raise the pressure in the system to optimal levels.
The Cold Weather Start Kit will bypass the low-pressure switch on startup and keep the pressure in the system high enough to operate correctly for environments as cold as -15°F.
It is important that the cooling system stays operational during cold weather conditions, as heating the house using the central HVAC system will indirectly increase the temperature of the wine cellar. This kit will ensure that the cooling system will continue to operate efficiently in cold weather environments to maintain an optimal wine storage temperature.
New 24V Thermostat Conversion Kit:
Tap into the latest technology to manage and monitor your wine cellar environment with WhisperKOOL.
Introducing our new 24-volt thermostat conversion kit for WhisperKOOL split systems**.
Utilize the industry leading technology from major manufacturers to monitor the environment of your cellar. (see individual thermostat manufactures features and benefits for details.)
Note: By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V thermostat to run the equipment.
- Connect your thermostat to Wi‑Fi to control the temperature from your phone, tablet or laptop.
- Monitor temperature and humidity through smart phones.
- Monitor run time and energy usage.
- Set alarm notifications
- View your cellar conditions from your cellular device.
Option Details

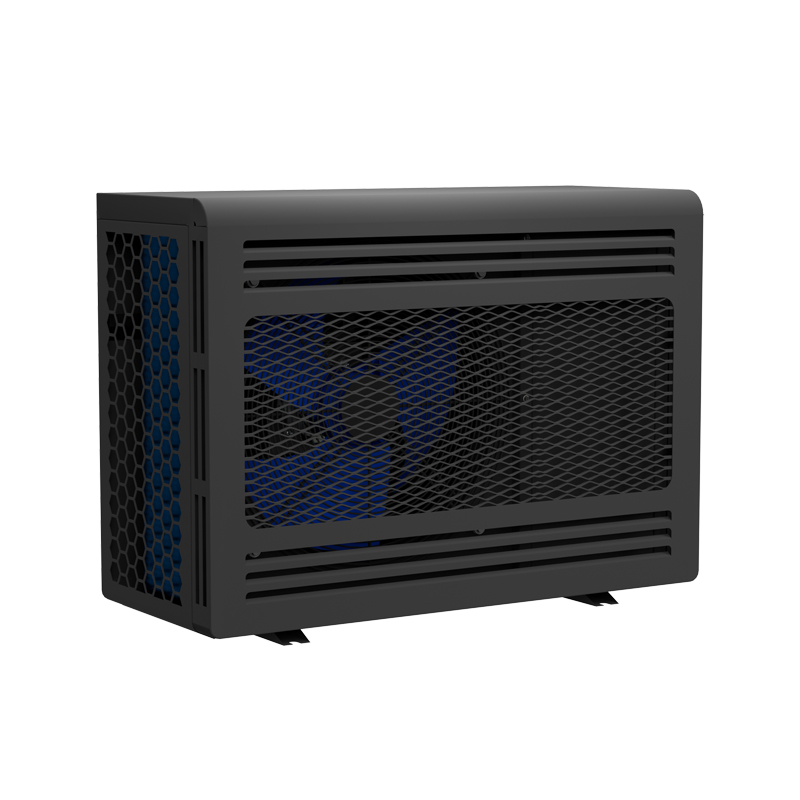

Exterior Housing:

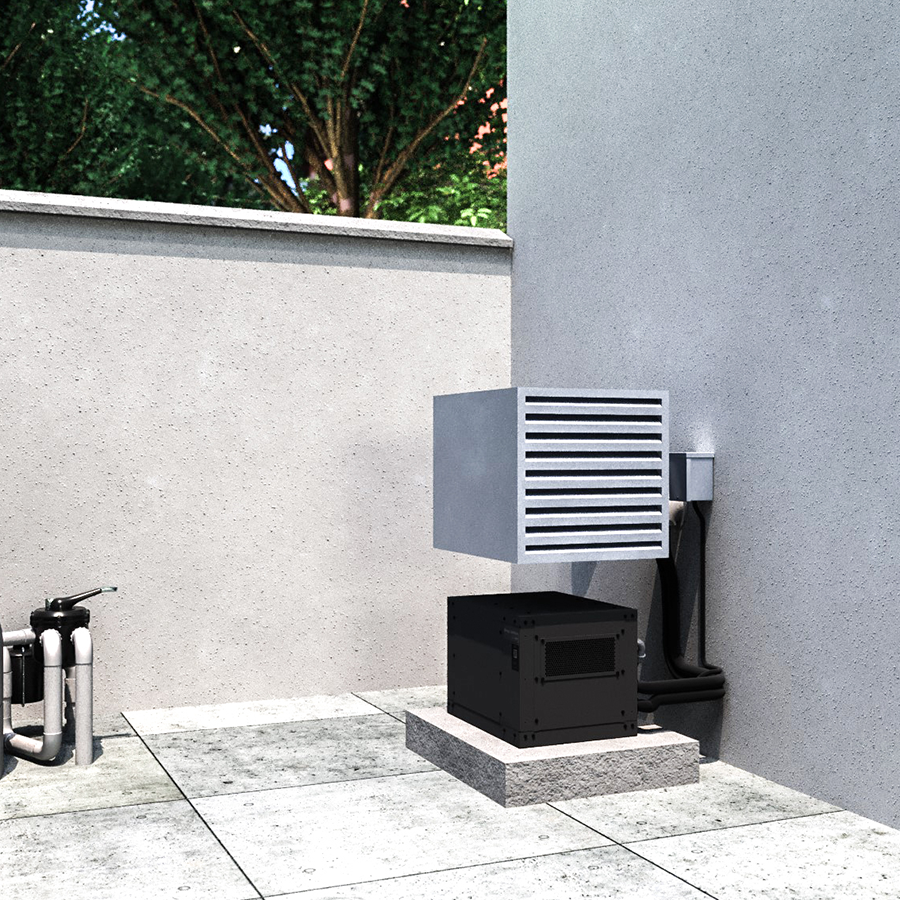

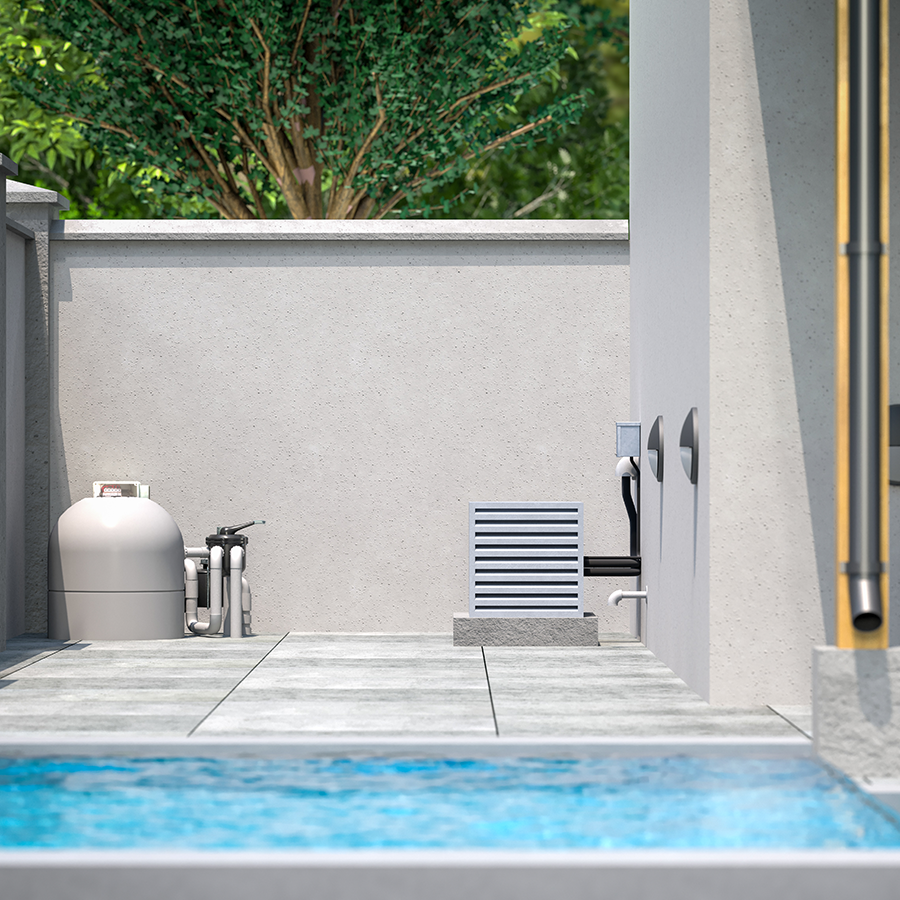

The Exterior Housing protects the condenser portion of the split system from the elements when installed outdoors.
Warranty Information
A limited 2-year parts and labor
Warranty Overview:
-
Self-Contained System Warranty: A limited 2-year product/5-year compressor warranty is offered with all self-contained cooling units at the date of purchase.
-
Split System Warranty: A limited 2-year product warranty is offered with all split systems. While the warranty starts at the date of purchase, this warranty is not activated until a Product Warranty Checklist has been submitted and approved by WhisperKOOL.
-
Warranty Claims: All warranty claims must be filed directly through WhisperKOOL customer service. We provide warranty repairs at our manufacturing facility in Stockton, CA, or with prior permission from WhisperKOOL to receive service by a licensed HVAC/R technician. In the event a unit is not reparable in the field and is still under warranty, we will cover shipping costs to return the unit (excluding customs fees and duties).
-
Limited Warranty: Limited warranty applies only to wine cooling units purchased directly from WhisperKOOL or through an authorized dealer. Damage caused by others or beyond the control of WhisperKOOL shall not be considered defects in material or workmanship and is not covered by the warranty. The limited warranty does not cover any parts or labor to correct any defect caused by negligence, commercial use, accident, maintenance, installation, service/repair, or improper use.
