TL;DR / Key Takeaways: Wine Cellar Insulation Options

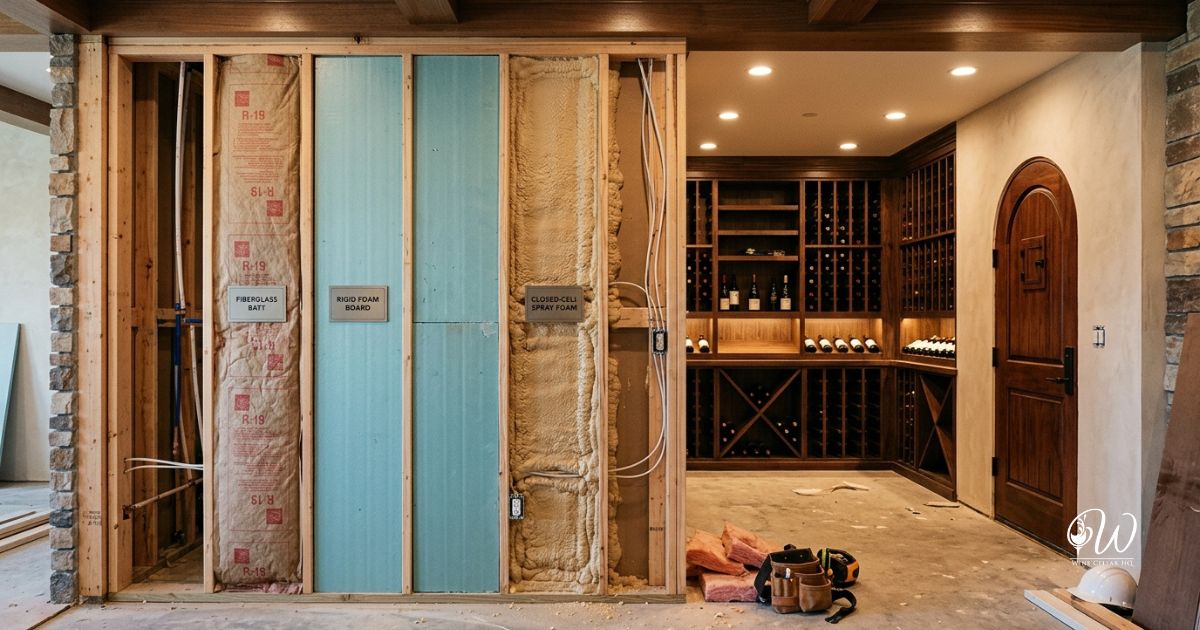

The three common wine cellar insulation methods- fiberglass batt, rigid foam board, and closed-cell spray foam- differ in cost, R-value per inch, and how they manage moisture. Choose the option that fits your framing, mechanical obstacles, budget, and cooling unit requirements.
- Fiberglass batt: A lower-cost option that can work well when installed carefully with the correct moisture-control layer.
- Rigid foam board: A practical choice for straightforward walls with minimal wiring or plumbing penetrations.
- Closed-cell spray foam: Useful for tight spaces, irregular framing, and walls with plumbing or electrical runs because it fills small gaps.
- Plan around the equipment: Confirm insulation requirements with the manufacturer of your chosen cooling unit before closing the walls.
Table of Contents
- › Is It Worth Insulating a Wine Cellar?
- › Table Comparison: 3 Best Wine Cellar Insulation Options
- › Wall and Ceiling R-Value: What "Enough" Insulation Means
- › Best Flooring Materials for a Wine Cellar
- › Step-by-Step: How Do You Insulate a Wine Cellar?
- › Verify Your Insulation Before You Close the Walls
- › Table Guide: Match Your Finished Cellar to the Right Cooling Unit
- › FAQs: Wine Cellar Insulation Options
- › Helpful Resources
Is it worth insulating a wine cellar?
Yes. You need to insulate your wine cellar to maintain stable temperature and humidity levels and safeguard your wine collection. Poor insulation or a compromised moisture barrier forces the cooling unit to run longer and harder to hold your set point, which shortens its lifespan and drives up energy costs.
Table Comparison: 3 Best Wine Cellar Insulation Options
Always check the spec sheet for your chosen unit rather than relying on a single universal number. Here are the top three insulation options to choose from:
| Insulation Option | Typical R-Value | Moisture Control | Best Suited For | Cooling Unit Recommendation |
|---|---|---|---|---|
| Fiberglass batt | R-13 per layer; varies by product and thickness | Requires a separate moisture-control layer | Budget-conscious builds with straightforward framing | Shop Breezaire WKL 3000 |
| Rigid foam board | Approximately R-19 with two 1.5-inch layers | Requires separate moisture-control detailing | Walls with limited wiring, pipes, and other penetrations | Shop CellarCool CX3300 |
| Closed-cell spray foam | Approximately R-19 at 3 inches; varies by product | Cured closed-cell foam provides integrated moisture resistance | Tight spaces, irregular framing, plumbing, and electrical runs | Shop WhisperKOOL Extreme 5000tiR |
For more on how insulation quality affects the cooling unit you'll need, read How to Find the Right Cooling Unit for Your Wine Cellar.
Small Wine Cellar and Closet Insulation Considerations
For a small wine cellar or closet conversion, closed-cell spray foam is often the easiest insulation option to fit around tight framing, wiring, and existing obstacles; rigid foam and fiberglass can also work when the wall layout is simple. The right choice depends less on room size alone and more on the space behind the walls, the location of the cooling unit, and how easily the room can be sealed.
Before selecting insulation for a small cellar, confirm:
- Cooling-unit location: Through-the-wall units need a suitable exhaust area outside the cellar. A closet without an adjacent utility room, garage, or other acceptable exhaust space may need a different cooling approach.
- Wall obstacles: Plumbing, electrical boxes, shelving supports, and ducts make rigid foam harder to install without gaps. Closed-cell spray foam can be more practical in irregular framing.
- Exterior exposure: A closet against an exterior wall, garage, attic, or hot utility room may need more insulation than one surrounded by conditioned interior rooms.
- Door and glass: A standard interior door may not seal adequately for a cellar. Glass doors and walls also add heat load, so include them when sizing the cooling system.
- Finished room dimensions: Measure after accounting for insulation and wall finishes. In a small cellar, losing several inches to wall assemblies can materially reduce usable bottle storage space.
Wall and Ceiling R-Value: What "Enough" Insulation Means
"Enough" wine cellar insulation means meeting the cooling-unit manufacturer's minimum R-value for your actual room conditions, especially exterior walls, ceilings below attics, walls next to garages, and glass surfaces.
What is R-value? R-value measures resistance to heat flow. Higher R-values slow the heat gain that your cooling unit must remove.
| Cellar Condition | Planning Implication |
|---|---|
| Interior wall next to conditioned living space | Usually has a lower heat-load impact than an exterior-facing wall, but it still needs to meet the cooling unit manufacturer's stated insulation requirements. |
| Exterior wall or wall next to a garage | Often needs greater insulation consideration because it is exposed to wider temperature changes than a wall bordered by conditioned interior space. |
| Ceiling below an attic or unconditioned space | May require a higher R-value than the walls because heat can enter from above. Confirm the minimum ceiling requirement for your selected cooling unit. |
| Below-grade wall or slab floor | Needs a moisture-management plan based on site conditions, drainage, and the specific wall or floor assembly. Consult a qualified contractor when conditions are uncertain. |
| Glass door or glass enclosure | Increases the cellar's heat load and may change the required cooling capacity. Include all glass surfaces when sizing the cooling unit. |
Do not choose an R-value by copying a generic cellar build from online sources. Start with the cooling unit you plan to use, then read its installation manual and product specifications.
Find the right cooling unit for your cellar.
A practical rule: finalize these details before drywall, paneling, or racking installation:
- The insulation type and total R-value for each wall and the ceiling
- Which surfaces face conditioned, unconditioned, or exterior areas
- Whether the cellar includes glass
- How the door will seal
- The exact cooling unit and its published installation requirements
Once those decisions are set, calculate the room's heat load using the finished dimensions and insulation plan, not just the raw room measurements.
Best Flooring Materials for a Wine Cellar
Flooring interacts with your insulation plan more than most builders expect, particularly around moisture. Common options include:
- Stone or porcelain tile: durable, moisture-resistant, and stable under temperature changes, which is why it's frequently recommended for cellars.
- Cork: provides some natural insulating value and resists moisture, appealing for a warmer underfoot feel.
- Reclaimed wood or wine barrel staves: a popular aesthetic choice, but wood is more moisture-sensitive than stone or tile and requires a properly sealed subfloor.
- Sealed concrete: durable and straightforward, especially over an on-grade slab where a raised floor with insulation isn't practical.
Whichever material you choose, if the floor sits below the insulated envelope (raised floor over an unconditioned crawlspace, for example), it needs its own moisture barrier following the same principles as the walls; if it's a slab on or below grade, focus on sealing the concrete rather than adding floor insulation.
Step-by-Step: How do you insulate a wine cellar?
- Confirm your cooling unit's minimum insulation requirements before finalizing framing decisions.
- Frame the walls and ceiling, accounting for wiring, plumbing, and any duct penetrations.
- Choose your insulation method (fiberglass batt, rigid foam board, or closed-cell spray foam) based on your framing complexity and budget.
- For fiberglass batt or rigid foam board, install a plastic vapor barrier on the warm side of the insulation, sealing all seams and penetrations; closed-cell spray foam does not require this step.
- Insulate and seal the ceiling to the appropriate R-value for your space, and address the floor if it's raised.
- Seal the door frame and any glass enclosure penetrations. An airtight envelope depends on the whole perimeter, not just the walls.
- Size and install your cooling unit only after the envelope is complete, using a heat load calculator based on your actual finished insulation.
- Run the space for several days before loading wine, watching for temperature drift or visible condensation.
Verify Your Insulation Before You Close the Walls
Before finishing drywall or paneling, check for visible gaps in any vapor barrier, confirm seams are fully taped, and test any penetrations (electrical boxes, pipe runs) for sealing. For guidance on installing your unit once it arrives, see our cooling unit installation walkthrough.
Table Guide: Match Your Finished Cellar to the Right Cooling Unit
Your insulation choice affects the heat load, but it does not determine the cooling unit selection by itself. Choose equipment after confirming the finished cellar dimensions, wall and ceiling insulation, exterior exposure, glass surfaces, target temperature, and installation configuration.
| Finished Cellar Situation | What to Confirm Before Choosing a Unit | Relevant Cooling-Unit Option |
|---|---|---|
| Compact closet conversion or small cellar with completed insulation and a suitable adjacent exhaust area | Confirm the actual heat load, the manufacturer's minimum insulation requirement, cellar door sealing, and whether the unit can exhaust heat into an acceptable area outside the cellar. | Shop Breezaire WKL 3000 |
| Well-insulated cellar up to 650 cubic feet with a through-the-wall installation plan | Confirm that the cellar stays within the model's stated capacity after accounting for exterior walls, ceiling exposure, glass, and the temperature of the exhaust area. | Shop CellarCool CX3300 |
| Custom cellar where the cooling equipment needs to sit away from the wine room or use ducting | Confirm duct length, duct routing, mechanical-room conditions, service access, and the manufacturer's requirements for the fully ducted configuration. | Shop WhisperKOOL Extreme 5000tiR |
| Larger, well-insulated cellar up to 2,200 cubic feet | Confirm the heat load rather than relying on room volume alone. Larger rooms may need different equipment or more than one unit when insulation, glass, climate, or layout increase the load. | Shop CellarPro 8200VSi |
FAQs: Wine Cellar Insulation Options
What is the most effective way to insulate cellar walls?
Closed-cell spray foam is often the most effective all-in-one insulation option for cellar walls because it provides high R-value per inch and fills gaps around framing, wiring, and plumbing. It is especially practical for small cellars, retrofit projects, and walls with irregular framing. Rigid foam board can be a practical choice for simple wall layouts, while fiberglass batt requires careful installation and complete sealing to perform well. Confirm the appropriate wall assembly, insulation thickness, and R-value with your cooling-unit manufacturer and a qualified contractor.
How cold is too cold for a wine cellar?
Most long-term wine storage falls within the 50–65°F range, with 55°F often used as the target. A few degrees below that is not necessarily a problem, but steady conditions matter more than one exact setting. The primary concern is temperatures that approach freezing or repeated shifts between cold and warm. If an unconditioned cellar location becomes very cold in winter, ask the cooling-unit manufacturer whether supplemental heating is needed.
Is 70 degrees too warm to store wine?
Yes, 70°F is generally too warm for long-term wine storage. Sustained temperatures around or above 68–70°F can speed up aging and affect a wine's freshness over time. A brief temperature increase is different from storing bottles at that level every day. If the space regularly reaches 70°F, review insulation quality, room exposure, and cooling-unit sizing.
Can I insulate a wine cellar myself?
You can handle some wine cellar insulation projects yourself, but the right approach depends on the wall assembly and your experience. Rigid foam can work for a confident DIY project with uncomplicated walls. Fiberglass installations need careful sealing, while closed-cell spray foam is commonly installed by trained professionals. Use a qualified contractor when the cellar has exterior walls, below-grade exposure, complicated framing, or local code requirements.
Does a glass wine cellar door need special insulation planning?
Yes, glass affects the heat load of a wine cellar and should be included in cooling unit sizing. Even insulated glass does not perform as well as a properly insulated wall. A glass door, wall, or enclosure may require a larger cooling capacity than the same room with solid walls. Confirm the unit manufacturer's requirements before purchasing equipment for a glass-forward cellar design.
Is R-19 enough insulation for every wine cellar?
No, R-19 is a useful reference point, but it is not a universal requirement for wine cellars. The appropriate insulation level depends on climate, whether walls face indoors or outdoors, ceiling exposure, glass surfaces, and the cooling equipment's specifications. Some cooling-unit manufacturers require more insulation in a ceiling than in walls. Review the specifications for your exact model before you build.
Do you need a vapor barrier in a wine cellar?
Usually, yes. A wine cellar needs a continuous moisture-control layer unless the specified insulation assembly, such as properly installed closed-cell spray foam, already provides that function. With fiberglass batt or rigid foam board, the moisture-control layer is typically installed on the warm side of the insulation to help limit condensation inside the wall assembly. Requirements vary by insulation material, wall location, climate, local code, and the cooling-unit manufacturer's instructions, so confirm the complete assembly with a qualified contractor before closing the walls.
