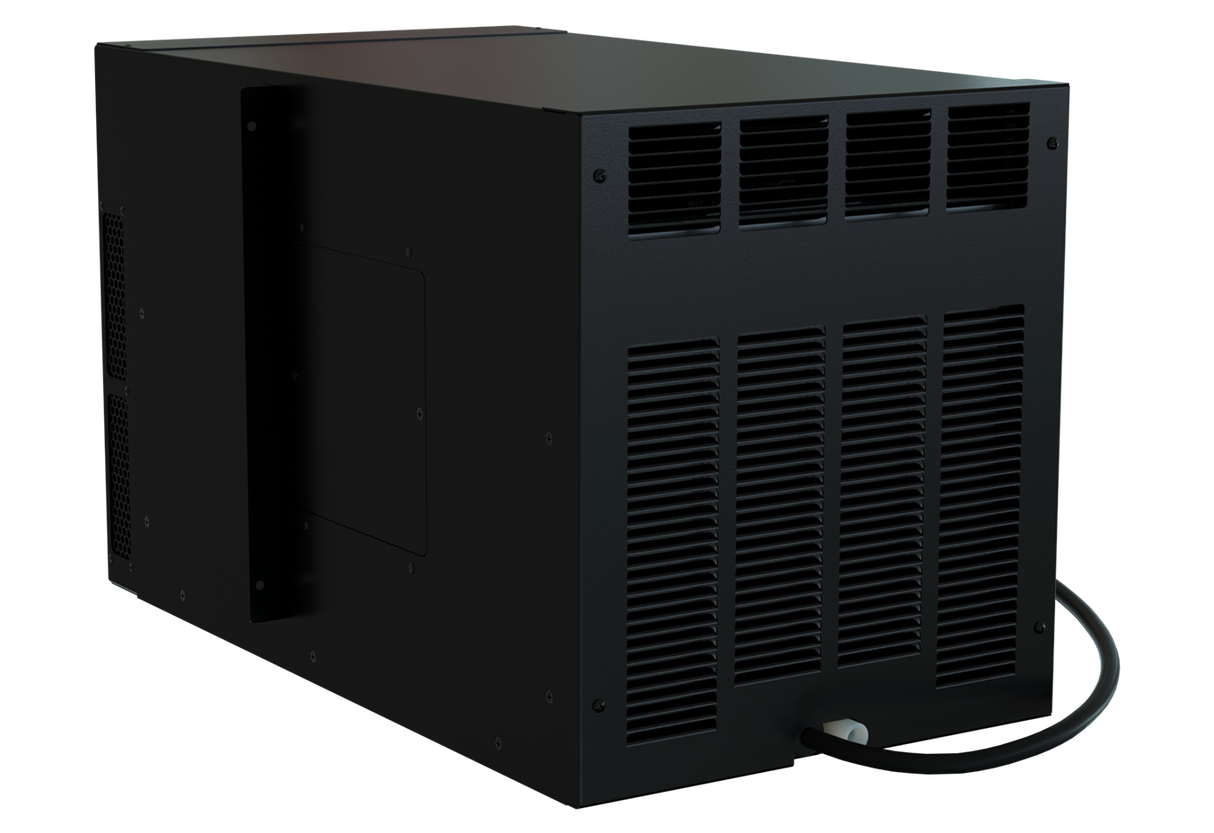

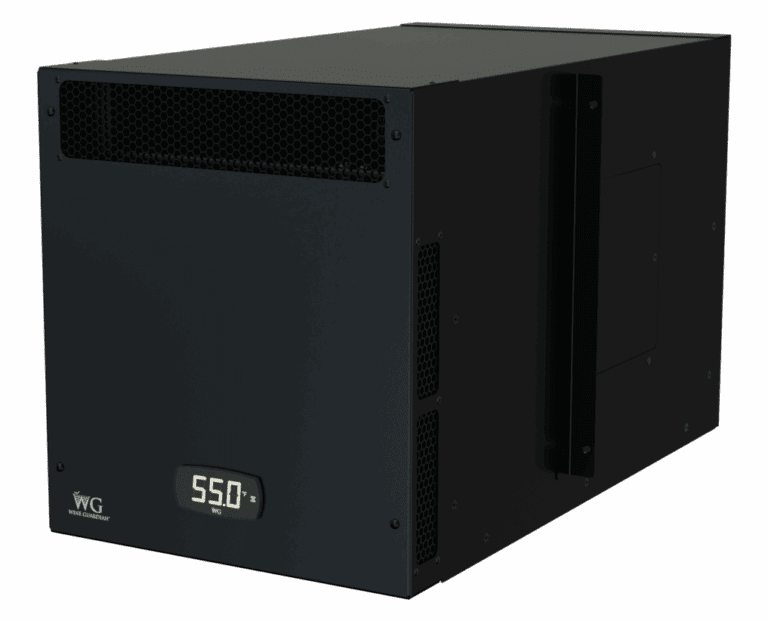

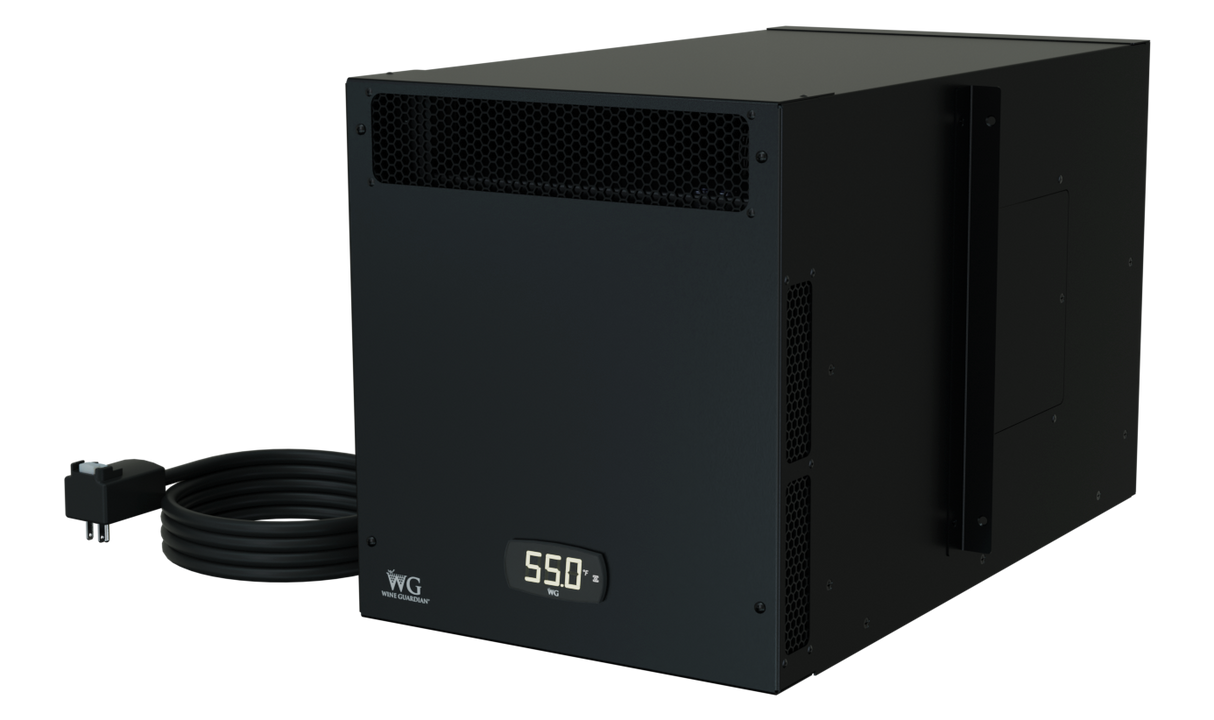

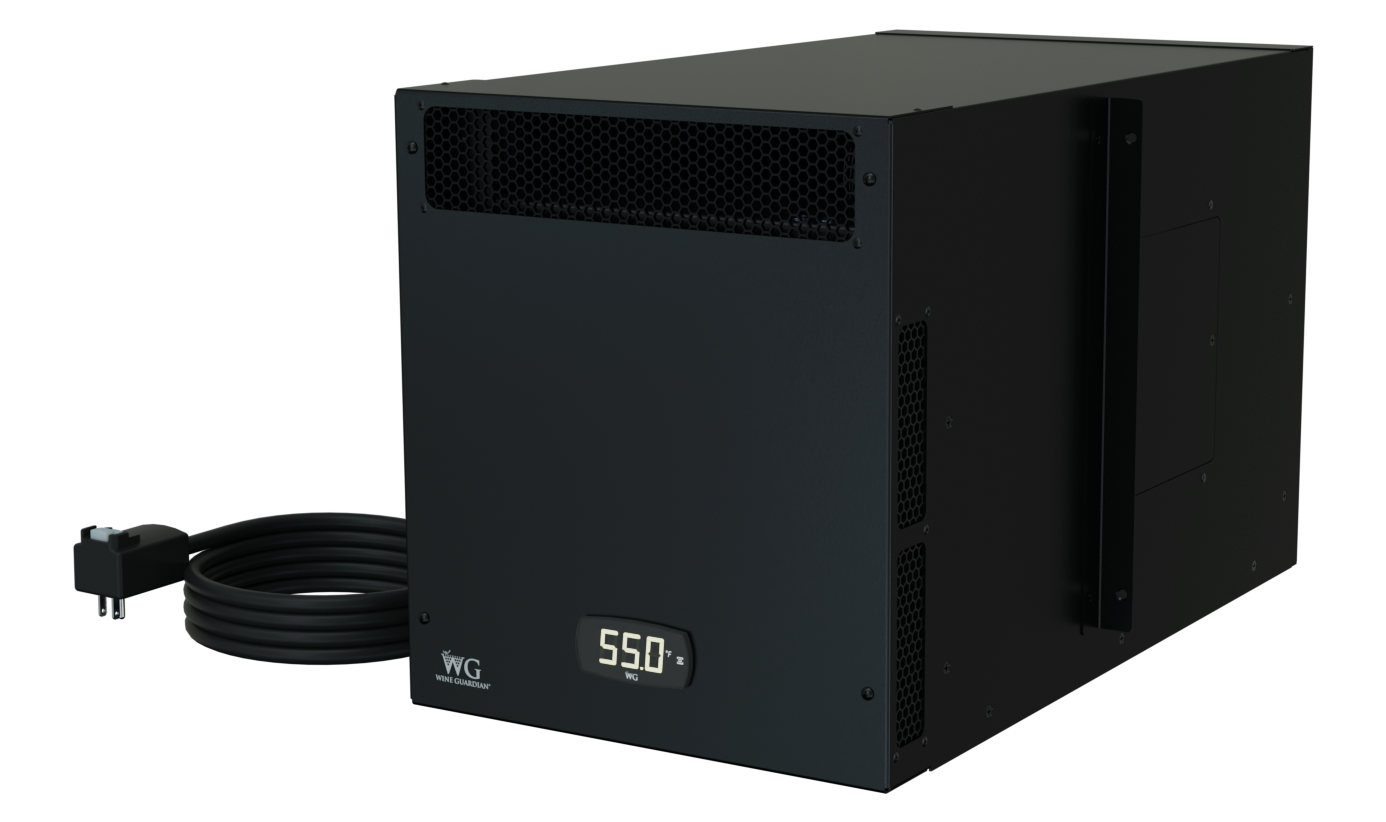

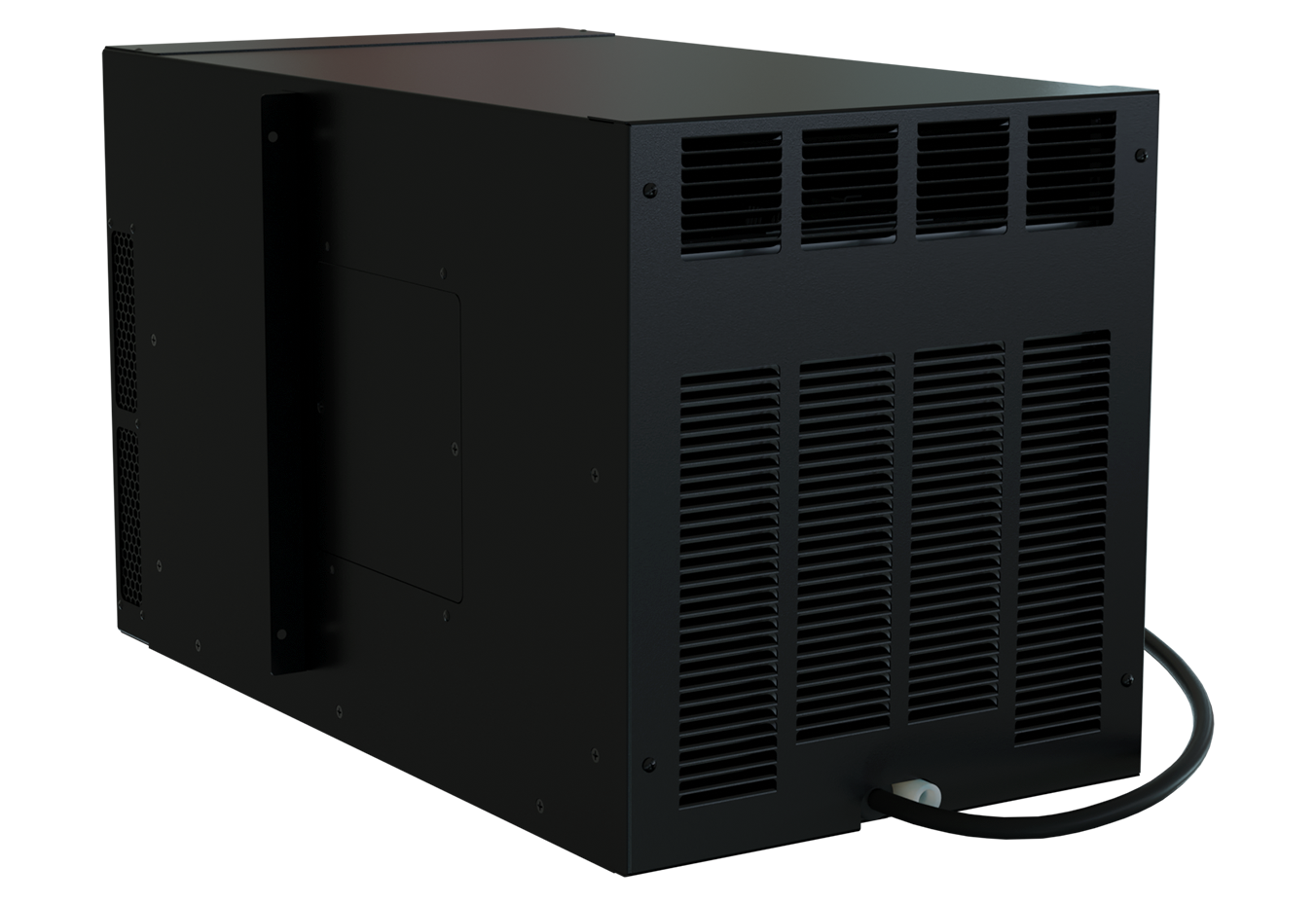

Wine Guardian® TTW04B Classic Wine Cellar Cooling Unit (Through-the-Wall)
Wine Guardian® TTW04B Classic Wine Cellar Cooling Unit (Through-the-Wall) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Wine Guardian® TTW04B Classic Wine Cellar Cooling Unit (Through-the...
The TTW Classic Series delivers essential precision cooling for the value-conscious wine collector. This streamlined 3760 BTU unit provides reliable temperature control in a simplified, cost-effective design perfect for larger wine storage applications.
Key Features:
- 3760 BTU/h cooling capacity (1.2 kW)
- Smartphone controllable via Bluetooth/NFC
- Eco-friendly R513A refrigerant with low global warming potential
- Condenser inlet accepts temperatures from 50°F (10°C) to 125°F (52°C)
- Smaller Carel controller for streamlined operation
- Includes mounting bracket (no wall sleeve included, but fits with prior wall sleeves)
- Utilizes drain connection for condensate management
- Power supply: 230V 50Hz or 120V 60Hz
Universal TTW Benefits:
- Whisper-quiet operation designed to limit vibrations and noise
- Fail-safe protections: condensate overflow switch, loss-of-charge switch, auto-reset high pressure switch
- Easy DIY installation - no licensed contractor required
- USA-designed and assembled quality
- Advanced control features with three control modes (User, Service, OEM)
- Compatible with optional free-standing humidifier
- Energy efficient design meets US DOE efficiency standards
- Only TTW to meet US regulatory standards
Installation & Compatibility:
- Installs between wall studs for internal mounting applications
- Compatible with existing wall sleeve installations
- Simple slide-through installation process
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Through-the-Wall Collection
| Specifications | Classic Series | Sentinel Series | Defender Series |
|---|---|---|---|
| BTU Range | 1000, 2000, 4000 BTU/h | 1000, 2000, 4000 BTU/h | 1000, 2000, 4000 BTU/h |
| Power Supply | 230V 50Hz or 120V 60Hz | 230V 50Hz or 120V 60Hz | 230V 50Hz or 120V 60Hz |
| Bluetooth Controls | ✓ | ✓ | ✓ |
| Wi-Fi Controls | — | ✓ (iOS coming soon) | ✓ (iOS coming soon) |
| Humidity Sensor | — | ✓ | ✓ |
| Condensate Evaporator | Drain connection required | ✓ | ✓ |
| Controller Size | Smaller Carel controller | Larger Carel controller | Larger Carel controller |
| Ultra Quiet Package | — | — | ✓ |
| Exterior Wall Package | — | — | ✓ |
| Temperature Control Range | 50°F to 125°F ambient | 50°F to 125°F ambient | 0°F to 125°F ambient · 42°F to 75°F cellar |
| Sound Level (at 6') | Standard operation | Standard operation | 49 dB (Ultra Quiet) |
| Installation | DIY friendly | DIY friendly | DIY friendly |
| Wall Sleeve Compatibility | Previous sleeves fit | Previous sleeves fit | Previous sleeves fit |
| 1000 BTU Price | $3,039 | $4,069 | $5,099 |
| 2000 BTU Price | $4,069 | $5,099 | $6,129 |
| 4000 BTU Price | $5,099 | $6,129 | $7,159 |
- BTU Range
- 1000, 2000, 4000 BTU/h
- Power Supply
- 230V 50Hz or 120V 60Hz
- Bluetooth Controls
- ✓
- Wi-Fi Controls
- —
- Humidity Sensor
- —
- Condensate Evaporator
- Drain connection required
- Controller Size
- Smaller Carel controller
- Ultra Quiet Package
- —
- Exterior Wall Package
- —
- Temperature Control Range
- 50°F to 125°F ambient
- Sound Level (at 6')
- Standard operation
- Installation
- DIY friendly
- Wall Sleeve Compatibility
- Previous sleeves fit
- 1000 BTU Price
- $3,039
- 2000 BTU Price
- $4,069
- 4000 BTU Price
- $5,099
- BTU Range
- 1000, 2000, 4000 BTU/h
- Power Supply
- 230V 50Hz or 120V 60Hz
- Bluetooth Controls
- ✓
- Wi-Fi Controls
- ✓ (iOS coming soon)
- Humidity Sensor
- ✓
- Condensate Evaporator
- ✓
- Controller Size
- Larger Carel controller
- Ultra Quiet Package
- —
- Exterior Wall Package
- —
- Temperature Control Range
- 50°F to 125°F ambient
- Sound Level (at 6')
- Standard operation
- Installation
- DIY friendly
- Wall Sleeve Compatibility
- Previous sleeves fit
- 1000 BTU Price
- $4,069
- 2000 BTU Price
- $5,099
- 4000 BTU Price
- $6,129
- BTU Range
- 1000, 2000, 4000 BTU/h
- Power Supply
- 230V 50Hz or 120V 60Hz
- Bluetooth Controls
- ✓
- Wi-Fi Controls
- ✓ (iOS coming soon)
- Humidity Sensor
- ✓
- Condensate Evaporator
- ✓
- Controller Size
- Larger Carel controller
- Ultra Quiet Package
- ✓
- Exterior Wall Package
- ✓
- Temperature Control Range
- 0°F to 125°F ambient · 42°F to 75°F cellar
- Sound Level (at 6')
- 49 dB (Ultra Quiet)
- Installation
- DIY friendly
- Wall Sleeve Compatibility
- Previous sleeves fit
- 1000 BTU Price
- $5,099
- 2000 BTU Price
- $6,129
- 4000 BTU Price
- $7,159
Swipe to compare →
Wine Guardian: Precision Climate for Cellars Since 1998
Founded in 1998 by Air Innovations engineers Larry and Mike Wetzel, Wine Guardian turns cellar know-how into commercial-grade climate control. Ducted, split, and through-the-wall systems, plus humidifiers, hold precise temperature and humidity, quietly and reliably, for cellars from compact rooms to showcase walls.
