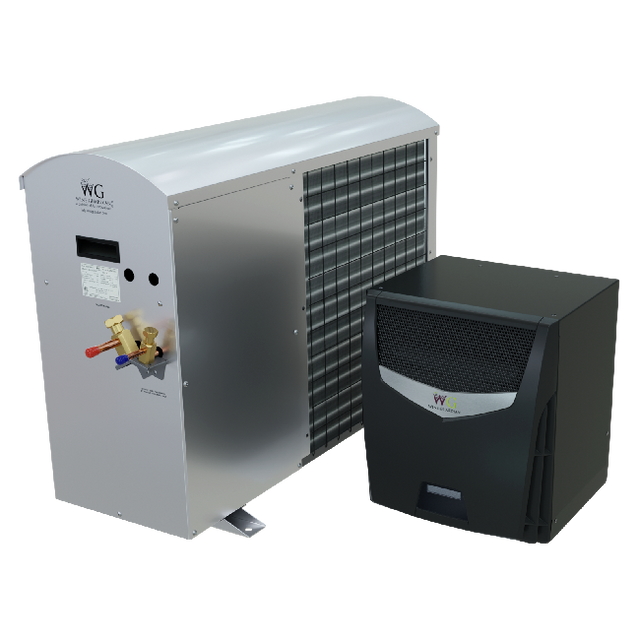

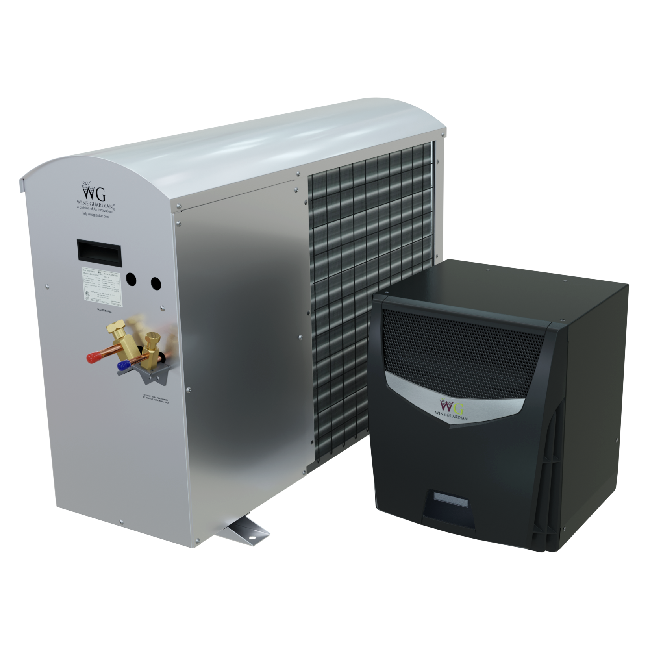

The SS018 Ductless Split wine cellar cooling unit is a cutting-edge system versatile enough for either surface-mounting or through-the-wall mounting in small cellars which have no room for mechanical equipment or are unable to accommodate ductwork. S
The SS018 is a 60Hz system, which is standard in most of North America (incl. USA & Canada). Unit maximum capacity is 2520 BTUH.
The SS018 Ductless Split wine cellar cooling unit is a cutting-edge system versatile enough for either surface-mounting or through-the-wall mounting. It is ideal for small wine cellars which have no room for mechanical equipment or are unable to accommodate ductwork. Let one of our trained technicians assist to determine if the SS018 is suitable for your wine storage application.
The condensing unit is patented. US Patent No. D791295.
Wine Guardian SS018 Options & Upgrades
Wine Guardian SS018 Specifications
| Model |
SS018 (TTW)
|
| Line Frequency |
60 Hz
|
| Capacity |
400 – 2800 BTU
|
| Volume |
100 – 1200 ft³
|
| Length |
13.31"
34" (condenser)
|
| Width |
14.25"
12.3" (condenser)
|
| Height |
15.87"
26" (condenser)
|
| Weight |
25 lbs
75 lbs (condenser)
|
| Electrical |
115/1/60
|
Wine Guardian SS018 Options
EXTREME CLIMATE PROTECTION BUNDLE
For Self-Contained Ducted systems: Contains an integral compressor crankcase heater and controls to protect the system against low temperatures (required when inlet air to the condenser coil is below 40°F/5°C). The bundle also contains an integral high-capacity condenser fan and coil for operation at elevated ambient temperatures. This bundle should be considered when inlet air to the condenser coil is above 100°F/38°C (condenser air inlet cannot exceed 120°F/49°C).
For Ducted Split systems: Unit protection in extreme climate conditions (on the condenser section only). It is required for continuous operation in climates that fall below 20°F. Enables the system to operate in temperatures as low as -20°F.
FREESTANDING HUMIDIFIER
The Freestanding Humidifier is installed inside your wine space to provide optimal humidity for perfect long-term wine storage. The Humidifier can be controlled by your existing Wine Guardian controller.
Wine Guardian SS018 Documents and Resources
Ductless Split Product Brochure
Ductless Split Manual (English)
Ductless Split Quick Start Installation Guide (Multi-Language)
Ductless Split Specifications Sheet
Ductless Split CAD Drawing (PDF)
Condenser CAD Drawing (PDF)
