Wine Guardian® Pro SP88 Ducted Split Specialty Cooling HVAC System

Name: Wine Guardian® Pro SP88 Ducted Split Specialty Cooling HVAC System
Brand: Wine Guardian
SKU: 99H0206-20 + 99H0353-11
Price: 8180.0 USD
Availability: InStock

by Wine Guardian

Custom Quote Button

The SP88 Pro low temperature ductable split HVAC system is ideal for midsize to large specialty storage applications.

It is a 60Hz system, which is standard in most of North America (incl. USA & Canada). The unit has a max capacity of 10,760 BTU/H.

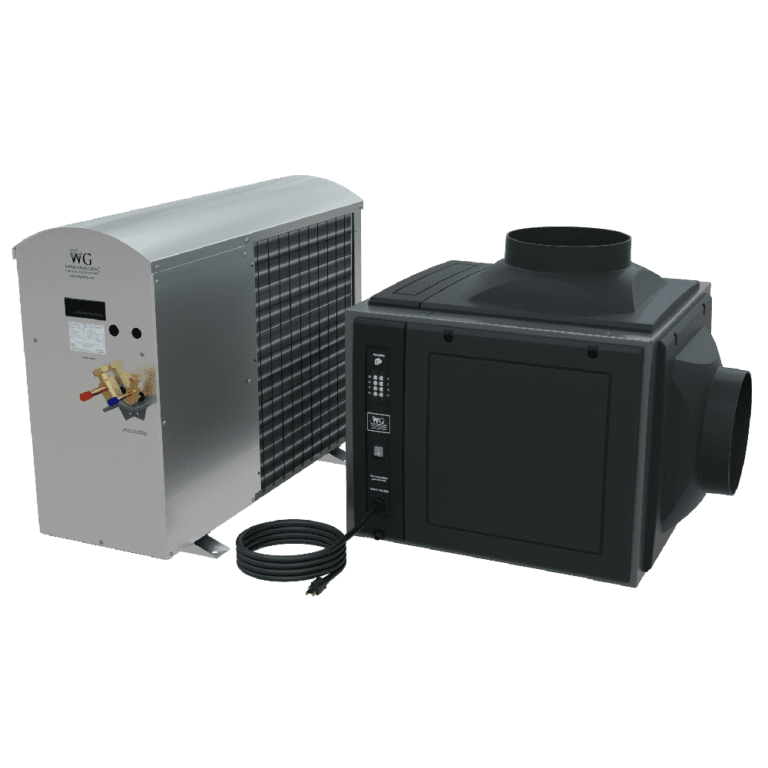

The SP88 Pro low temperature ductable split HVAC system for midsize to large specialty storage applications such as fur storage, wine rooms, and other niche environments is a perfectly-paired condensing unit and evaporator section that comes with standard low ambient protection. Optional features include the Extreme Climate Protection Bundle and the electric heater. This wine cooling system has a max capacity of 10,760 BTU/H. The SP88 is compatible with modern smart thermostats and features enhanced refrigeration controls.

The condensing unit is patented. US Patent No. D791295.

Wine Guardian SP88 Options & Upgrades

Remote Sensor for Wine Guardian® Wine Cellar Cooling Units
Sentinel Series Integrated Humidifier for Models D050, D088, D200, DP50, DP88, DP200, DS050, DS088, DS200, SP50, SP88, SP200
Sentinel Series Duct Collar for Models D050, D088, D200, DP50, DP88, DP200, DS050, DS088, DS200, SP50, SP88, SP200
Flexible Ductwork | 10 inches (25.4cm)
Sentinel Series Duct Collar Kit for Models D050, D088, DP50, DP88, DS050, DS088, SP50, SP88
Remote Interface Controller and Thermostat

Wine Guardian SP88 Specifications

Model	SP88
Line Frequency	60 Hz
Capacity	5000 – 9840 BTU
Volume	850 – 4500 ft³
Length	23.8" 34" (condenser)
Width	25" 12.3" (condenser)
Height	19.7" 26.07" (condenser)
Weight	58 lbs 96 lbs (condenser)
Electrical	208-230/1/60

Wine Guardian SP88 Options

EXTREME CLIMATE PROTECTION BUNDLE

For Self-Contained Ducted systems: Contains an integral compressor crankcase heater and controls to protect the system against low temperatures (required when inlet air to the condenser coil is below 40°F/5°C). The bundle also contains an integral high-capacity condenser fan and coil for operation at elevated ambient temperatures. This bundle should be considered when inlet air to the condenser coil is above 100°F/38°C (condenser air inlet cannot exceed 120°F/49°C).

For Ducted Split systems: Unit protection in extreme climate conditions (on the condenser section only). It is required for continuous operation in climates that fall below 20°F. Enables the system to operate in temperatures as low as -20°F.

HEATER

Protects wine cellars from dangerously low temperatures. Adjustable activation from 2 - 6°F (-17 - -14°C) below your setpoint.

INTEGRATED HUMIDIFIER

Humidifiers help ensure perfect long-term wine storage conditions by adding humidity back into your wine space. The Integrated Humidifier attaches directly to your Wine Guardian cooling system using the same power source and remote controller.

FREESTANDING HUMIDIFIER

The Freestanding Humidifier is installed inside your wine space to provide optimal humidity for perfect long-term wine storage. The Humidifier can be controlled by your existing Wine Guardian controller.
