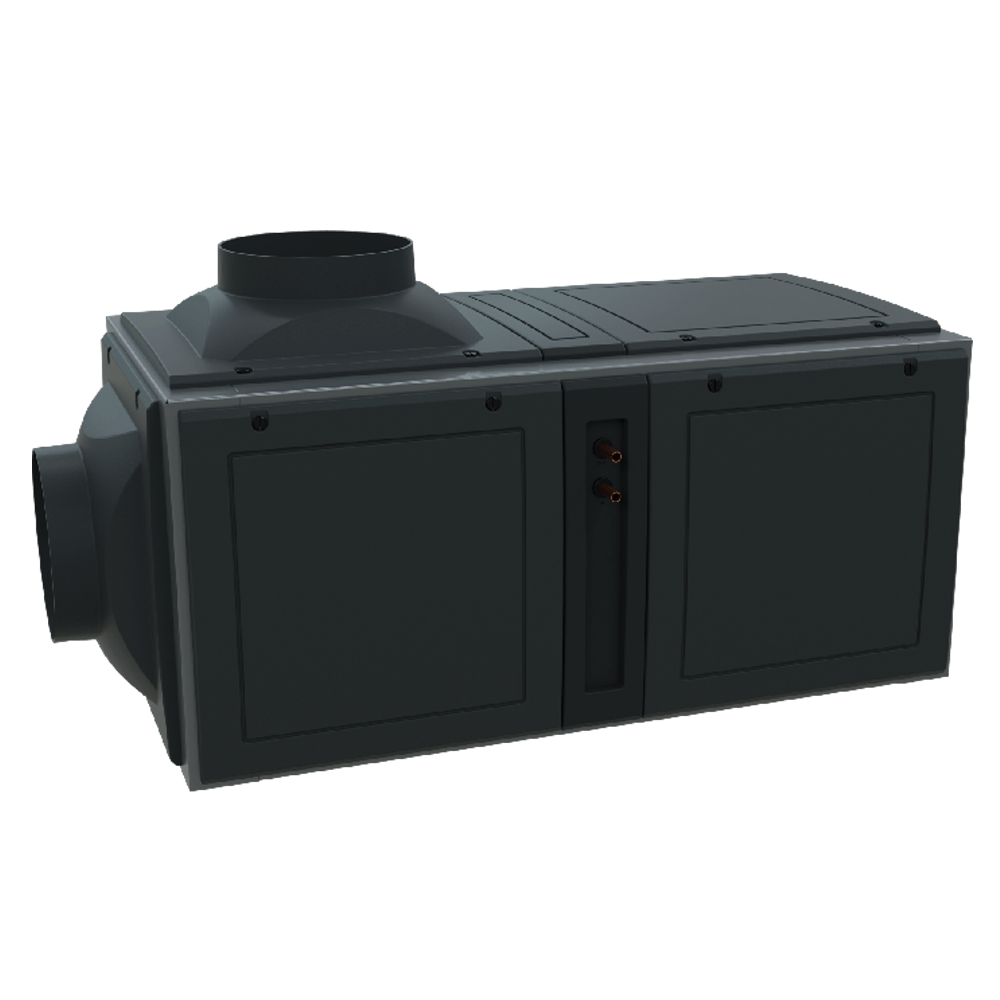

The DP88 Wine Guardian Pro specialty ducted AC system is ideal for midsize to large specialty cooling storage spaces and has a max capacity of 9,600 BTU/H.
The DP88 is a 60Hz system, which is standard in most of North America (incl. USA & Canada).
The DP88 Pro specialty ducted AC system is ideal for midsize to large specialty cooling storage spaces like instrument storage, art preservation, and wine cellars. The self-contained, fully ductable DP88 produces a max capacity of 9,600 BTU/H and has many standard features including low ambient protection, and optional electric heat. The DP88 is equipped with enhanced refrigeration controls and is compatible with modern smart thermostats. Additional duct collar connections are also located on the condensing section of this cooling unit.

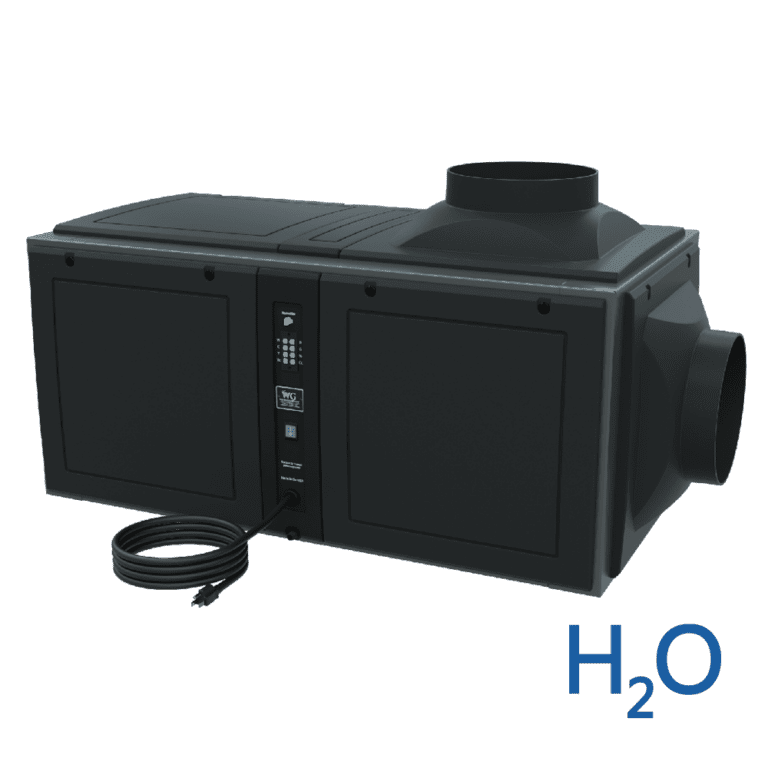

This cooling unit is best in geothermal, cooling tower, and lake water applications, and requires a year-round source of water. Warm condenser air connections are not required, which makes the water-cooled option a perfect solution when warm condenser air venting isn’t possible.
The DP88 is a 60Hz system, which is standard in most of North America (incl. USA & Canada).
Wine Guardian DP88WC Options & Upgrades
-
Remote Sensor for Wine Guardian® Wine Cellar Cooling Units
-
Sentinel Series Integrated Humidifier for Models D050, D088, D200, DP50, DP88, DP200, DS050, DS088, DS200, SP50, SP88, SP200
-
Sentinel Series Duct Collar for Models D050, D088, D200, DP50, DP88, DP200, DS050, DS088, DS200, SP50, SP88, SP200
-
Flexible Ductwork | 10 inches (25.4cm)
-
Sentinel Series Duct Collar Kit for Models D050, D088, DP50, DP88, DS050, DS088, SP50, SP88
-
Remote Interface Controller and Thermostat
Wine Guardian DP88WC Specifications
| Model |
DP88WC |
|---|---|
| Line Frequency |
60 Hz |
| Capacity |
5000 – 9600 BTU |
| Volume |
850 – 4500 ft³ |
| Volume min |
850 |
| Length |
41.5" |
| Width |
22.5" |
| Height |
19" |
| Weight |
125 lbs |
| Electrical |
208-130/1/60 |
Wine Guardian DP88WC Options
HEATER
Protects wine cellars from dangerously low temperatures. Adjustable activation from 2 - 6°F (-17 - -14°C) below your setpoint.
INTEGRATED HUMIDIFIER
Humidifiers help ensure perfect long-term wine storage conditions by adding humidity back into your wine space. The Integrated Humidifier attaches directly to your Wine Guardian cooling system using the same power source and remote controller.
FREESTANDING HUMIDIFIER
The Freestanding Humidifier is installed inside your wine space to provide optimal humidity for perfect long-term wine storage. The Humidifier can be controlled by your existing Wine Guardian controller.
Wine Guardian DP88WC Documents and Resources
Pro Ducted Quick Start Installation Guide
This cooling unit can be classed as Self-Contained. It can be installed as a Ducted System.
