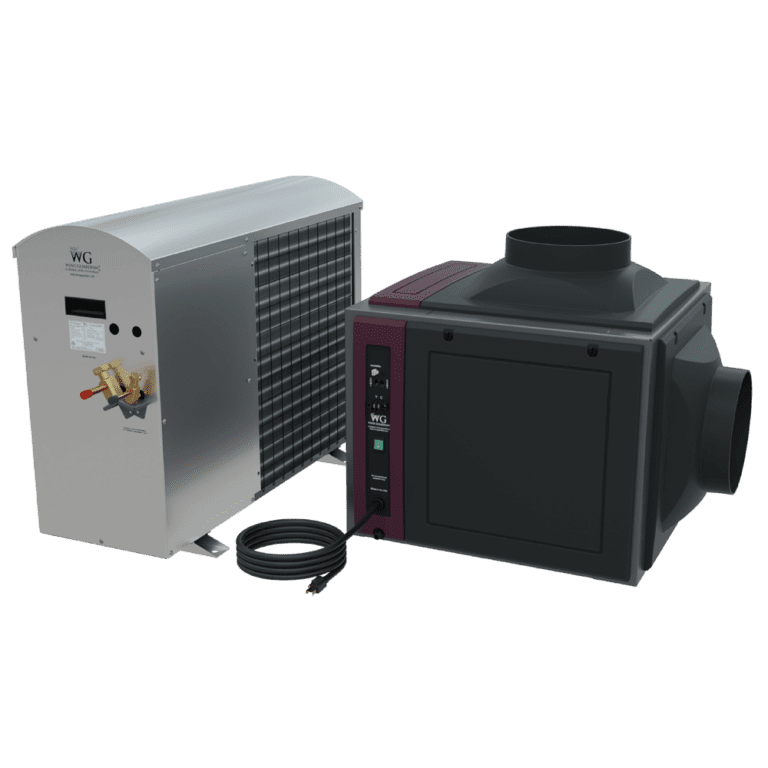

The DS088 split wine cellar cooling system with ductable fan-coil is ideal for medium to large residential and commercial wine rooms and wine cellars. Contractor installation is required.
The DS088 is a 60Hz system, which is standard in most of North America (incl. USA & Canada). The unit has a max capacity of 9,600 BTU/H (2.81 Kilowatts).
The DS088 ducted split wine cooling unit with ductable fan-coil is ideal for medium to large residential and commercial wine rooms and wine cellars. Let one of our trained technicians assist to determine if the DS088 is suitable for your wine storage application. Contractor installation is required. Max capacity of 9,600 BTU/H (2.81 Kilowatts).
Wine Guardian DS088 Options & Upgrades
-
Remote Sensor for Wine Guardian® Wine Cellar Cooling Units
-
Sentinel Series Integrated Humidifier for Models D050, D088, D200, DP50, DP88, DP200, DS050, DS088, DS200, SP50, SP88, SP200
-
Sentinel Series Duct Collar for Models D050, D088, D200, DP50, DP88, DP200, DS050, DS088, DS200, SP50, SP88, SP200
-
Flexible Ductwork | 10 inches (25.4cm)
-
Sentinel Series Duct Collar Kit for Models D050, D088, DP50, DP88, DS050, DS088, SP50, SP88
-
Remote Interface Controller and Thermostat
Wine Guardian DS088 Specifications
| Model |
DS088
|
| Line Frequency |
60 Hz
|
| Capacity |
5000 – 9840 BTU
|
| Volume |
850 – 4500 ft³
|
| Length |
23.8"
34" (condenser)
|
| Width |
25"
12.3" (condenser)
|
| Height |
19.7"
26.07" (condenser)
|
| Weight |
58 lbs
60 lbs (condenser)
|
| Electrical |
208-230/1/60
|
Wine Guardian DS088 Options
ALL WINE TEMPERATURES BUNDLE
For extended wine-cellar temperature ranges. Allows a Wine Guardian unit to control to an extended temperature range from 45°F(7° C) to 64°F(18° C), perfect for single to multiple cabinet applications and small wine rooms in which serving-temperature cooling is preferred.
This bundle also contains an integral electric heater coil and controls to protect wine cellars from dangerously low temperatures. It is ideal for areas where ambient temperatures fall below 50°F/10°C.
EXTREME CLIMATE PROTECTION BUNDLE
For Self-Contained Ducted systems: Contains an integral compressor crankcase heater and controls to protect the system against low temperatures (required when inlet air to the condenser coil is below 40°F/5°C). The bundle also contains an integral high-capacity condenser fan and coil for operation at elevated ambient temperatures. This bundle should be considered when inlet air to the condenser coil is above 100°F/38°C (condenser air inlet cannot exceed 120°F/49°C).
For Ducted Split systems: Unit protection in extreme climate conditions (on the condenser section only). It is required for continuous operation in climates that fall below 20°F. Enables the system to operate in temperatures as low as -20°F.
INTEGRATED HUMIDIFIER
Humidifiers help ensure perfect long-term wine storage conditions by adding humidity back into your wine space. The Integrated Humidifier attaches directly to your Wine Guardian cooling system using the same power source and remote controller.
FREESTANDING HUMIDIFIER
The Freestanding Humidifier is installed inside your wine space to provide optimal humidity for perfect long-term wine storage. The Humidifier can be controlled by your existing Wine Guardian controller.
Wine Guardian DS088 Documents and Resources
Ducted Split Product Brochure
Ducted Split Manual
Ducted Split Quick Start Installation Guide (Multi-Language)
Ducted Split Specifications Sheet
Ducted Split Warranty
Ducted Split CAD Drawing (PDF)
Condenser CAD Drawing (PDF)
