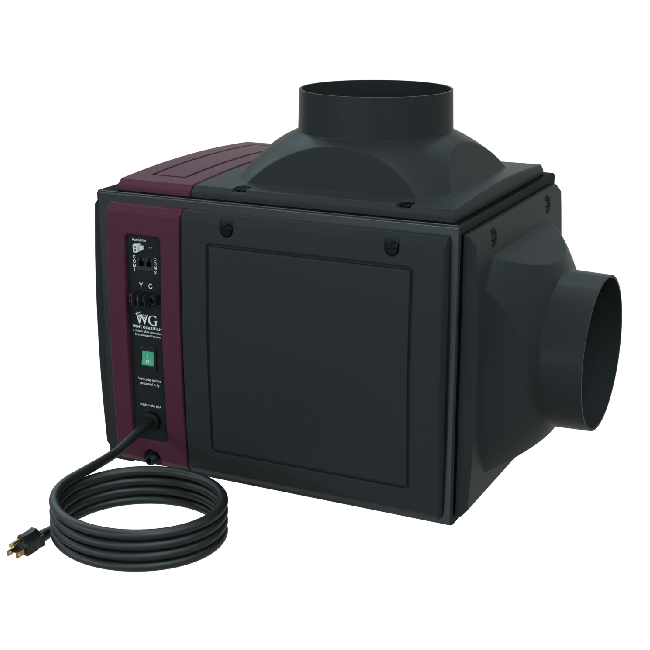

The DS025 split wine cellar air conditioner with ductable fan-coil is ideal for small residential and commercial applications. The DS025 has an application range dependent upon use and room construction. You must have a qualified contractor install this system.
The DS025 is a 60Hz system, which is standard in most of North America (incl. USA & Canada). The unit has a max capacity of 3,400 BTU/H (1.055 Kilowatt).
The DS025 split wine cellar air conditioner with ductable fan-coil is ideal for small residential and commercial applications. The DS025 has an application range dependent upon use and room construction. Let one of our trained technicians assist to determine if the DS025 is suitable for your wine storage application. Contractor installation is required. Max capacity of 3,400 BTU/H (1.055 Kilowatt).
*Patent Pending

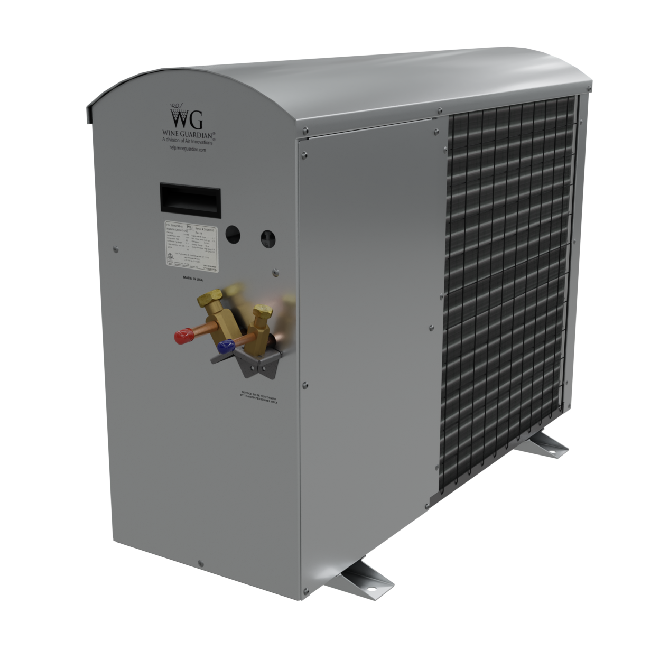

The condensing unit is patented. US Patent No. D791295
Wine Guardian DS025 Options & Upgrades
-
Remote Sensor for Wine Guardian® Wine Cellar Cooling Units
-
Sentinel Series Integrated Humidifier for Models D025, DP25, DS025, and SP25
-
Sentinel Series Duct Collar for Models D025, DP25, DS025, SP25
-
Flexible Ductwork | 8 inches (20.3cm)
-
Sentinel Series Duct Collar Kit for Models D025, DP25, DS025, SP25
-
Remote Interface Controller and Thermostat
Wine Guardian DS025 Specifications
| Model |
DS025
|
| Line Frequency |
60 Hz
|
| Capacity |
1000 – 3485 BTU
|
| Volume |
250 – 2000 ft³
|
| Length |
21.43"
34" (condenser)
|
| Width |
16.6"
12.3" (condenser)
|
| Height |
15.56"
26.07" (condenser)
|
| Weight |
35 lbs
75 lbs (condenser)
|
| Electrical |
115/1/60
208-230/1/60 (condenser)
|
Wine Guardian DS025 Options
ALL WINE TEMPERATURES BUNDLE
For extended wine-cellar temperature ranges. Allows a Wine Guardian unit to control to an extended temperature range from 45°F(7° C) to 64°F(18° C), perfect for single to multiple cabinet applications and small wine rooms in which serving-temperature cooling is preferred.
This bundle also contains an integral electric heater coil and controls to protect wine cellars from dangerously low temperatures. It is ideal for areas where ambient temperatures fall below 50°F/10°C.
EXTREME CLIMATE PROTECTION BUNDLE
For Self-Contained Ducted systems: Contains an integral compressor crankcase heater and controls to protect the system against low temperatures (required when inlet air to the condenser coil is below 40°F/5°C). The bundle also contains an integral high-capacity condenser fan and coil for operation at elevated ambient temperatures. This bundle should be considered when inlet air to the condenser coil is above 100°F/38°C (condenser air inlet cannot exceed 120°F/49°C).
For Ducted Split systems: Unit protection in extreme climate conditions (on the condenser section only). It is required for continuous operation in climates that fall below 20°F. Enables the system to operate in temperatures as low as -20°F.
INTEGRATED HUMIDIFIER
Humidifiers help ensure perfect long-term wine storage conditions by adding humidity back into your wine space. The Integrated Humidifier attaches directly to your Wine Guardian cooling system using the same power source and remote controller.
FREESTANDING HUMIDIFIER
The Freestanding Humidifier is installed inside your wine space to provide optimal humidity for perfect long-term wine storage. The Humidifier can be controlled by your existing Wine Guardian controller.
Wine Guardian DS025 Documents and Resources
Sentinel Series Ducted Split Product Brochure
Sentinel Series Ducted Split Manual
Sentinel Series Ducted Split Quick Start Installation Guide (Multi-Language)
Sentinel Series Ducted Split Specifications Sheet
Sentinel Series Ducted Split Warranty
Ducted Split CAD Drawing (PDF)
Condenser CAD Drawing (PDF)
