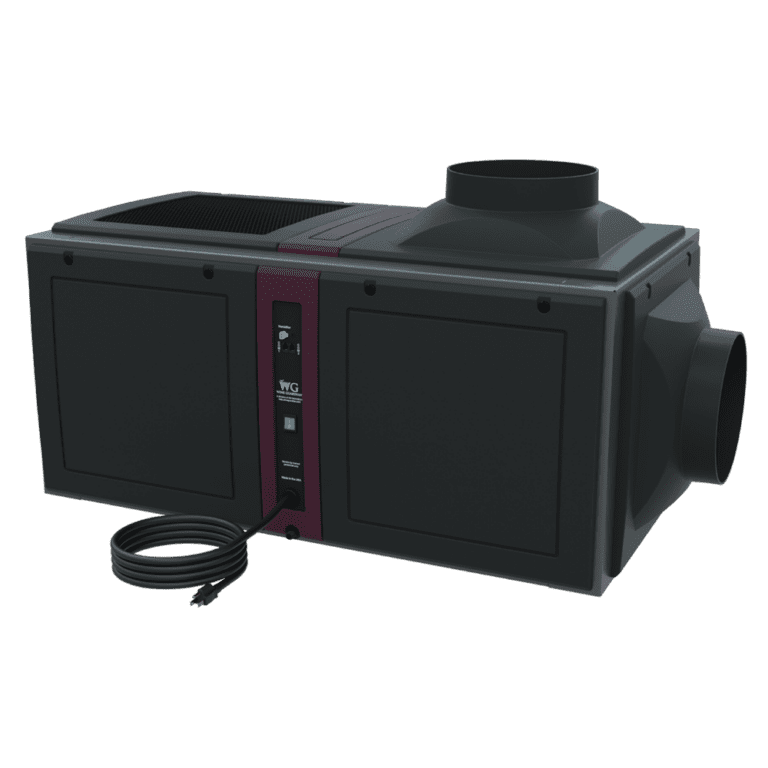

Wine Guardian® D050 Ducted Wine Cellar Cooling Unit

The D050 wine cellar cooling system is a self-contained, ducted wine cellar cooling system for medium-sized residential and commercial applications.

The D050 is a 60Hz system, which is standard in most of North America (incl. USA & Canada). Unit capacity is up to 6,320 BTUH.

The D050 wine cellar cooling system is a self-contained, ducted wine cellar cooling system for medium-sized residential and commercial applications. Let one of our trained technicians assist to determine if the D050 is suitable for your wine storage application. The D050 wine cooler is also suggested for smaller cellars containing large amounts of glass. Contractor installation is recommended. The maximum capacity is 6,320 BTU/h (1.85 Kilowatts). The D050 system is available in a water-cooled configuration.

Wine Guardian D050 Options & Upgrades

• Remote Sensor for Wine Guardian® Wine Cellar Cooling Units

• Sentinel Series Integrated Humidifier for Models D050, D088, D200, DP50, DP88, DP200, DS050, DS088, DS200, SP50, SP88, SP200

• Sentinel Series Duct Collar for Models D050, D088, D200, DP50, DP88, DP200, DS050, DS088, DS200, SP50, SP88, SP200

• Flexible Ductwork | 10 inches (25.4cm)

• Sentinel Series Duct Collar Kit for Models D050, D088, DP50, DP88, DS050, DS088, SP50, SP88

• Remote Interface Controller and Thermostat

Wine Guardian D050 Specifications

Wine Guardian D050 Options

 ALL WINE TEMPERATURES BUNDLE

For extended wine-cellar temperature ranges. Allows a Wine Guardian unit to control an extended temperature range from 45°F(7° C) to 64°F(18° C), perfect for single to multiple cabinet applications and small wine rooms in which serving-temperature cooling is preferred.

This bundle also contains an integral electric heater coil and controls to protect wine cellars from dangerously low temperatures. It is ideal for areas where ambient temperatures fall below 50°F/10°C.

 EXTREME CLIMATE PROTECTION BUNDLE

For Self-Contained Ducted systems: Contains an integral compressor crankcase heater and controls to protect the system against low temperatures (required when inlet air to the condenser coil is below 40°F/5°C). The bundle also contains an integral high-capacity condenser fan and coil for operation at elevated ambient temperatures. This bundle should be considered when inlet air to the condenser coil is above 100°F/38°C (condenser air inlet cannot exceed 120°F/49°C).

For Ducted Split systems: Unit protection in extreme climate conditions (on the condenser section only). It is required for continuous operation in climates that fall below 20°F. Enables the system to operate in temperatures as low as -20°F.

 ULTIMATE BUNDLE

Contains all the features in the All Wine Temperatures Bundle and the Extreme Climate Protection Bundle.

 WATER-COOLED

Includes a factory-configured integral water-cooled condensing coil and water-regulating valve. This wine cellar cooling system is ideal for geothermal, cooling tower, and lake water applications. The unit does not require warm condenser air connections, making it an excellent solution when warm-condenser-air venting is not possible.

 INTEGRATED HUMIDIFIER

Humidifiers help ensure perfect long-term wine storage conditions by adding humidity back into your wine space. The Integrated Humidifier attaches directly to your Wine Guardian cooling system using the same power source and remote controller.

 FREESTANDING HUMIDIFIER

The Freestanding Humidifier is installed inside your wine space to provide optimal humidity for perfect long-term wine storage. The Humidifier can be controlled by your existing Wine Guardian controller.
