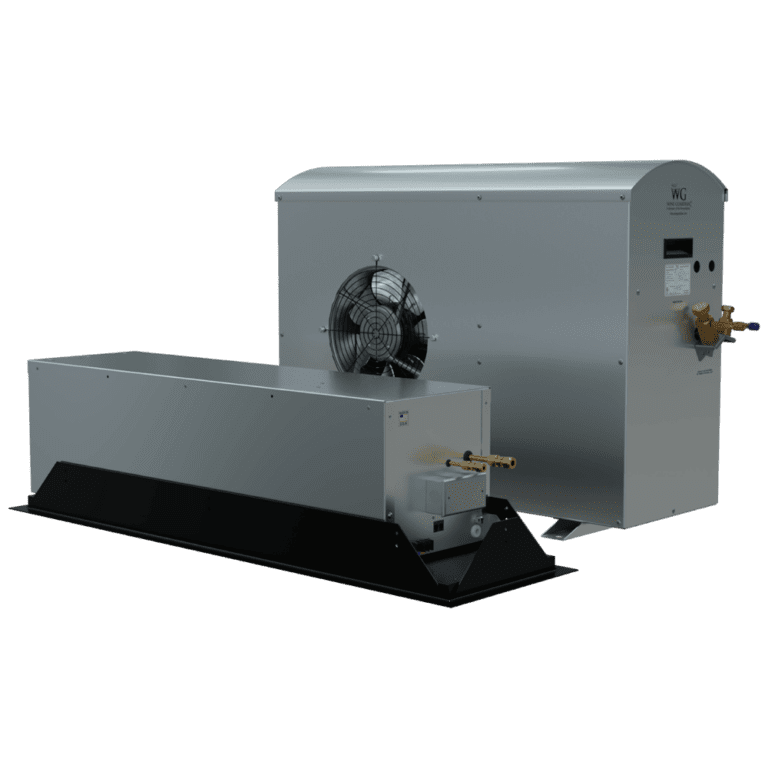

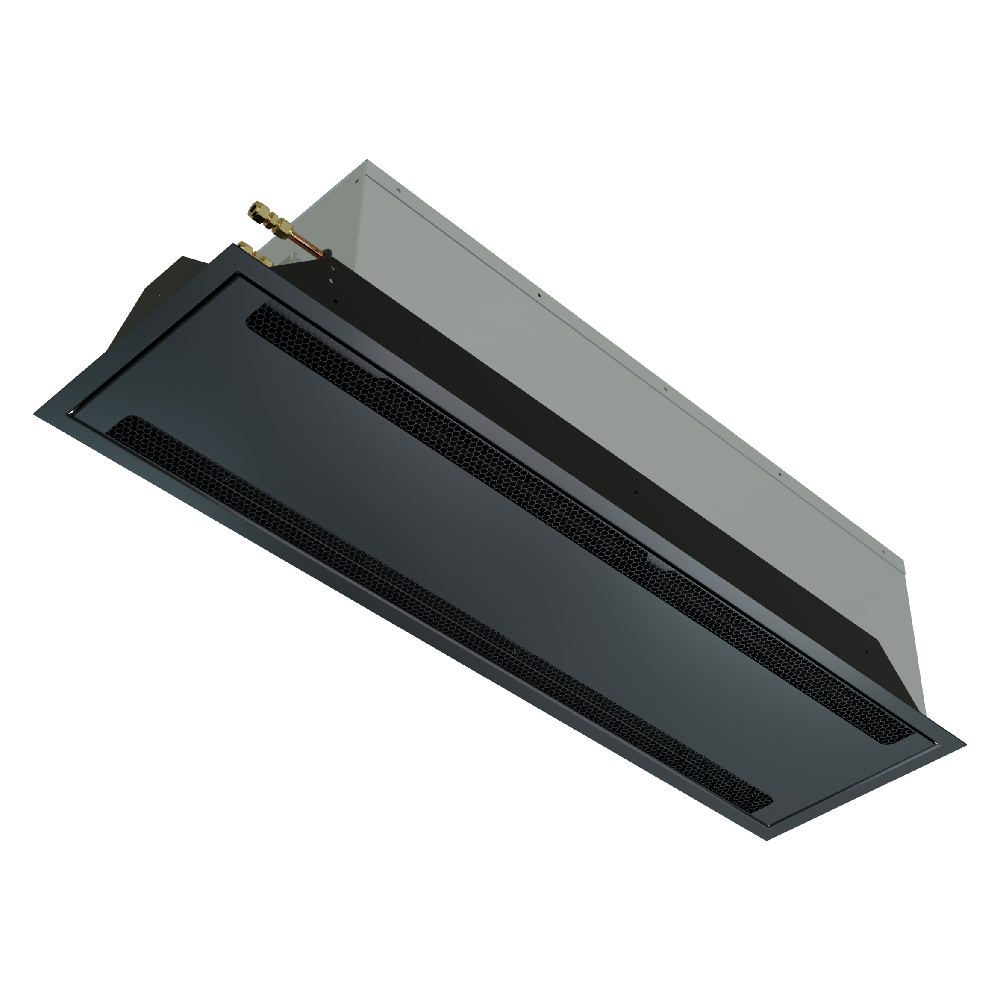

CS050 Wine Wall Cooling System was engineered to mount completely flush with the ceiling ensuring no obtrusive equipment is seen in the wine wall. It is a ductless split system designed specifically for wine walls, small wine rooms, and cabinet projects. This system has the ability cool wine walls down to both preservation temperatures and consumption temperatures. The maximum capacity for this system is 4,300 BTU/H.
The CS050 is a 60Hz system, which is standard in most of North America (including The United States & Canada).
Wine Guardian’s CS050 Wine Wall Cooling System provides superior cooling to maintain long-term storage conditions in wine wall applications. The system was designed to integrate flush with the ceiling of a wine wall so that no obtrusive equipment is visible. The CS050 has the capability to control conditions for both long-term storage (55°F/13°C to 58°F/14°C) and serving temperatures (down to 45°F/7°C).
Additional features of the Wine Wall Cooling System include the following:
- Easy access grille that requires no tools to remove
- Innovative hinge design for simple one-person installs

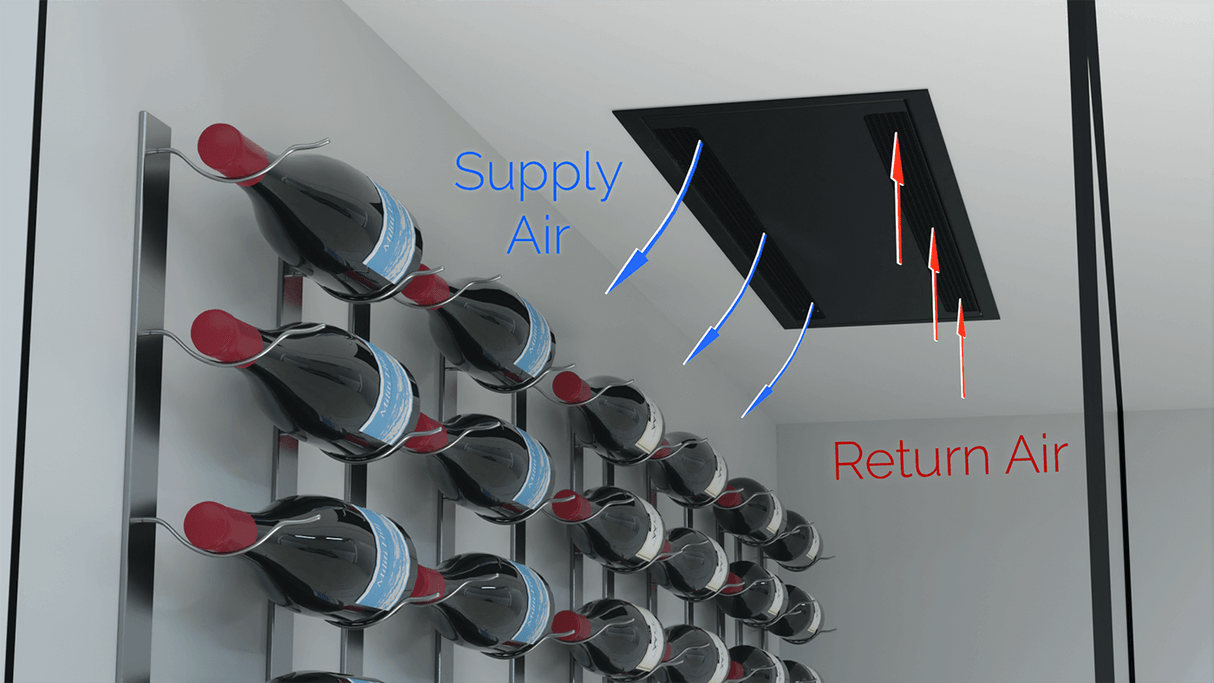

- Efficient air delivery to the wine wall with the grille’s integral supply and return sections
- Durable evaporator materials including an all all-aluminum chassis and grille and coated coils
The condensing unit is patented. US Patent No. D791295.
Wine Guardian CS050 Options & Upgrades
-
Freestanding Humidifier for use with Wine Guardian Units
-
Remote Interface Controller and Thermostat
-
Remote Sensor for Wine Guardian® Wine Cellar Cooling Units
Wine Guardian CS050 Specifications
| Model |
CS050 (Wine Wall)
|
| Capacity |
1000- 4050 BTU
|
| BTU Max |
3645
|
| BTU min |
1000
|
| Volume |
250 – 2200 ft³
|
| Volume max |
2200
|
| Volume min |
250
|
| Length |
44.19" (evaporator)
34" (condenser)
|
| Width |
12.44" (evaporator)
12.3" (condenser)
|
| Electrical |
115/1/60
208-230/1/60 (condenser)
|
| Where to Buy |
Distributor
|
| Line Frequency |
60 Hz
|
| Height |
11.43" (evaporator)
26" (condenser)
|
| Weight |
43 lbs
75 lbs (condenser)
|
| Ductless/Ducted |
Ductless
|
Wine Guardian CS050 Options
EXTREME CLIMATE PROTECTION BUNDLE
For Self-Contained Ducted systems: Contains an integral compressor crankcase heater and controls to protect the system against low temperatures (required when inlet air to the condenser coil is below 40°F/5°C). The bundle also contains an integral high-capacity condenser fan and coil for operation at elevated ambient temperatures. This bundle should be considered when inlet air to the condenser coil is above 100°F/38°C (condenser air inlet cannot exceed 120°F/49°C).
For Ducted Split systems: Unit protection in extreme climate conditions (on the condenser section only). It is required for continuous operation in climates that fall below 20°F. Enables the system to operate in temperatures as low as -20°F.
FREESTANDING HUMIDIFIER
The Freestanding Humidifier is installed inside your wine space to provide optimal humidity for perfect long-term wine storage. The Humidifier can be controlled by your existing Wine Guardian controller.
Wine Guardian CS050 Documents and Resources
Wine Wall Cooling System Product Brochure
Wine Wall Cooling System Manual
Wine Wall Cooling System Specifications Sheet
Wine Wall Cooling System CAD Drawing (PDF)
Condenser CAD Drawing (PDF)
