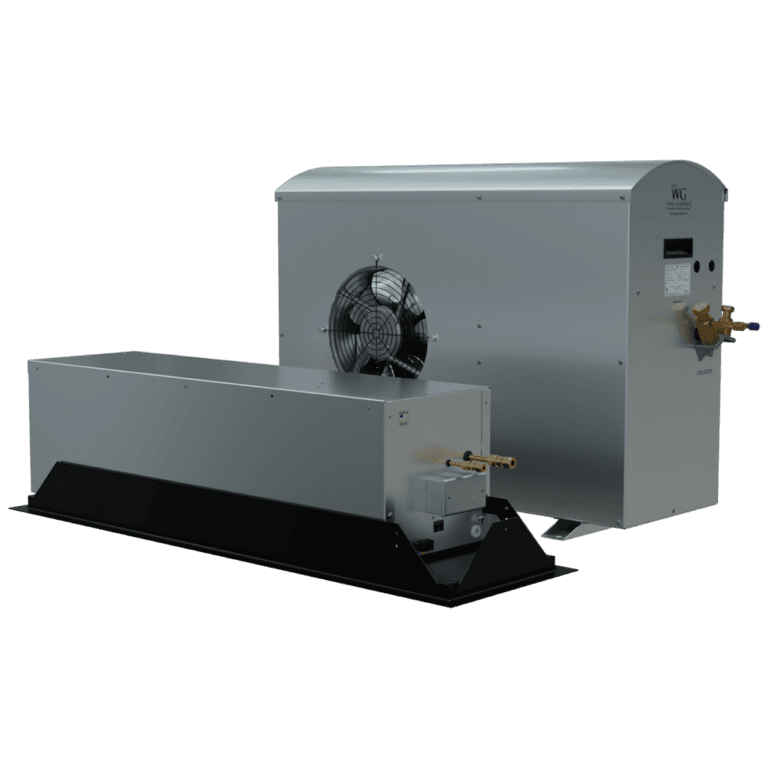

The CS025 Wine Wall Cooling System is a ductless split wine temperature control unit designed specifically for wine wall projects. Its grille is designed to integrate completely flush with the ceiling ensuring no bulky equipment is visible in the wine wall. This system can cool wine walls down to both long-term storage temperatures and serving temperatures. The maximum capacity for this system is 2,900 BTU/H.
The CS025 is a 60Hz system, which is standard in most of North America (incl. USA & Canada).

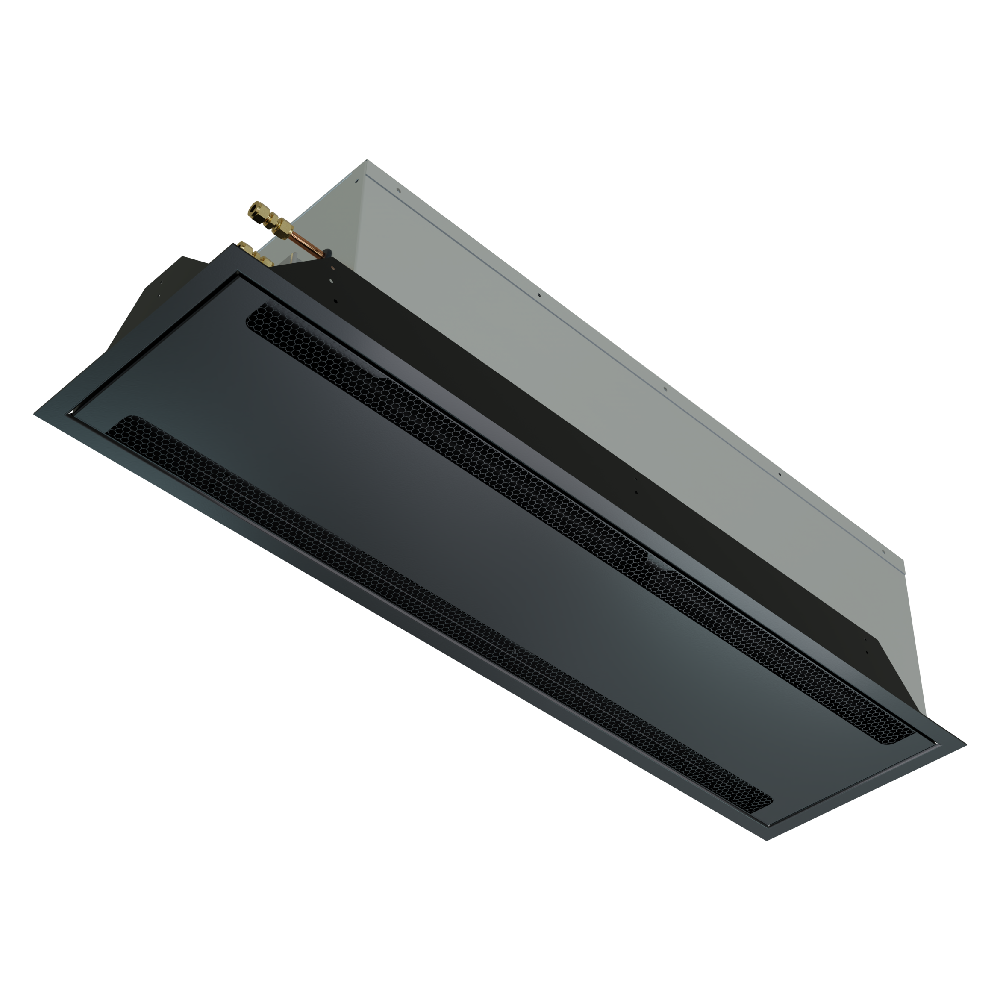

Wine Guardian’s Wine Wall Cooling System provides optimal cooling and airflow to maintain long-term wine storage conditions. It was designed to mount completely flush with the ceiling of a wine wall so that no obtrusive wine-cooling equipment is visible in the space. The system has the ability to control wine wall conditions for both long-term storage (55°F/13°C to 58°F/14°C) and serving temperatures (down to 45°F/7°C).
Additional features include the following:
- Easy access grille that requires no tools to remove
- Hinge design for easy one-person installation

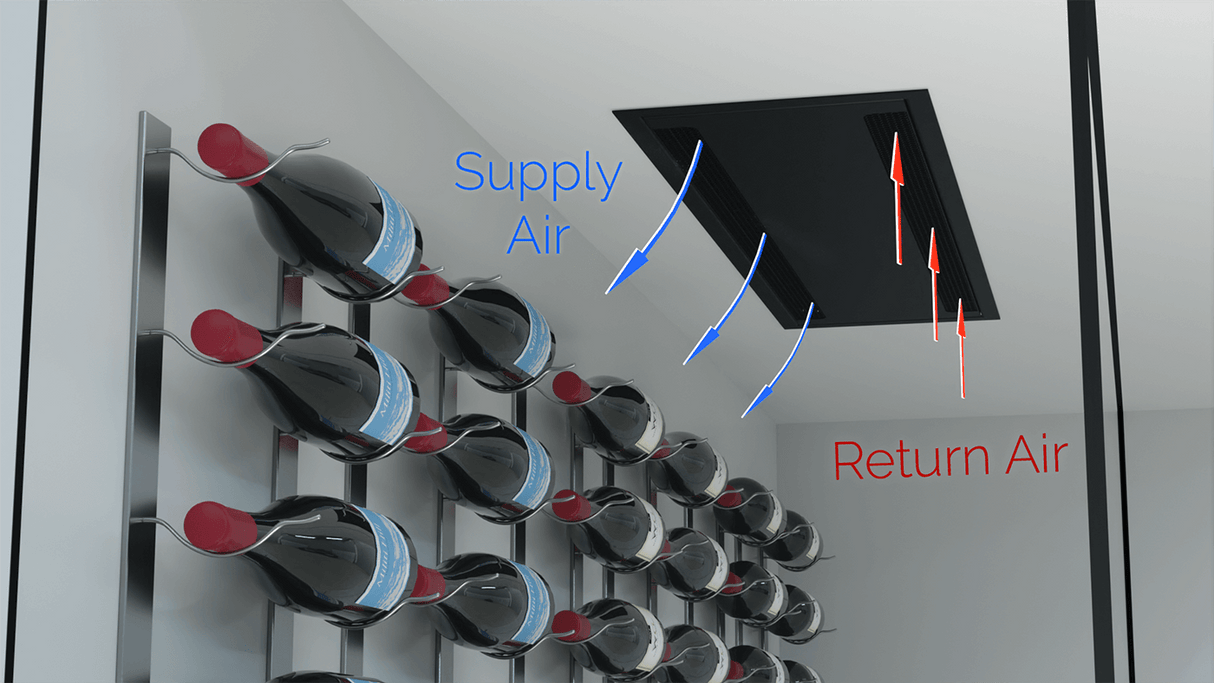

- Efficient air delivery with the grille’s integral supply and return sections
- Durable evaporator materials including an all all-aluminum chassis and grille and coated coils
The condensing unit is patented. US Patent No. D791295.
Wine Guardian CS025 Options & Upgrades
-
Freestanding Humidifier for use with Wine Guardian Units
-
Remote Interface Controller and Thermostat
-
Remote Sensor for Wine Guardian® Wine Cellar Cooling Units
Wine Guardian CS025 Specifications
| Model |
CS025 (Wine Wall)
|
| Capacity |
400 – 2755 BTU
|
| BTU Max |
2480
|
| BTU min |
400
|
| Volume |
100 – 1200 ft³
|
| Volume max |
1200
|
| Volume min |
100
|
| Length |
44.19" (evaporator)
34" (condenser)
|
| Width |
12.44" (evaporator)
12.3" (condenser)
|
| Electrical |
115/1/60
208-230/1/60 (condenser)
|
| Where to Buy |
Distributor
|
| Line Frequency |
60 Hz
|
| Ductless/Ducted |
Ductless
|
| Height |
11.43" (evaporator)
26" (condenser)
|
| Weight |
43 lbs
75 lbs (condenser)
|
Wine Guardian CS025 Options
EXTREME CLIMATE PROTECTION BUNDLE
For Self-Contained Ducted systems: Contains an integral compressor crankcase heater and controls to protect the system against low temperatures (required when inlet air to the condenser coil is below 40°F/5°C). The bundle also contains an integral high-capacity condenser fan and coil for operation at elevated ambient temperatures. This bundle should be considered when inlet air to the condenser coil is above 100°F/38°C (condenser air inlet cannot exceed 120°F/49°C).
For Ducted Split systems: Unit protection in extreme climate conditions (on the condenser section only). It is required for continuous operation in climates that fall below 20°F. Enables the system to operate in temperatures as low as -20°F.
FREESTANDING HUMIDIFIER
The Freestanding Humidifier is installed inside your wine space to provide optimal humidity for perfect long-term wine storage. The Humidifier can be controlled by your existing Wine Guardian controller.
Wine Guardian CS025 Documents and Resources
Wine Wall Cooling System Product Brochure
Wine Wall Cooling System Manual
Wine Wall Cooling System Specifications Sheet
Wine Wall Cooling System CAD Drawing (PDF)
Condenser CAD Drawing (PDF)
