WhisperKOOL Mini Blow-Through Concealed Wine Cellar Cooling System
WhisperKOOL Mini Blow-Through Concealed Wine Cellar Cooling System - 110V H.E. OMEGA / Ducted Airflow Kit (2 x Duct Plenum) is backordered and will ship as soon as it is back in stock.
Est. ship date: Nov 19 – Nov 23
Couldn't load pickup availability
Choose your size · Blow-Through
Want it priced as a complete system?
Tell us your cellar size and where the condenser can go. We'll recommend the evaporator, condenser and add-ons, and send you an itemized quote.
- Authorized WhisperKOOL dealerGenuine system, full factory warranty
- Free system sizingHeat-load check before you order
- Best price guaranteedFound it lower? We will match it
- Secure checkoutEncrypted payment, cards and Shop Pay
A concealed blow-through system for cellars up to 500 cu. ft. Runs ducted, ductless or hybrid, with a 110V OMEGA or 220V H.E. condenser.
- Cellar size
- Up to 500 cu. ft.insulated cellar
- Evaporator
- Concealed blow-throughducted, ductless or hybrid
- Condenser
- 110V OMEGA or 220V H.E.indoors or outdoors
- Install
- HVAC/R technicianrequired
Installed by a licensed HVAC/R technician. Line set not included. Ratings assume an insulated cellar held at 55°F.
-
Adaptable airflowDucted, ductless or hybrid to fit soffits and cabinetry
-
Quiet centrifugal blowerStrong, steady airflow with less noise
-
Bottle probeReads the wine's liquid temperature, not just the air
-
Standard or 24V thermostatUse the WhisperKOOL control or your own smart thermostat
Spec sheets & manuals
Your best price is a call away. Volume pricing and system design help: 888-589-1833
How it works
Buying a split system, step by step
A split system is a two-part install, so it pays to plan it before you order. Here is what happens, and where we help.
Size the cellar
Split systems are sized to the room, not just the cubic feet. Glass, stone, lighting and the temperature outside the cellar all change the load. Send us the details for a free heat-load check.
Use the cellar calculatorChoose the system
Pick the evaporator style (wall-mounted, ceiling, ducted or concealed) and the condenser. The 220V Advanced H.E. condenser is built for outdoor installs; the 110V condenser suits indoor spaces like a garage, attic or mechanical room.
Plan the install
A licensed HVAC/R technician runs the line set between the two units, charges the system and starts it up. The line set, drain line and any ducting are sourced separately. Your installer will confirm the run length and power.
Activate the warranty
The 2-year limited warranty starts on the purchase date and is activated once your technician submits WhisperKOOL's Product Warranty Checklist and WhisperKOOL approves it. We help you with the paperwork.

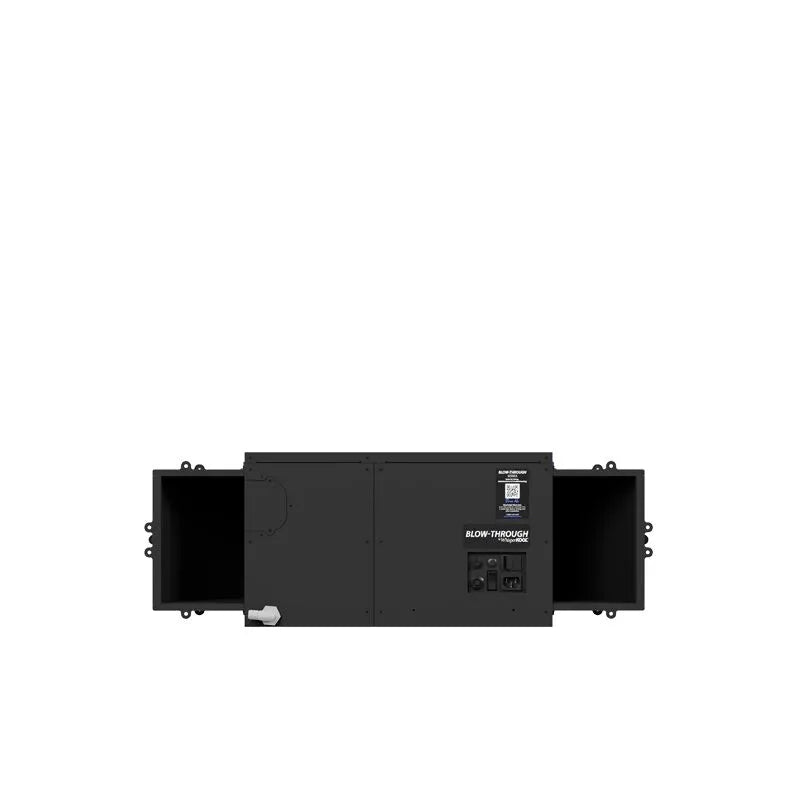

WhisperKOOL Mini Blow-Through: Concealed Split Wine Cellar Cooling System
A compact split-system evaporator built for stealth cooling applications where traditional systems don't fit cleanly. Ideal for wine walls, built-in cabinetry, soffits, and custom wine cellars, the Mini Blow-Through supports ducted, ductless, and hybrid airflow — keeping the cooling system out of view while your cellar stays exactly where you want it.
The Blow-Through Series is designed to support a wide range of cellar layouts through configurable airflow and precision fan control. Integrated airflow technologies help optimize circulation, reduce operational noise, and improve installation flexibility.
Every wine cellar installation presents unique airflow challenges. Flexible airflow management supports stable cellar temperatures while integrating more naturally into custom residential applications.
Rotatable Air Deflector
Supports left, right, and downward airflow configurations, letting the system adapt to soffits, built-in cabinetry, and in-cellar applications.
Variable Speed Fan Switch
Lets installers balance airflow performance, sound levels, and overall system efficiency based on installation requirements.
Centrifugal Blower
A high-performance centrifugal blower delivers strong, consistent airflow while maintaining quieter operation.
Flexible airflow adapts seamlessly to soffits, cabinetry, and in-cellar installations — one system engineered to fit a wide range of cellar layouts.
The Blow-Through Series incorporates monitoring and control technologies that help maintain precise cellar conditions while providing intuitive system management and operational protection.
Consistent temperature management is critical for long-term wine preservation. Integrated monitoring helps maintain stable storage conditions while improving system visibility and control for homeowners and installers.
KDT Digital Touch Display
Provides intuitive system control, monitoring, and parameter protection alerts. The display can be installed up to 50 ft. away for flexible placement.
Bottle Probe Technology
Measures liquid temperature directly for a more accurate representation of actual wine storage conditions compared to ambient air sensing alone.
Advanced monitoring helps maintain accurate wine storage conditions and simplify system control, from the digital display down to the bottle probe.
The Blow-Through Series accommodates a broad range of installation environments — soffits, closets, built-in cabinetry, and in-cellar applications. Flexible ducting and service-access options simplify integration into custom residential projects.
Custom wine cellar projects often require adaptable installation solutions. The system is engineered to simplify integration into residential environments while supporting flexible airflow and service accessibility.
Ductless, Ducted, or Hybrid Operation
Runs ductless for direct airflow, or fully ducted for runs up to 25 ft., giving greater installation flexibility.
Multi-Application Design
Engineered to support soffits, closets, and built-in cabinetry across a variety of cellar layouts.
Dual-Side Service Access
The removable coil design allows service access from either the left or right side, improving installation flexibility and maintenance accessibility.
Upward-Facing Flare Fittings
Integrated upward-facing flare fittings with built-in knockouts support cleaner line-set routing and simplified installation.
Designed for ductless or fully ducted applications across a wide range of cellar configurations — soffits, closets, and built-in cabinetry.
The Blow-Through Series incorporates service-focused design features that help reduce installation complexity, improve maintenance accessibility, and streamline long-term servicing.
Simplified service access can help reduce installation labor, improve technician efficiency, and support an easier long-term ownership experience.
User-Friendly Flare Fittings
Help eliminate the need for brazing, reducing installation time and simplifying servicing procedures.
Removable Coil Design
Provides easier internal access during maintenance and servicing.
Modular Construction
Supports more efficient assembly, servicing, and long-term maintenance accessibility.
Service-friendly engineering helps simplify installation, maintenance access, and long-term servicing — removable coil design included.
The Blow-Through Series incorporates drainage protection, durable construction materials, and configurable condensate management designed to support reliable operation across varying installation environments.
Reliable moisture management and durable construction are essential for long-term cooling system performance, helping protect internal components while supporting stable cellar operation.
Integrated Condensate Management
Includes a float switch and anti-microbial condensate strip to help prevent overflow and support reliable operation.
Stainless Steel Drip Tray
A corrosion-resistant stainless steel drip tray helps improve long-term durability and moisture protection.
Configurable Drainage Options
Supports either condensate pump or gravity drain configurations, with selectable left or right drain port placement.
Integrated protection systems help improve long-term reliability and operational stability, from the drip tray to the condensate management system.
One System. Any Installation.
Fully ducted, hybrid, or ductless — the Mini Blow-Through fits soffits, closets, and built-in cabinetry without compromise. Duct runs up to 25 ft. Service from either side.

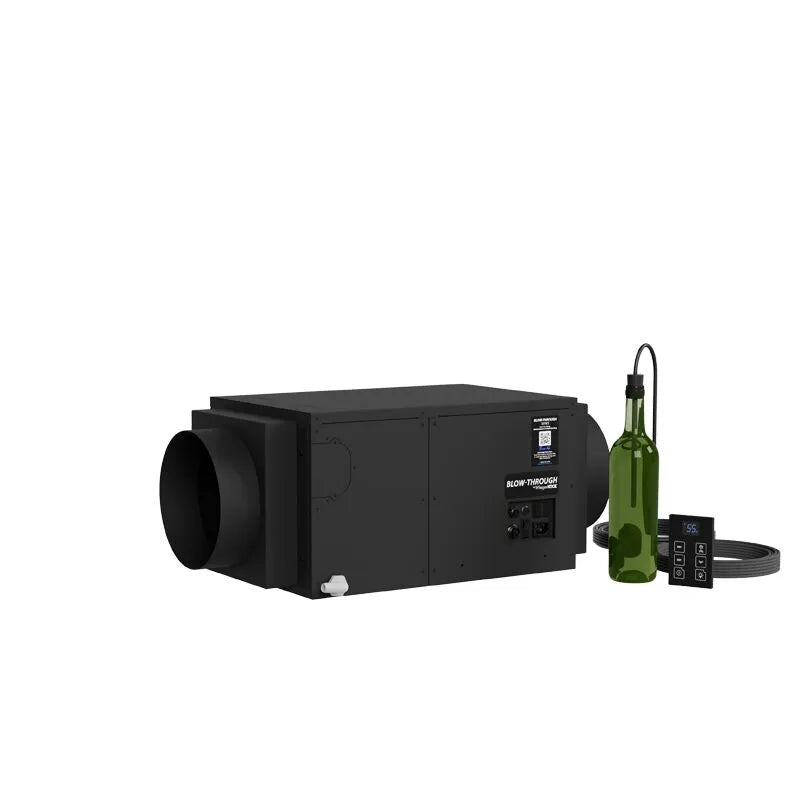

Ducted Airflow
- Ideal for soffits, wine walls, and cabinetry
- Concealed supply and return ducting
- Coil removal from left or right side

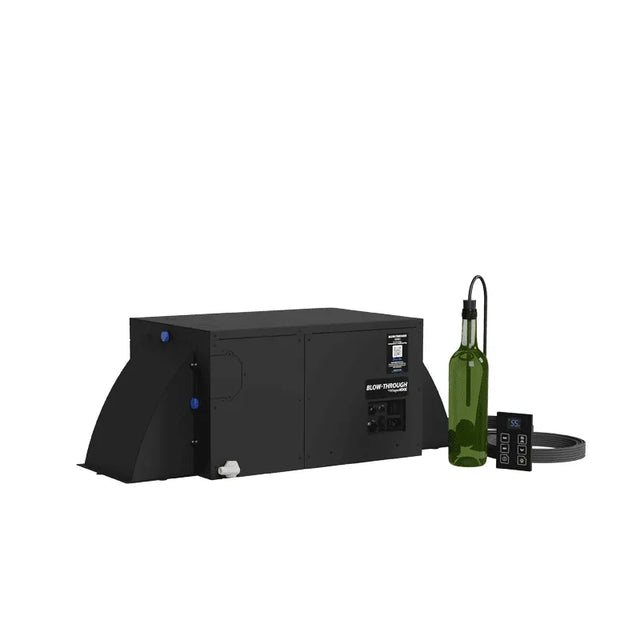

Ductless Airflow
- Open cellar applications
- Left, right, or downward airflow
- No ductwork required
Hybrid Airflow
- Duct runs up to 25 ft.
- Balances airflow control with simplified routing
- Ideal for compact mechanical spaces

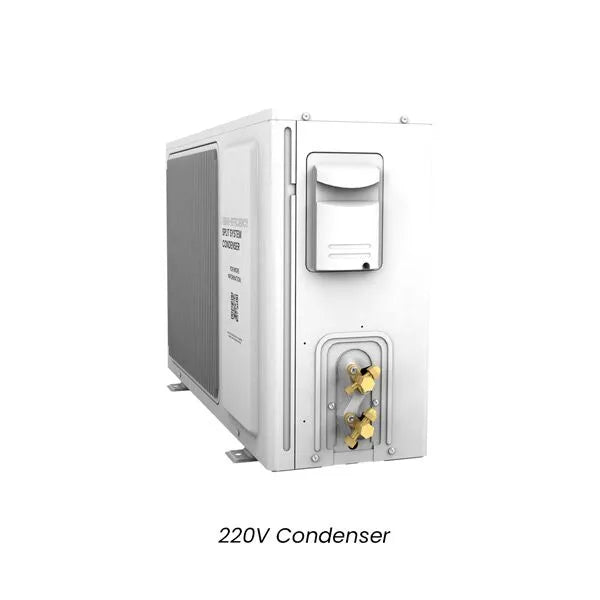

Condenser Options: OMEGA 110V H.E. vs. ADVANCED 220V H.E.
A note on the 24V Thermostat Conversion Kit: if selected, the system will not be built with the standard WhisperKOOL control or liquid-temperature bottle probe — you'll need to source your own compatible 24V thermostat. Our support team does not provide technical support for third-party smart thermostats.
Full technical specifications — dimensions, weight, electrical requirements, and complete BTU ratings by fan speed and configuration — are available in the official WhisperKOOL Product Specification Sheet.
View Spec SheetApproximate cellar capacity: up to 500 cu. ft. when fully insulated and sealed with a proper vapor barrier. We recommend a professional heat-load calculation before finalizing your system.
A limited 2-year product warranty with up to an additional 1-year grace period for installation is offered with all split systems. This warranty is not activated until a Product Warranty Checklist has been submitted and approved by WhisperKOOL.
Product Documentation & Resources
Frequently Asked Questions
Can this cooling system be hidden in a soffit?
Yes — soffit installation is one of the Mini Blow-Through's intended applications. It can be positioned in a soffit, ceiling cavity, custom cabinet, attic, or adjacent mechanical space, with airflow directed into the cellar through your chosen ducted, ductless, or hybrid configuration.
What's the difference between the ducted, ductless, and hybrid airflow kits?
The ducted kit connects both supply and return air to insulated ductwork, giving the most flexibility in equipment placement. The ductless kit uses directional deflectors for both airflow paths — well suited to soffits and cabinetry with short, direct airflow. The hybrid kit ducts one side while using a deflector on the other, useful when only one airflow path needs to reach a remote register.
Do I need a professional to install this system?
Yes. This is a split refrigeration system that must be installed, commissioned, and charged by a qualified, licensed HVAC/R technician. Installation by an unqualified party will void the warranty, and the split-system warranty checklist must be completed by the installing technician before coverage is activated.
Is this a good fit for a glass wine cellar?
Glass wine cellars are listed among the Mini Blow-Through's ideal applications by WhisperKOOL, alongside residential wine rooms, commercial wine displays, and custom millwork. As with any cellar type, we recommend a professional heat-load calculation to confirm the right configuration for your specific space before ordering.
How large of a wine cellar can the Mini Blow-Through cool?
Approximately up to 500 cubic feet when the cellar is fully insulated, properly sealed, and protected by a continuous vapor barrier. A heat-load calculation is still required, since glass, doors, lighting, and construction materials can all change the actual capacity your space needs.
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Questions, answered
WhisperKOOL split system FAQ
Straight answers from the team that sizes, installs and services wine cellar cooling every day.
Do I need an HVAC technician to install a split system?
Yes. A split system has two units joined by refrigerant lines, so a licensed HVAC/R technician has to install it, charge it and start it up. Installing it any other way voids the WhisperKOOL warranty.
What is not included in the box?
The copper line set that connects the evaporator and condenser is not included, and neither is the drain line or any ducting for ducted models. An exterior housing for an outdoor condenser is available as an option. Your technician will size the line set for your run.
How far can the condenser be from the cellar?
On Platinum, Ceiling Mount and Quantum systems the condensing unit can sit up to 100 line feet from the evaporator, so it can go outdoors, in a garage, attic or mechanical room. Ducted evaporators can sit up to 25 duct feet from the cellar. Exact limits for each model are in its owner's manual.
110V or 220V Advanced H.E. condenser: which one?
The 220V Advanced H.E. condenser is made for outdoor installs: a larger coil, quieter fans and lower power use, and it copes with extreme temperatures. The 110V condenser suits indoor spaces such as a garage, attic or mechanical room. If you are unsure, tell us where it will go and we will recommend one.
Will it run in cold weather?
Split condensers are designed for roughly 20°F to 110°F. For colder locations, WhisperKOOL's cold weather start kit keeps the system running well below freezing, and it is included with many models. Check the product description, or ask us before you order.
How does the warranty work on a split system?
WhisperKOOL split systems carry a limited 2-year product warranty from the purchase date. It is activated once the installing technician submits the Product Warranty Checklist and WhisperKOOL approves it. As an authorized dealer, we help you register the system and file any claim.
Can I order online or do I need a quote?
Both work. If you already know the model, condenser and options, you can add it to your cart. If you want help choosing or want the full system priced in one place, request a quote and our team will send you an itemized recommendation.
