Vinotheque provide the perfect balance of superior performance, commercial quality and luxe design. The sleek and modern aesthetic enhances any décor while the latest technology expertly guards against heat, humidity, vibration and light.
Steady Temp Cooling is achieved though the use of digitally controlled advanced inverter compressor cooling, for the most consistent cooling performance and temperature regulation. Now with our patented* VinoView Shelves to showcase your most prized wines.
PERFECT FOR STORAGE AND AGING
Recommended for those whose collections are primarily red wines

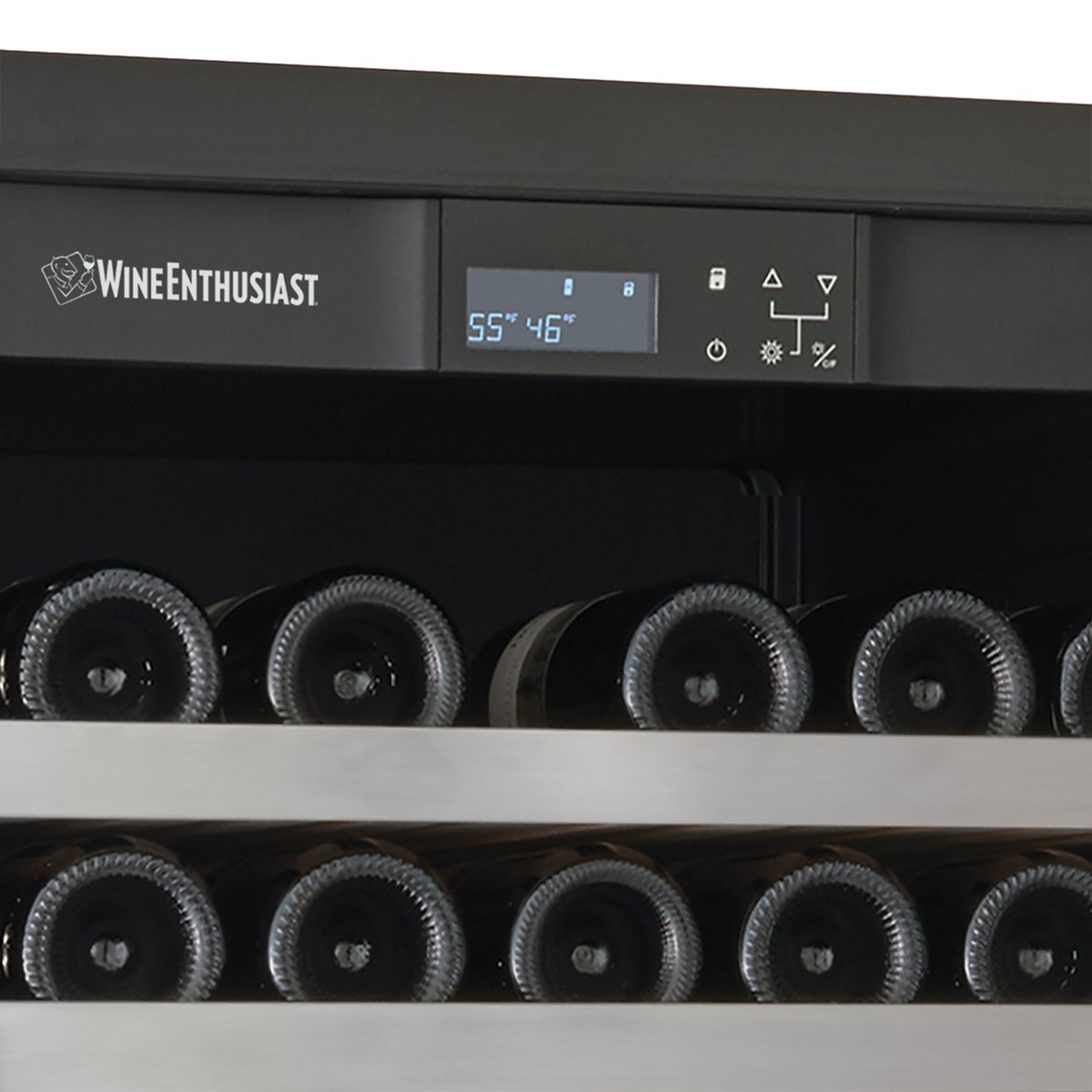

DIGITAL CLIMATE CONTROL
Intuitive touchscreen controls to easily set desired temperatures-Temperature range of 41° to 68°F
ULTRA-EFFICIENT INVERTER COOLING TECHNOLOGY
Equipped with premium Inverter cooling technology, ensures the most consistent temperature
COMMERCIAL QUALITY CONSTRUCTION
Commercial Grade Stainless Steel, Triple Pane Glass Door with Anti-UV Protection
MAXIMUM STORAGE CAPACITY
Beechwood shelving design to comfortably accommodates every size bottle in your collection.

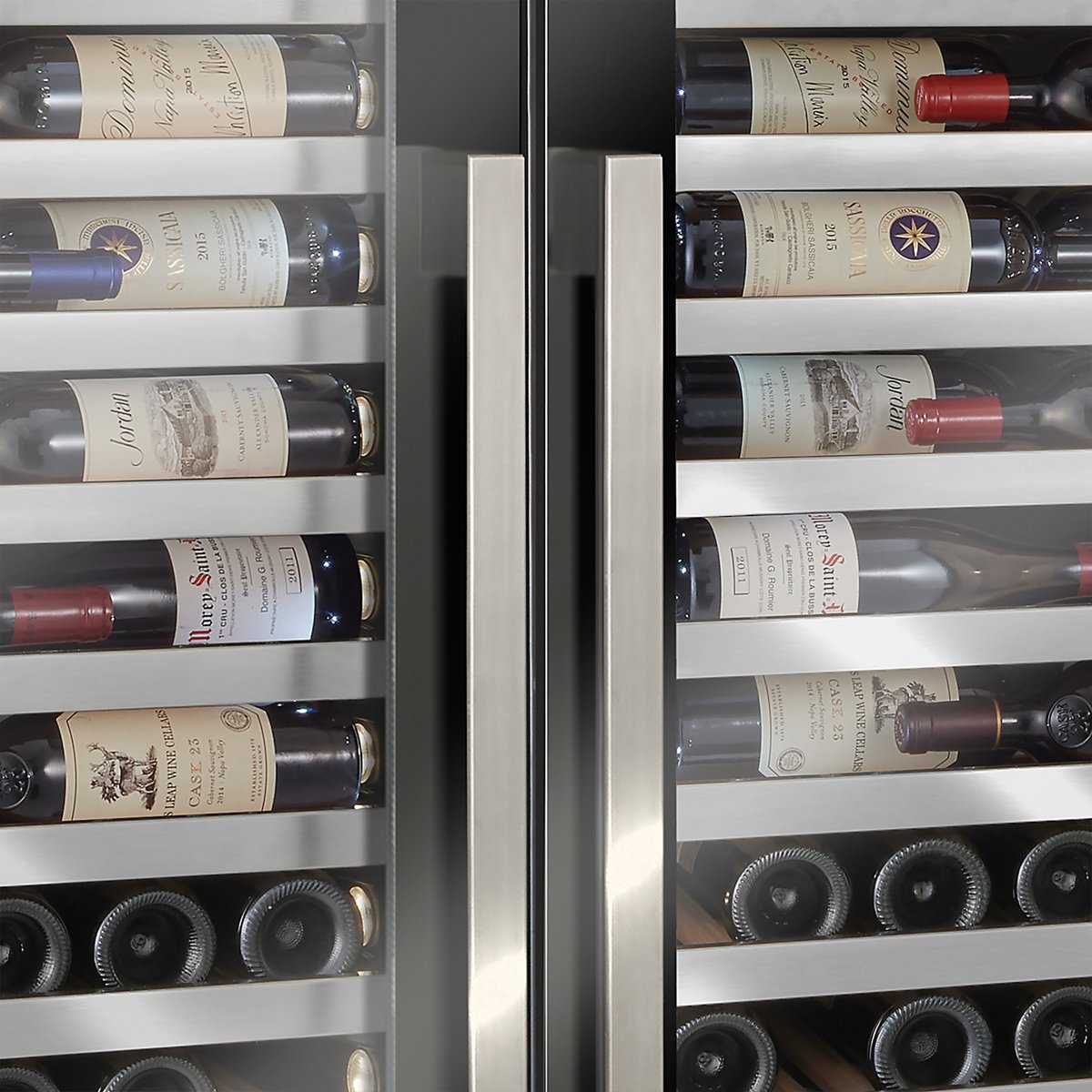

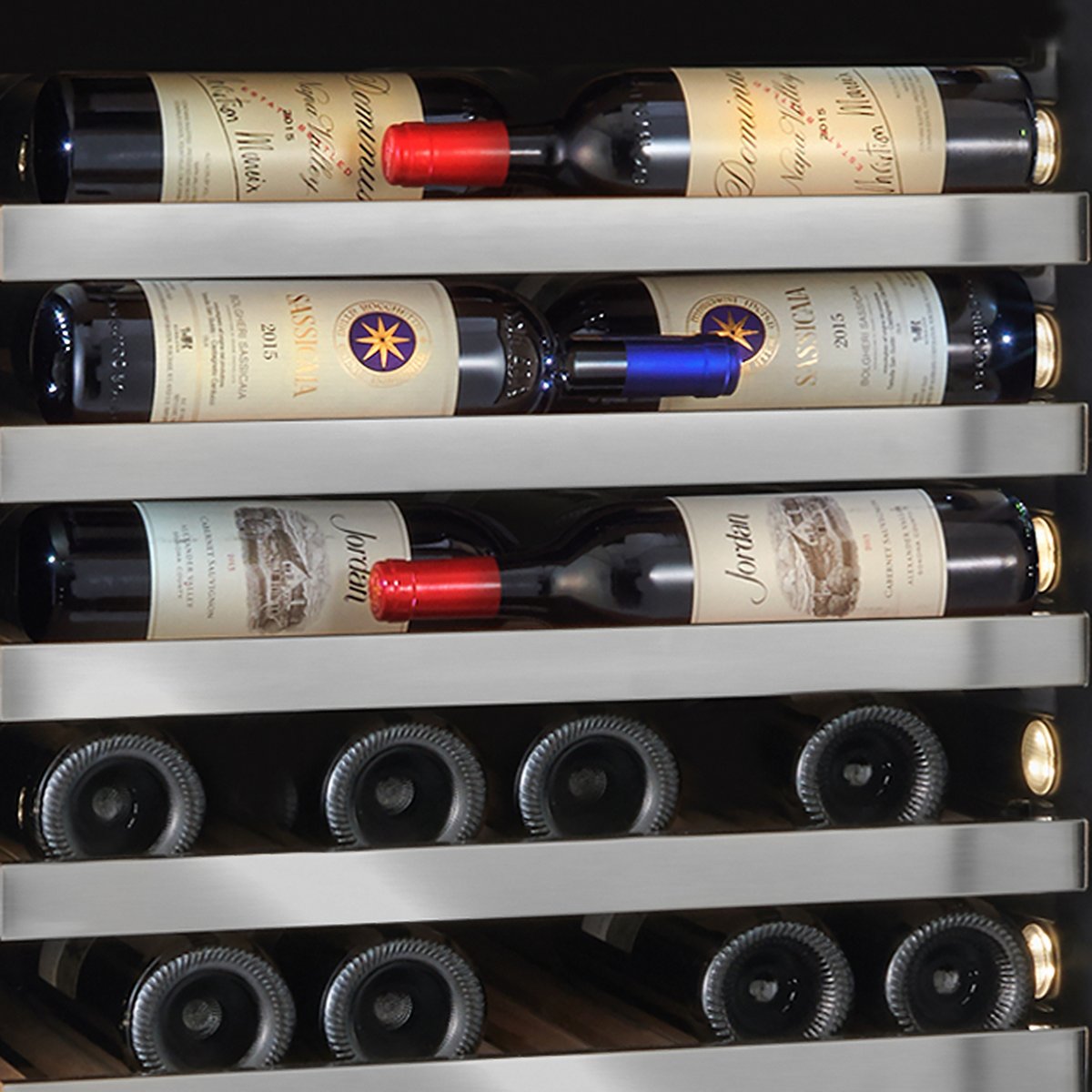

PATENTED VinoView™ SHELVING*
Each of the innovative VinoView shelves proudly presents your favorite bottles with the labels forward, with an additional 5 bottles behind.
- 6 VinoView Shelves with stainless steel trim Showcase Your Prized Wines - 8 Regular Shelves with stainless steel trim to Maximize Storage Capacity
DRAMATIC SIDE LIGHTING
Full cabinet LED lighting showcases your wine collection
BUILT-IN OR FREE STANDING
Place in any room of your home freestanding or built into cabinetry.
The innovative technology keeps noise to a minimum while also ensuring exact performance, energy efficiency and quiet operation.

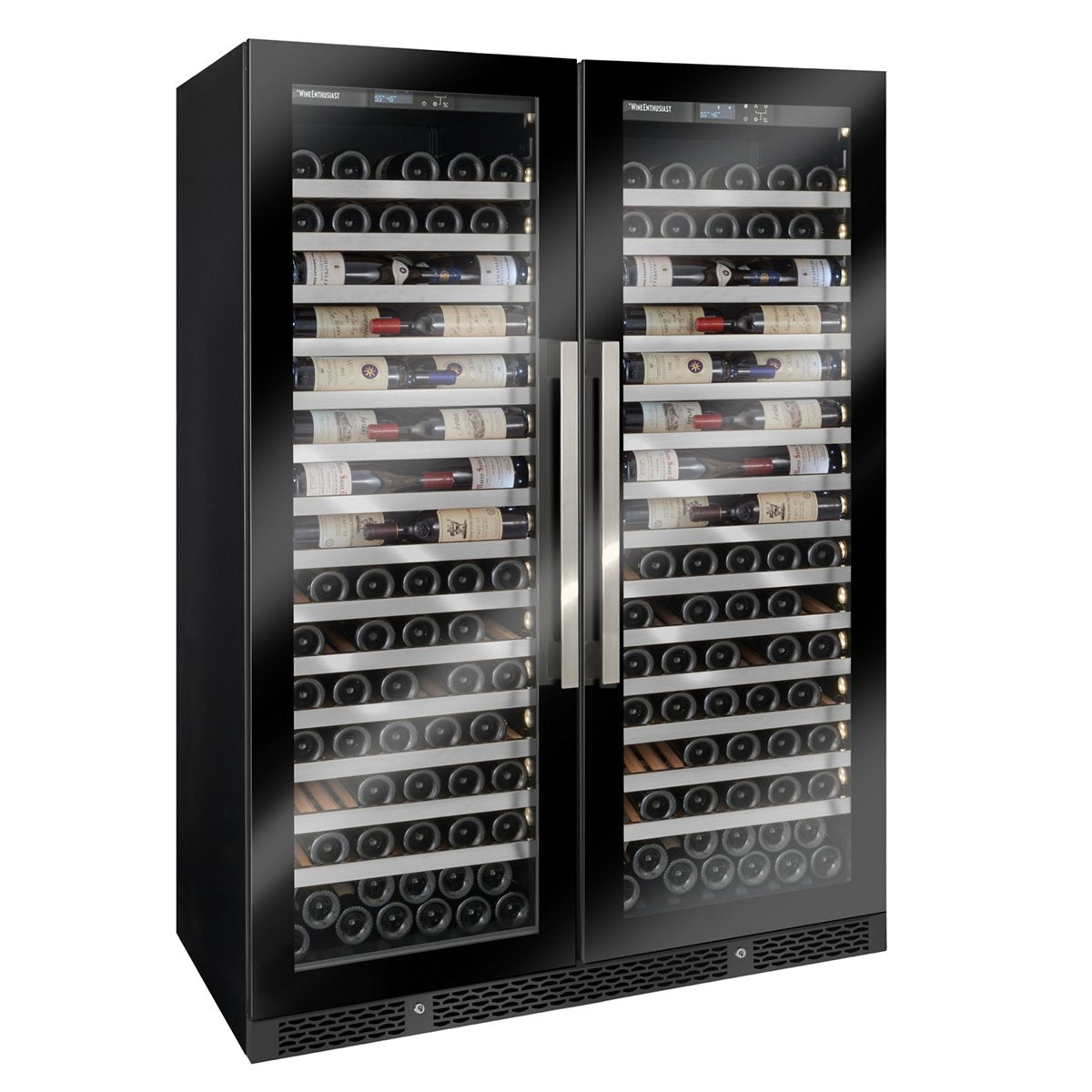

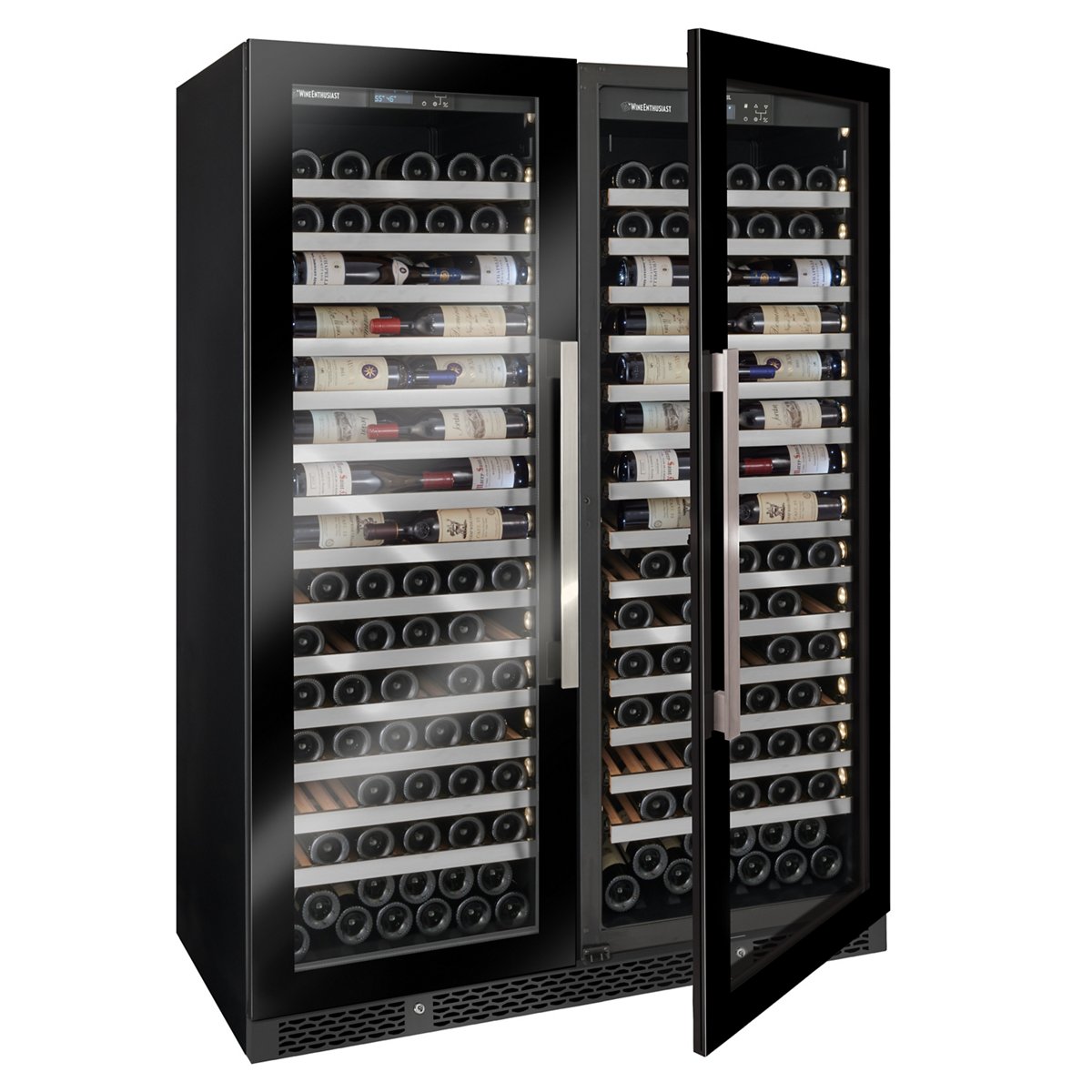

Please note this is 2 units side by side, one with right hinged door and 1 with a left hinged door.
DIMENSIONS AND CAPACITY
|Max. Bottle Capacity||300|
|Unit Height (Inches)||67.75|
|Unit Width (Inches)||47|
|Unit Depth (Inches)||28.25|
|Unit Depth with Handle (Inches)||29.75|
|Volume (Cu. Ft.)||27.4|
|Unit Weight (Lbs.)||240|
|Type of Cooling||Inverter Compressor|
|Temperature Range||41° - 68°F|
|Temperature Control Type||Electronic Touch|
|Door Style(s)||Seamless Stainless Steel Trim Glass or Full Black Glass|
|Door Handle Style||Stainless Steel Flat Bar|
|Lock & Key||Y|
|Accessories Included||Manual, Keys, Grill Install and Door Reverse Hardware|
|Warranty||1 Year Parts & Labor, 3-Years Sealed System (Parts Only)|
|Shipping Weight (Lbs.)||590|
|Shelving Style||8 Rolling and 6 VinoView|
|Shelf Front Trim(s)||Stainless Steel|
|Shelf Extension (%)||77|
|Distance between Shelves (Inches)||3.5|
|Soft Close Shelving||N|
|Total Shelves Included||14|
|Cabinet Material and Color||Black Steel|
|Interior lighting||Side Mounted White LED|
|Interior Liner||Molded Polystyrene|
CUT OUT DIMENSIONS AND INSTALL
|Cut Out Height x Width x Depth (Inches)||68.25 x 49 x 31.75|
|Installation Type||Free Standing/Built-In|
|Electrical Requirement (v/hz)||115V/60HZ|
|Plug Type||Right Angle NEMA 5-15P Plug with SJT 3X18AWG Cord|
|Power Cord Length (inches)||75|
|Power Cord Location||Rear Bottom Left Side|
|Leveling Legs (Qty)||4|
A Note About Bottle Sizes and Storage Capacity
When we reference bottle capacity for our wine cellars, we are referring to the maximum quantity of "standard" Bordeaux-size bottles that will fit into that cellar. In reality, as you can see from the chart above, there is no true standard size bottle these days as bottles come in varying styles, sizes and shapes. Some are extremely tall and thin (like a Riesling bottle), others are shorter yet wide at the shoulders (like the Pinot Noir or Turley bottle) and others are tall, wide and broad at the shoulders (like your large California red bottle). If you have any of these non "standard" Bordeaux size bottles in your collection, your capacity can be lower than what we state the unit can hold.
Here is our rule of thumb: If up to half of your collection consists of non-standard Bordeaux-size bottles, your maximum capacity may be reduced by 20-25%. If your collection consists mostly of these larger sized bottles, your maximum capacity may be reduced by as much as 40%. The one thing we do know is that all collections are different, and that's the great thing about collecting wine! If you have any questions regarding your collection and its effect on your capacity.
