Description
34.38" H x 29.5" W x 22.5" D
(87cm H x 75cm W x 57cm D)
Typically ships within 48 hours!
- Seamless stainless steel trimmed glass doors bring true luxury under the counter
- Dual zone design lets you store red and white wine in separate compartments under the appropriate temperature conditions
- Flexible design allows built-in or freestanding use in 30" wide spaces
- Versatile interior can store both slim Bordeaux bottles and wider Burgundy style wine bottles
- Digital controls offer easy and intuitive temperature management
- Factory installed locks offer added security to both sections
SUMMIT's collection of built-in undercounter wine cellars offers quality storage with user-friendly convenience and elegant style.

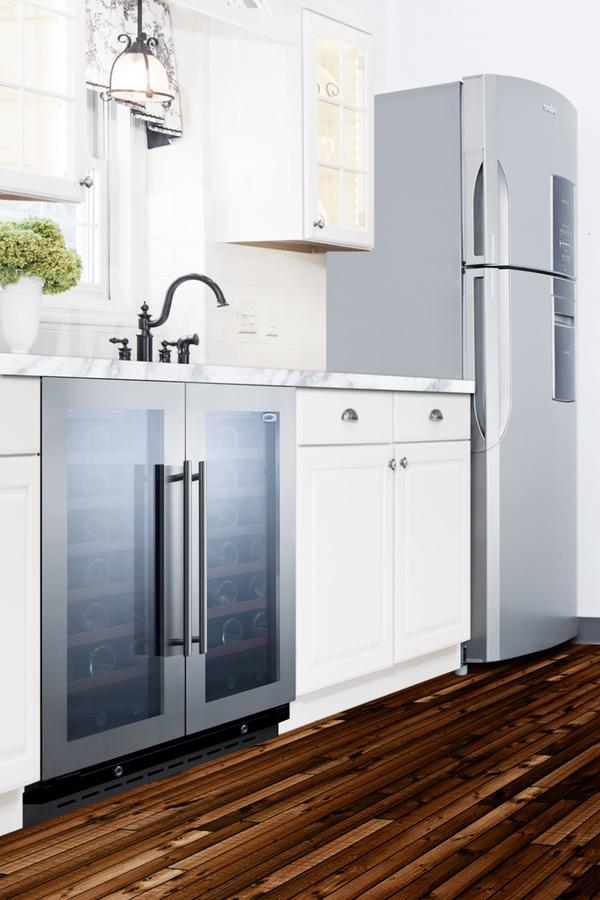

The SWC3066B is a 30" wide wine cellar designed for built-in installation under counters. The fully finished black cabinet also allows freestanding use. This unit includes two seamless stainless steel trimmed glass doors with a unique French door swing. Both include factory installed locks and professional handles.

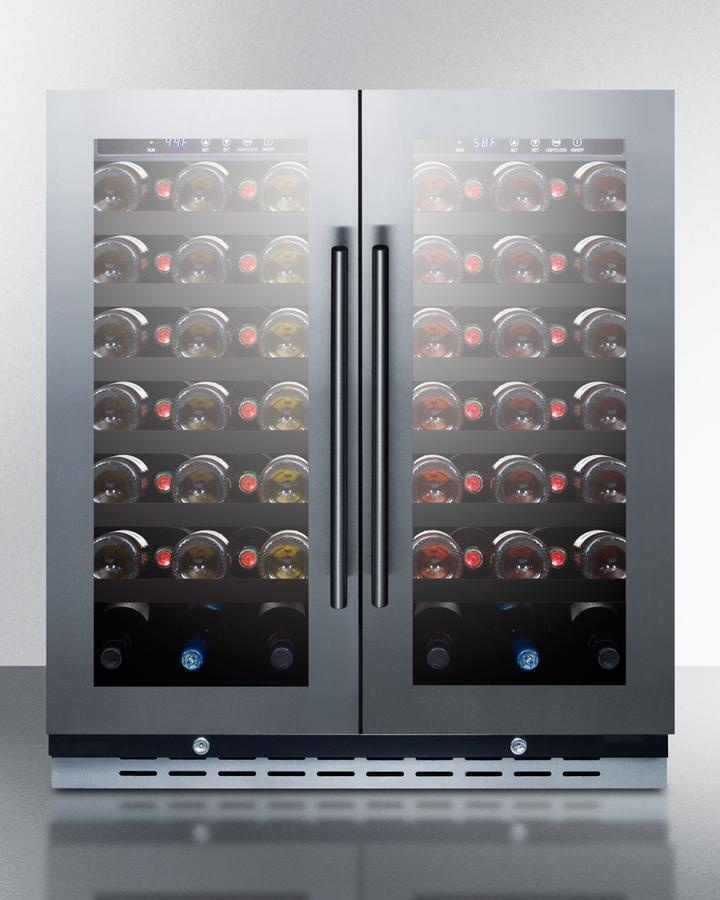

Two separate zones feature independent digital thermostats, letting you chill white and sparkling wine in one section while preserving reds under warmer temperatures in the other. Both zones include six wooden shelves in a jet black finish and slotted floors, letting you store up to 66 standard 750ml Bordeaux bottles inside the unit. Alternatively, you can fit up to 46 wider "Burgundy" style bottles (often used for chardonnay and pinot noir) in addition to 10 Bordeaux bottles. The slotted floor can store six champagne bottles. Recessed LED lighting offers an attractive view to let you display your wine collection in style.
With a professional look and innovative design, SUMMIT SWC3066B is a unique addition to any home. For a similar unit designed for wine and beverage storage, see the SWBV3067B.
Features
Built-in capable
Make the best use of space by installing this unit under the counter and flush with other cabinetry
66 bottle capacity
Interior can hold 66 standard 750ml Bordeaux style bottles, or 46 wider Burgundy bottles + 10 Bordeaux bottles
Dual zone design
Two distinct temperature zones let you store white wine at colder temperature and red wine under warmer conditions
Recessed LED lighting
Gentle and energy efficient LED lighting offers an elegant view of your collection

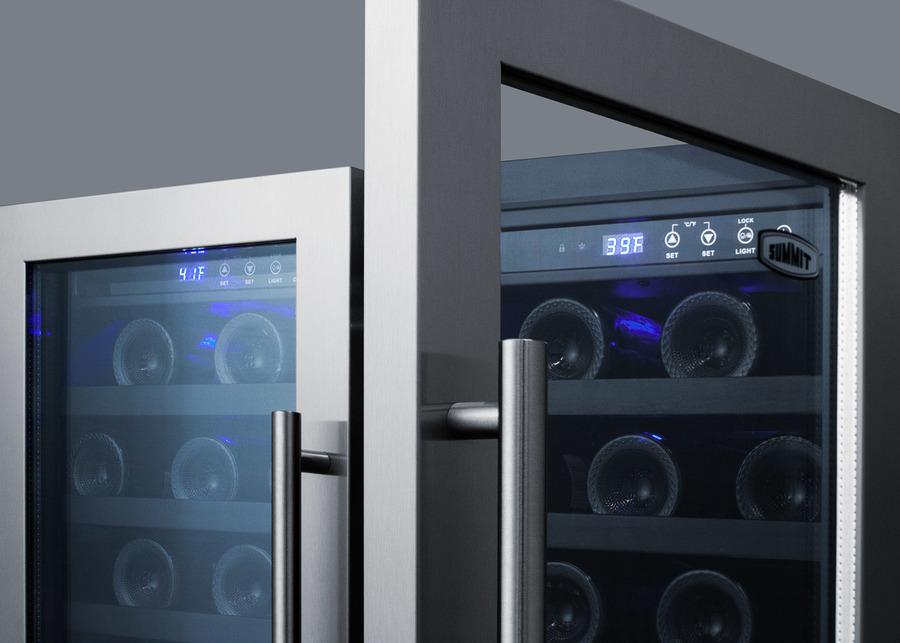

Digital thermostats
Each zone is equipped with electronic temperature controls for easy and intuitive temperature management
Wooden shelves
Classic wood shelves in a jet black finish are specially designed to hold bottles safely in place
Professional handles
Sleek stainless steel handles add an elegant touch to any setting
Glass doors with seamless stainless steel trim
French door swing offers a modern look, with stainless steel door trim for an added accent
Factory installed locks
Keyed locks on both zones offer separate security for interior contents
Automatic defrost
Reduced user maintenance with automatic defrost
Fan-forced cooling
Internal fans ensure both interiors have a consistent temperature from top to bottom
Fully finished cabinet
Allows the unit to be used freestanding
Commercially approved
ETL-S listed to ANSI-NSF Standard 7
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
Specifications
| Overview |
| Height of Cabinet |
34.38" (87 cm) |
| Width |
29.5" (75 cm) |
| Depth |
22.5" (57 cm) |
| Depth with Handle |
24.25" (62 cm) |
| Depth with door at 90° |
36.0" (91 cm) |
| Bottles |
66 bottles |
| Defrost Type |
Automatic |
| Door |
Glass |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Amps |
1.25 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
132.0 lbs. (60 kg) |
| Shipping Weight |
137.0 lbs. (62 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| Wine Cellar |
| Number of Zones |
2 |
| Door Swing |
French |
| Adjustable Shelves |
Yes |
| Shelf Type |
Wood |
| Shelf Qty |
12 |
| Thermostat Type |
Digital |
| Interior Light |
Yes |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
1.06 oz. |
| High Side PSI |
150.0 |
| Low Side PSI |
50.0 |
| Level Legs |
4 |
