Description
31.63" H x 17.75" W x 23.5" D
(80cm H x 45cm W x 60cm D)
Typically ships within 48 hours!
- 32" height for use in ADA compliant settings
- Chill white and sparkling wine while preserving red in two distinct temperature zones
- Less than 18" wide for a perfect fit in smaller kitchen and wet bar spaces
- Flexible design allows built-in or freestanding use under counters
- Digital thermostat offers precise and convenient temperature control
- Factory-installed lock provides security you can count on
SUMMIT's collection of built-in wine cellars offers fully featured choices in slim fits, allowing smaller kitchens to bring convenient and reliable wine storage for every undercounter space.
Sized just under 18" wide and 32" high, the SWC182ZADA is front-breathing for built-in installation under lower ADA compliant counters, with a fully finished jet black cabinet that also allows freestanding use. The reversible glass door features an elegant stainless steel trim and professional handle. A factory installed lock offers added security, with two keys included. Two separate zones allow you to store your reds and whites at their own temperature, ensuring each bottle is kept under the proper conditions.
This unit can hold up to 28 standard Bordeaux style bottles or 22 wider Burgundy style bottles. The wooden shelves feature a black finish for a modern look, with recessed LED lighting to provide an attractive and efficient presentation. The digital controls are located in the center for easy temperature management.
With its slim fit and convenient design, the SWC182ZADA makes an attractive addition to any room.
Features
Dual zone storage
Keep white wine in the upper compartment stored between 41 and 50ºF and red wine at a warmer 50 to 64ºF range in the lower chamber
ADA compliant
32" height is designed to fit under lower ADA compliant counters
Built-in capable
Make the best use of space by installing your appliance under the counter

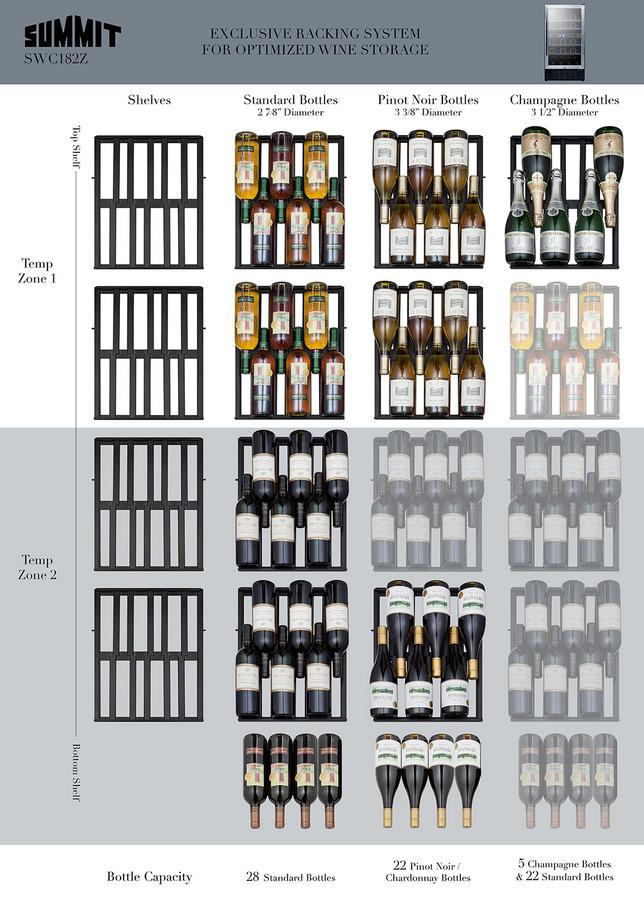

28 bottle capacity
Versatile interior can store up to 28 standard 750ml Bordeaux style or 22 wider Burgundy style bottles

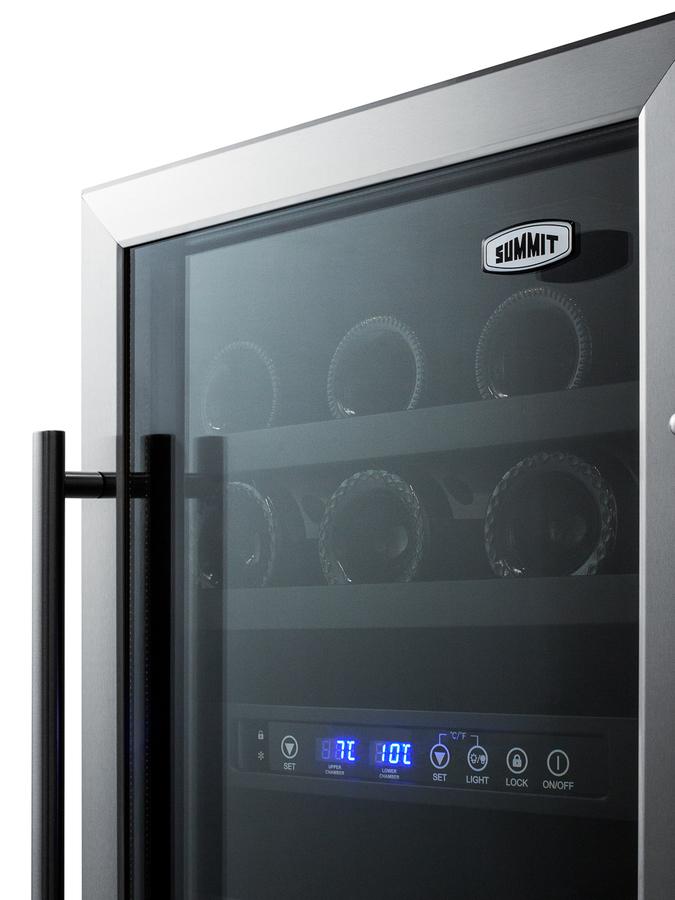

Glass door with stainless steel trim
Provides a full display of stored contents with a heat-safe double tempered design
Factory installed lock
Keyed lock for a secure interior, with 2 keys included

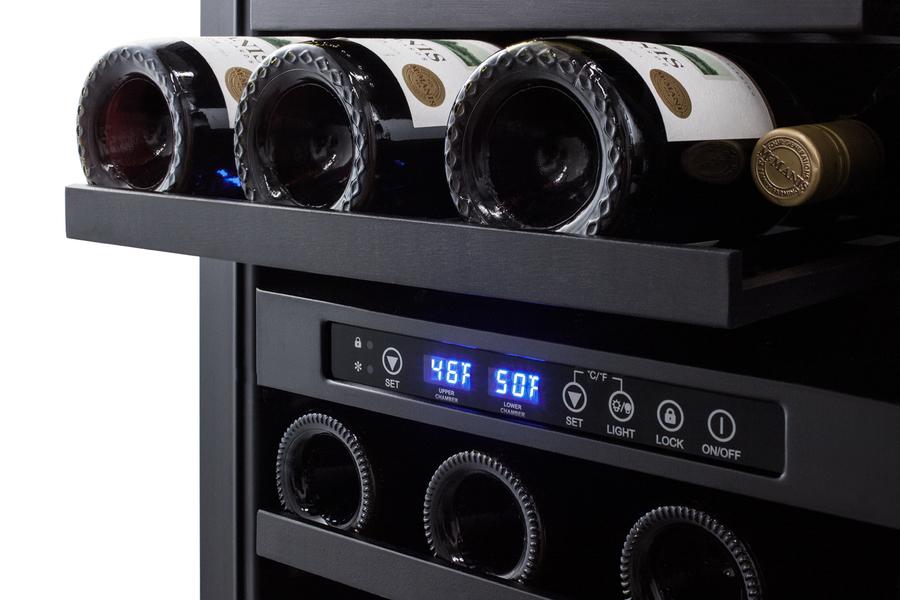

Digital thermostat
Electronic controls for precise temperature management.
Digital display
Temperature readout can be shown in Celsius or Fahrenheit
LED lighting
Gentle illumination for each temperature zone for an elegant presentation
Automatic defrost
Reduced maintenance with the convenience of auto defrost
Wooden shelves
4 wooden shelves in a painted black finish offer the perfect storage for wine bottles in a classic wooden finish
Reversible door
Keep your options flexible with a reversible door that is easy to switch when your arrangement changes
Professional handle
Stainless steel handle completes the look
Flush back
Space saving design
Integrated door hinge
Hinge is flush with cabinet, adding no additional height to the unit
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
Specifications
| Overview |
| Height of Cabinet |
31.63" (80 cm) |
| Width |
17.75" (45 cm) |
| Depth |
23.5" (60 cm) |
| Depth with Handle |
25.25" (64 cm) |
| Depth with door at 90° |
39.75" (101 cm) |
| Capacity |
3.3 cu.ft. (93 L) |
| Bottles |
28 bottles |
| Defrost Type |
Automatic |
| Door |
Glass |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Amps |
1.25 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
95.0 lbs. (43 kg) |
| Shipping Weight |
98.0 lbs. (44 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| Wine Cellar |
| Number of Zones |
2 |
| Door Swing |
RHD |
| Reversible |
Yes |
| Adjustable Shelves |
Yes |
| Shelf Type |
Wood |
| Shelf Qty |
4 |
| Thermostat Type |
Digital |
| Interior Light |
Yes |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
1.23 oz. |
| High Side PSI |
150.0 |
| Low Side PSI |
50.0 |
| Interior Height 1 |
10.63" (27 cm) |
| Interior Width 1 |
14.25" (36 cm) |
| Interior Depth 1 |
18.0" (46 cm) |
| Compressor Step Height |
5.25" (13 cm) |
| Compressor Step Width |
14.25" (36 cm) |
| Compressor Step Depth |
5.0" (13 cm) |
| Level Legs |
4 |
| Temperature Range |
41º to 64ºF |
| Interior Height 2 |
12.25" (31 cm) |
| Interior Width 2 |
14.25" (36 cm) |
| Interior Depth 2 |
18.0" (46 cm) |
