Description
Residential and Commercial grade design for use in foodservice establishments or outdoor kitchens
33.63" H x 14.88" W x 22.63" D
(85cm H x 38cm W x 57cm D)
- Produces up to 62 lbs. of gourmet style clear ice cubes in a 24 hour cycle
- Commercially approved to NSF-12 standards
- Panel-ready door allows you to blend the unit into cabinetry for a truly custom look
- Weatherproof construction for use in the outdoors
- Built-in pump allows versatile installation
- Flexible design enables built-in or freestanding use
- Made in South Korea
Summit's commercially listed BIM68OS series icemakers are an attractive and durable solution to keeping a continuous supply of clear ice on hand in virtually any indoor or outdoor location.
Sized at 15" wide, the BIM68OSGDRIF features a complete 304 grade stainless steel exterior specially built to hold up to the elements. The door is designed with a powerful magnetic gasket to ensure proper insulation. An integrated stainless steel door frame is designed to accept overlay panels, allowing you to create a custom look that blends into your cabinetry decor (panel size: 29 9/16" H x 14 7/8" W at 3/4" thick). The front-breathing design allows built-in installation under counters, while the fully finished stainless steel cabinet also allows freestanding use, with a sealed back for added outdoor protection and easier cleanup.

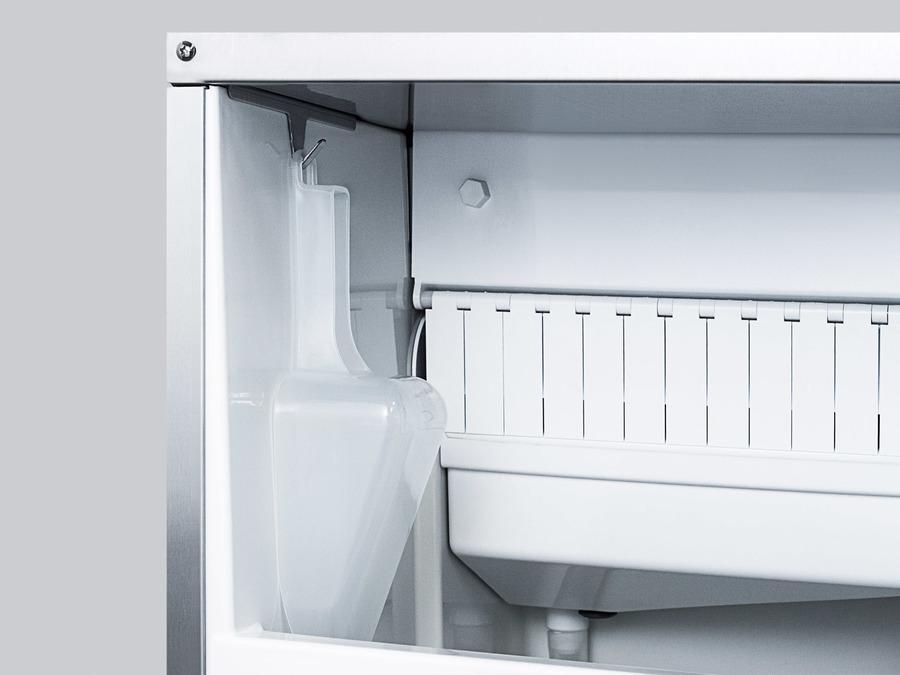

This model utilizes a gravity drain system. The BIM68OSGDRIF produces clear gourmet dice-style ice cubes, perfect for keeping any beverage cold without diluting the flavor. Under standard operating conditions, this unit can make up to 62 lbs. in a day cycle, while the storage bin can hold up to 26 lbs at a time. We include an ice scoop that can be hung inside for easy use.
Frost-free operation eliminates the need to defrost the interior. Designed and manufactured for us in South Korea, the BIM68OSGDRIF is ETL-S listed to NSF-12 commercial standards for use in foodservice settings. The weatherproof constructed allows outdoor use, but this model can also be installed indoors in any kitchen or wet bar. For this unit with an internal pump, see the BIM68OSPUMPIF.
NOTE: This unit requires professional installation. Drain hose and other connection equipment is not included.
Features
Commercially approved
ETL-S listed to NSF-12 commercial standards for use in foodservice settings
Weatherproof design
Durable construction for safe installation in outdoor kitchens
62 lb. production capacity
Can make up to 62 lbs. in a day cycle, producing 24 cubes in a 30 minute span
Built-in capable
Make the best use of space by installing your icemaker under the counter and flush with other cabinets

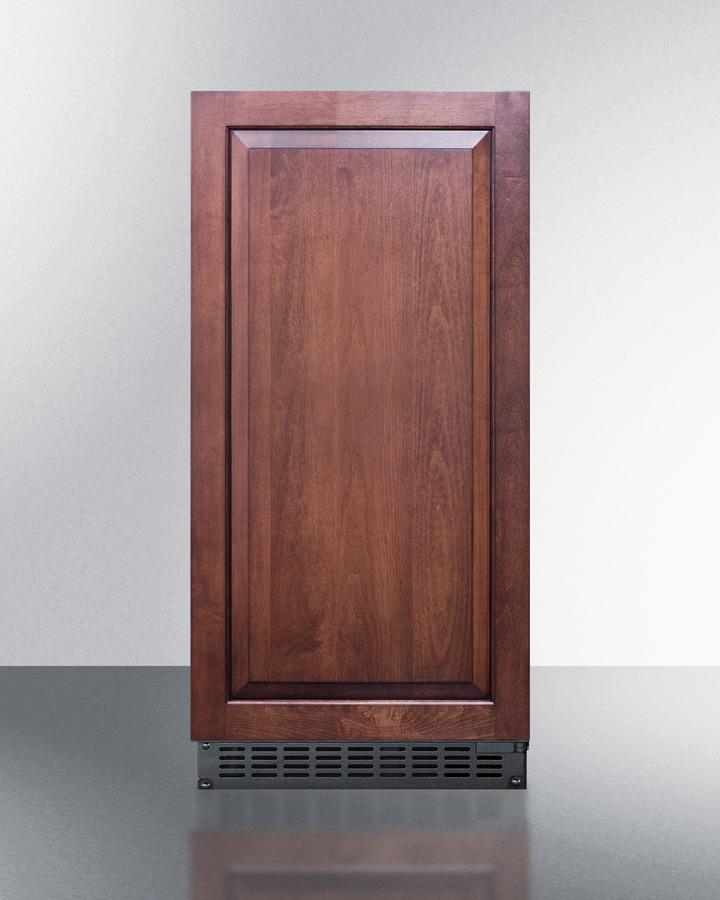

Panel-ready door
Integrated door frame accepts overlay panels for a customized look (panel size: 29 9/16" H x 14 7/8" W at 3/4" thick)
Stainless steel wrapped exterior
Door and cabinet are fully wrapped in 304 grade stainless steel for lasting elegance

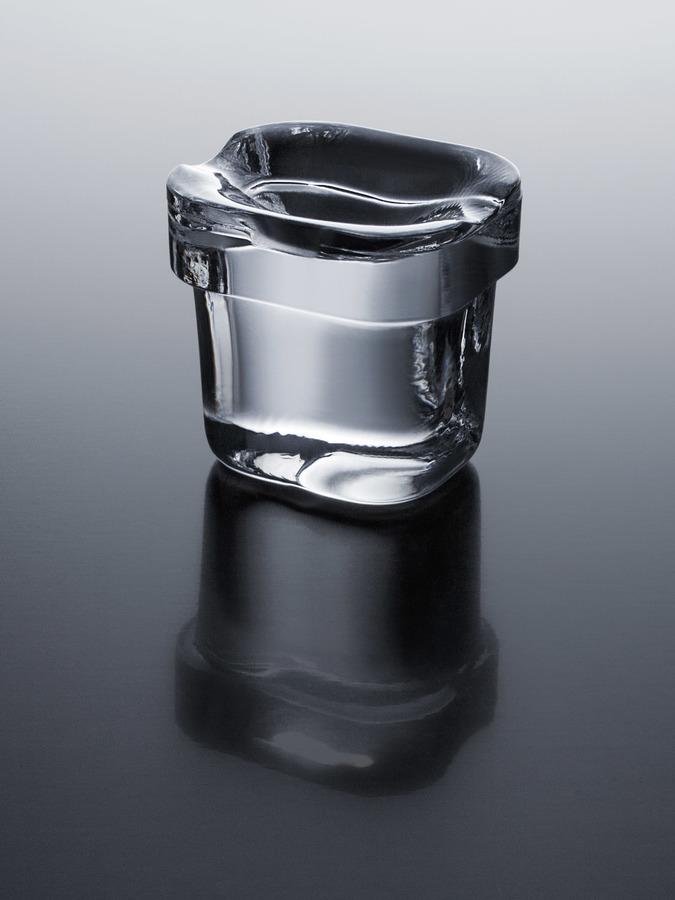

Clear ice cube production
Gourmet style rounded dice-style ice cubes
Frost-free operation
No-frost operation for minimum user maintenance
Gravity drain setup
Requires connection to gravity drain
Factory-reversible door
Unit ships RHD but can be ordered with a left hand door swing (option LHD); not field-reversible
Standard water hookup
Operates with a standard 1/4” OD water supply line
Sealed back
Space-saving design with easier cleanability
Fully finished cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
Specifications
|
Overview
|
| Height of Cabinet |
33.5" (85 cm) |
| Height to Hinge Cap |
33.63" (85 cm) |
| Width |
14.88" (38 cm) |
| Depth |
22.63" (57 cm) |
| Depth with door at 90° |
37.25" (95 cm) |
| Capacity |
0.98 cu.ft. (28 L) |
| Defrost Type |
Frost-Free |
| Door |
Panel-Ready |
| Cabinet |
Stainless Steel |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Amps |
4.0 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
105.0 lbs. (48 kg) |
| Shipping Weight |
110.0 lbs. (50 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| Icemaker |
| Door Swing |
RHD |
| Reversible |
Factory Reversible |
| Daily Ice Production |
62.0 lbs. (28 kg) |
| Ice Storage Capacity |
26.0 lbs. (12 kg) |
| Size of Cube |
1 1/4" H x 1 1/8" W x 1 1/8" D |
| Number of Ice Cube Sizes |
1 |
| Fan Type |
Exterior |
| Refrigerant Type |
R134a |
| Refrigerant Amount |
7.4 oz. |
| High Side PSI |
210.0 |
| Low Side PSI |
102.0 |
| Interior Height |
12.75" (32 cm) |
| Interior Width |
12.75" (32 cm) |
| Interior Depth |
9.25" (23 cm) |
| Level Legs |
4
|
