Description
Residential and Commercial grade design for use in food service establishments or outdoor kitchens
33.63" H x 14.88" W x 22.63" D
(85cm H x 38cm W x 57cm D)
- Weatherproof construction for use in the outdoors
- Commercially approved to NSF-12 standards
- Produces up to 62 lbs. of gourmet style clear ice cubes in a 24 hour cycle
- Slim 15" width is perfect to complete any wet bar or undercounter kitchen space
- Full stainless steel exterior ensures lasting durability with professional style
- Frost-free operation offers true convenience
- Made in South Korea
Summit's commercially listed BIM68OS series icemakers are an attractive and durable solution to keeping a continuous supply of clear ice on hand in virtually any indoor or outdoor location.

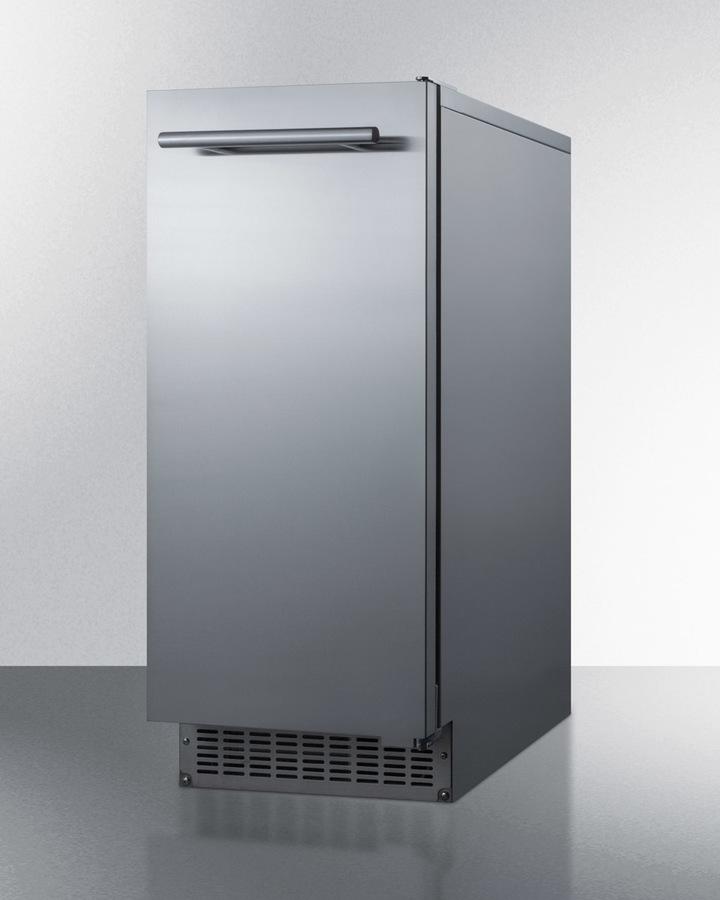

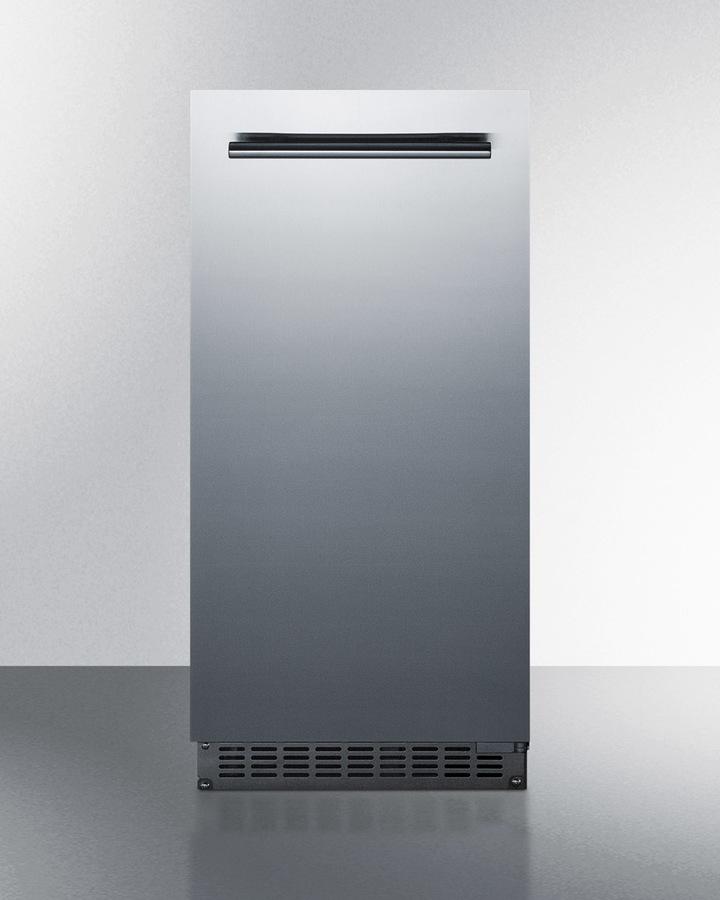

Sized at 15" wide, the BIM68OSGDR features a complete 304 grade stainless steel exterior specially built to hold up to the elements. The user-reversible door is designed with a powerful magnetic gasket to ensure proper insulation, with a stainless steel handle mounted horizontally for a modern look.

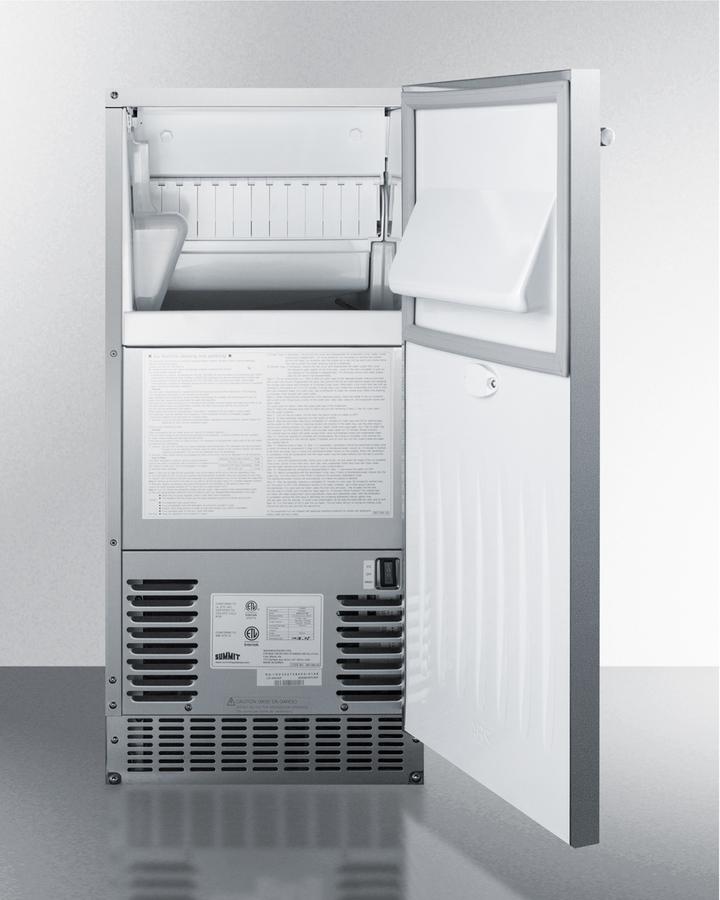

The front-breathing design allows built-in installation under counters, while the fully finished stainless steel cabinet also allows freestanding use, with a sealed back for added outdoor protection and easier cleanup. This model utilizes a gravity drain system. The BIM68OSGDR produces clear gourmet dice-style ice cubes, perfect for keeping any beverage cold without diluting the flavor. Under standard operating conditions, this unit can make up to 62 lbs. in a day cycle, while the storage bin can hold up to 26 lbs at a time. We include an ice scoop that can be hung inside for easy use.
Frost-free operation eliminates the need to defrost the interior. Designed and manufactured for us in South Korea, the BIM68OSGDR is ETL-S listed to NSF-12 commercial standards for use in foodservice settings. The weatherproof constructed allows outdoor use, but this model can also be installed indoors in any kitchen or wet bar. A panel-ready version (BIM68OSGDRIF) will be available later this year.
NOTE: This unit requires professional installation. Drain hose and other connection equipment is not included.
Features
Commercially approved
ETL-S listed to NSF-12 commercial standards for use in foodservice settings
Weatherproof design
Durable construction for safe installation in outdoor kitchens
62 lb. production capacity
Can make up to 62 lbs. in a day cycle, producing 24 cubes in a 30 minute span
Built-in capable
Make the best use of space by installing your icemaker under the counter and flush with other cabinets
Stainless steel wrapped exterior
Door and cabinet are fully wrapped in 304 grade stainless steel for lasting elegance

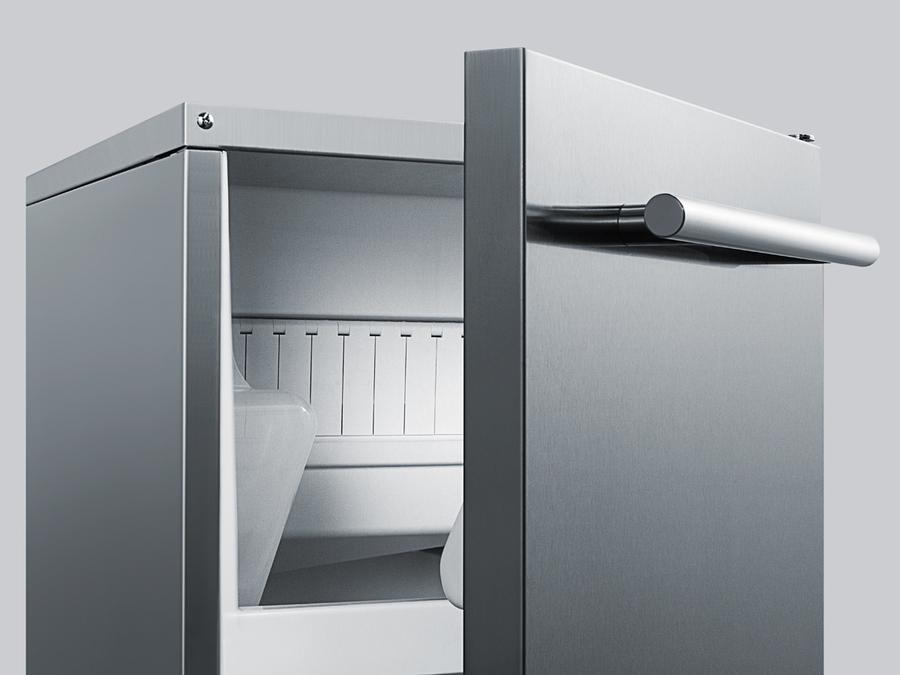

Professional handle
Horizontally mounted towel bar style handle in stainless steel
Clear ice cube production

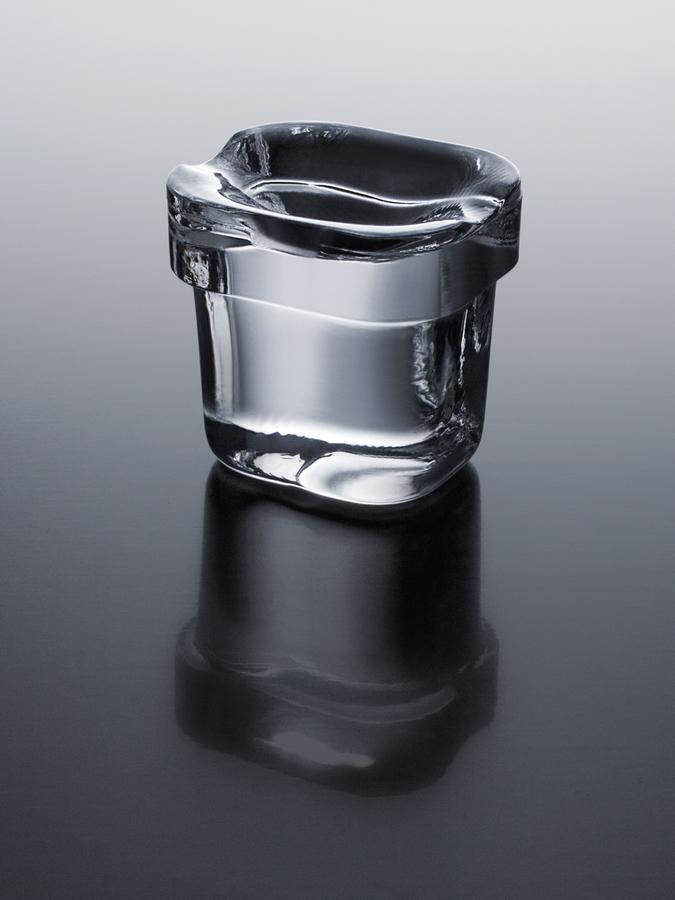

Gourmet style rounded dice-style ice cubes
Frost-free operation
No-frost operation for minimum user maintenance
Gravity drain setup
Requires connection to gravity drain
Reversible door
User-reversible door swing for flexible placement
Standard water hookup
Operates with a standard 1/4” OD water supply line
Sealed back
Space-saving design with easier cleanability
Fully finished cabinet
Allows the unit to be used freestanding

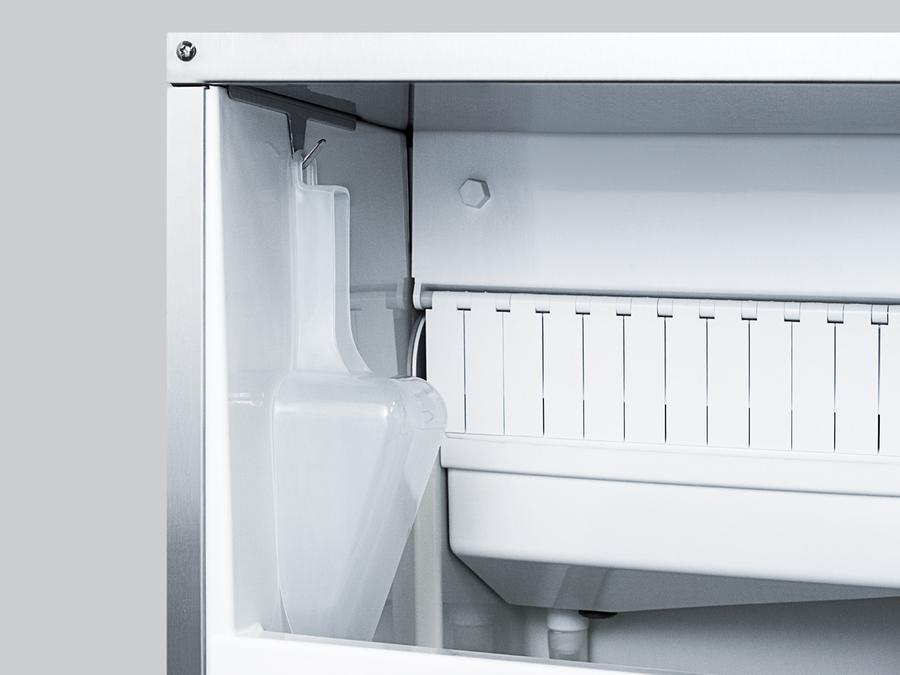

Ice scoop included
Interior wall includes hook to hang for easy storage
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
Specifications
| Overview |
| Height of Cabinet |
33.5" (85 cm) |
| Height to Hinge Cap |
33.63" (85 cm) |
| Width |
14.88" (38 cm) |
| Depth |
22.63" (57 cm) |
| Depth with Handle |
24.5" (62 cm) |
| Depth with door at 90° |
37.25" (95 cm) |
| Capacity |
0.98 cu.ft. (28 L) |
| Defrost Type |
Frost-Free |
| Door |
Stainless Steel |
| Cabinet |
Stainless Steel |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Amps |
4.0 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
105.0 lbs. (48 kg) |
| Shipping Weight |
110.0 lbs. (50 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| Icemaker |
| Door Swing |
RHD |
| Reversible |
Yes |
| Daily Ice Production |
62.0 lbs. (28 kg) |
| Ice Storage Capacity |
26.0 lbs. (12 kg) |
| Ice Shape |
Dice |
| Size of Cube |
1 1/4" H x 1 1/8" W x 1 1/8" D |
| Number of Ice Cube Sizes |
1 |
| Fan Type |
Exterior |
| Refrigerant Type |
R134a |
| Refrigerant Amount |
7.4 oz. |
| High Side PSI |
210.0 |
| Low Side PSI |
105.0 |
| Interior Height |
12.75" (32 cm) |
| Interior Width |
12.75" (32 cm) |
| Interior Depth |
9.25" (23 cm) |
| Level Legs |
4 |
