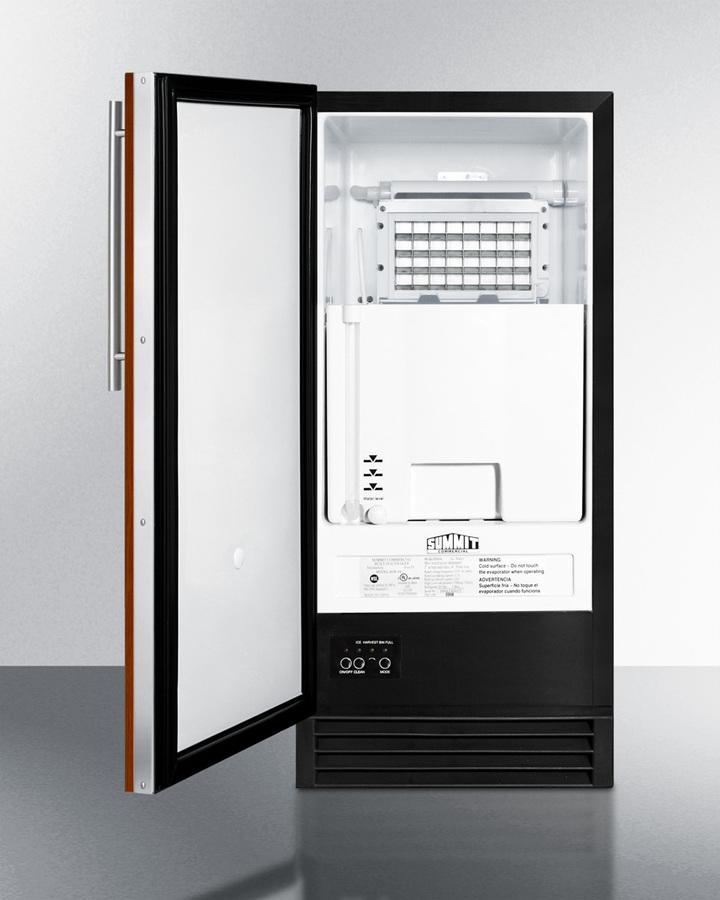

SUMMIT BIM44GIFADA is an auto defrost clear icemaker designed for true convenience under the counter in ADA compliant settings.

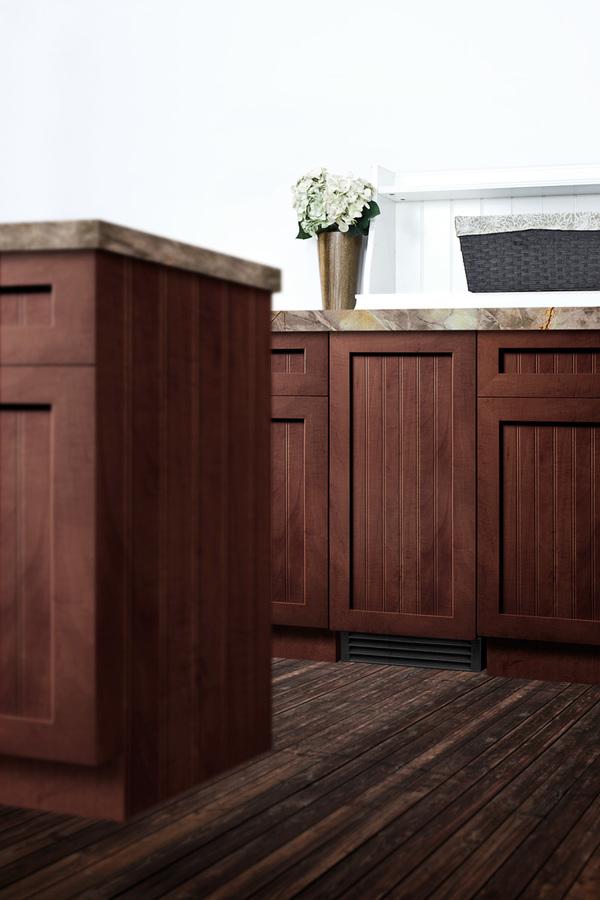

At just under 15" wide, the BIM44GIFADA is ideal for finishing any kitchen or wet bar. The door includes an integrated stainless steel frame that can accept full overlay panels for a seamless look that blends into matching cabinetry. Users supply their own handles. This unit is 32 3/8" high to fit under lower counters following ADA guidelines.
Automatic defrost makes maintenance simple and stress-free, while the BIM44GIFADA's front-breathing cooling system and fully finished sides allow built-in or freestanding use. The BIM44GIFADA can make up to 50 pounds of clear cube-shaped ice, with an adjustable bin capacity that can temporarily hold up to 25 pounds. This unit must be used with a drain.
It is NSF listed to commercial standards and is ENERGY STAR certified for commercial use.
ENERGY STAR certified commercial performance
Efficient performance for commercial use
ADA compliant
32 3/8" height fits under lower ADA compliant counters
Commercially approved
NSF listed for use in commercial establishments
Built-in pump
Internal pump allows more flexibility in placing the unit
Built-in capable
Make the best use of space by installing your appliance under the counter

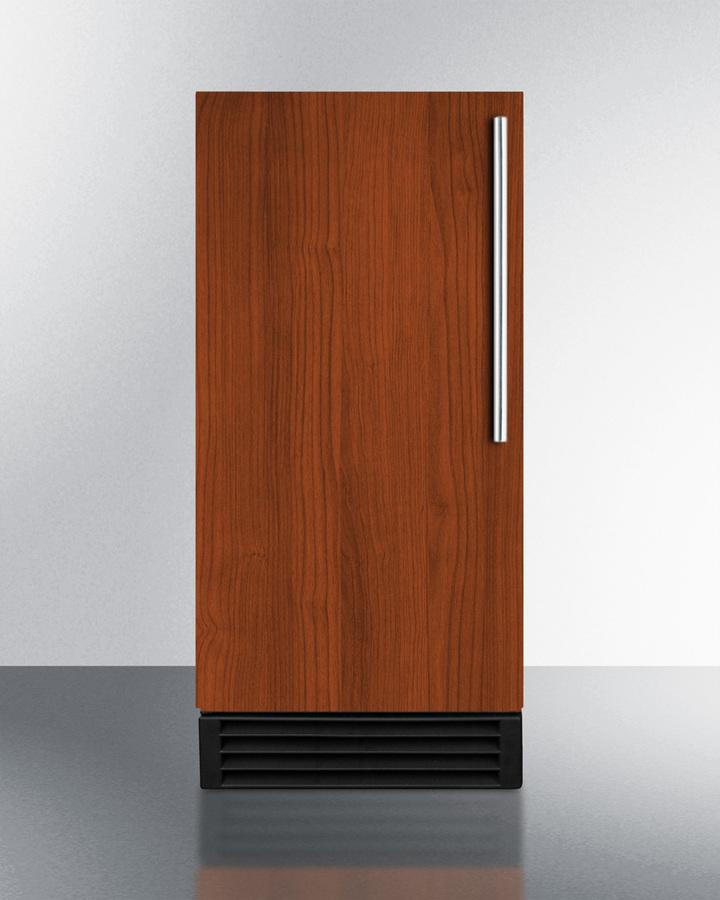

Panel-ready door
Stainless steel door frame accepts full overlay panels to match adjacent cabinetry (panel size: 27 7/8" H x14 5/8" W and at least 3/4" thick; maximum weight: 10 lbs.)
Clear ice cube production
Makes cubes sized at 3/4" x 3/4" x 1"
Automatic defrost
Reduced maintenance with auto defrost system
Insulated storage bin
Ice stays frozen longer inside this cold-protected bin
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
Specifications
| Overview |
| Height of Cabinet |
32.38" (82 cm) |
| Width |
14.5" (37 cm) |
| Depth |
23.5" (60 cm) |
| Defrost Type |
Automatic |
| Door |
Panel-Ready |
| Cabinet |
Black |
| US Electrical Safety |
UL |
| Canadian Electrical Safety |
ULC |
| Sanitation |
NSF |
| Amps |
4.8 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
100.0 lbs. (45 kg) |
| Shipping Weight |
105.0 lbs. (48 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| Icemaker |
| Door Swing |
LHD |
| Reversible |
Factory Reversible |
| Drain Required |
Yes |
| Daily Ice Production |
50.0 lbs. (23 kg) |
| Ice Storage Capacity |
25.0 lbs. (11 kg) |
| Ice Shape |
Cube |
| Size of Cube |
3/4" x 3/4" x 1" |
| Number of Ice Cube Sizes |
1 |
| Fan Type |
Exterior |
| Refrigerant Type |
R134a |
| Refrigerant Amount |
3.88 oz. |
| High Side PSI |
350.0 |
| Low Side PSI |
130.0 |
| Interior Height |
18.5" (47 cm) |
| Interior Width |
12.0" (30 cm) |
| Interior Depth |
16.0" (41 cm) |
| Level Legs |
4 |
