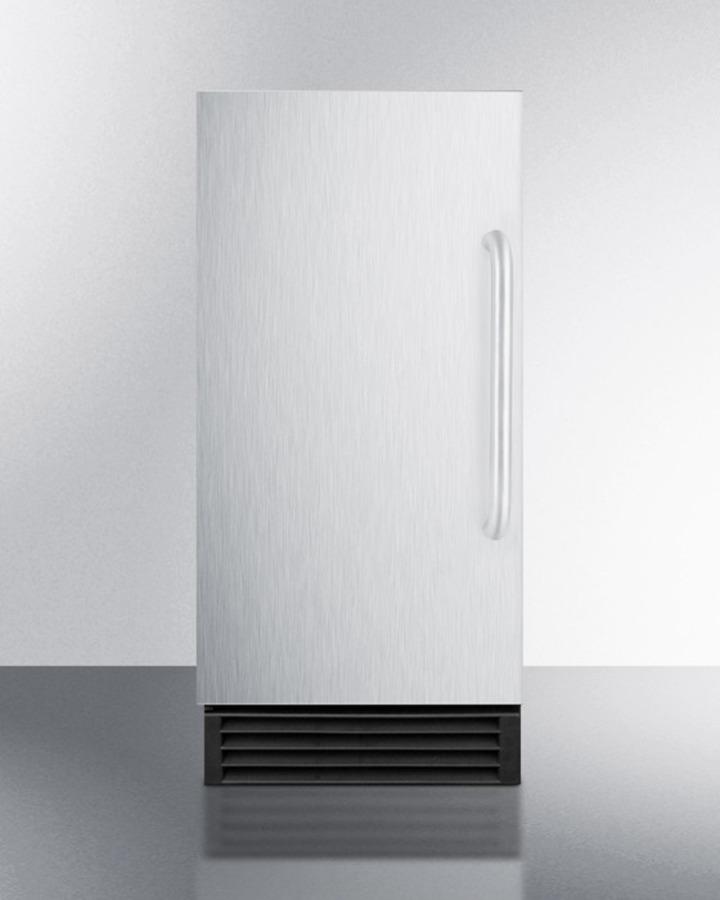

Summit 14.5" ADA Slim Fitting Built In Ice Maker

SUMMIT BIM44GADA is an auto defrost clear icemaker designed for use under ADA compliant counters. Automatic defrost makes maintenance simple and stress-free, while the BIM44GADA's front-breathing cooling system and fully finished sides allow built-in or freestanding use in 15" wide cutouts.

This unit is 32 3/8" high to fit under counters following ADA guidelines and now comes equipped with an internal pump for versatile installation. The BIM44GADA can make up to 50 pounds of clear cube-shaped ice, with an adjustable bin capacity that can temporarily hold up to 25 pounds. This unit must be used with a drain.

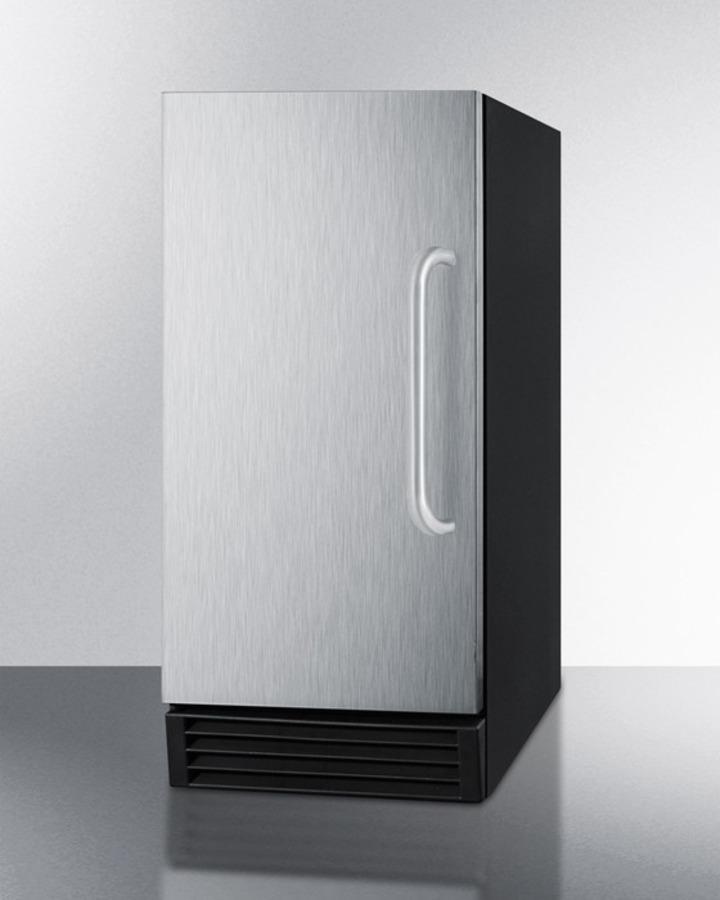

The BIM44GADA has a jet black cabinet with user-reversible stainless steel door (LHD is default door swing; specify upon ordering for RHD). A curved towel bar handle is included.

This unit is NSF listed for use in commercial establishments and is ENERGY STAR certified for commercial use.

Features

ADA compliant
32 3/8" height fits under lower ADA compliant counters

ENERGY STAR certified commercial performance
Efficient performance for commercial use

Commercially approved
NSF listed for use in commercial establishments

Built-in pump
Internal pump allows more flexibility in placing the unit

Automatic defrost
Simplify appliance care by letting your icemaker defrost itself

Reversible door
Keep your options flexible with a reversible door that is easy to switch when your arrangement changes; Unit ships LHD but can be reversed in our factory or by the user

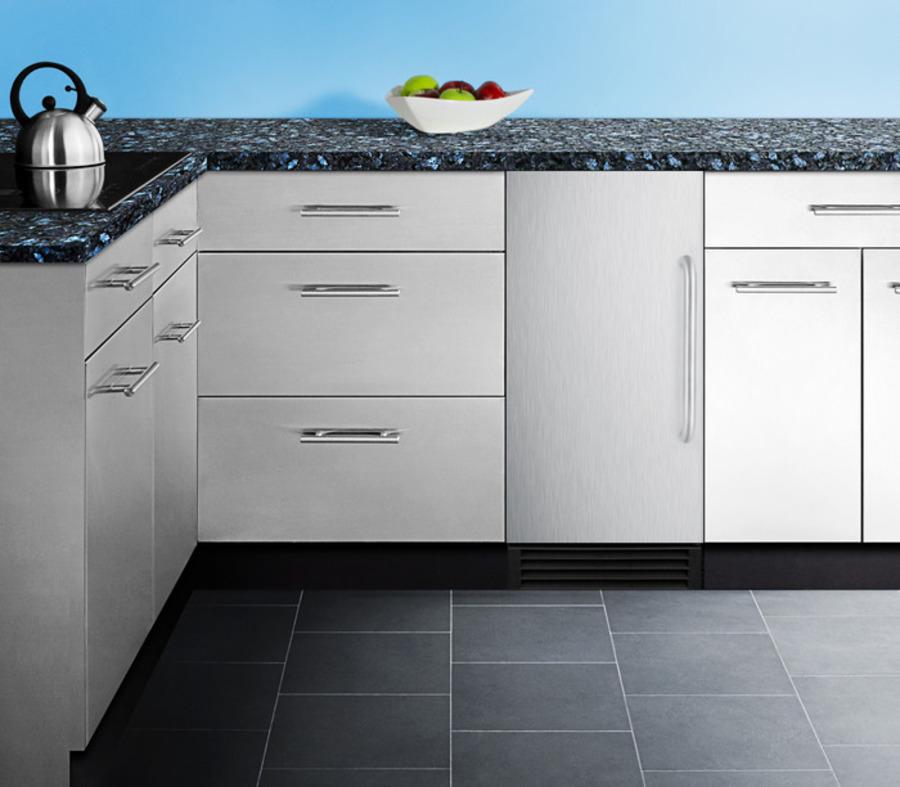

Built-in capable
Make the best use of space by installing your icemaker under the counter

Stainless steel door
Professional styling with lasting durability

Professional towel bar handle
A curved handle in brushed stainless steel offers an easy grip

Fully finished black cabinet
Allows the icemaker to be used as a freestanding model

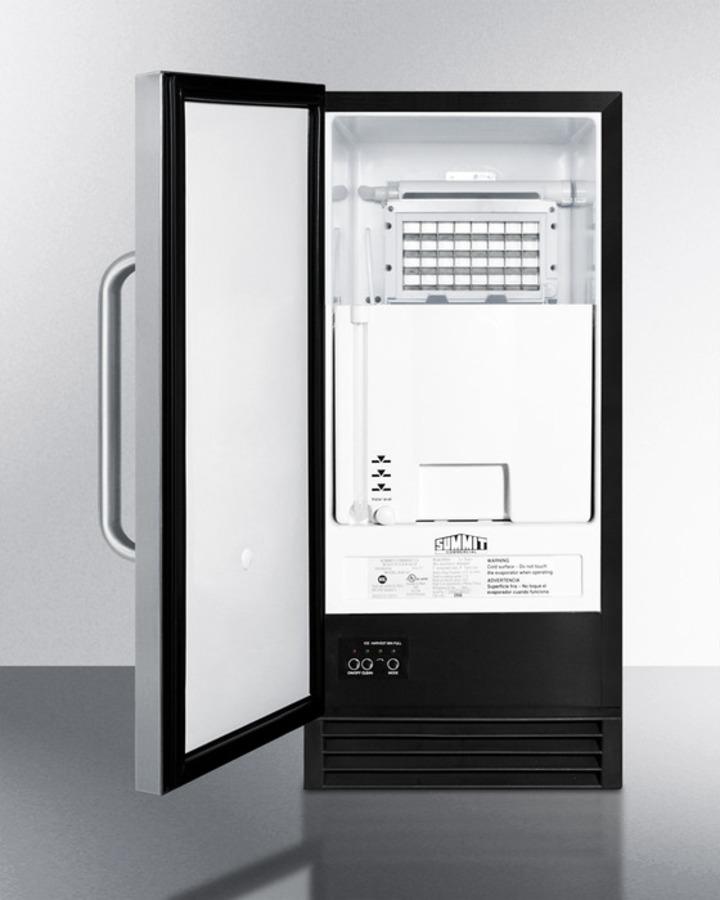

Insulated storage bin
Ice stays solid longer in this cold-protected bin

Clear ice cube production
Makes cubes sized at 3/4" x 3/4" x 1"

Ice scoop
Included for your convenience

100% CFC free
Environmentally friendly design without ozone-damaging chemicals

Specifications

Overview
Height of Cabinet 32.38" (82 cm) Width 14.5" (37 cm) Depth 23.5" (60 cm) Depth with Handle 25.0" (64 cm) Depth with door at 90° 36.75" (93 cm) Defrost Type Automatic Door Stainless Steel Cabinet Black US Electrical Safety UL Canadian Electrical Safety ULC Sanitation NSF Amps 4.8 Voltage/Frequency 115 V AC/60 Hz Weight 100.0 lbs. (45 kg) Shipping Weight 105.0 lbs. (48 kg) Parts & Labor Warranty 1 Year Compressor Warranty 5 Years UPC 761101021959
Icemaker
Door Swing LHD Reversible Yes Drain Required Yes Daily Ice Production 50.0 lbs. (23 kg) Ice Storage Capacity 25.0 lbs. (11 kg) Ice Shape Cube Size of Cube 7/8" x 7/8" x 7/8" Number of Ice Cube Sizes 1 Fan Type Exterior Refrigerant Type R134a Refrigerant Amount 3.88 oz. High Side PSI 350.0 Low Side PSI 130.0 Interior Height 18.5" (47 cm) Interior Width 12.0" (30 cm) Interior Depth 16.0" (41 cm)



Downloads

BROCHURE w/ DRAWINGS
BIM44GADA.pdf



TECHNICAL DRAWING (.dwg)
BIM44GADA__ICE_MAKER__A-C_2000_.dwg

USE & CARE
BIM-44_G_manual_rvsd_082416.pdf
