CellarPro Air Handler Split 6500 Outdoor #7084

FREE SHIPPING!

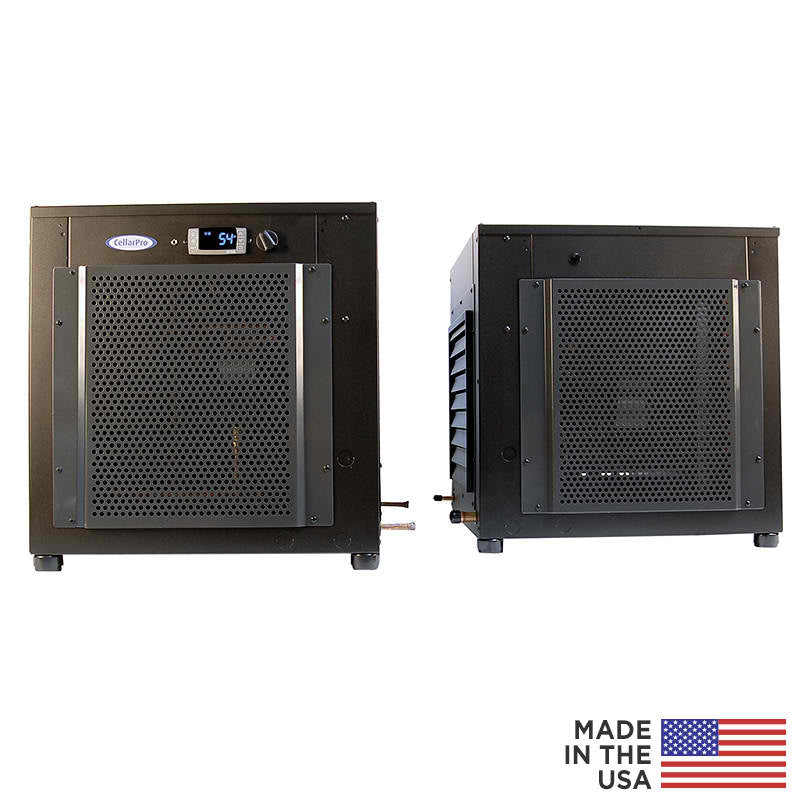

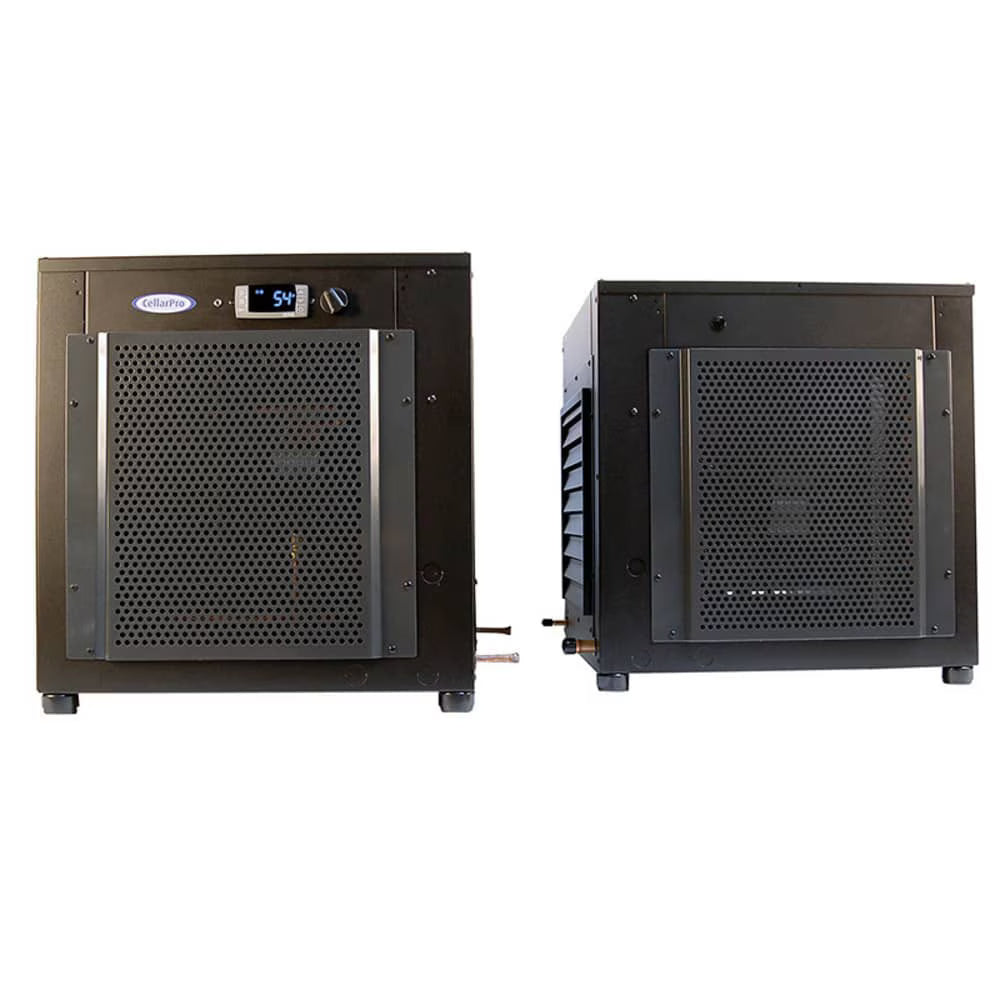

CellarPro AH6500Sx Cooling Unit (P/N 7084). CellarPro engineered the AH6500Sx ducted cooling system to provide maximum cooling power and adjustable humidity control for cellars up to 1,750 cubic feet with the condensing unit located in an exterior environment. The evaporator and the condensing unit each can be ducted up to 100 equivalent feet (50 equivalent feet per duct.) As a split system, the evaporator can be separated from the condensing unit up to 100 feet, allowing the noise and heat from the condensing unit to be located away from interior living areas. The AH6500Sx includes independent variable-speed fans with a low setting for quieter operation and a high setting for maximum power.

• CellarPro Air Handlers are engineered to be ducted with 10-inch insulated ducting on the cold side (evaporator), allowing the equipment can be located away from the wine cellar so that space inside the cellar can be maximized for wine storage and racking.
• Split systems are designed to separate the evaporator from the condensing unit up to 100 feet.
• AH6500Sx condensing units can be placed outdoors, thereby separating the heat and noise from interior living spaces.
• Our exterior Air Handler condensing unit includes an exterior housing for protection against the elements, and a compressor heater that provides protection in tempreratures down to 20F.
• Now with energy-efficient quiter EC fans for high-output airflow and variable speed settings for your choice of cooling power.
• Optional integrated humidifier provides the ultimate control of moisture levels inside your cellar.
• Optional integrated heater (900W and 1800W) provides heat for wine cellars that are exposed to temperatures below 55F.
• Extra-large coils generate maximum cooling power inside the cellar.
• Excess condensate is managed through a 1/2" drain line that exits from a choice of knockouts in the evaporator.
• Commercial-grade Electrofin coating protects the evaporator coils from leaks and corrosion.
• Intuitive LED display panel mounted on the evaporator with digital programmable thermostat is simple and easy to use. Remote thermostat is available as an upgrade.
• Energy-saver mode, quick-chill mode, and auto-defrost cycle provide convenient solutions to common cellar needs.
• Temperature set point range is 47F to 62F when the cooling unit is properly sized.
• Unit operates with minimal vibrations and less noise than comparable units from competitors.
• Audible and visual alarms and maintenance-needed indicator protect the cooling unit and the wine cellar.
• Remote probe for the cellar (bottle probe) and duct adapters are included as standard equipment, and multiple knockouts and access points ensure easy installation.
• Factory-installed Expansion Valve and Liquid Line Solenoid Valve (optional) ensure maximum operating precision and range.
• Removable steel case and refrigerant access valve provides access to the external components for servicing and repair.
• Sight Glass and Liquid Line Filter/Drier are included for easy installation and maintenance.
• Oversized Receiver allows for long line sets up to 100 equivalent feet and up to 30 vertical feet.
• Auto-reset high-pressure switch protects the system by interrupting power to the compressor when system pressure is too high.
• Evaporator and Condensing Unit are factory-pressurized and shipped with dry nitrogen to ensure leak-free installation.
• CellarPro's 2-Year/5-Year Warranty, the most thorough in the industry, protects the unit against manufacturing defects.
• An optional Extended Warranty (P/N 7528) is available for additional protection.
• ETL Tested and Certified to rigorous UL Standards for safety.

Configurations

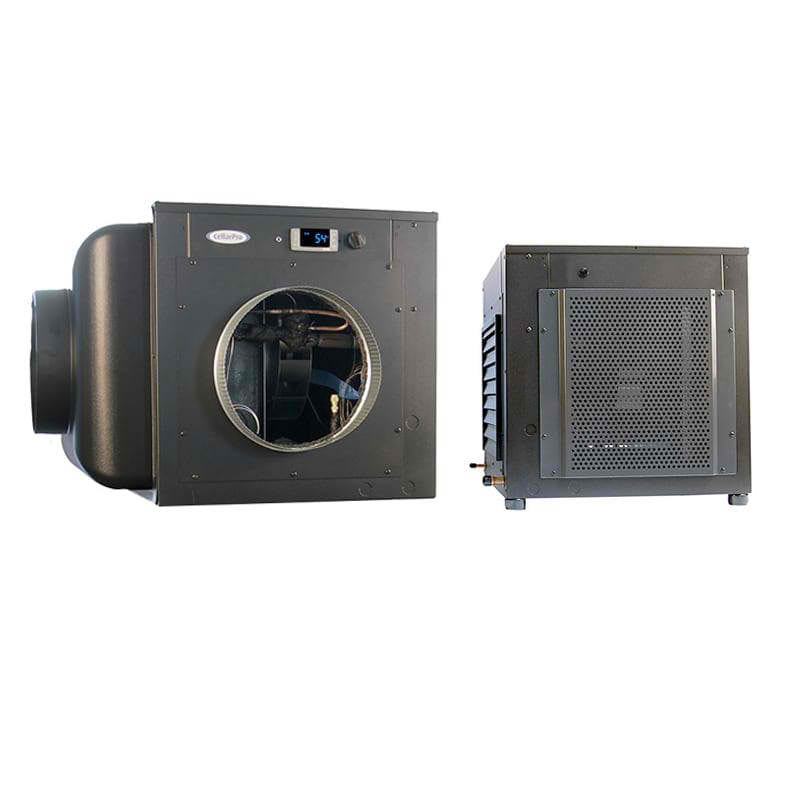

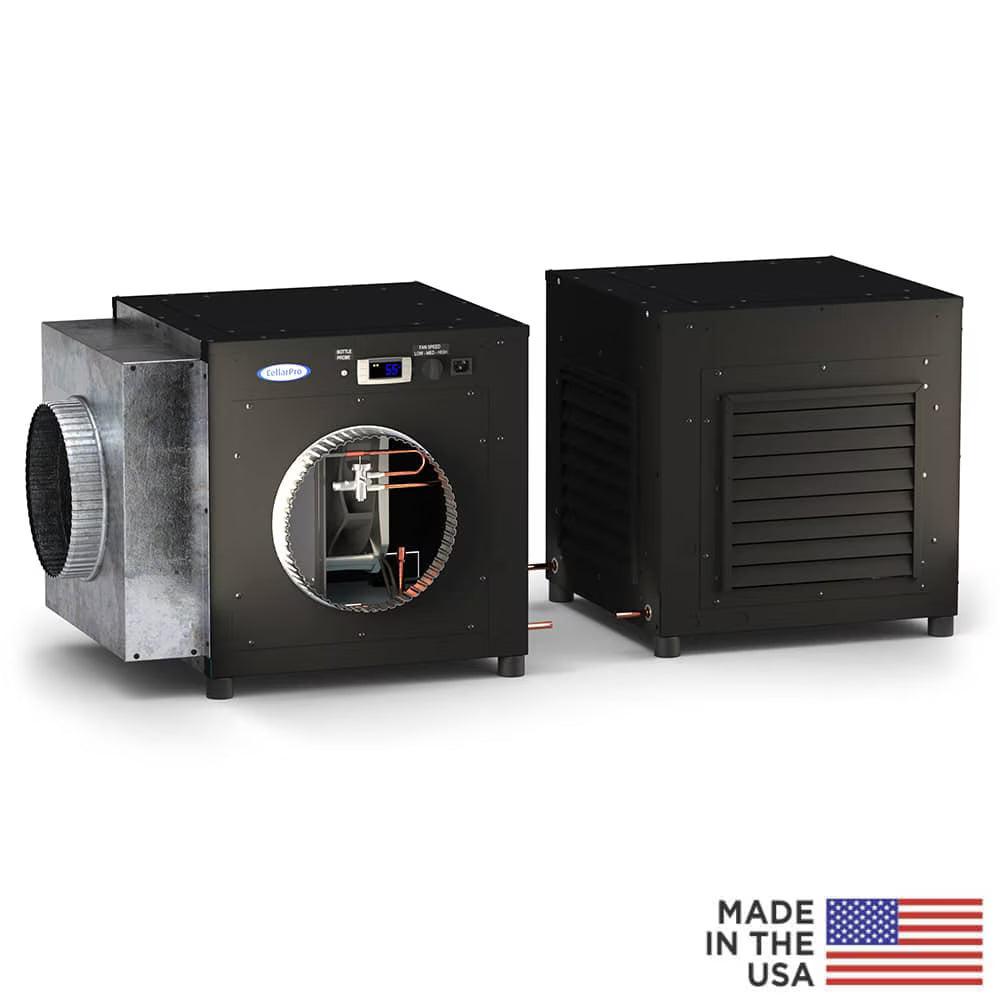

• CellarPro AH6500Sx units are designed to be ducted, with the evaporator near (or inside) the cellar, and the condensing unit in a remote exterior location up to 100 feet away.

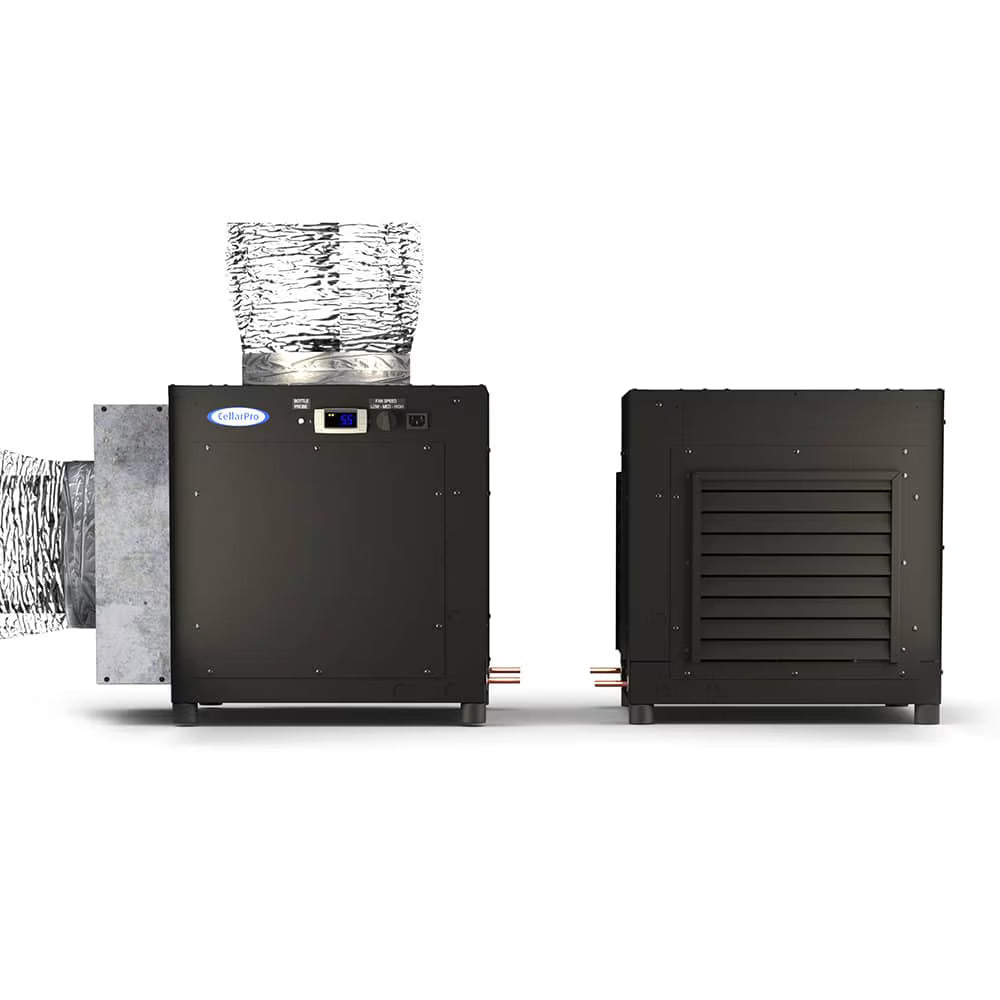

• The evaporator can be ducted up to 100 Equivalent Feet (50 Feet per Duct) with 10-inch ducting .
• CellarPro's split configuration allows multiple ducting alternatives, as follows.

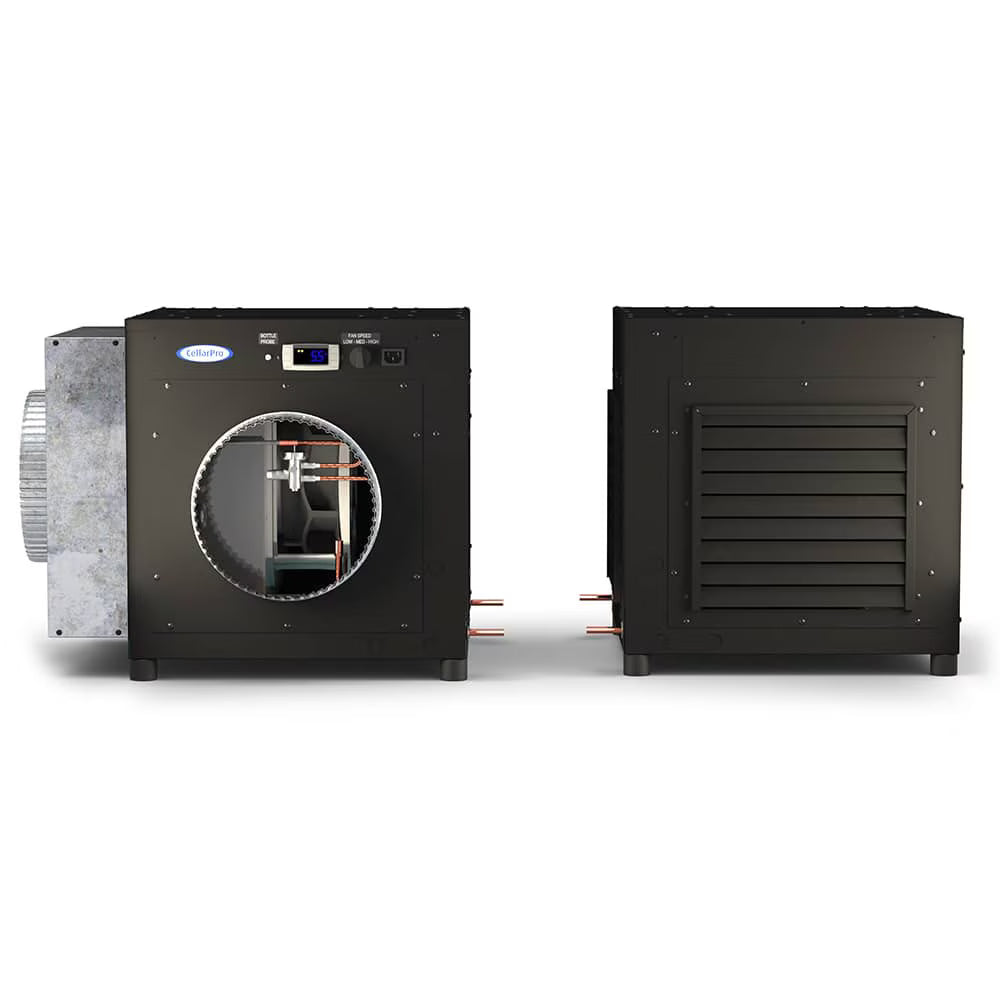

  1. Collars or grills for EXHAUST (ie Supply) are located at the front (shown at left), top or rear of the evaporator, and are interchangeable to meet your specific requirement.
  2. Collars or grills for INTAKE (ie Return) are located on the left side of the evaporator.
  3. The condensing unit includes professional-grade air filters to protect the unit.
• A bottle probe temperature sensor (10' cord) plus your choice of duct collars, indoor grills and blank plates are included in the price of the cooling system.
• CellarPro Air Handler Split systems offer a choice of 110V / 60Hz wiring and power configurations:
  1. Two permanent power connections for the evaporator (3.5 amps / 15 amp circuit breaker) and the condensing unit (17.1 amps / 25 amp circuit breaker). This wiring configuration is recommended for Valve Control.
  2. One permanent power connection for the entire system (19.5 amps / 25 amp circuit breaker). In this configuration, the condensing unit must be wired to the evaporator, and must be used with Electronic Control.
  3. The amp data above is not valid when the integrated heater and/or humidifier are configured with the cooling unit - please consult those Owner's Manuals for the additional amps required when using those upgrades.
• When the control panel is difficult to access, we offer a remote control display kit which is wired to the cooling unit and allows the digital display to be mounted inside or outside the cellar.
• The condensing unit requires 12 inches of unobstructed space in front of the coils, and requires approx. 600-700 CFM of ventilation when installed in a confined space.
• AH6500Sx units include our Compressor Heater (P/N 1727) to protect the condensing unit in environments that drop below 40F.
• For installation in environments below 20F down to -20F , Electronic Control is the required configuration, and our Fan-Cycling Switch (P/N 6972) is required (sold separately).
• The evaporator should never be exposed to temperatures below 32F.
• Access to the left and right side of the evaporator unit is required for installation.
• All split systems must be installed and charged on site by a qualified HVAC professional. Line-set equivalent feet must be calculated in accordance with ASHRAE guidelines.
• A CellarPro cooling unit must always be used in the upright position, and should never be operated on its side or upside down.
• We ship these units strapped to a pallet via common carrier with curbside delivery. Inside delivery is available for an additional charge.
• To activate your warranty, you must complete and return our Installation Checklist.

Configuration Scenarios

Specifications

• Capacity:5771 BTUH @ 55F
• Size:18 3/5w x 18 3/5d x 19 3/10h (in) (Evap)
• Weight:225 lb
• Power/Rating:115V AC / 60 Hz
  Evaporator Dimensions:
  - 60 lbs (no humidifier)
  - 18.6w x 18.6d x 19.3h
  Condensing Unit Dimensions:
  - 111 lbs
  - 18.6w x 18.6d x 19.3h
  Power:
  - CellarPro Air Handler Split systems offer a choice of 110V / 60Hz wiring and power configurations:
  1. Two permanent power connections for the evaporator (3.6 amps / 15 amp circuit breaker) and the condensing unit (16.7 amps / 25 amp circuit breaker). This wiring is recommended for Valve Control configurations.
  2. One permanent power connection for the entire system (25 amp circuit breaker). In this configuration, the condensing unit must be wired to the evaporator, and must be used with Electronic Control.
  - Startup Amps: 53.0 Amps
  - Running Amps Cord-Connected: 17.1 Amps
  - Total Watts: 1274 (low fan speed)
  3/4 Ton Nominal
  BTUH @ 55F
  - Low Fan Speed: 4923
  - Med Fan Speed: 5350
  - High Fan Speed: 5771l
  Evaporator Decibels
  - Low Fan Speed, Ducted: 47 dbA
  - Med Fan Speed, Ducted: 51 dbA
  - High Fan Speed, Ducted: 59 dbA
  Condensing Unit Decibels
  - Low Fan Speed, Ducted / Non-Ducted: 52 dbA / 65 dbA
  - Med Fan Speed, Ducted / Non-Ducted: 57 dbA / 70 dbA
  - High Fan Speed, Ducted / Non-Ducted: 62 dbA / 75 dbA
  Ducting
  - 10" Ducting (Supply and Return) - DO NOT REDUCE
• Warranty:2 Years (Entire System) / 5 Years (Compressor) To activate your warranty, you must complete and return our Split Installation Checklist.
  Optional Extended Warranty sold separately.
• SKU:AH6500Sx
• UPC:077757070846

Options and Upgrades

Cold Temperature

• Compressor Heater #1727: protects the unit when installed in environments that drop down to 20F - included.
• Fan Cycling Switch #6972: supports the unit in temperatures below 20F and as low as -20F when configured with Electronic Control and combined with our compressor heater.

Filters & Grills

• Use our filter & grill guide to find the cooling unit filter or duct filter and/or duct grill that is appropriate for your cooling unit.

Remote Thermostats, Displays & Probes

• Networkable Thermostats #27346 and #27310: connect your cooling unit to a networkable, wi-fi enabled thermostat (sold separately). Some limitations apply - read the networkable thermostat description for more information. Includes 10 feet of wiring.
• Remote Display #1603: lets you place the digital panel wherever you want, whether inside or outside the cellar. Includes 10 feet of wiring. Additional wiring is available at a cost of $0.50 per additional foot.
• Bottle Probe #1434: this remote thermostat with a 10-foot cord overrides the thermostat on the face of the cooling unit, and allows it to monitor air or liquid temperatures at various locations inside the cellar - included.
• Bottle probe extension cords are available in 25-foot (#1780) and 50-foot (#1781) lengths.

Heating & Humidification

• Integrated Heater 900W #7237: adds 900 watts of heat through the cooling system when the cellar is in an unheated environment and will be exposed to temperatures below desired wine storage temperatures.
• Integrated Heater 1800W #7260: adds 1800 watts of heat through the cooling system when the cellar is in an unheated environment and will be exposed to temperatures below desired wine storage temperatures.
• Integrated Humidifier #7236: provides humidification with digital control inside the cellar when attached to an external water line.
