CellarPro Air Handler Split 6000 Ceiling Mount #36920
CellarPro Air Handler Split 6000 Ceiling Mount
Ducted split system with two recessed ceiling mount evaporators for wine cellars up to 1,500 cubic feet

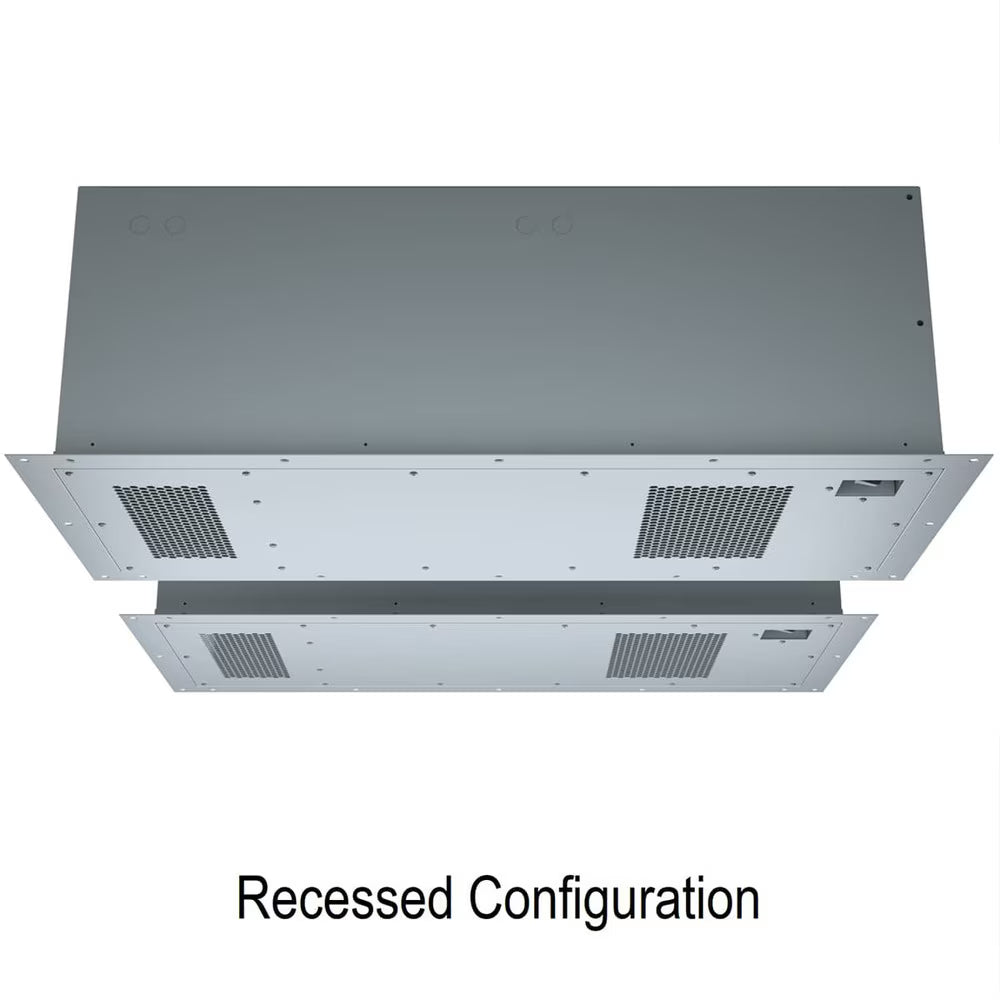

As an authorized CellarPro dealer, Wine Cellar HQ offers the CellarPro Air Handler Split 6000 Ceiling Mount (AH6000Scmr-ECX), a ducted split cooling system built to deliver maximum cooling power and adjustable humidity control with two ceiling-mounted evaporators that can be recessed in the ceiling and hidden from view. The system is rated at 5/8 Ton Nominal and produces 5,000 sensible BTUH at 55°F, making it suitable for commercial and residential wine cellars up to 1,500 cubic feet.
The condensing unit sits outside the cellar and can be ducted up to 100 equivalent feet, to indoor or outdoor spaces ranging from -20°F to 110°F. That keeps its heat and noise away from your living spaces, while energy-efficient EC fans on the cold side keep operating costs down.
| Specification | Detail |
| Model | AH6000Scmr-ECX |
| System type | Ducted split system with two recessed ceiling mount evaporators (complete system, one SKU) |
| Nominal capacity | 5/8 Ton |
| Cellar capacity | Up to 1,500 cubic feet* |
| Cooling capacity (Sensible BTUH @ 55°F) | 4,141 low / 4,789 medium / 5,000 high fan speed |

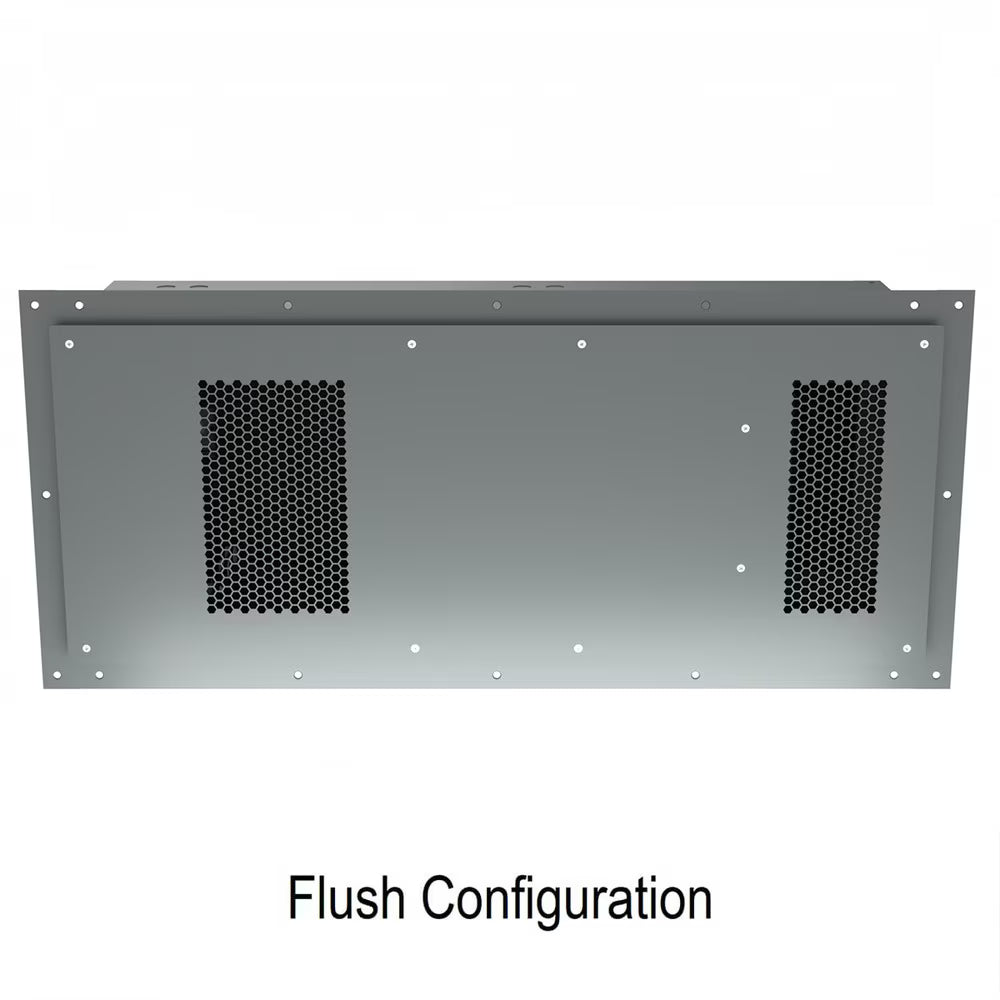

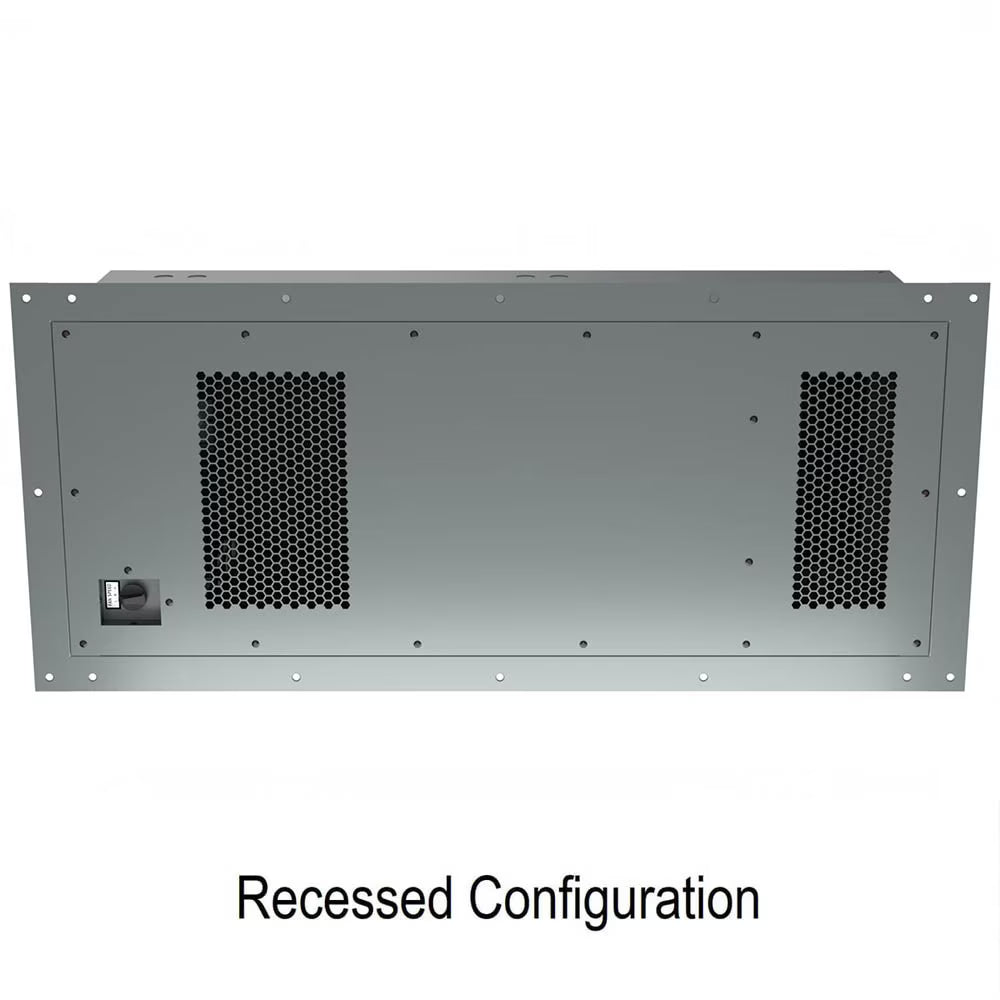

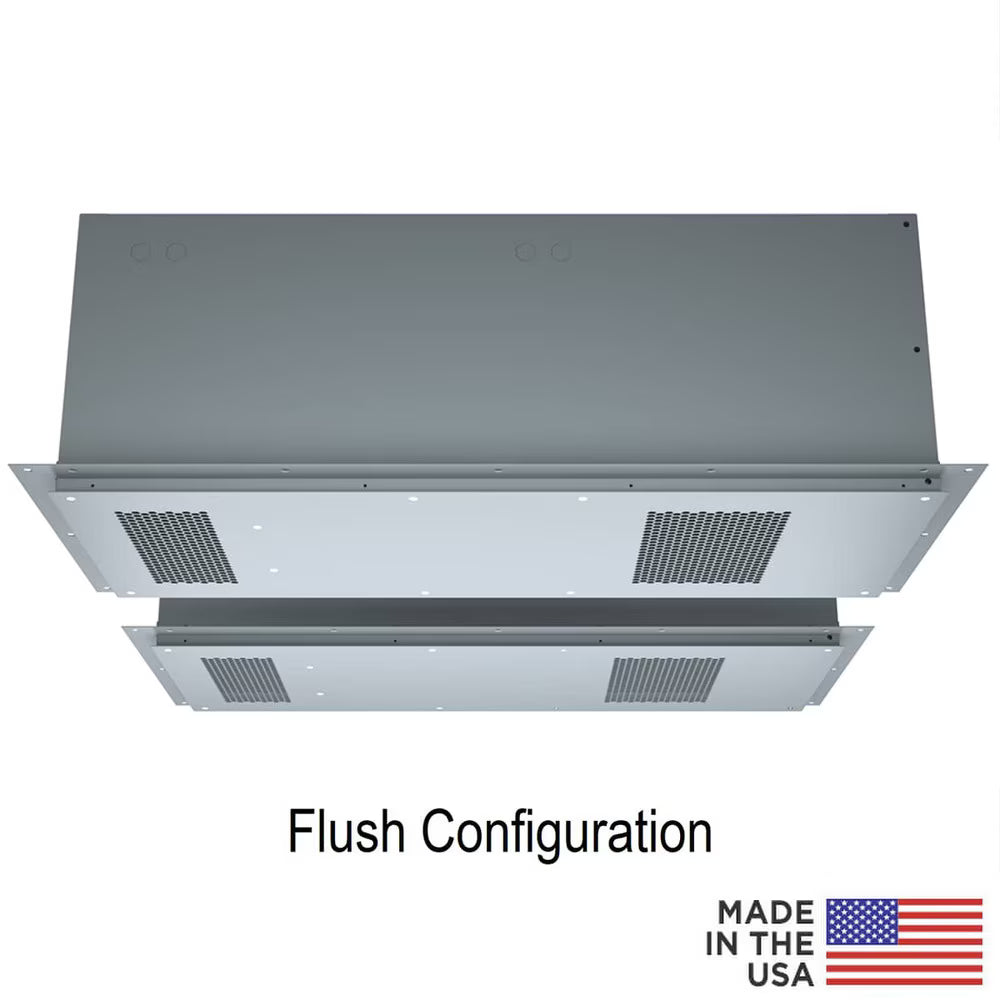

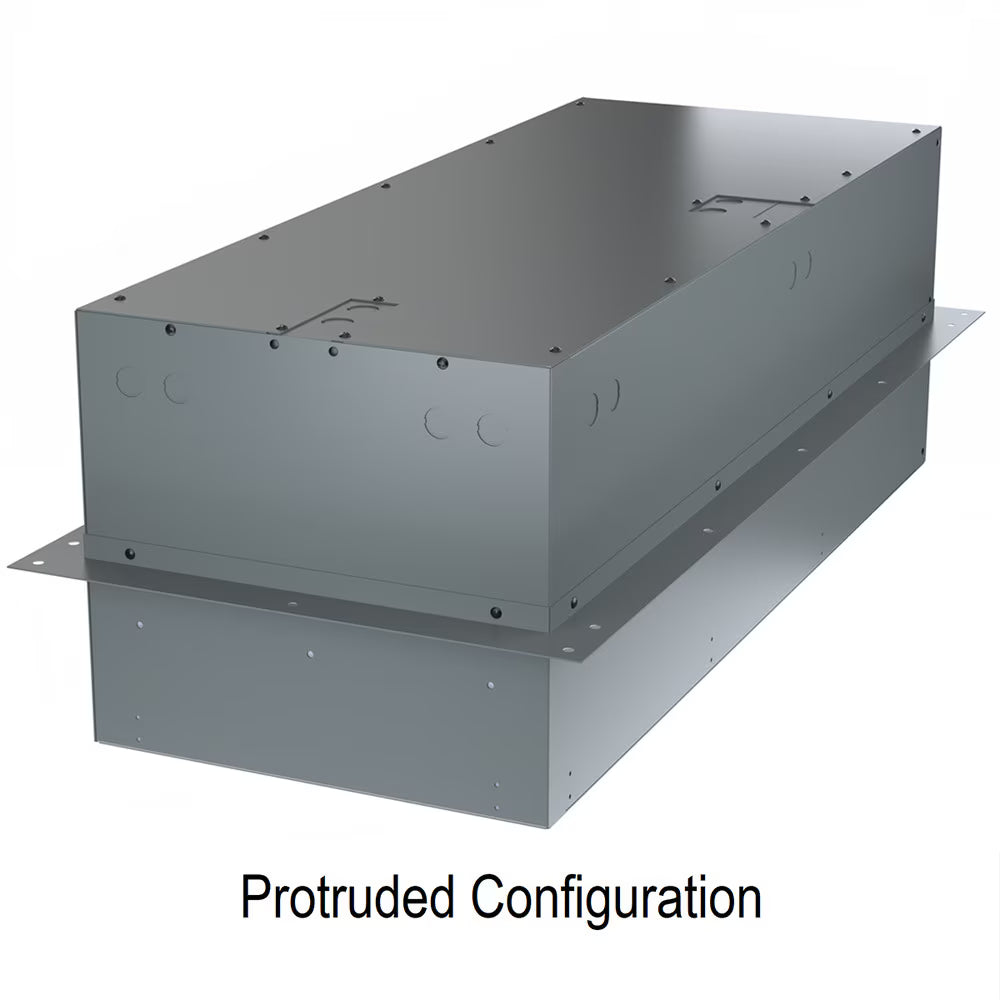

| Evaporators | Two evaporators, each 35.75"W x 14.25"D x 12.875"H; 120 lbs total |

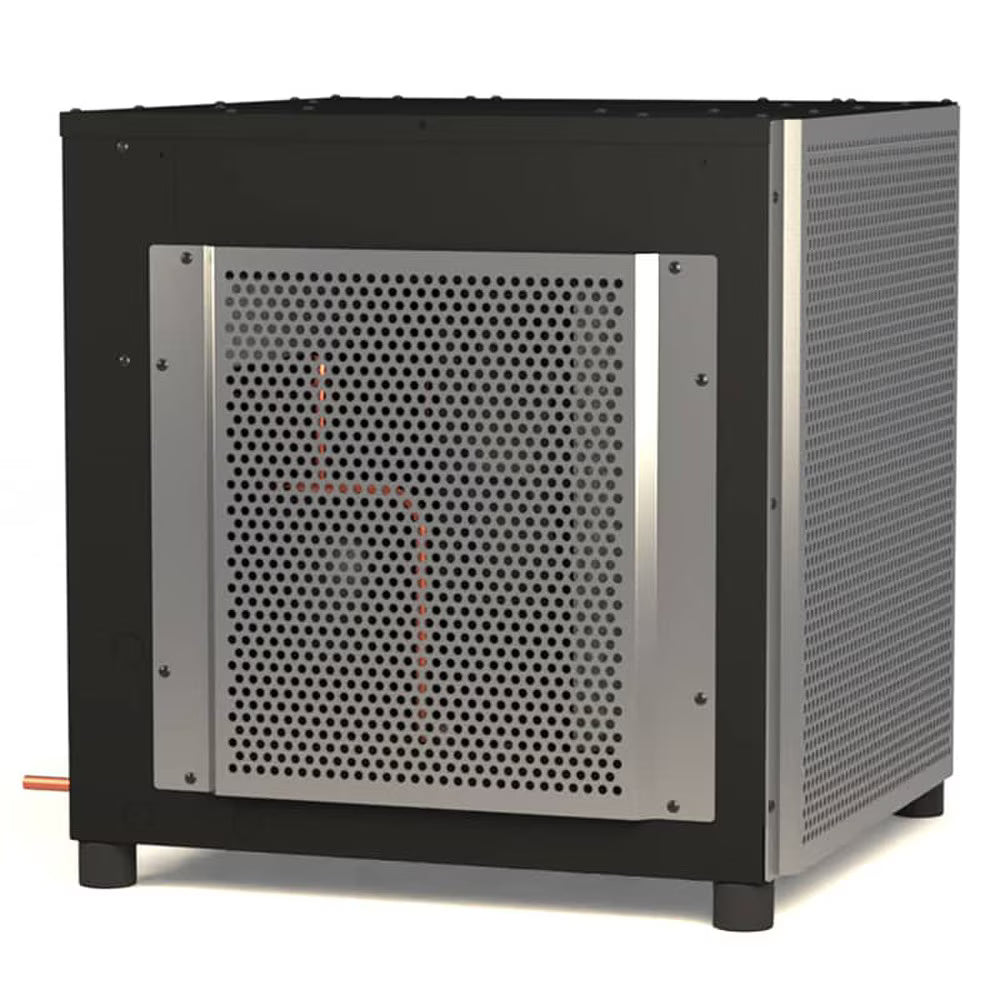

| Condensing unit dimensions | 18.5"W x 18.5"D x 19.25"H, 111 lbs |

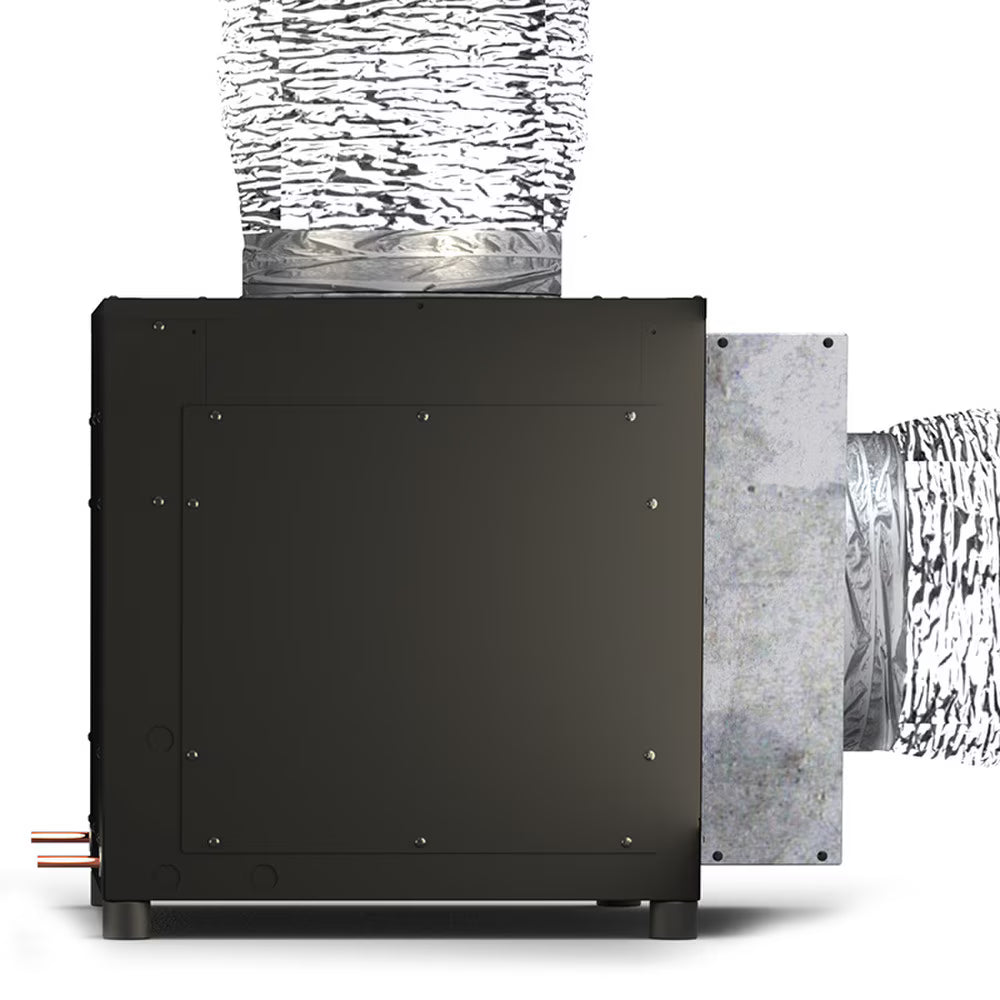

| Ducting | Condensing unit can be ducted up to 100 equivalent feet (50 feet per duct), up to 30 vertical feet |

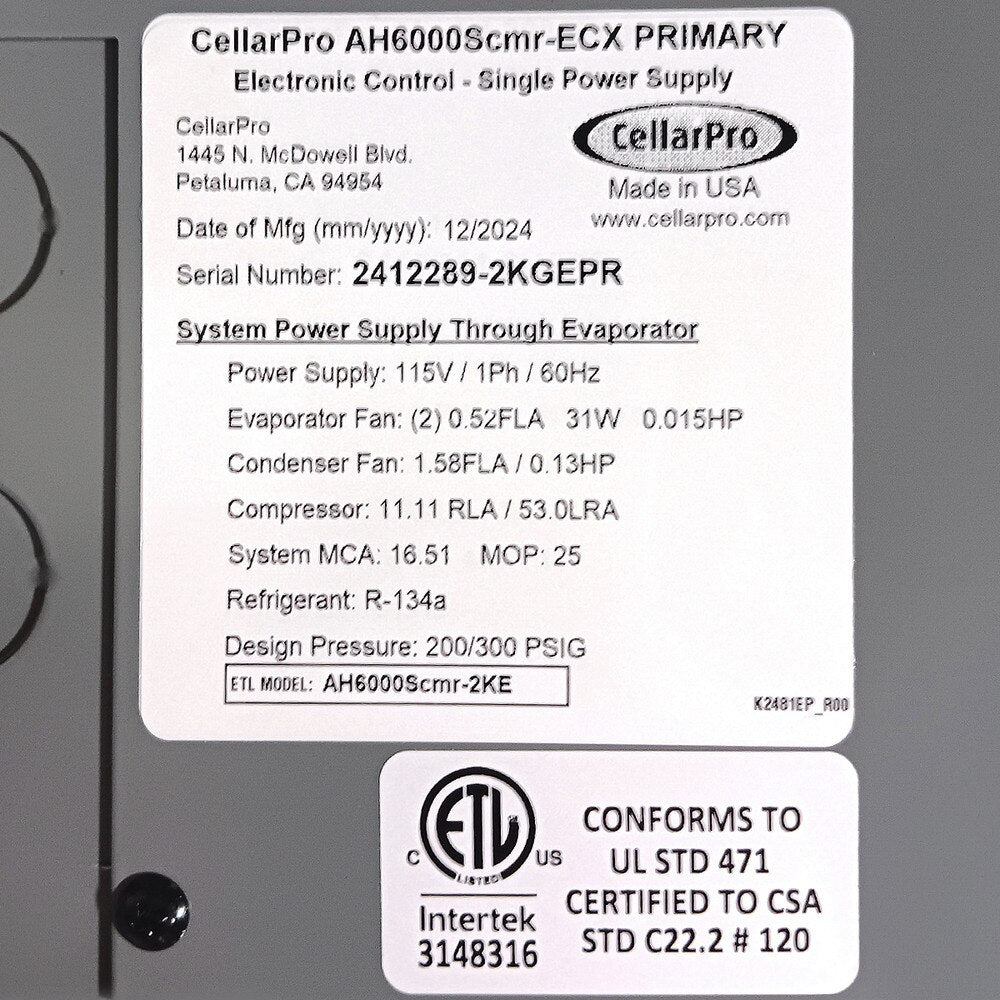

| Electrical | Common dedicated 15-amp evaporator and 25-amp condenser circuit (valve control) or 25-amp circuit (electronic control); 53.0 amps startup / 13.8 amps unit rating (high fan speed); 986 watts (medium fan speed) |
| Noise level, evaporator (low/med/high) | 54 / 58 / 66 dBA |
| Noise level, condensing unit (ducted / non-ducted) | 43 / 56 dBA low, 50 / 63 dBA medium, 55 / 68 dBA high |
| Temperature set point range | 47°F to 62°F (when properly sized) |
| Included | Remote LED display with 20 ft of wiring, integrated condensate pump, Sight Glass and Liquid Line Filter/Drier, Compressor Heater |
| Warranty | 2 years (entire system) / 5 years (compressor) |
| Certification | ETL Tested and Certified to UL Standards |
This unit can be configured with a networkable Ecobee thermostat upgrade, a bottle probe, and a choice of line sets for installations that need additional length. Ask your Wine Cellar HQ representative for current options and pricing.
Backed by CellarPro's 2-year full system warranty and 5-year compressor warranty. To activate the warranty, a completed Installation Checklist must be returned. An optional extended warranty is also available.
Ships strapped to a pallet via common carrier with curbside delivery. Inside delivery is available for an additional charge. Typical processing time is 5-10 business days.
