CellarPro® · Ducted Air Handler Systems

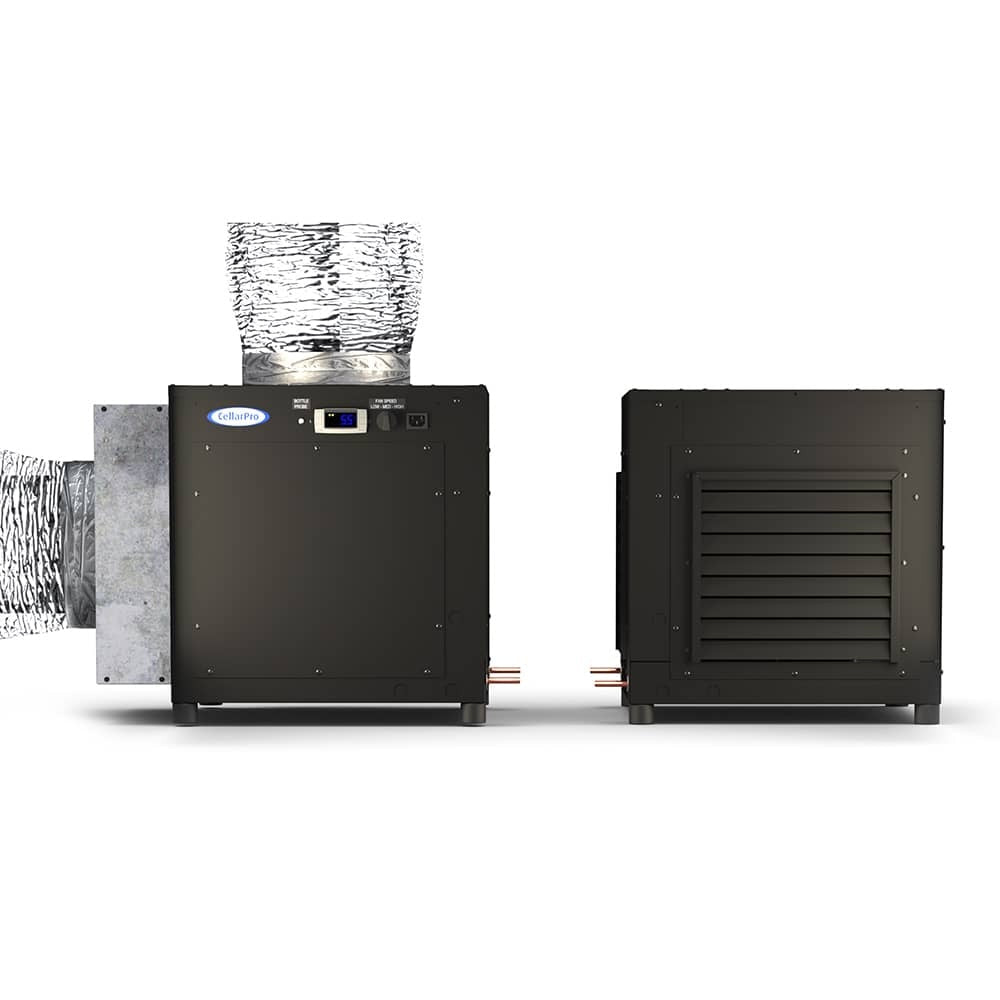

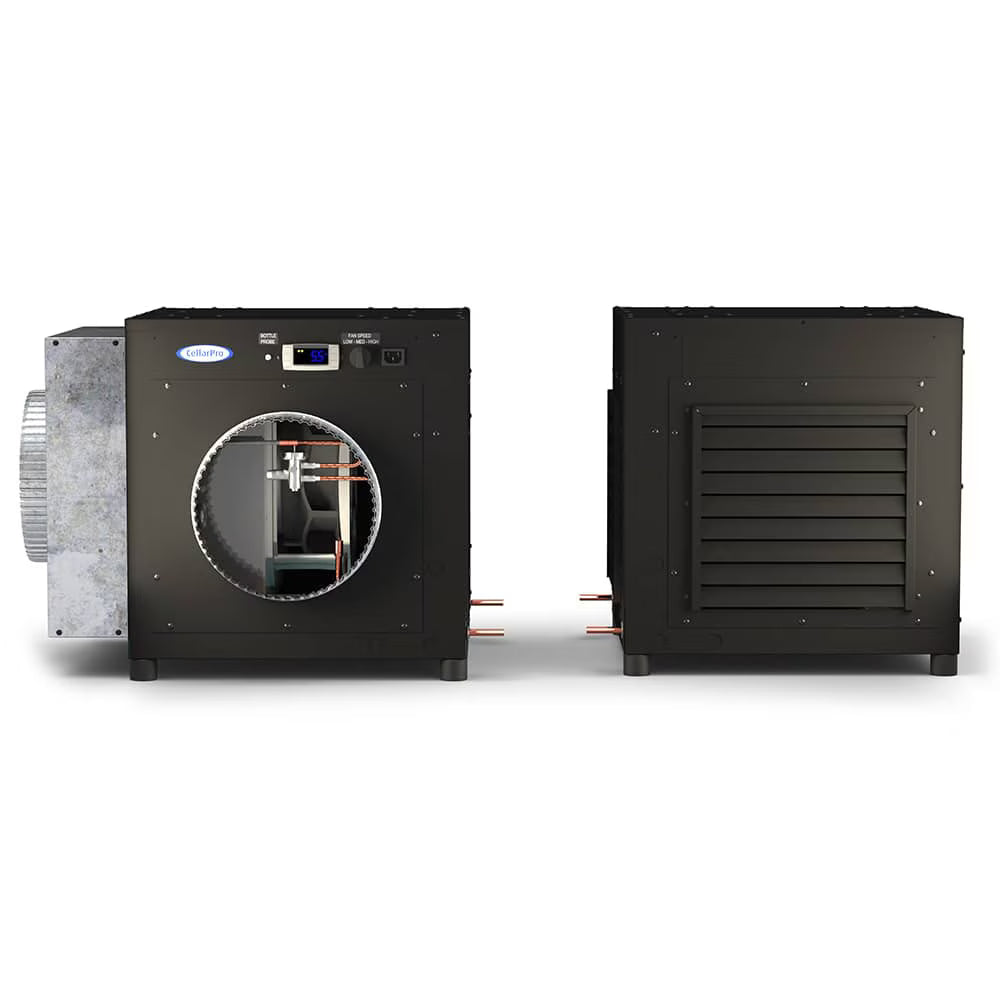

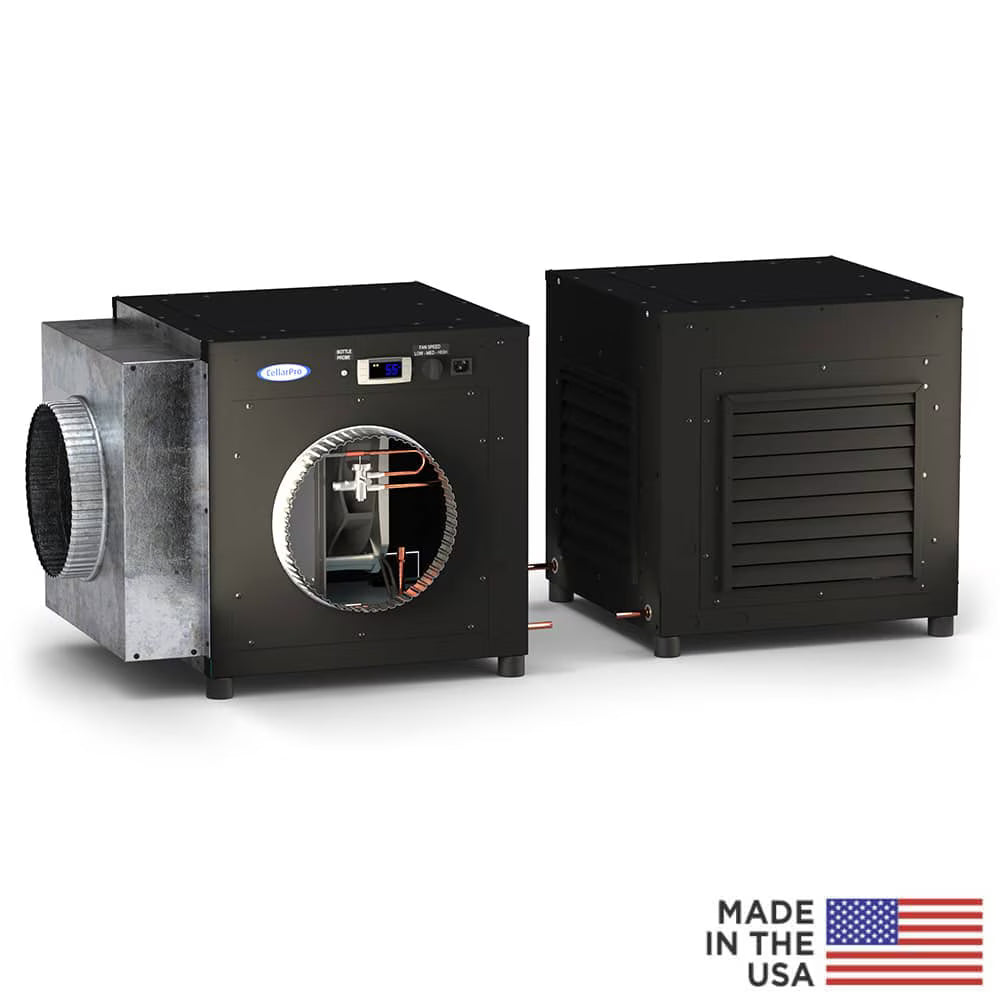

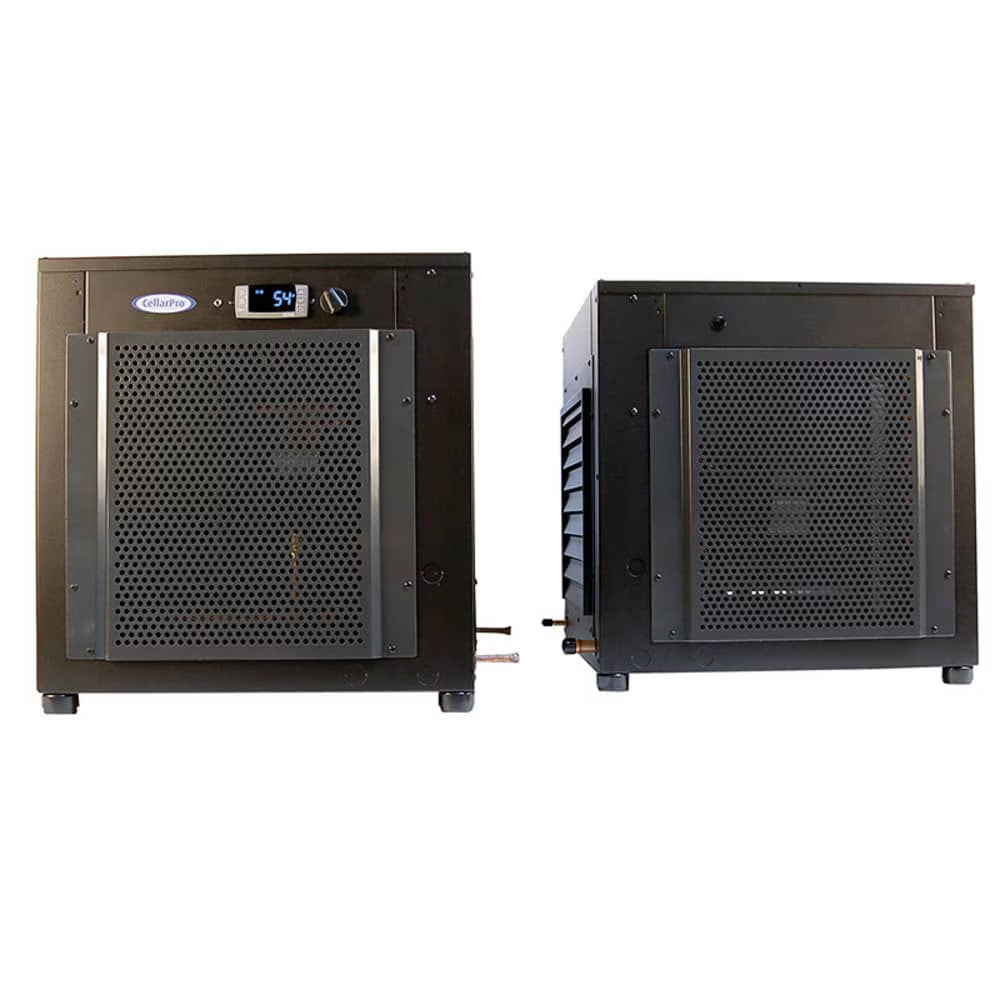

CellarPro Air Handler Split 4500 Outdoor

Split ducted cooling system for wine cellars up to 1,250 cubic feet — outdoor-installed condensing unit

1/2 Ton Split · Outdoor Unit 8" Ducted ETL Certified
Variable-Speed EC Fans
Up to 100 ft Separation
Exterior-Rated Housing
ETL Certified to UL Standards
1/2 Ton
Nominal Capacity
4,328
BTUH High Speed
100 ft
Max Evap–Condenser Separation
1,250 ft³
Cellar Capacity
Overview

As an authorized CellarPro dealer, Wine Cellar HQ offers the CellarPro Air Handler Split 4500 Outdoor, a split ducted cooling system engineered to provide maximum cooling power and adjustable humidity control for wine cellars up to 1,250 cubic feet, with the condensing unit located in an exterior environment. As a split system, the evaporator can be separated from the condensing unit by up to 100 feet, allowing the noise and heat of the condensing unit to be located away from interior living areas. This unit includes independent energy-efficient variable-speed EC fans with a low setting for quieter operation and a high setting for maximum power.

All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake cannot come from the wine cellar space — it must come from space outside the cellar.

Key Features
Energy-efficient EC fans on both the cold and hot sides, saving $300.77 in annual energy costs vs. AC fans
Split system design separates the evaporator from the condensing unit by up to 100 feet
Exterior condensing unit placement isolates the noise and heat of operation away from interior living areas
Exterior housing and compressor heater support operation down to 20°F
High-output EC fans provide more airflow and variable speed settings
Optional integrated humidifier provides ultimate control of moisture levels
Optional integrated heater provides heat for cellars exposed to cold ambient temperatures
Extra-large coils generate maximum cooling power inside the cellar
Condensate management via 1/2" drain line
Commercial-grade Electrofin coating protects evaporator coils from leaks and corrosion
Intuitive LED display panel with digital programmable thermostat, energy-saver, quick-chill, and auto-defrost modes
Temperature set point range of 47°F to 62°F when properly sized
Operates with minimal vibrations and less noise than comparable units
Audible and visual alarms with maintenance-needed indicator
Remote probe for cellar, air filter, and duct adapters included
Factory-installed Expansion Valve and Liquid Line Solenoid Valve
Removable steel case and refrigerant access valve; Sight Glass and Liquid Line Filter/Drier included
Oversized Receiver allows long line sets up to 100 equivalent feet
Auto-reset high-pressure switch protects the system; factory-pressurized with dry nitrogen for leak-free installation
CellarPro's 2-Year/5-Year Warranty protection, with an optional Extended Warranty available
ETL Tested and Certified to UL Standards
Technical Specifications
Specification Detail
System type Complete split system (evaporator + condensing unit included); condensing unit rated for outdoor installation. AH4500Si #36293 is the alternate indoor-condensing configuration.
Nominal capacity 1/2 Ton
Cooling capacity (Sensible BTUH @ 55°F) 3,607 BTUH low / 3,975 BTUH medium / 4,328 BTUH high fan speed
Condensing unit dimensions & weight 18.6"W x 18.6"D x 19.3"H, 111 lbs
Evaporator dimensions & weight 18.6"W x 18.6"D x 19.3"H, 60 lbs (no humidifier)
Ducting 8 inch, insulated on the cold side; evaporator and condensing unit can each be ducted up to 100 equivalent feet (50 equivalent feet per duct)

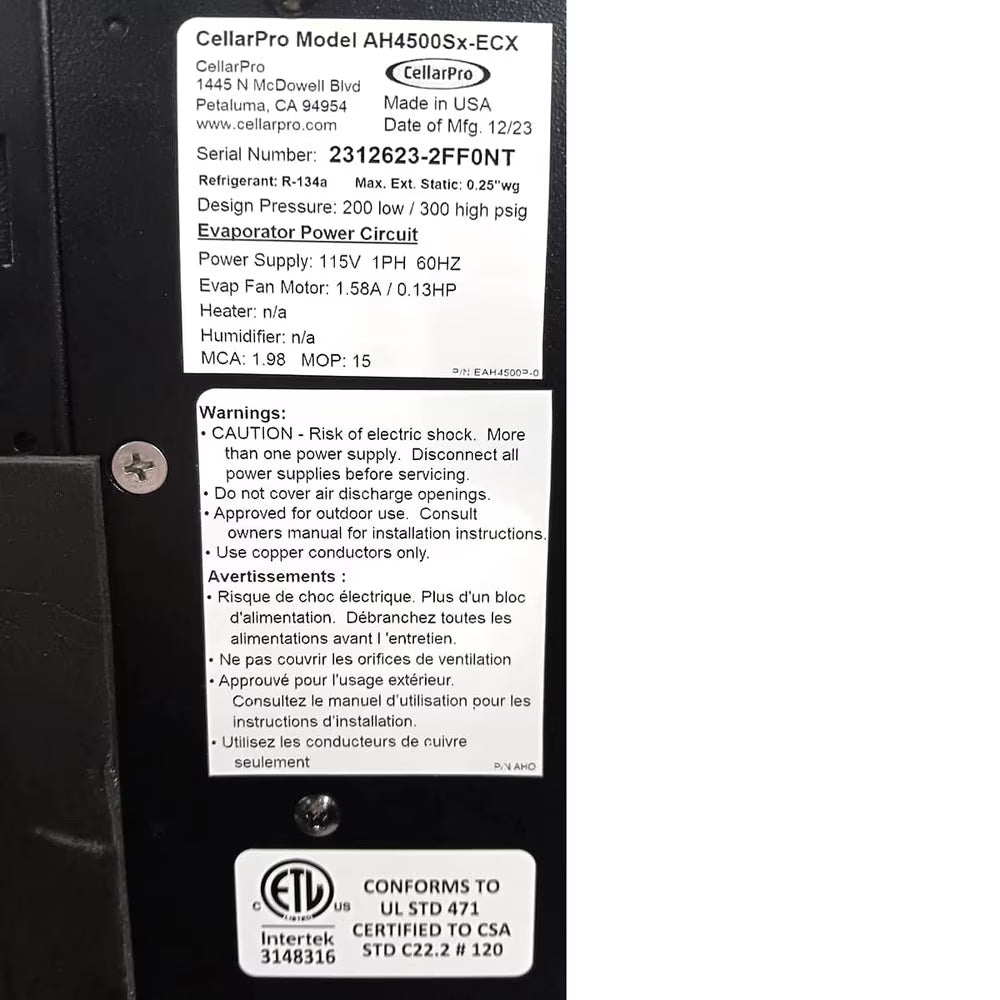

Electrical 110V/60Hz. Two-circuit option: condensing unit 10.7A/15A breaker + evaporator 2.0A/15A breaker. Single-circuit option: 20A breaker. Startup 42.0A / running 10.6A, 636W total at medium fan speed
Noise level, condenser (ducted / non-ducted) 43 / 56 dBA low, 50 / 63 dBA medium, 55 / 68 dBA high
Noise level, evaporator (ducted) 38 dBA low / 44 dBA medium / 52 dBA high
Exterior/marine note Not designed for marine exposure within 5 miles of the ocean without an applied protective coating
Installation & Environmental Requirements
The fresh air intake cannot come from the wine cellar space — it must come from space outside the cellar
Must always be used in the upright position, and should never be operated on its side or upside down
The condensing unit requires 12 inches of unobstructed space in front of the coils
All split systems must be installed and charged on site by a qualified HVAC professional
Exterior installation is not designed for marine exposure within 5 miles of the ocean without an applied protective coating
Environments below 40°F require the Compressor Heater (P/N 1727), included standard
Environments below 20°F down to -20°F require the Electronic Control wiring configuration plus the Fan-Cycling Switch (P/N 6972)
Optional Upgrades

This unit can be configured with a remote wired LED display kit, a networkable Ecobee thermostat upgrade, an integrated humidifier for added moisture control, and an integrated heater for cellars exposed to colder ambient temperatures. Ask your Wine Cellar HQ representative for current availability and pricing.

Backed by CellarPro's 2-year full system warranty and 5-year compressor warranty. An optional Extended Warranty is available. ETL Tested and Certified to UL Standards.

Ships strapped to a pallet via common carrier with curbside delivery. Inside delivery is available for an additional charge.
