CellarPro® · Ducted Air Handler Systems

CellarPro Air Handler Split 4000 Wall Mounted

Split ducted cooling system for wine cellars up to 1,000 cubic feet

1/2 Ton Split System 8" Ducted ETL Certified

Variable-Speed EC Fans

Electrofin-Coated Coils

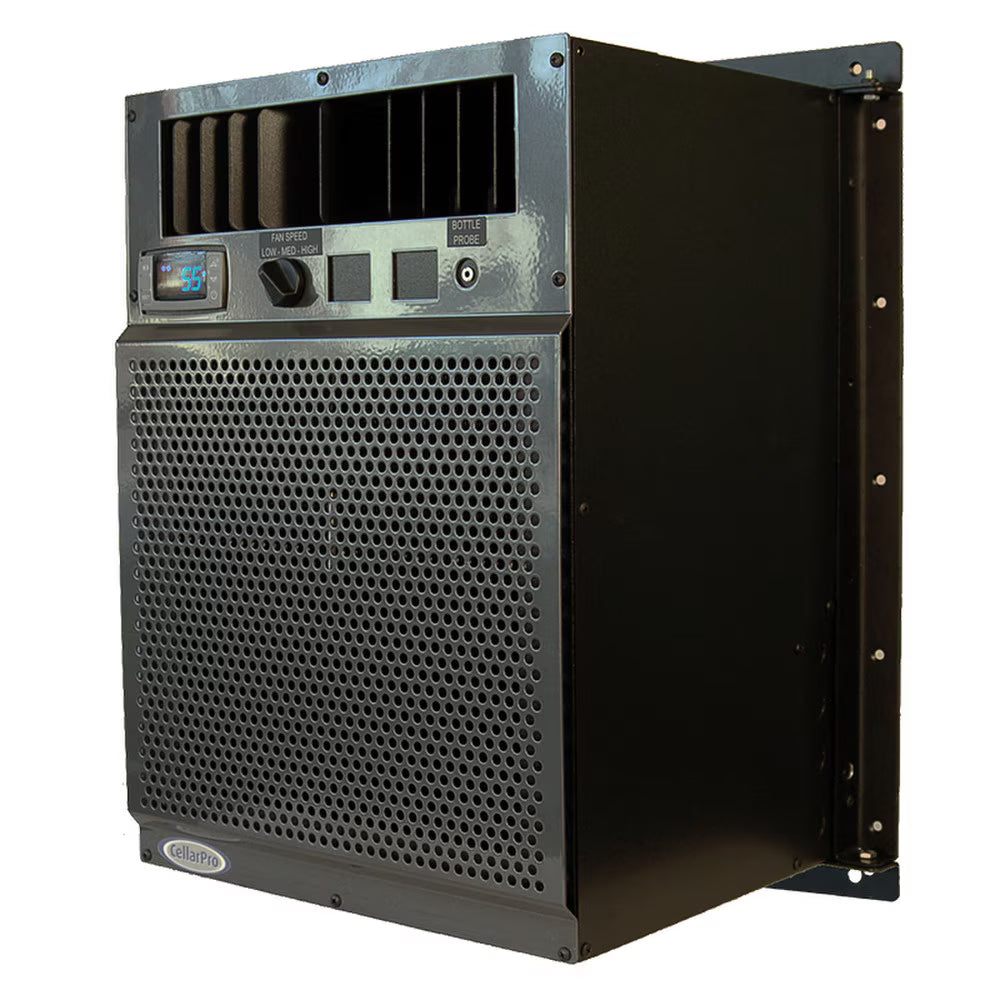

Ductable Wall-Mounted Evaporator

ETL Certified to UL Standards

1/2 Ton

Nominal Capacity

3,938

BTUH High Speed

100 ft

Max Equiv. Duct Run

1,000 ft³

Cellar Capacity

Overview

As an authorized CellarPro dealer, Wine Cellar HQ offers the CellarPro Air Handler Split 4000 Wall Mounted, a split ducted cooling system engineered to provide maximum cooling power and adjustable humidity control for wine cellars up to 1,000 cubic feet. As a split system, the condensing unit is installed away from the evaporator to move noise and heat out of interior living spaces, and it can be ducted to indoor or outdoor environments across extreme temperature conditions ranging from −20°F to 110°F. The wall-mounted evaporator can be remotely located and ducted to and from the cellar using CellarPro's cold-side duct hood, or installed directly inside the cellar. This unit includes energy-efficient independent variable-speed EC fans with a low setting for quieter operation and a high setting for maximum power.

Key Features

Energy-efficient EC fans save $90.37 in annual energy costs versus comparable AC fans

Designed to separate the heat and noise of the condensing unit from interior living spaces

Evaporator can be remotely ducted to and from the cellar, or installed directly inside the cellar

Condensing unit can be ducted to indoor or outdoor environments across extreme temperature conditions ranging from −20°F to 110°F

Variable-speed fan control with a low setting for quieter operation and a high setting for maximum power

Adjustable humidity control combines a high-output compressor with flexible fan cycles

Extra-large coils generate maximum cooling power inside the cellar

Commercial-grade Electrofin coating protects the evaporator coils

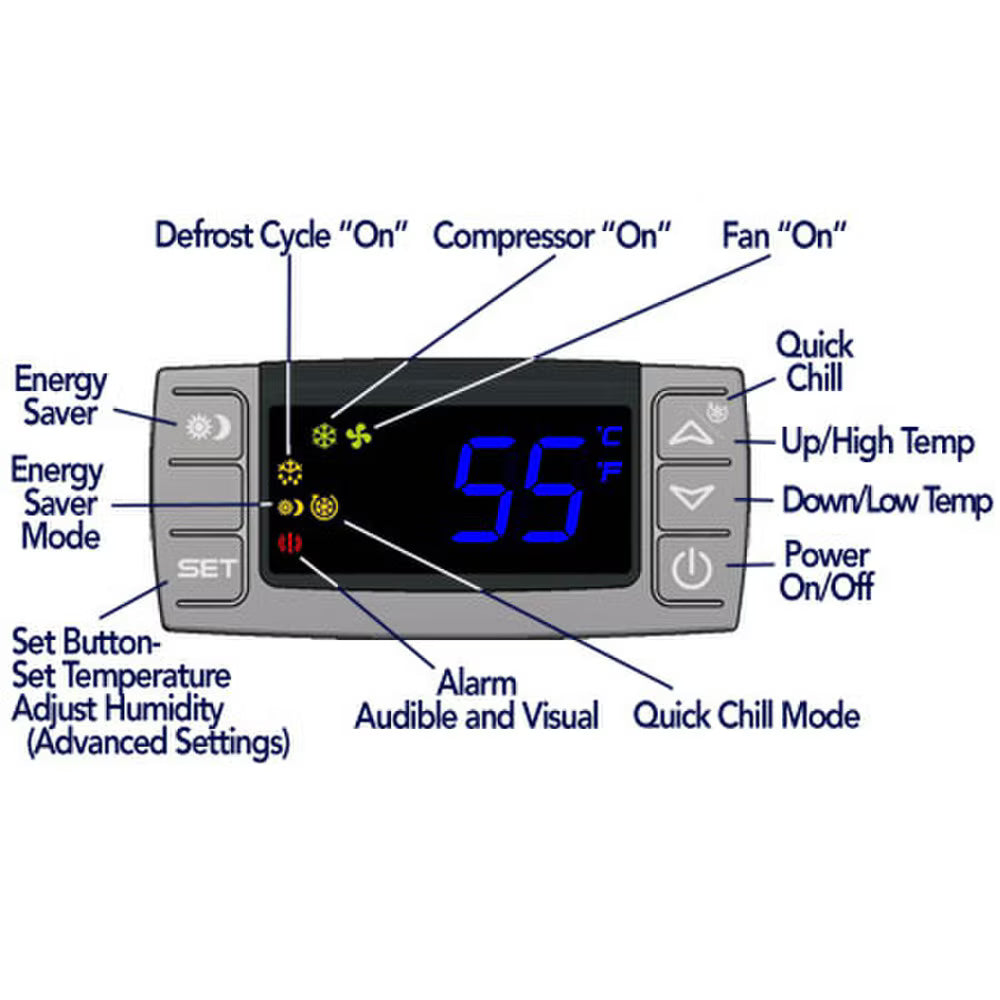

LED display panel mounted on the evaporator with digital programmable thermostat

Energy-saver mode, quick-chill mode, and auto-defrost cycle

Unit operates with minimal vibration and less noise than comparable units

Audible and visual alarms with maintenance-needed indicator

Removable steel case and refrigerant access valve

Sight Glass and Liquid Line Filter/Drier included

Oversized Receiver allows for long line sets up to 100 equivalent feet

Auto-reset high-pressure switch protects the system

Evaporator and condensing unit are factory-pressurized and shipped with dry nitrogen

ETL Tested and Certified to rigorous UL Standards for safety

Technical Specifications

Specification	Detail
System type	Split — condensing unit and evaporator sold together as one complete system
Nominal capacity	1/2 Ton
Cellar capacity	Up to 1,000 cubic feet*
Cooling capacity (Sensible BTUH @ 55°F)	3,282 BTUH low / 3,617 BTUH medium / 3,938 BTUH high fan speed
Condensing unit dimensions	18.5"W x 18.5"D x 19.25"H, 111 lbs
Evaporator dimensions	14.125"W x 12.625"D x 19.5"H, 63 lbs
Shipping weight	212 lbs
Ducting	Evaporator (cold side) can be ducted up to 50 equivalent feet with 8-inch ducting, or located inside the cellar; condensing unit can be ducted up to 100 equivalent feet with 8-inch ducting

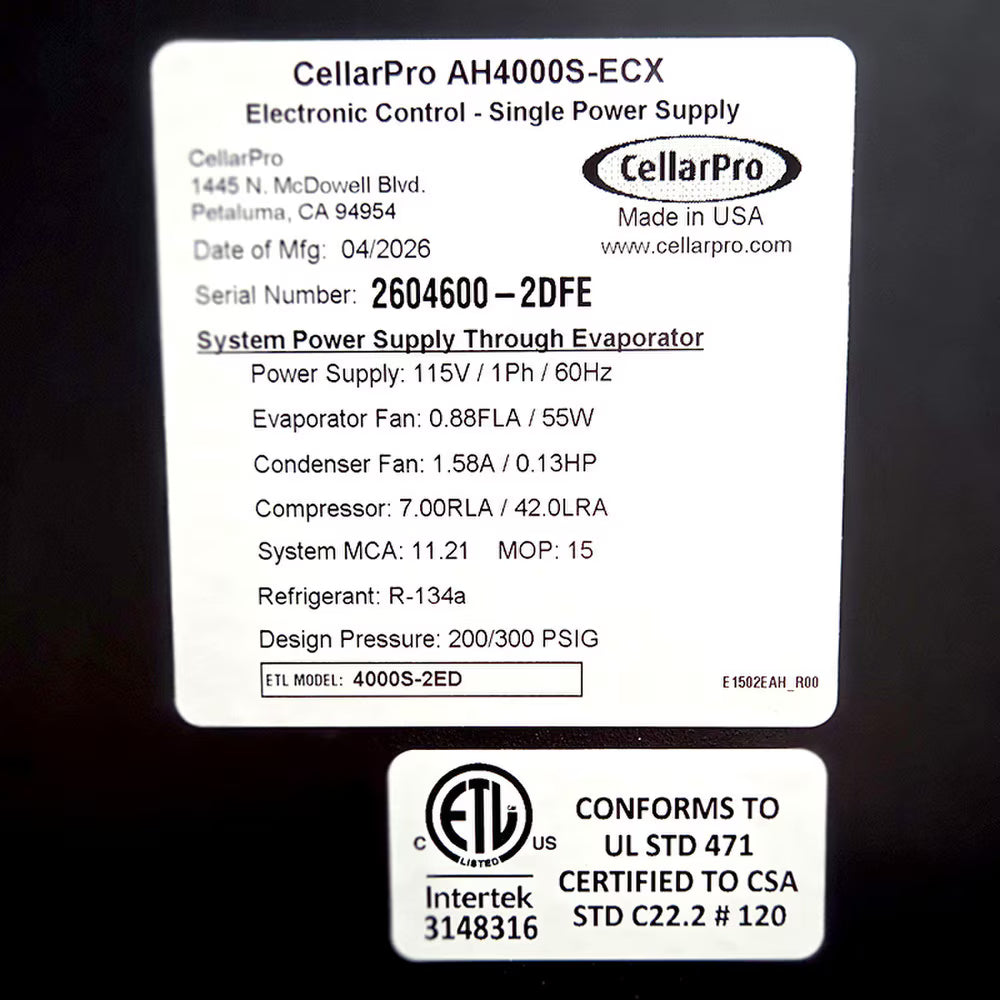

Electrical	115V AC / 60Hz, dedicated 15-amp circuit; 42.0 amps startup / 9.5 amps operating (high fan speed)
Noise level, evaporator (low/med/high)	51 / 55 / 63 dbA
Noise level, condensing unit (ducted / non-ducted)	43 / 56 dBA low, 50 / 63 dBA medium, 55 / 68 dBA high

Installation & Environmental Requirements

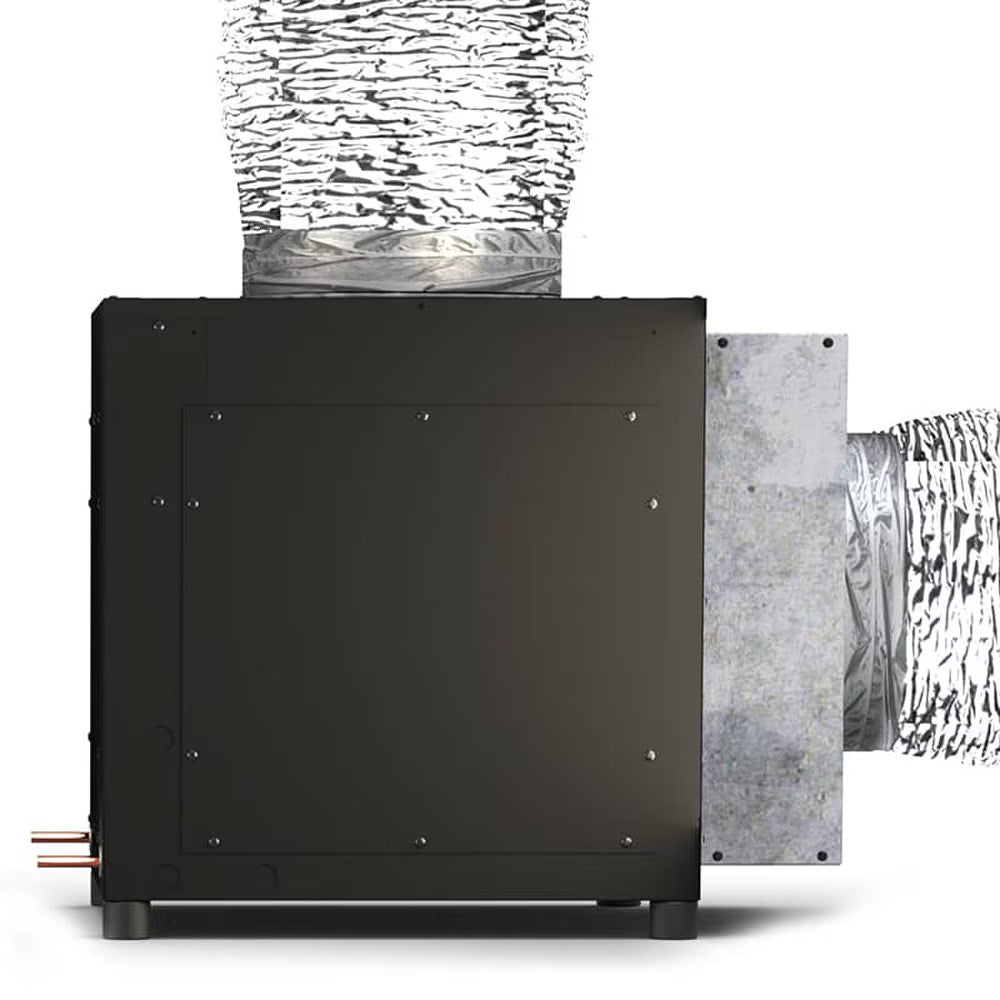

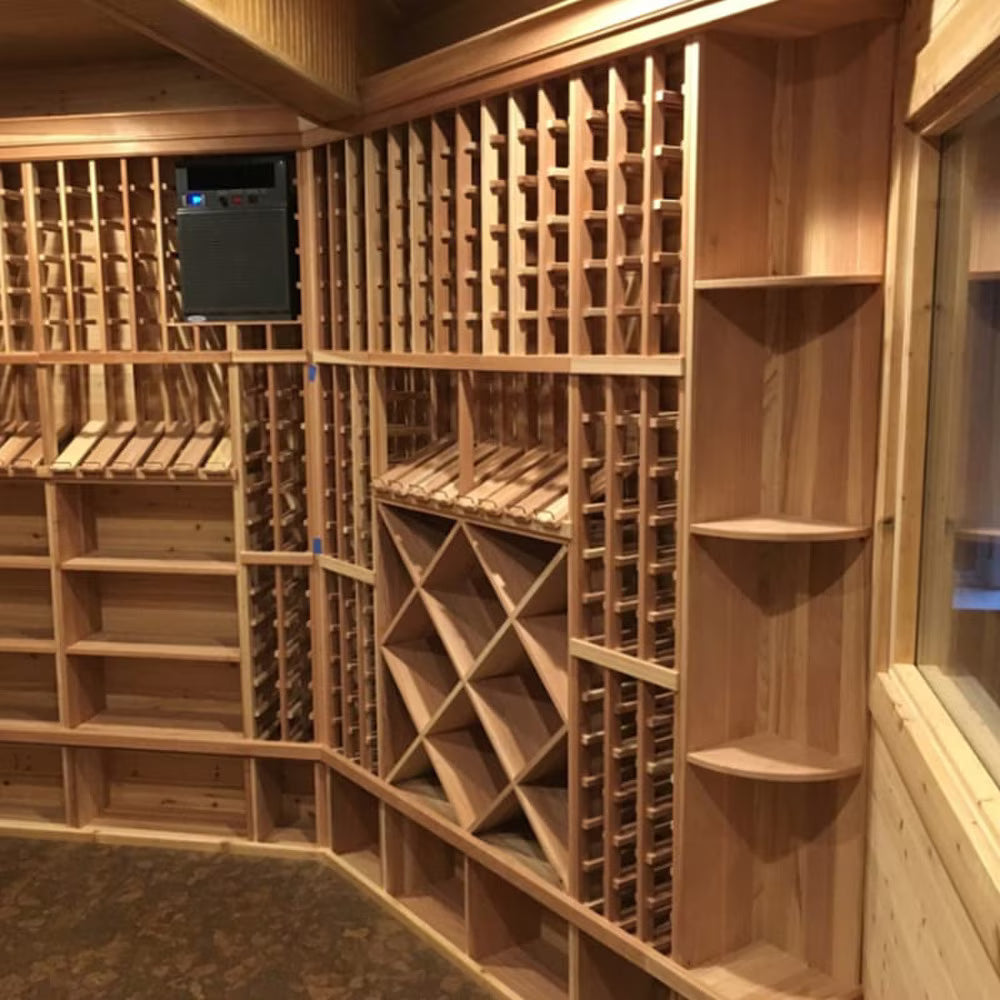

The evaporator can be remotely located and ducted to and from the cellar using a cold-side duct hood, or installed directly inside the cellar

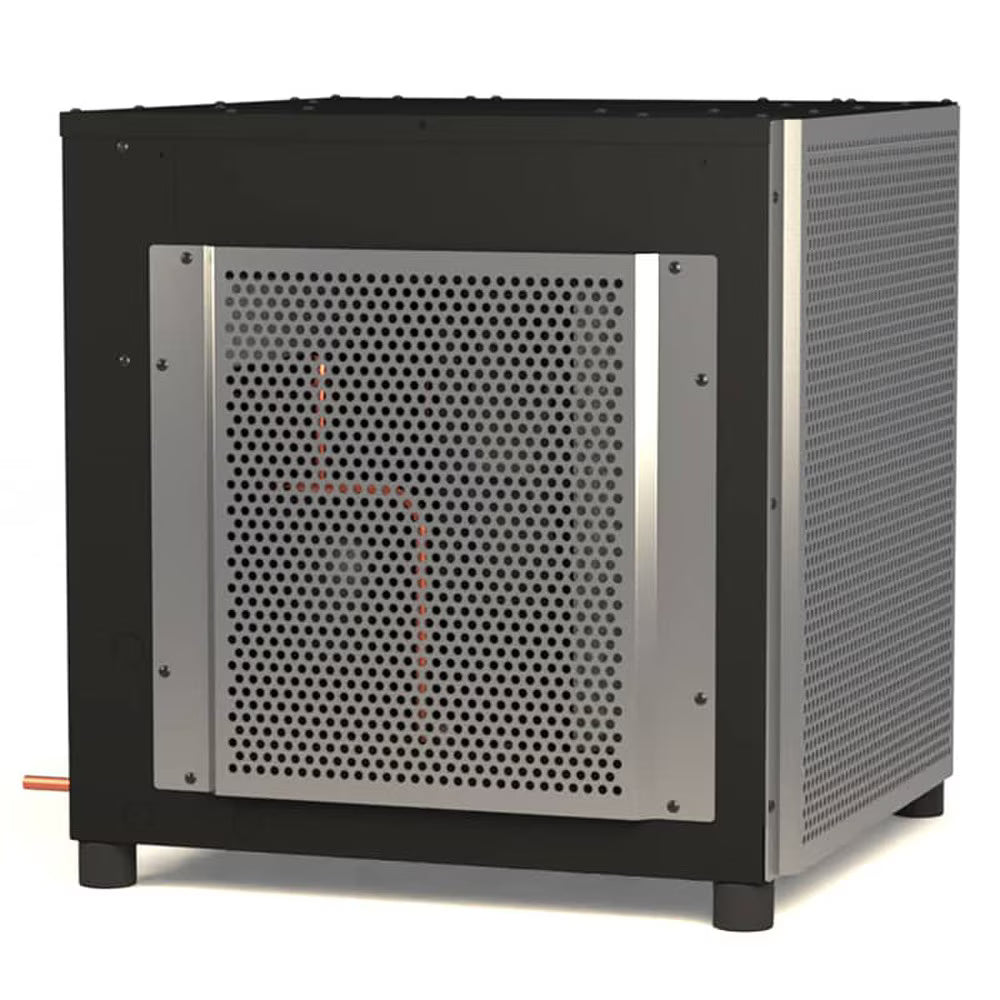

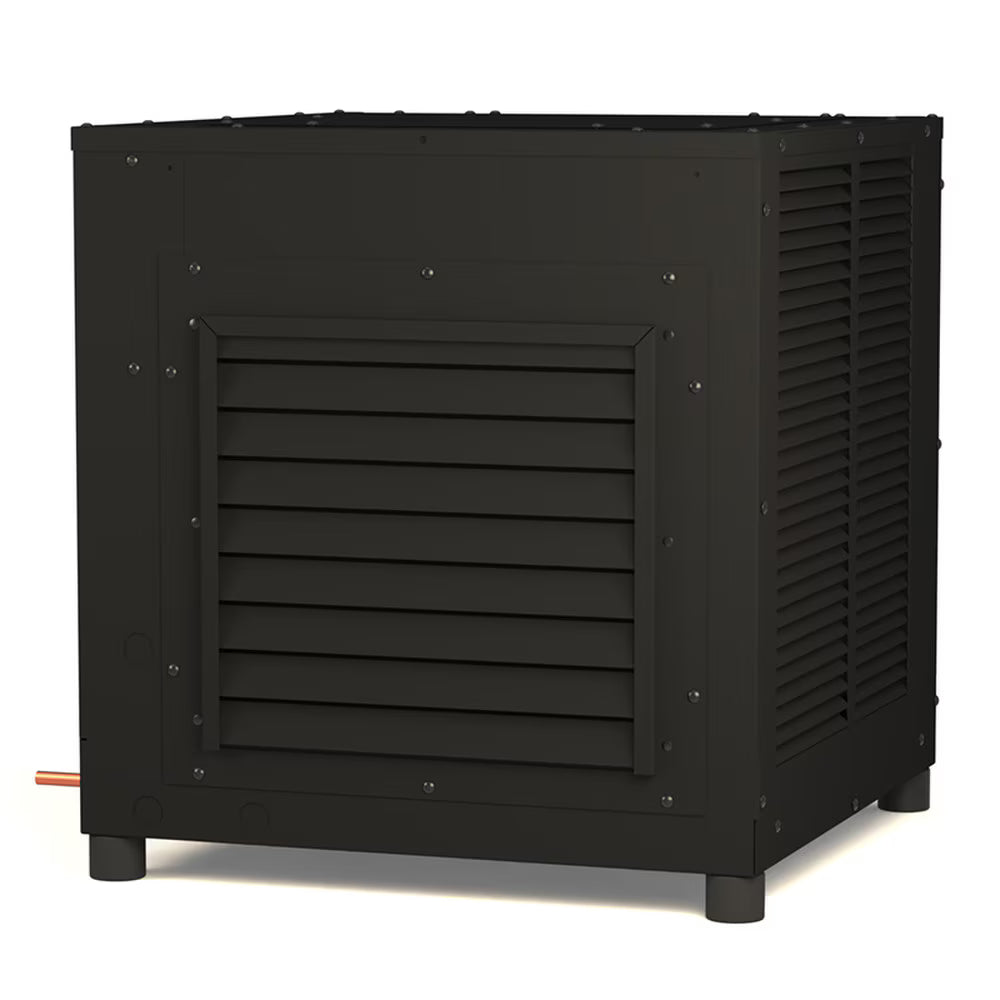

The condensing unit must be located outside the cellar and can be ducted indoors if needed

Fresh air intake cannot come from the wine cellar space, it must come from space outside the cellar

Access to the left and right side of the evaporator unit is required for installation

Split systems must be installed and charged on site by a qualified HVAC professional

Cellar capacity above is calculated assuming R19 insulation throughout the cellar, 55°F inside the cellar, and 85°F outside the cellar; cold-side ducting, glass and/or uninsulated walls, extreme humidity, altitude, and other factors can affect actual sizing — ask your Wine Cellar HQ representative if your cellar falls outside these conditions

Downloads & Resources

Optional Upgrades

This unit can be configured with a remote wired LED display kit, a networkable Ecobee thermostat upgrade, a bottle probe, a cold-side duct hood, and a line set for installations requiring additional length. Ask your Wine Cellar HQ representative for current options and pricing.

Backed by CellarPro's 2-year full system warranty and 5-year compressor warranty — among the most thorough in the industry. To activate the warranty, a completed Split Installation Checklist must be returned. An extended warranty option is also available.

Ships strapped to a pallet via common carrier with curbside delivery; inside delivery is available for an additional charge. Typical processing time is 5-10 business days.
