CellarPro Air Handler Split 4000 Ceiling Mount #36919
CellarPro Air Handler Split 4000 Ceiling Mount

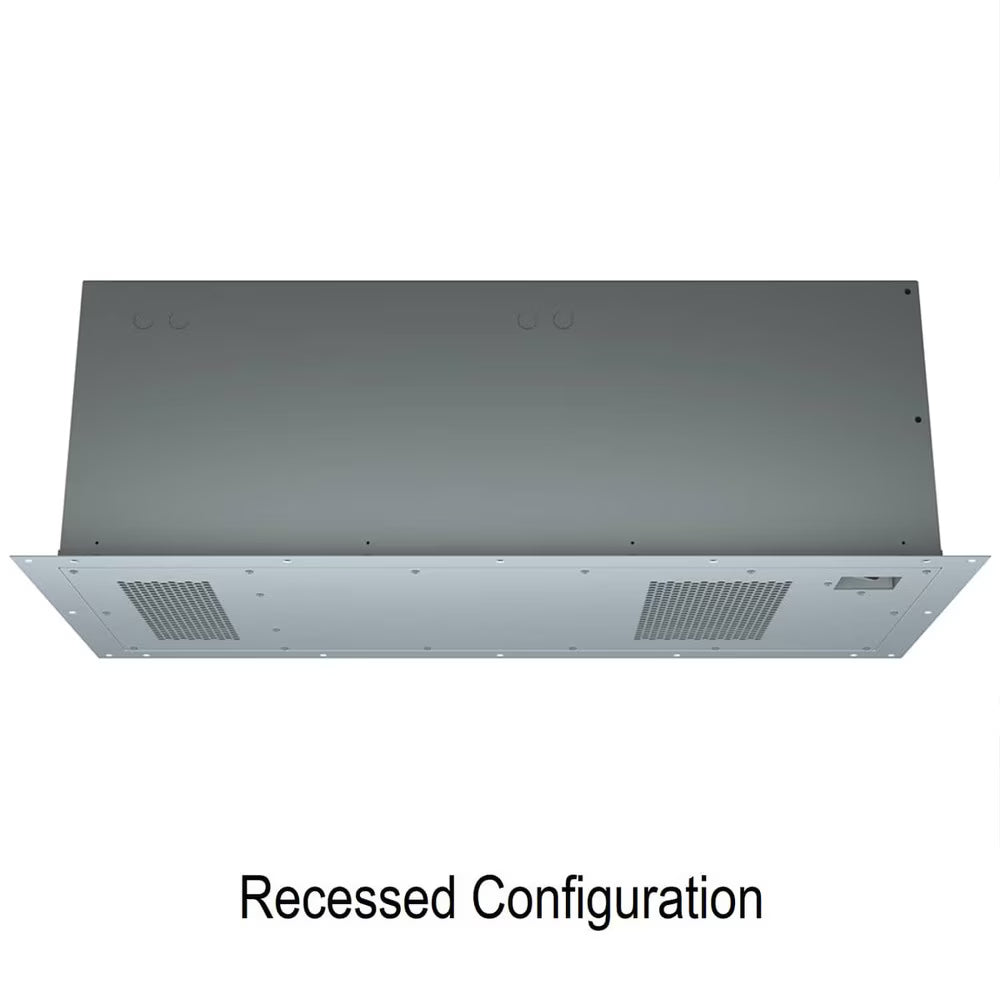

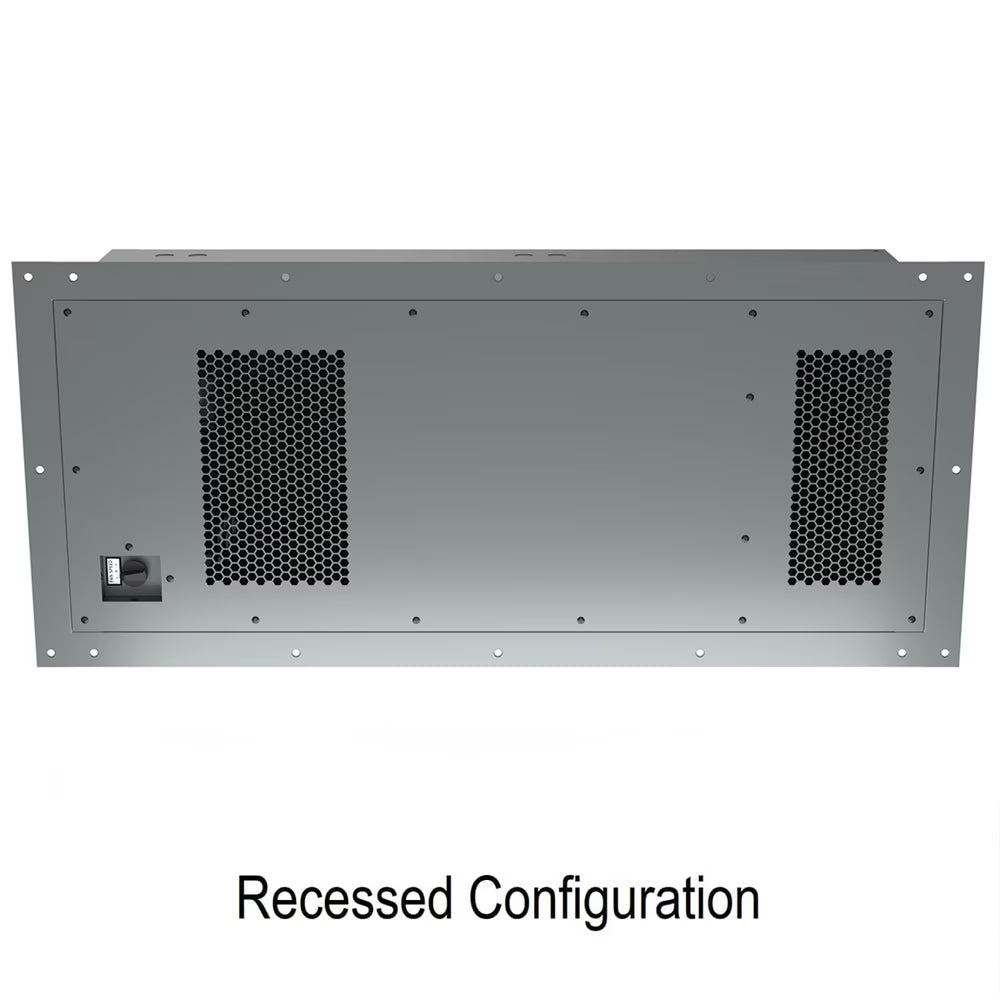

Ducted split system with a recessed ceiling mount evaporator for wine cellars up to 1,000 cubic feet

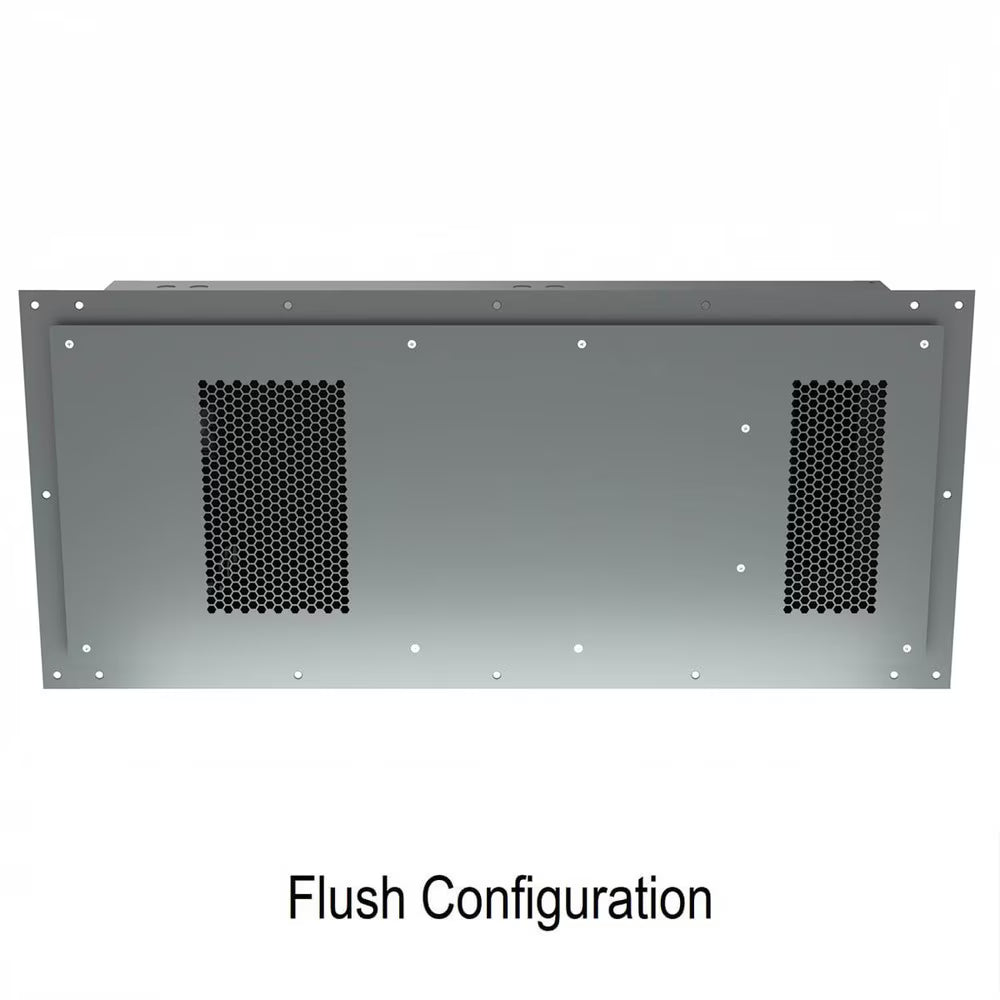

As an authorized CellarPro dealer, Wine Cellar HQ offers the CellarPro Air Handler Split 4000 Ceiling Mount (AH4000Scmr-ECX), a ducted split cooling system built to deliver maximum cooling power and adjustable humidity control with a ceiling-mounted evaporator that can be recessed in the ceiling and hidden from view. The evaporator is rated at 1/2 Ton Nominal and produces 3,694 sensible BTUH at 55°F, making this unit suitable for commercial and residential wine cellars up to 1,000 cubic feet.

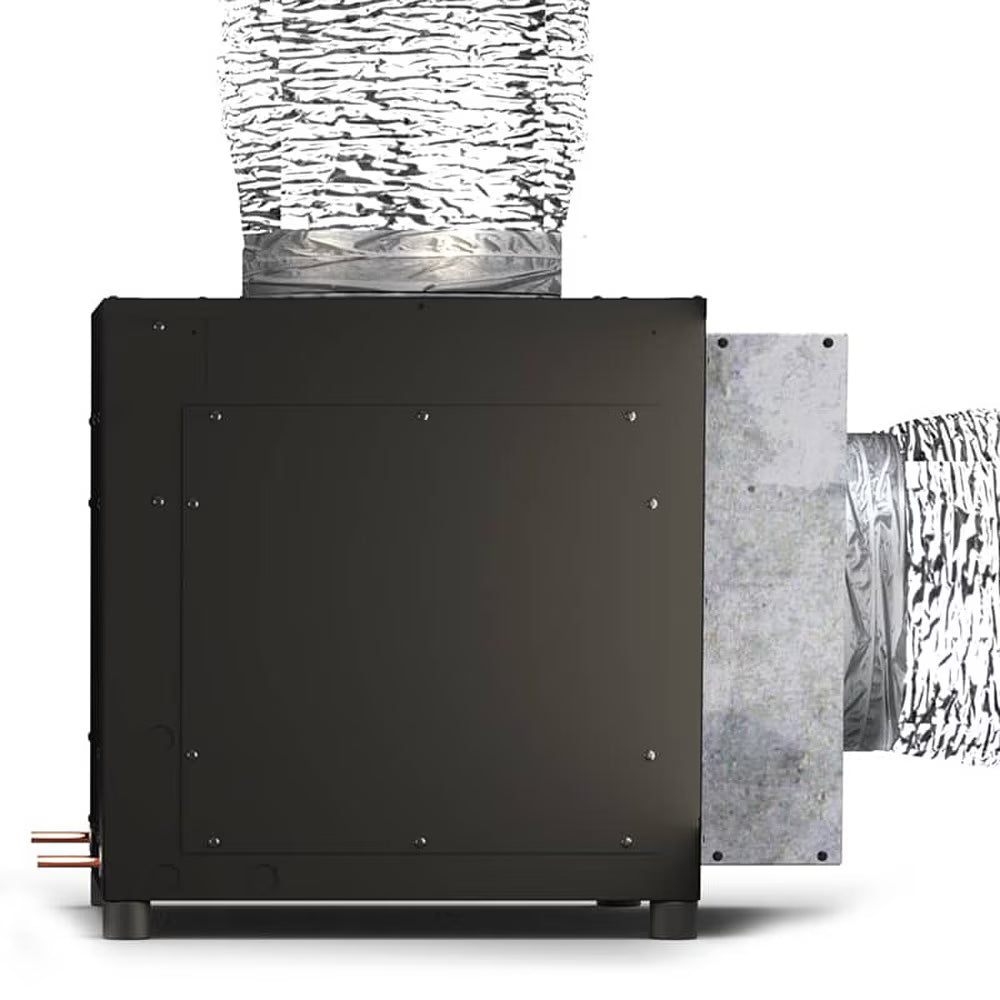

The condensing unit sits outside the cellar and can be ducted up to 100 equivalent feet with 8-inch ducting, to indoor or outdoor spaces ranging from -20°F to 110°F. That keeps its heat and noise away from your living spaces, while energy-efficient EC fans on the cold side keep operating costs down.
| Specification | Detail |
| Model | AH4000Scmr-ECX |
| System type | Ducted split system with recessed ceiling mount evaporator (complete system, one SKU) |
| Nominal capacity | 1/2 Ton |
| Cellar capacity | Up to 1,000 cubic feet* |
| Cooling capacity (Sensible BTUH @ 55°F) | 3,059 low / 3,538 medium / 3,694 high fan speed |

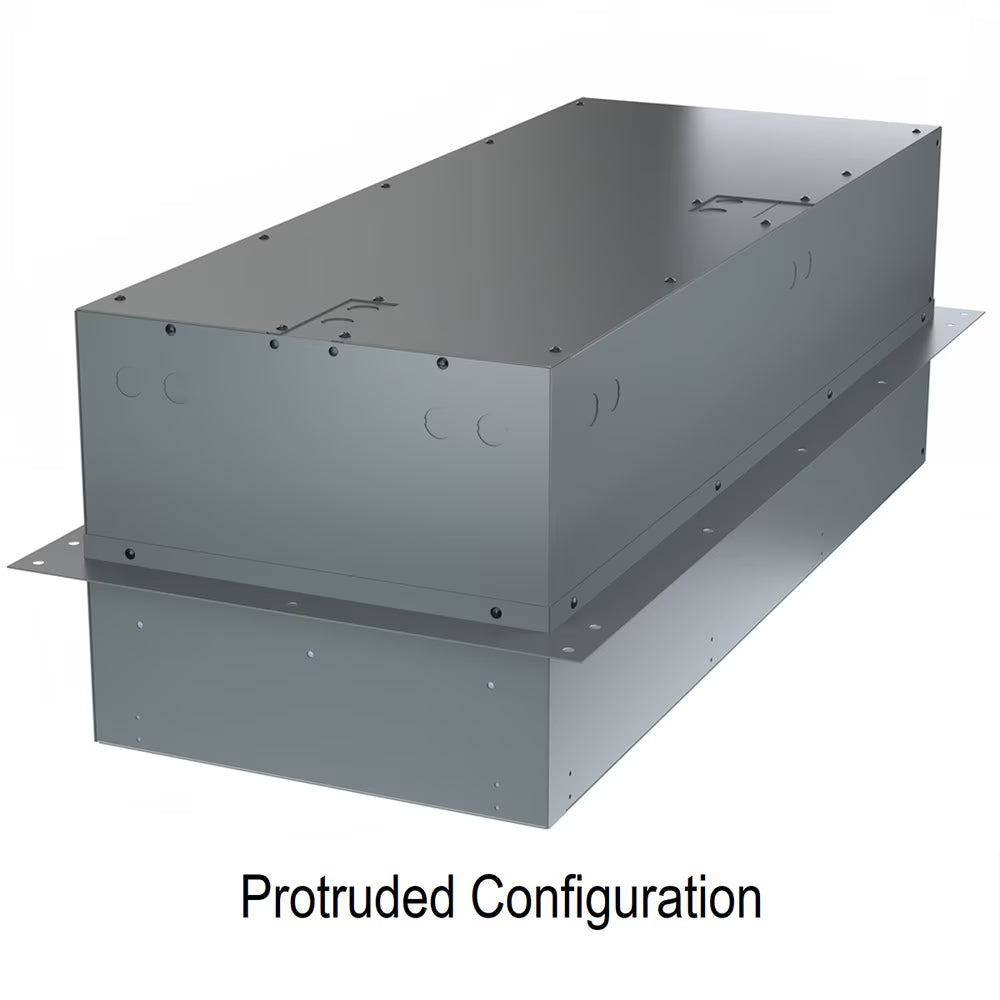

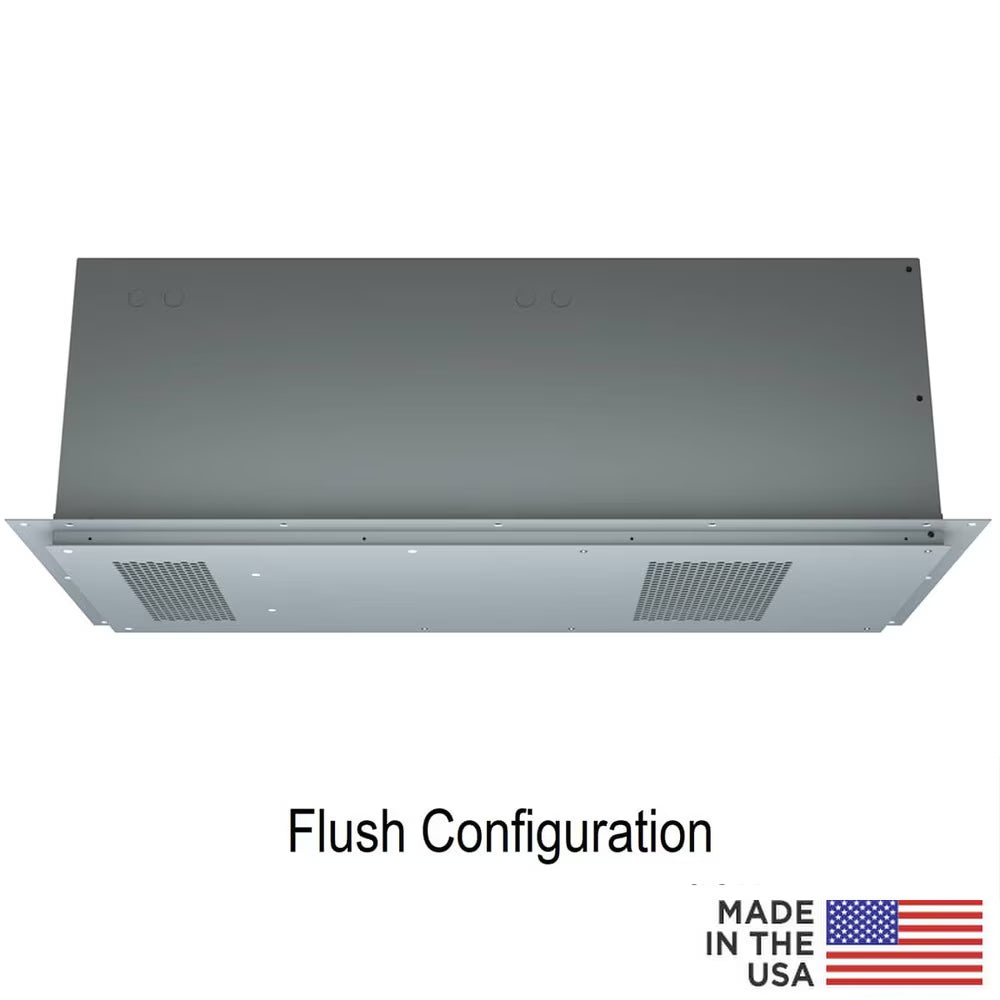

| Evaporator dimensions | 35.75"W x 14.25"D x 12.875"H, 60 lbs |

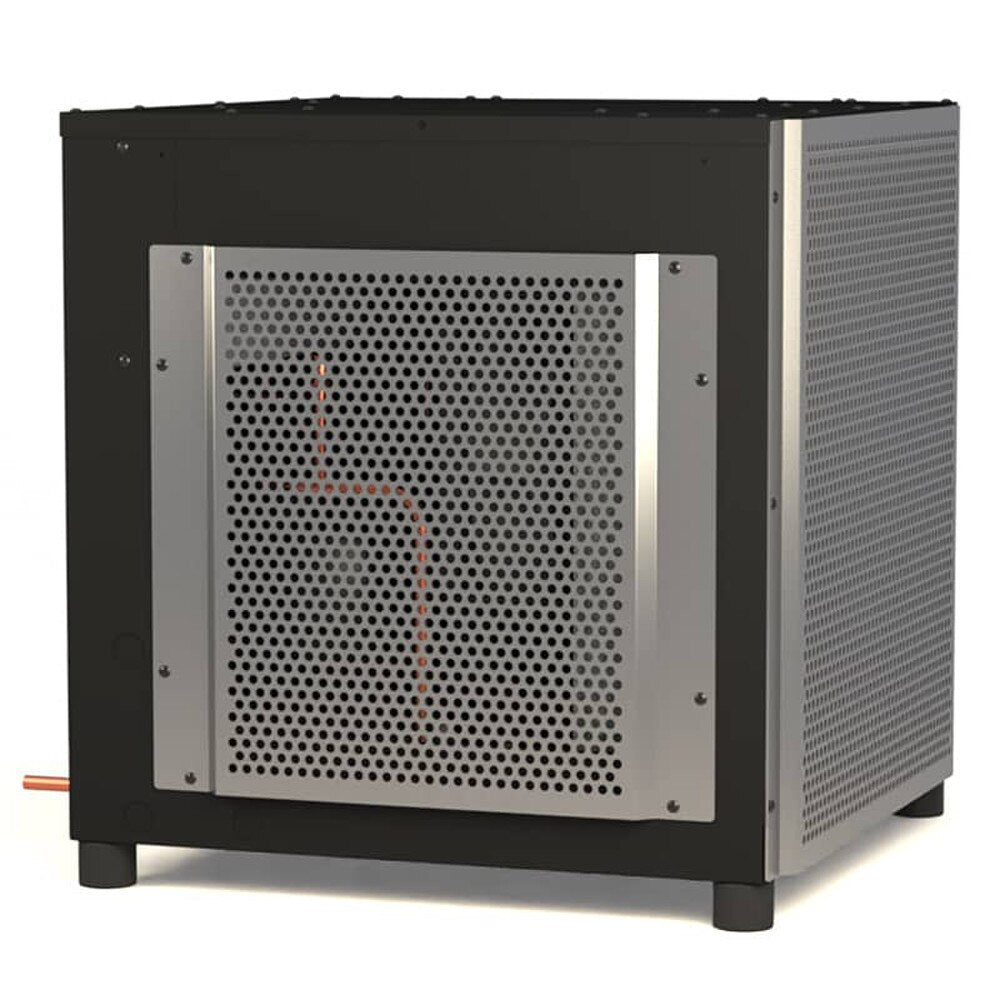

| Condensing unit dimensions | 18.5"W x 18.5"D x 19.25"H, 111 lbs |
| Ducting | Condensing unit can be ducted up to 100 equivalent feet (50 feet per duct) with 8-inch ducting, up to 30 vertical feet |

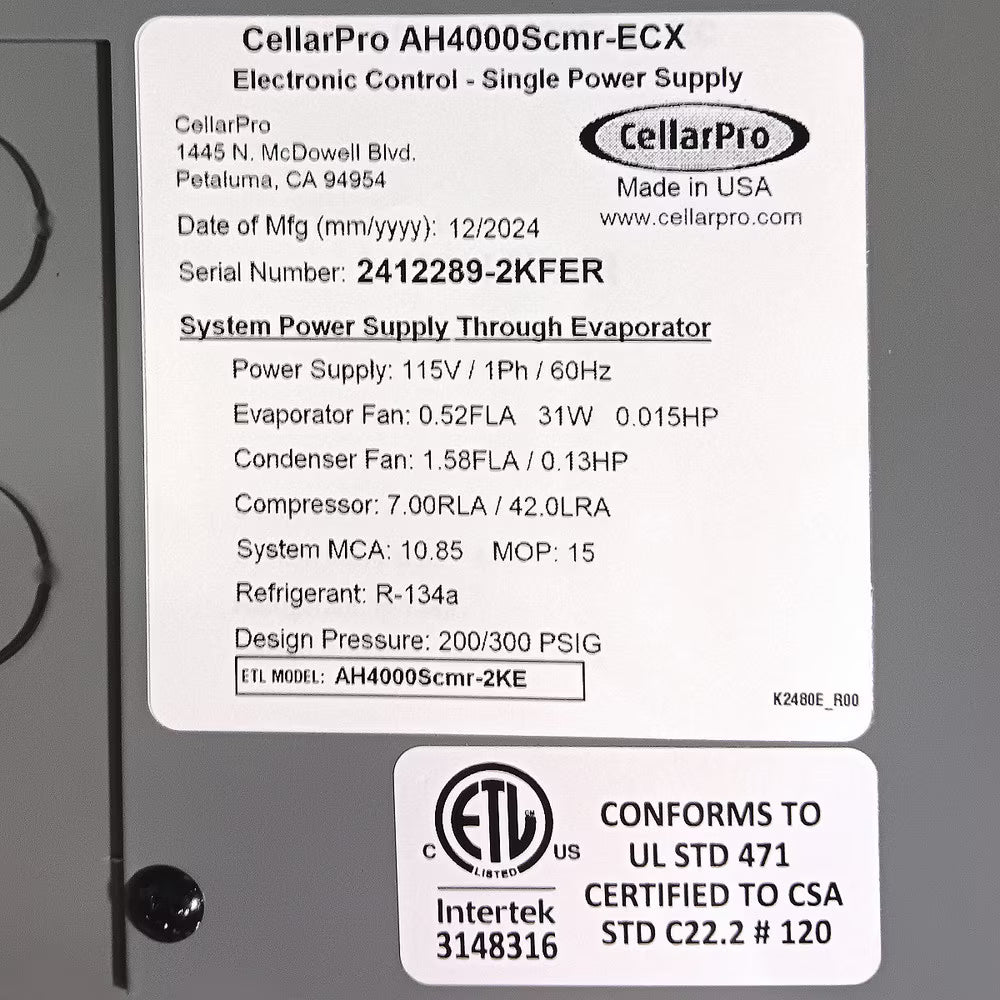

| Electrical | Common dedicated 15-amp circuit; 42.0 amps startup / 9.1 amps unit rating (high fan speed); 733 watts (medium fan speed) |
| Noise level, evaporator (low/med/high) | 51 / 55 / 63 dBA |
| Noise level, condensing unit (ducted / non-ducted) | 43 / 56 dBA low, 50 / 63 dBA medium, 55 / 68 dBA high |
| Temperature set point range | 47°F to 62°F (when properly sized) |
| Included | Remote LED display with 20 ft of wiring, integrated condensate pump, Sight Glass and Liquid Line Filter/Drier, Compressor Heater |
| Warranty | 2 years (entire system) / 5 years (compressor) |
| Certification | ETL Tested and Certified to UL Standards |
This unit can be configured with a networkable Ecobee thermostat upgrade, a bottle probe, and a line set for installations that need additional length. Ask your Wine Cellar HQ representative for current options and pricing.
Backed by CellarPro's 2-year full system warranty and 5-year compressor warranty. To activate the warranty, a completed Installation Checklist must be returned. An optional extended warranty is also available.
Ships strapped to a pallet via common carrier with curbside delivery. Inside delivery is available for an additional charge. Typical processing time is 5-10 business days.
