CellarPro® · Ducted Air Handler Systems

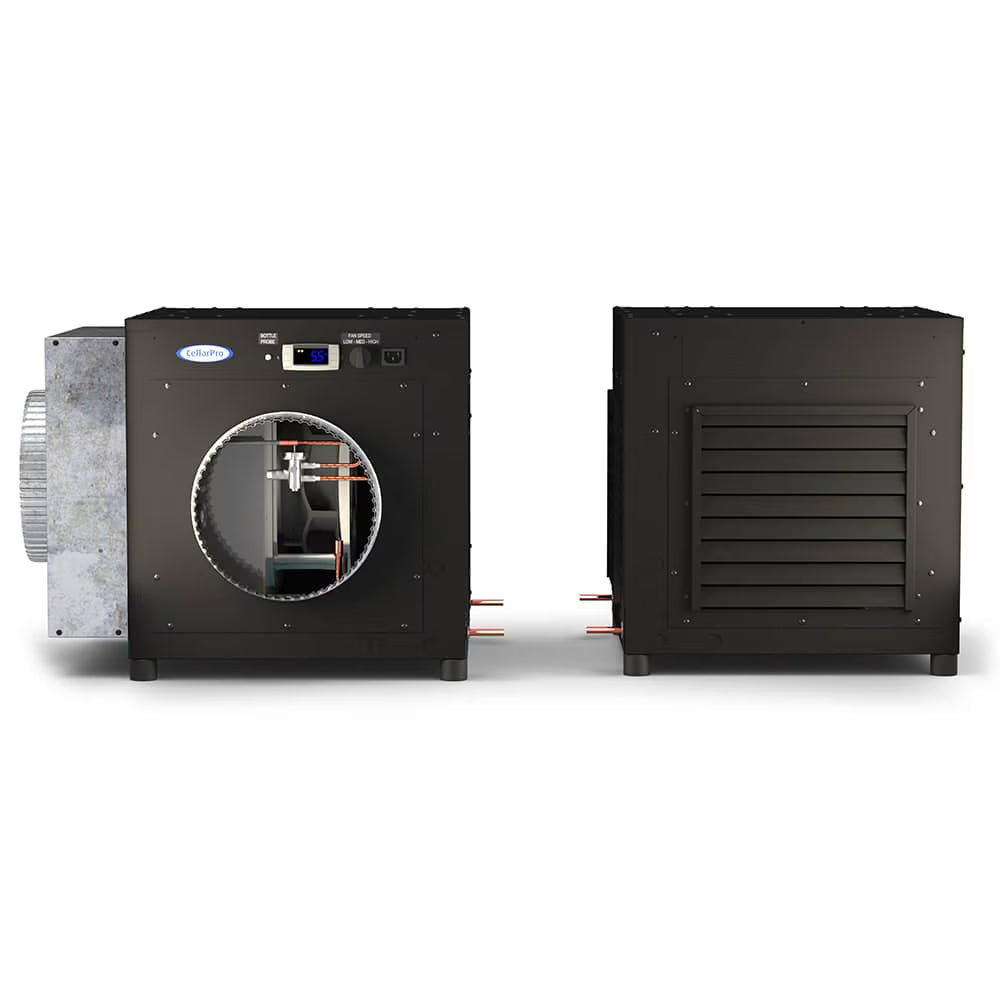

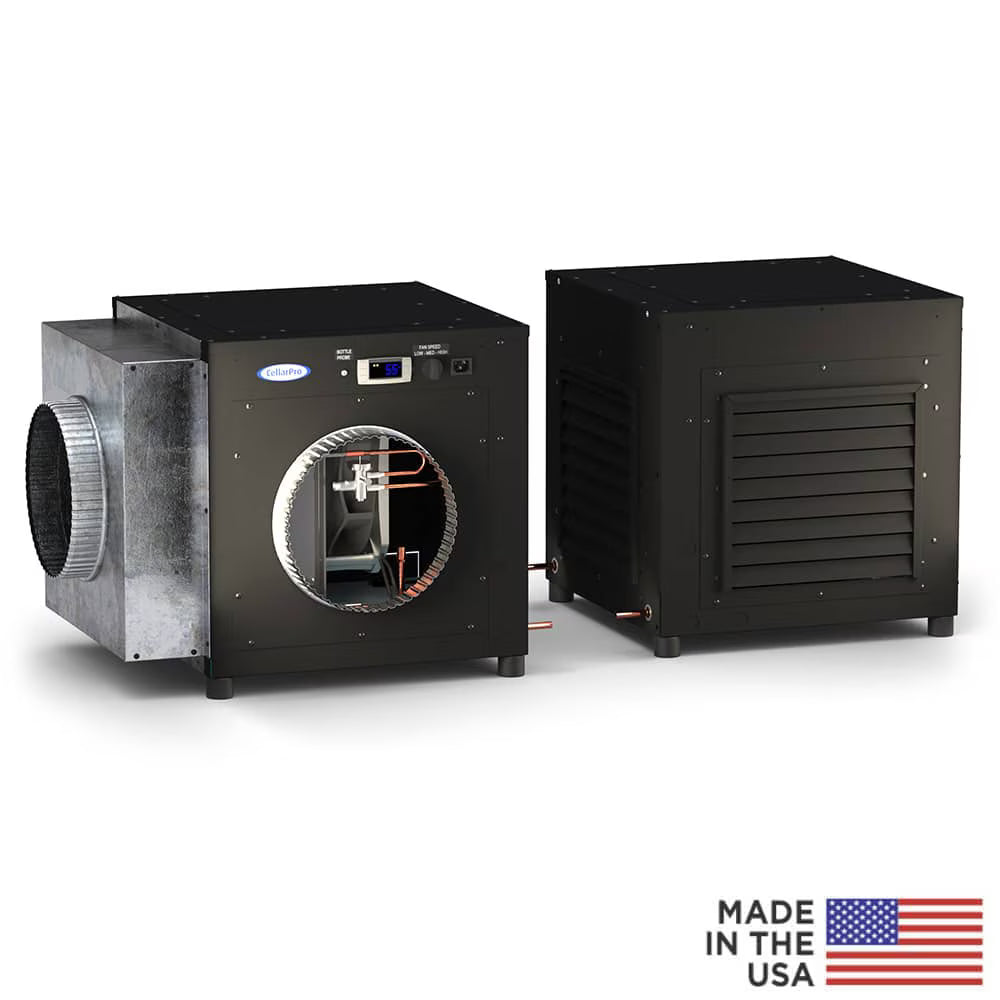

CellarPro Air Handler Split 3500 Outdoor

Split ducted cooling system for wine cellars up to 900 cubic feet — outdoor-installed condensing unit

1/3 Ton Split · Outdoor Unit 8" Ducted ETL Certified
Variable-Speed EC Fans
Up to 100 ft Separation
Exterior-Rated Housing
ETL Certified to UL Standards
1/3 Ton
Nominal Capacity
3,354
BTUH High Speed
100 ft
Max Evap–Condenser Separation
900 ft³
Cellar Capacity
Overview

As an authorized CellarPro dealer, Wine Cellar HQ offers the CellarPro Air Handler Split 3500 Outdoor, a split ducted cooling system engineered to provide maximum cooling power and adjustable humidity control for wine cellars up to 900 cubic feet, with the condensing unit located in an exterior environment. As a split system, the evaporator can be separated from the condensing unit by up to 100 feet, moving the noise and heat of the condensing unit away from interior living areas. The evaporator and condensing unit can each be ducted up to 100 equivalent feet (50 equivalent feet per duct). This unit includes energy-efficient independent variable-speed EC fans with a low setting for quieter operation and a high setting for maximum power.

All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake cannot come from the wine cellar space — it must come from space outside the cellar.

Key Features
Energy-efficient EC fans on both the cold and hot sides, saving $300.77 in annual energy costs vs. AC fans

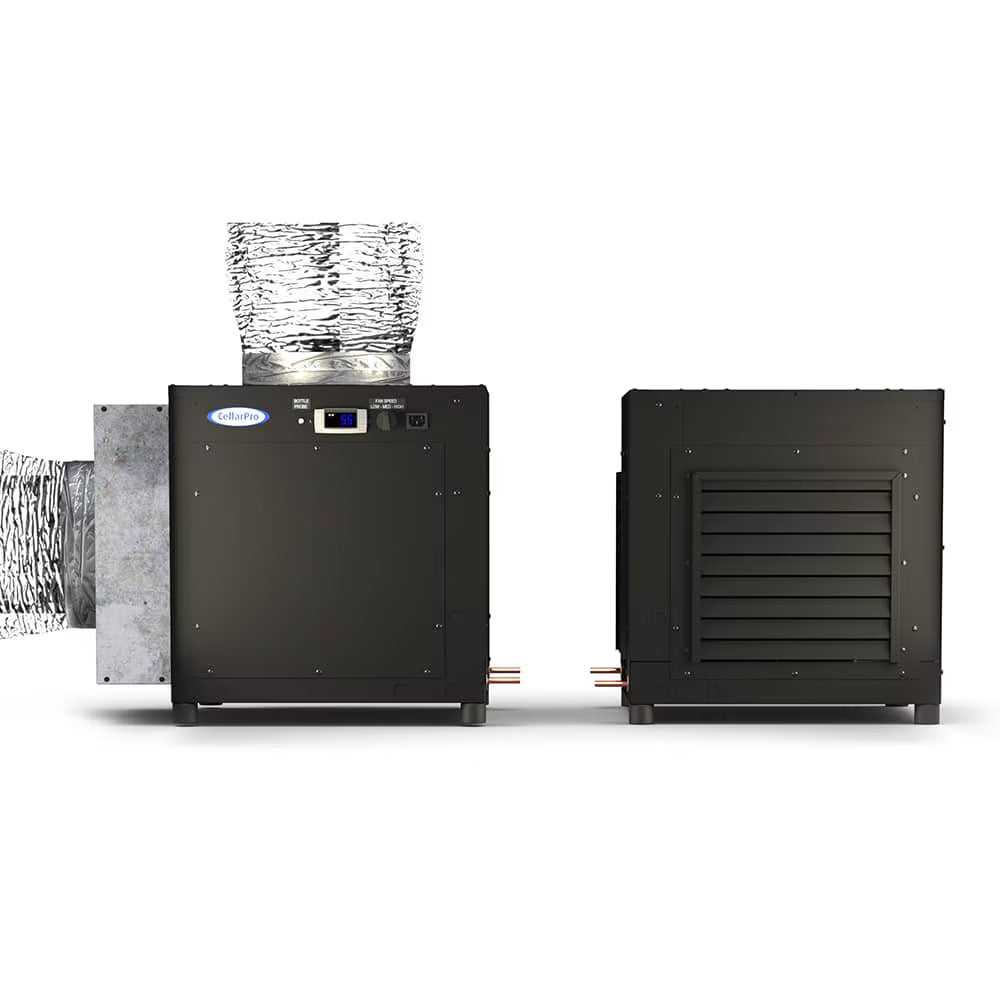

Engineered to be ducted with 8-inch insulated ducting on the cold side
Split system design separates the evaporator from the condensing unit by up to 100 feet
Exterior condensing unit placement isolates the noise and heat of operation away from interior living areas
High-output EC fans provide more airflow and variable speed settings
Optional integrated humidifier provides ultimate control of moisture levels
Optional integrated heater provides heat for cellars exposed to temperatures below 55°F
Extra-large coils generate maximum cooling power inside the cellar
Commercial-grade Electrofin coating protects evaporator coils from leaks and corrosion
Intuitive LED display panel with digital programmable thermostat, energy-saver, quick-chill, and auto-defrost modes
Temperature set point range of 47°F to 62°F when properly sized
Operates with minimal vibrations and less noise than comparable units
Audible and visual alarms with maintenance-needed indicator
Remote probe for cellar (bottle probe), air filter, and duct adapters included
Factory-installed Expansion Valve and Liquid Line Solenoid Valve (optional)
Removable steel case and refrigerant access valve; Sight Glass and Liquid Line Filter/Drier included
Oversized Receiver allows long line sets up to 100 equivalent feet and 30 vertical feet
Auto-reset high-pressure switch protects the system; factory-pressurized with dry nitrogen for leak-free installation
CellarPro's 2-Year/5-Year Warranty protection, with an optional Extended Warranty available
ETL Tested and Certified to UL Standards
Technical Specifications
Specification Detail
System type Complete split system (evaporator + condensing unit included); condensing unit rated for outdoor installation. AH3500Si #36244 is the alternate indoor-condensing configuration.
Nominal capacity 1/3 Ton
Cooling capacity (Sensible BTUH @ 55°F) 2,778 BTUH low / 3,212 BTUH medium / 3,354 BTUH high fan speed
Condensing unit dimensions & weight 18.6"W x 18.6"D x 19.3"H, 111 lbs
Evaporator dimensions & weight 18.6"W x 18.6"D x 19.3"H, 60 lbs (no humidifier)
Ducting 8 inch, insulated on the cold side; evaporator and condensing unit can each be ducted up to 100 equivalent feet (50 equivalent feet per duct), max vertical rise 30 feet
Electrical 110V/60Hz. Two-circuit option: evaporator 2.0A/15A breaker + condensing unit 8.7A/15A breaker. Single-circuit option: one 15A breaker for the entire system, Electronic Control only. Startup 30.0A / running 9.0A (cord-connected), 558W total at medium fan speed
Noise level, condenser (ducted / non-ducted) 43 / 56 dBA low, 50 / 63 dBA medium, 55 / 68 dBA high
Noise level, evaporator (ducted) 38 dBA low / 44 dBA medium / 52 dBA high
Exterior/marine note Not designed for marine exposure within 5 miles of the ocean without an applied protective coating
Installation & Environmental Requirements
The fresh air intake cannot come from the wine cellar space — it must come from space outside the cellar
Must be installed in a properly-constructed, adequately insulated, airtight, sealed cellar with a vapor barrier
Must always be used in the upright position, and should never be operated on its side or upside down
The condensing unit requires 12 inches of unobstructed space in front of the coils
All split systems must be installed and charged on site by a qualified HVAC professional
Exterior installation is not designed for marine exposure within 5 miles of the ocean without an applied protective coating
Environments below 40°F down to 20°F require the included Compressor Heater (P/N 1727)
Environments below 20°F down to -20°F additionally require the Electronic Control wiring configuration plus the Fan Cycling Switch (P/N 6972, sold separately)
Optional Upgrades

This unit can be configured with a remote wired LED display kit, a networkable Ecobee thermostat upgrade, an integrated humidifier for added moisture control, and an integrated heater for cellars exposed to colder ambient temperatures. Ask your Wine Cellar HQ representative for current availability and pricing.

Backed by CellarPro's 2-year full system warranty and 5-year compressor warranty. An optional Extended Warranty is available. ETL Tested and Certified to UL Standards.

Ships strapped to a pallet via common carrier with curbside delivery. Inside delivery is available for an additional charge. Typical processing time is 5-10 business days.
