CellarPro Air Handler 4500 Horizontal #36295
Overview
As an authorized CellarPro dealer, Wine Cellar HQ offers the CellarPro Air Handler 4500 Horizontal, a self-contained ducted cooling system engineered for wine cellars up to 1,250 cubic feet. Its horizontal configuration is built for installations with limited height or vertical clearance, including attic spaces, and it ships fully charged with refrigerant and ready to use out of the box.
Key Features
- Independent, energy-efficient variable-speed EC fans on both the cold and hot sides, with low and high fan speed settings
- Extra-large coils for maximum cooling power inside the cellar
- Commercial-grade Electrofin coating protects the evaporator coils against corrosion
- Extra-large 1/2 inch drain line reduces condensate blockages

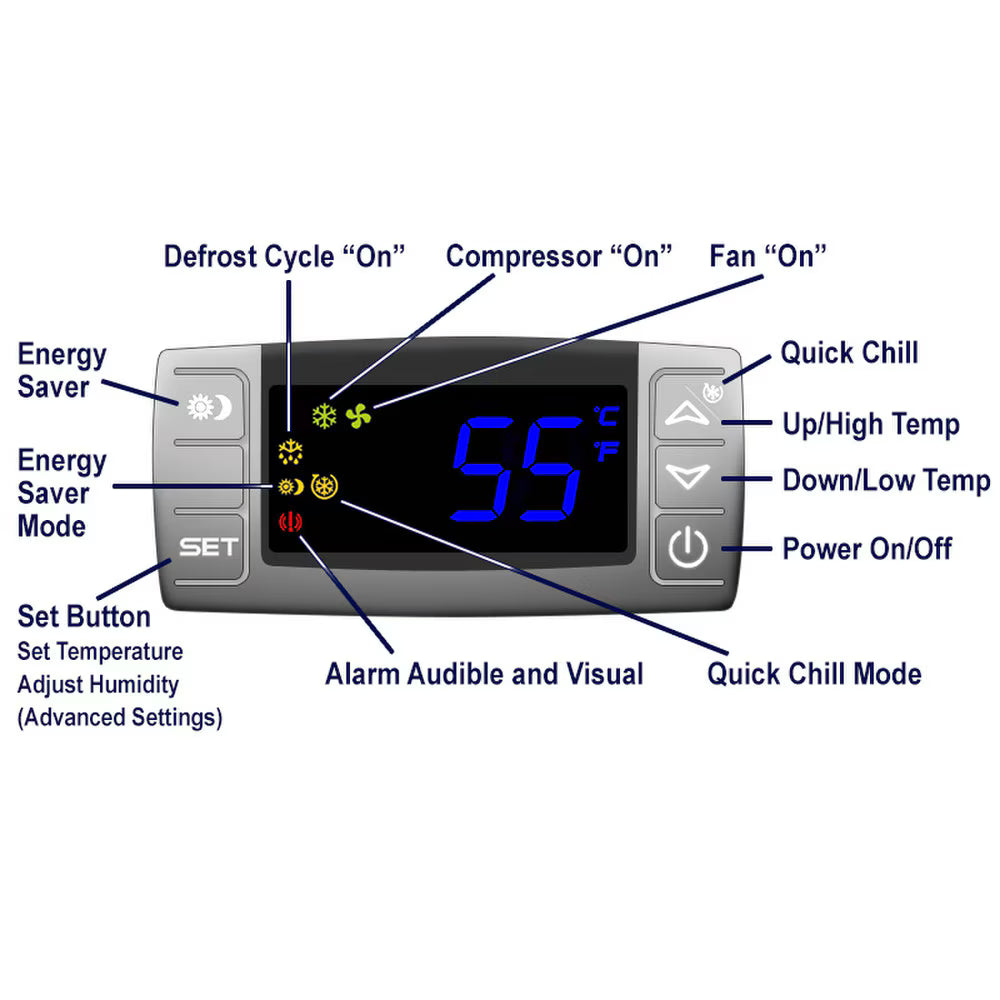

- Intuitive LED display panel with a digital programmable thermostat, temperature set point range of 47°F to 62°F
- Energy-saver mode, quick-chill mode, and auto-defrost cycle
- Audible and visual alarms plus a maintenance-needed indicator
- Includes a remote bottle probe with a 10 foot cord, air filter, and duct adapters
- Compressor heater included for protection in environments down to 20°F
- ETL tested and certified to UL standards
- Sensible heat ratio greater than 90%, delivering maximum cooling power without stripping cellar humidity
Technical Specifications
| Nominal capacity | 1/2 Ton |
| Cooling capacity (Sensible BTUH @ 55°F) | 3,607 BTUH low fan speed / 3,975 BTUH medium fan speed / 4,328 BTUH high fan speed |
| Dimensions | 37 1/8"W x 18 5/8"D x 19 1/4"H |
| Weight | 206 lbs |

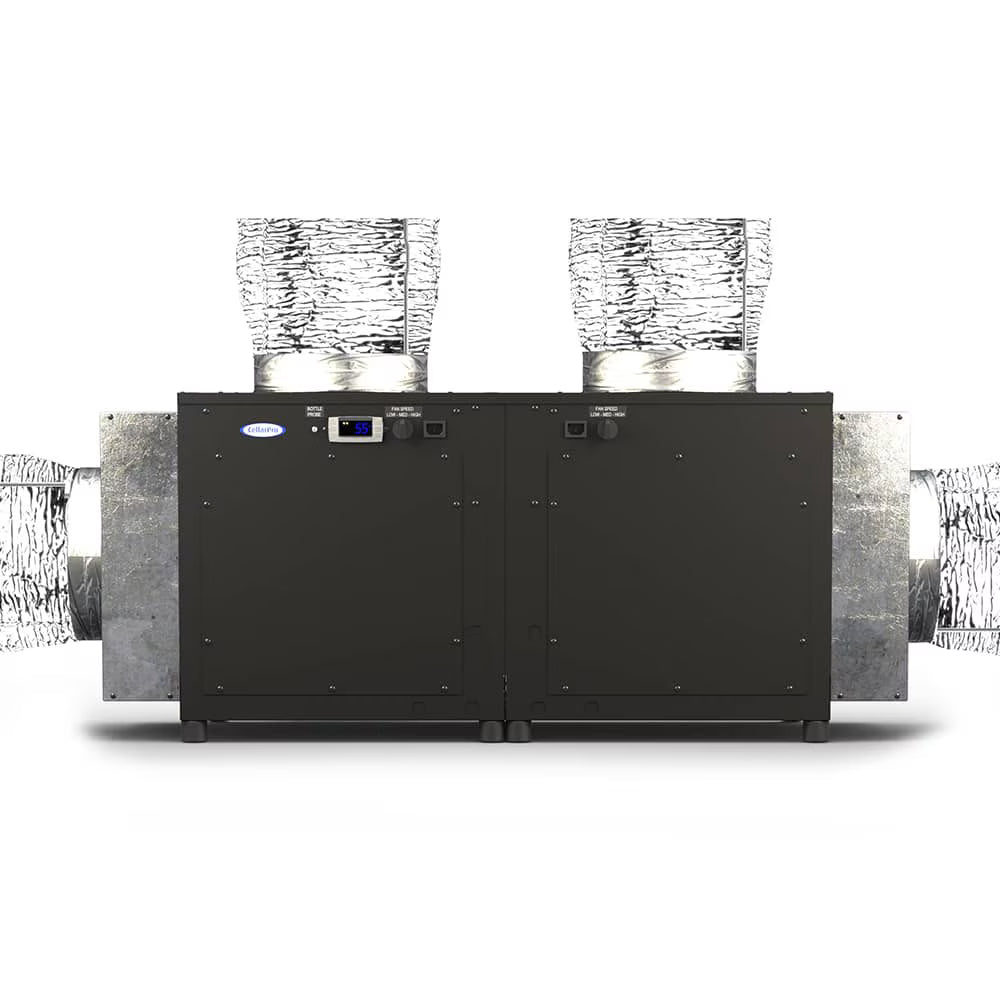

| Ducting | 8 inch; evaporator and condensing unit can each be ducted up to 100 equivalent feet (50 equivalent feet per duct) |

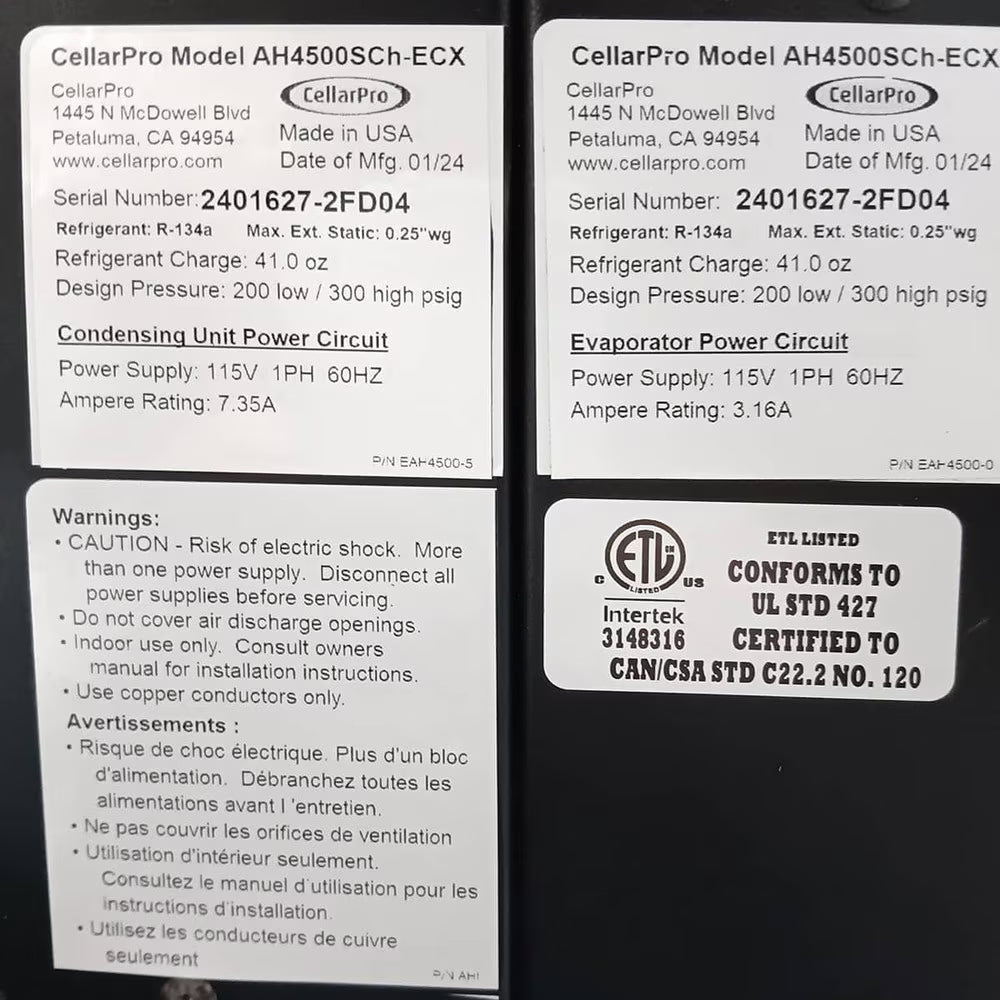

| Electrical | Two 110V/60Hz plug-in power cords — compressor cord 7.4 amps (dedicated 15A circuit), other components 3.2 amps (dedicated 15A recommended); both may share a dedicated 20A circuit |
| Noise level, evaporator (ducted) | 38 dBA low / 44 dBA medium / 52 dB high |
| Noise level, condenser (ducted / non-ducted) | 43 / 56 dBA low, 50 / 63 dBA medium, 55 / 68 dBA high |
Installation & Environmental Requirements
- Designed for internal installations; the horizontal configuration suits locations with limited height or vertical constraints, including attic spaces
- Maintains optimal cellar temperature and humidity in ambient conditions up to 110°F
- Fresh air intake for the condenser cannot come from the wine cellar space, it must come from space outside the cellar
- Intended for properly constructed wine cellars that are adequately insulated, airtight, and sealed with a vapor barrier
- Non-ducted hot-side operation requires 12 inches of unobstructed space in front of the coils and approximately 600-700 CFM of ventilation
Optional Upgrades
This unit can be configured with an integrated heater, integrated humidifier, remote wired LED display kit, a networkable thermostat, bottle probe extension cords, and a fan cycling switch for installations that see temperatures between 20°F and -20°F. Ask your Wine Cellar HQ representative for current options and pricing.
Warranty
Backed by CellarPro's 2-year full system warranty and 5-year compressor warranty, protecting the unit against manufacturing defects. An extended warranty option is also available.
Shipping
Ships strapped to a pallet via common carrier with curbside delivery.
