CellarPro  |  SKU: 36247

CellarPro Air Handler 3500 Vertical #36247

$5,395.00
Shipping calculated at checkout.

Wine Storage Experts Standing By

Dial 888-589-1833 for bespoke pricing, volume discounts, and personalized cellar support.

CellarPro® · Ducted Air Handler Systems

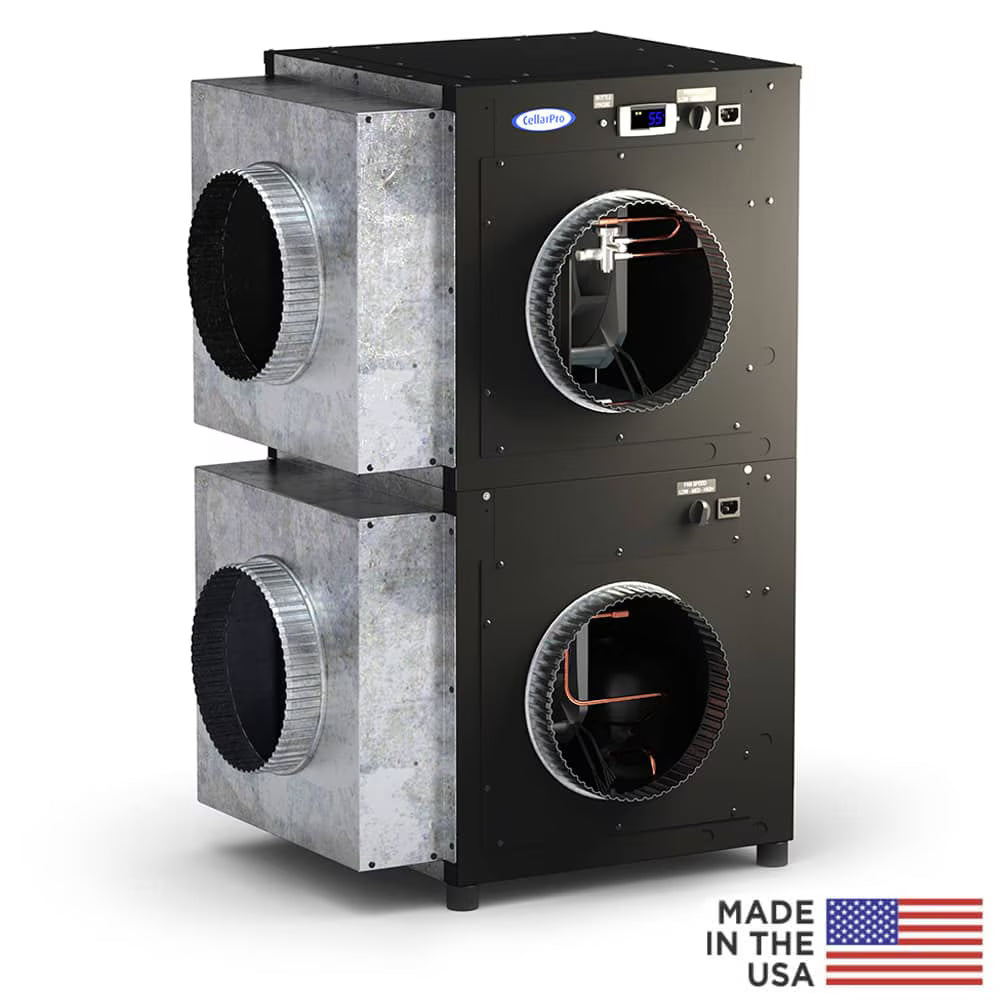

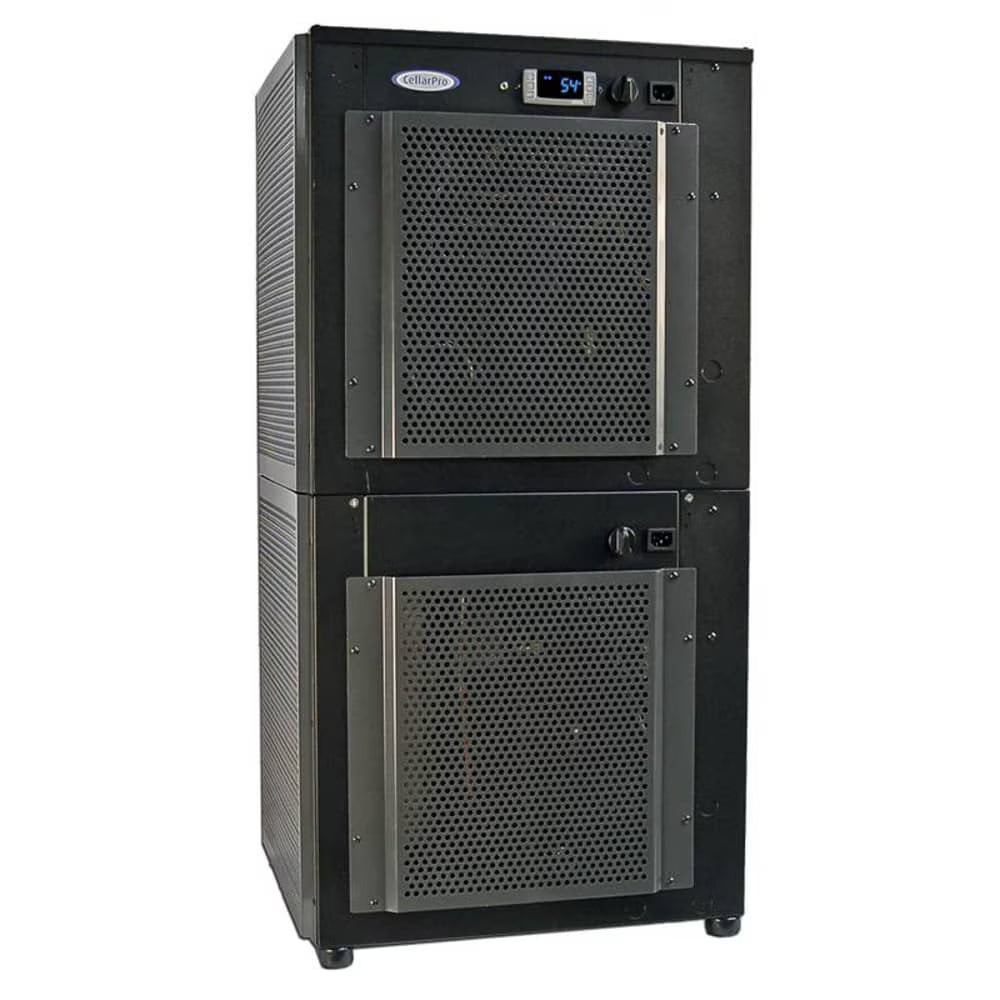

CellarPro Air Handler 3500 Vertical

Self-contained ducted cooling system for wine cellars up to 900 cubic feet

1/3 Ton Vertical Configuration 8" Ducted ETL Certified
Variable-Speed EC Fans
Electrofin-Coated Coils
Programmable LED Thermostat
ETL Certified to UL Standards
1/3 Ton
Nominal Capacity
3,354
BTUH High Speed
100 ft
Max Equiv. Duct Run
900 ft³
Max Cellar Capacity
Overview

As an authorized CellarPro dealer, Wine Cellar HQ offers the CellarPro Air Handler 3500 Vertical, a self-contained ducted cooling system engineered to provide maximum cooling power and adjustable humidity control for wine cellars up to 900 cubic feet. Its vertical configuration is built for installations where floor space is limited, and it ships fully charged with refrigerant and ready to use out of the box.

Key Features
Independent, energy-efficient variable-speed EC fans on both the cold and hot sides, with a low setting for quieter operation and a high setting for maximum cooling power

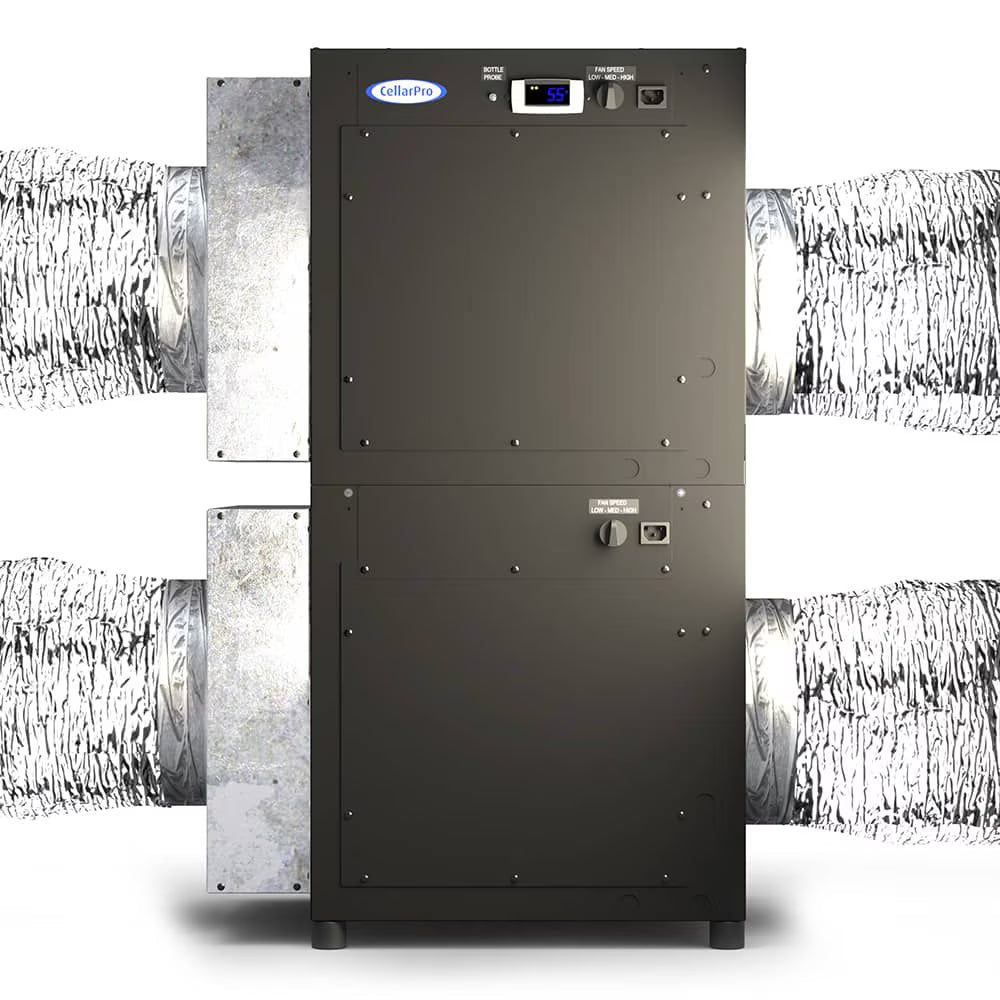

Engineered for 8-inch insulated ducting on the cold side and/or 8-inch ducting on the hot side
Extra-large coils for maximum cooling power inside the cellar
Commercial-grade Electrofin coating protects the evaporator coils against leaks and corrosion
Extra-large 1/2 inch drain line, amply sized to reduce condensate blockages

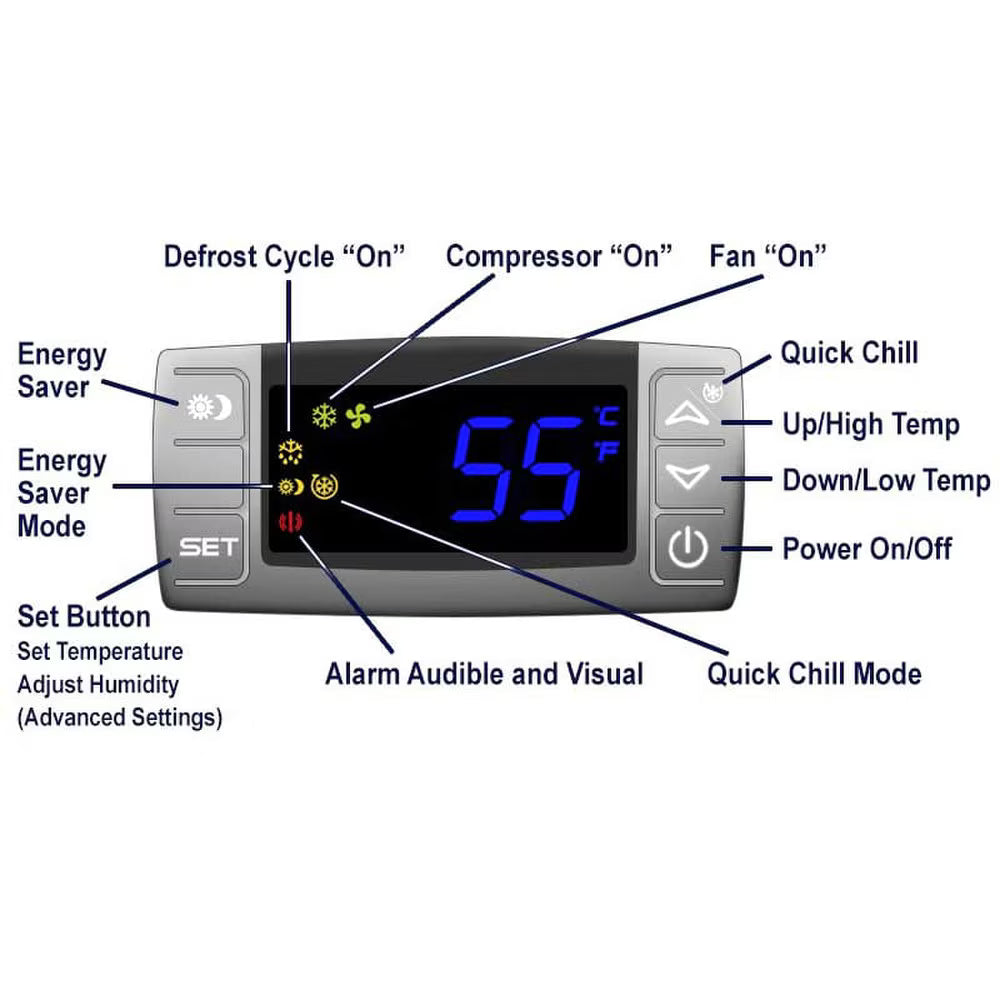

Intuitive LED display panel with a digital programmable thermostat, temperature set point range of 47°F to 62°F when the unit is properly sized
Energy-saver mode, quick-chill mode, and auto-defrost cycle
Audible and visual alarms plus a maintenance-needed indicator
Remote bottle probe, air filter, and duct adapters included as standard equipment
Factory-installed expansion valve for maximum operating precision and range
Removable steel case and refrigerant access valve for straightforward servicing access
Compressor heater included for protection in environments down to 20°F
Operates with minimal vibration and less noise than comparable units from competitors
Fully charged with refrigerant and ready-to-use out of the box
Technical Specifications
Specification Detail
Nominal capacity 1/3 Ton
Cooling capacity (Sensible BTUH @ 55°F) 2,778 BTUH low / 3,212 BTUH medium / 3,354 BTUH high fan speed
Dimensions 18 5/8"W x 18 5/8"D x 37 7/8"H
Weight 212 lbs
Ducting 8 inch; evaporator and condensing unit can each be ducted up to 100 equivalent feet (50 equivalent feet per duct)
Electrical Two 110V/60Hz plug-in power cords — compressor cord 5.8 amps (dedicated 15A circuit), other components 3.2 amps (dedicated 15A recommended); 30.0 amps startup / 9.0 amps running; 558 total watts at medium fan speed
Noise level, evaporator (ducted) 38 dBA low / 44 dBA medium / 52 dB high
Noise level, condenser (ducted / non-ducted) 43 / 56 dBA low, 50 / 63 dBA medium, 55 / 68 dBA high
Installation & Environmental Requirements
Designed for internal installations; the vertical configuration suits locations with limited floor space
Maintains optimal cellar temperature and humidity in ambient conditions up to 110°F
When not ducted, the hot side requires 12 inches of unobstructed space in front of the coils and approximately 600-700 CFM of ventilation when installed in a confined space
Fresh air intake for the condenser cannot come from the wine cellar space, it must come from space outside the cellar
The evaporator should never be exposed to temperatures below 32°F
Intended for properly constructed wine cellars that are adequately insulated, airtight, and sealed with a vapor barrier
Cellar capacity above is calculated assuming R19 insulation throughout the cellar, 55°F inside the cellar, and 85°F outside the cellar; cold-side ducting, glass and/or uninsulated walls, extreme humidity, altitude, and other factors can affect actual sizing — ask your Wine Cellar HQ representative if your cellar falls outside these conditions
Optional Upgrades

This unit can be configured with a remote wired LED display kit, a networkable Ecobee thermostat, an integrated humidifier, and an integrated heater. Ask your Wine Cellar HQ representative for current options and pricing.

Backed by CellarPro's 2-year full system warranty and 5-year compressor warranty, protecting the unit against manufacturing defects. An extended warranty option is also available.

Ships strapped to a pallet via common carrier with curbside delivery. Typical processing time is 5-10 business days.
