CellarPro  |  SKU: 36246

CellarPro Air Handler 3500 Horizontal #36246

$5,395.00
Shipping calculated at checkout.

Wine Storage Experts Standing By

Dial 888-589-1833 for bespoke pricing, volume discounts, and personalized cellar support.

CellarPro® · Ducted Air Handler Systems

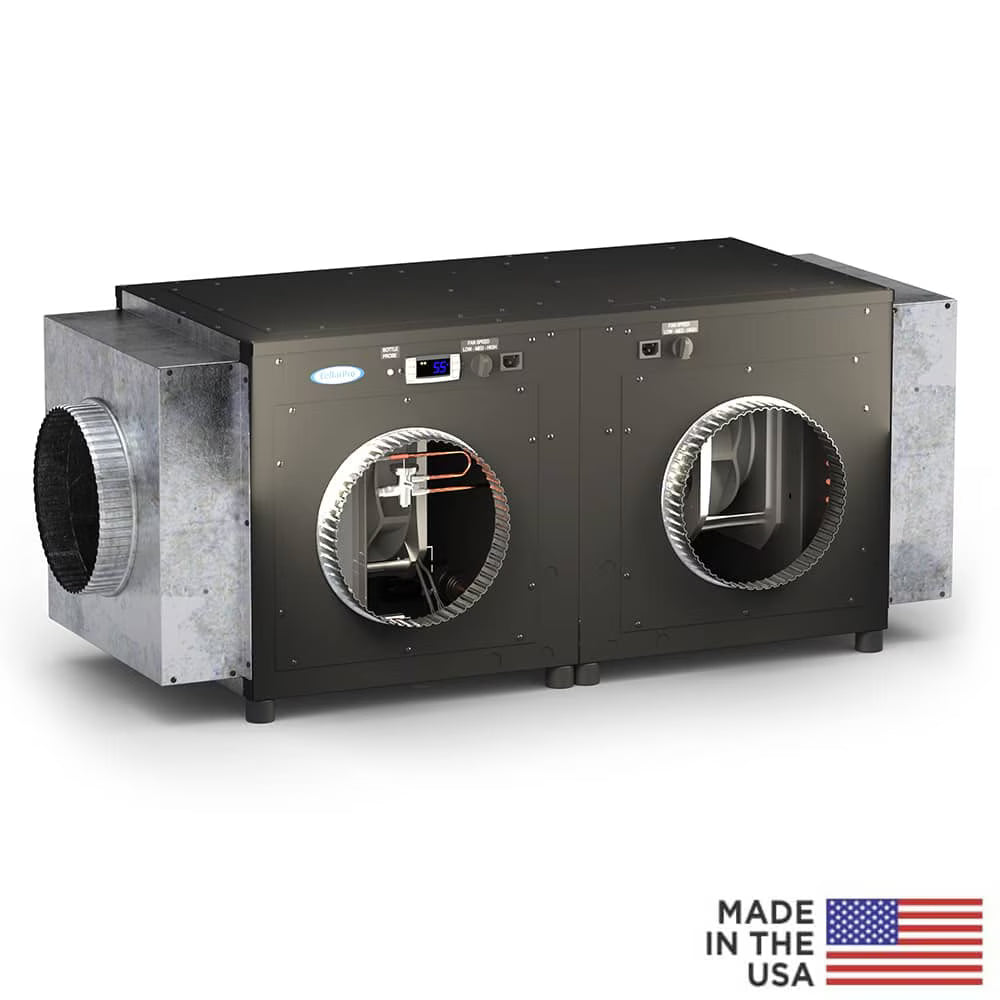

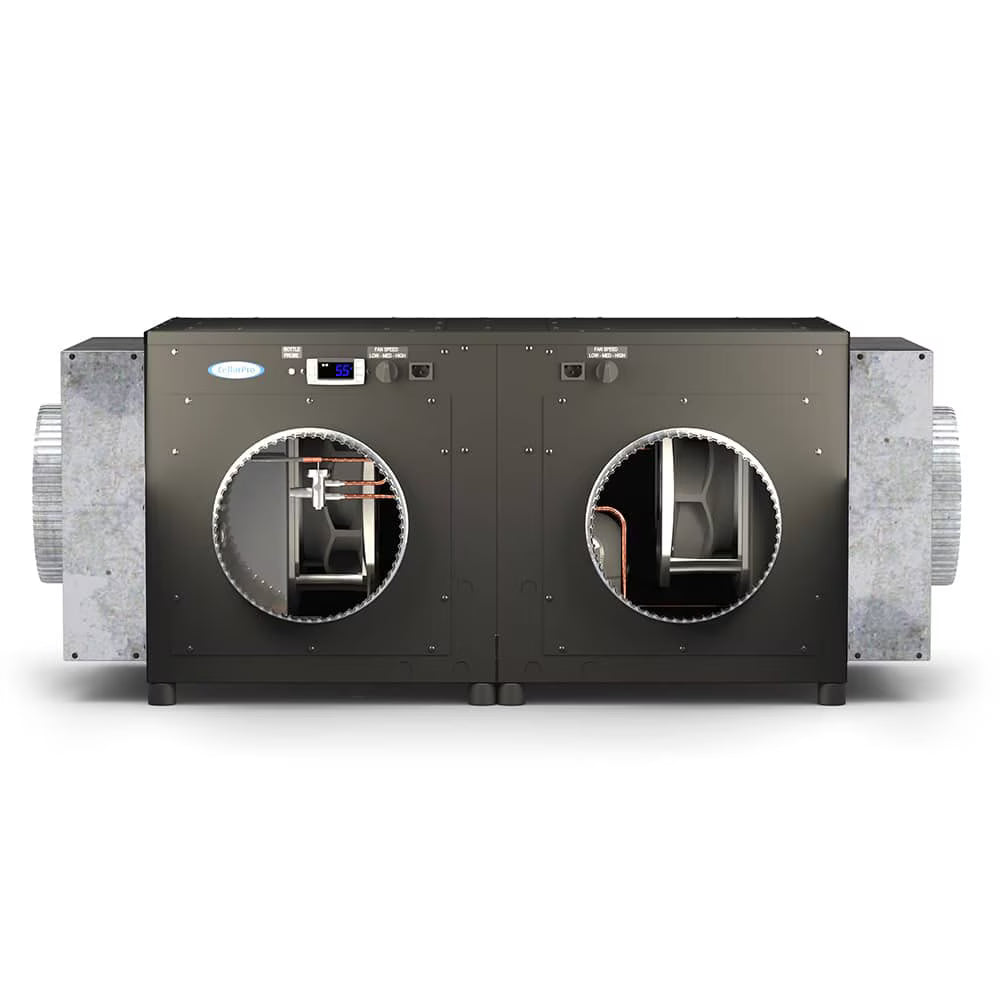

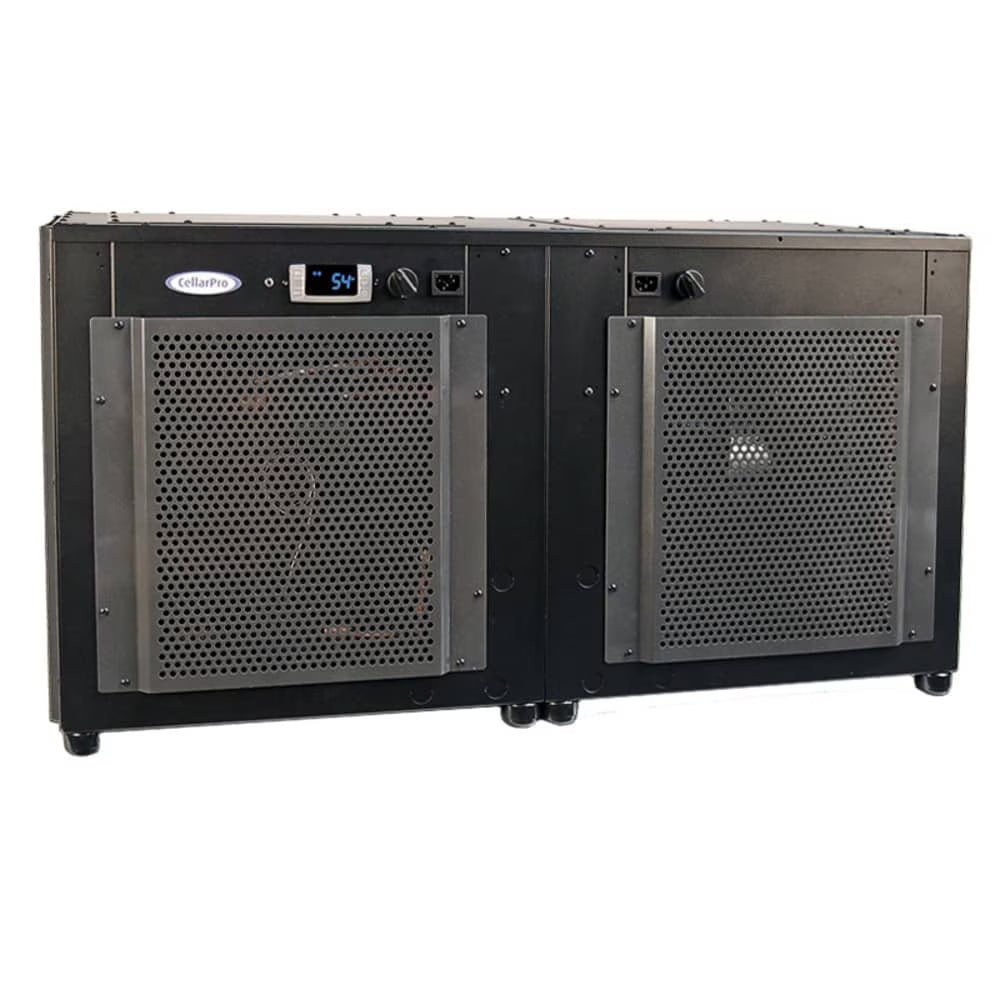

CellarPro Air Handler 3500 Horizontal

Self-contained ducted cooling system for wine cellars up to 900 cubic feet

1/3 Ton Self-Contained 8" Ducted, Both Sides ETL Certified
Variable-Speed EC Fans
Electrofin-Coated Coils
Programmable LED Thermostat
ETL Certified
1/3 Ton
Nominal Capacity
3,354
BTUH High Speed
100 ft
Max Equiv. Duct Run
900 ft³
Cellar Capacity
Overview

As an authorized CellarPro dealer, Wine Cellar HQ offers the CellarPro Air Handler 3500 Horizontal, a self-contained ducted cooling system engineered to provide maximum cooling power and adjustable humidity control for wine cellars up to 900 cubic feet. Both the cold-side and hot-side airflow can be ducted up to 100 equivalent feet (50 equivalent feet per duct), giving installers flexibility to route air to and from the unit's installation point. Designed for internal installations, this unit has a horizontal configuration suited to locations with limited height or vertical clearance, such as above a ceiling in an attic, and includes independent energy-efficient variable-speed EC fans with a low setting for quieter operation and a high setting for maximum power.

Key Features
Energy-efficient EC fans save $300.77 in annual energy costs versus comparable AC fans (assumes 75% runtime and $0.15/kWh)
Both cold-side and hot-side airflow can be ducted up to 100 equivalent feet (50 equivalent feet per duct)
High-output, independent variable-speed EC fans with low and high settings
Factory-installed Expansion Valve ensures maximum operating precision and range
Extra-large coils generate maximum cooling power
Excess condensate managed through an extra-large 1/2 inch drain line
Commercial-grade Electrofin coating protects the evaporator coils from leaks and corrosion

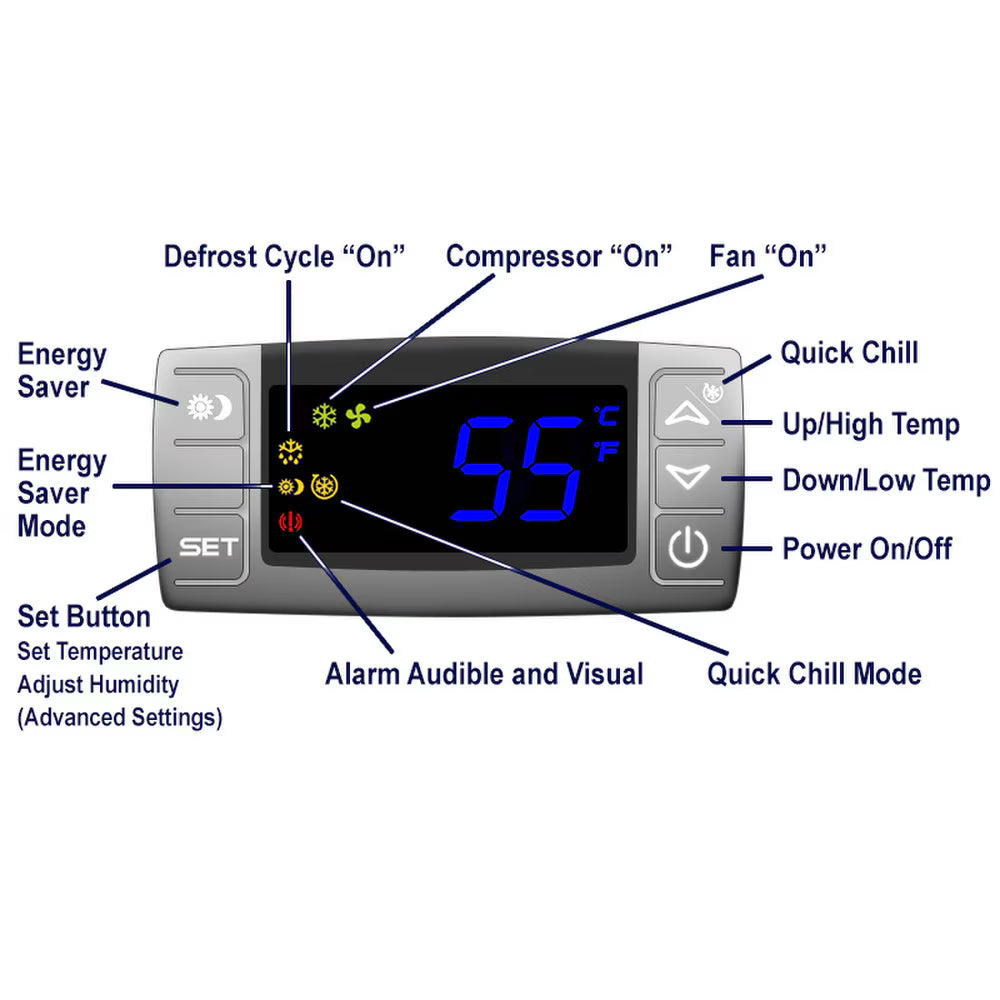

Intuitive LED display panel mounted on the evaporator with a digital programmable thermostat
Energy-saver mode, quick-chill mode, and auto-defrost cycle
Removable steel case and refrigerant access valve provide access to internal components
Temperature set point range of 47°F to 62°F when properly sized
Minimal vibrations and less noise than comparable units
Audible and visual alarms with maintenance-needed indicator
Fully-charged with refrigerant and ready-to-use out of the box
ETL Tested and Certified
Technical Specifications
Specification Detail
System type Self-contained — evaporator and condensing components integrated in one packaged unit
Nominal capacity 1/3 Ton
Cellar capacity Up to 900 cubic feet*
Cooling capacity (Sensible BTUH @ 55°F) 2,778 BTUH low / 3,212 BTUH medium / 3,354 BTUH high fan speed
Overall unit dimensions 37 1/8"W x 18 5/8"D x 19 1/4"H, 206 lbs
Ducting Both cold-side and hot-side airflow can be ducted up to 100 equivalent feet total (50 equivalent feet per duct) with 8-inch ducting
Electrical Two 110V/60Hz plug-in cords — compressor cord 5.8A (dedicated 15A breaker), component cord 3.2A (dedicated 15A breaker recommended); 30.0A startup / 9.0A running; 558W total at medium fan speed
Noise level, evaporator, ducted (low/med/high) 38 / 44 / 52 dbA
Noise level, condensing side (ducted / non-ducted) 43 / 56 dBA low, 50 / 63 dBA medium, 55 / 68 dBA high
Installation & Environmental Requirements

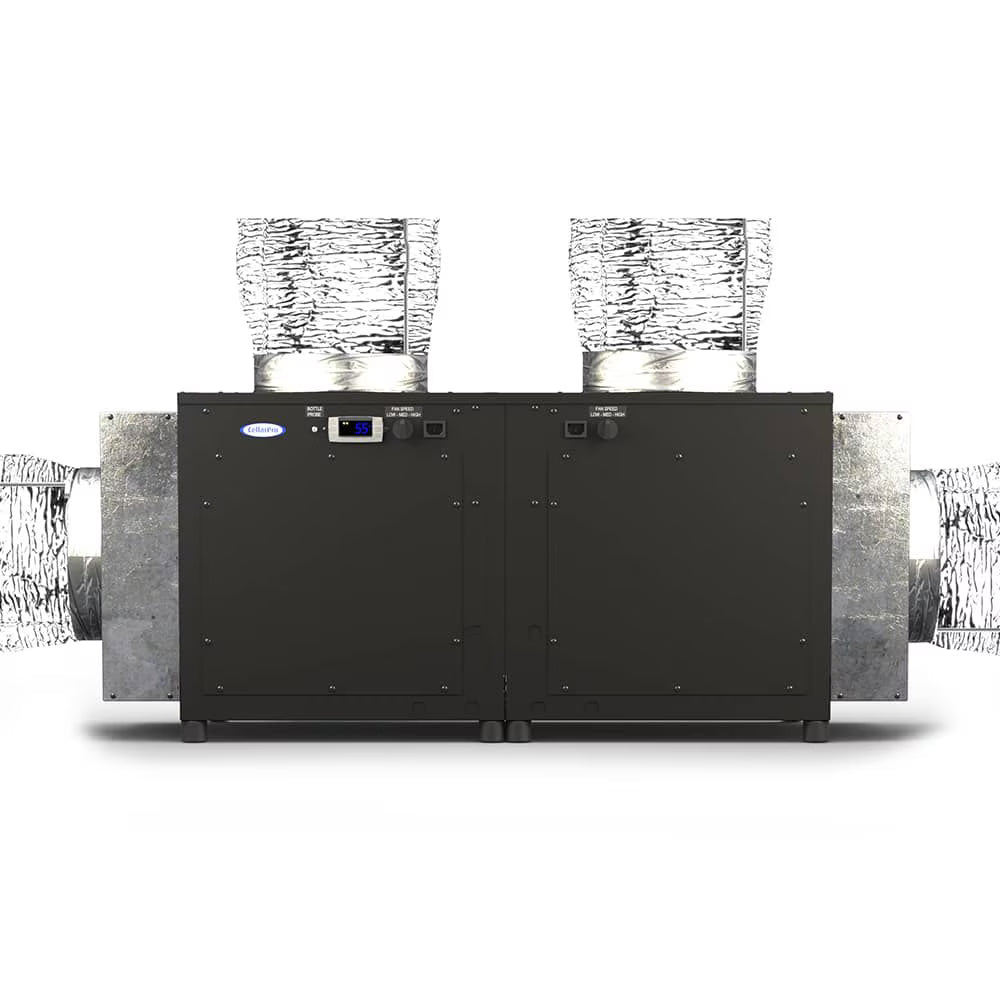

Both cold-side and hot-side airflow can be ducted up to 100 equivalent feet (50 equivalent feet per duct) using 8-inch ducting
Designed for internal installations; the horizontal configuration suits locations with limited height or vertical clearance, such as above a ceiling in an attic
The hot side needs 12 inches of unobstructed space in front of the coils, plus 600-700 CFM of ventilation when installed in a confined space
Fresh air intake cannot come from the wine cellar space, it must come from space outside the cellar
The evaporator should never be exposed to temperatures below 32°F
Cellar capacity above is calculated assuming R19 insulation throughout the cellar, 55°F inside the cellar, and 85°F outside the cellar; ducting, glass and/or uninsulated walls, extreme humidity, altitude, and other factors can affect actual sizing — ask your Wine Cellar HQ representative if your cellar falls outside these conditions
Optional Upgrades

This unit can be configured with a remote wired LED display kit, a networkable Ecobee thermostat upgrade, an integrated humidifier, and an integrated heater. Ask your Wine Cellar HQ representative for current options and pricing.

Backed by CellarPro's 2-year full system warranty and 5-year compressor warranty. The unit is ETL Tested and Certified.

Ships strapped to a pallet via common carrier with curbside delivery. Typical processing time is 5-10 business days.
