CellarPro 8000S Split System Cooling Unit (up to 2000 cubic feet)

• This unit is designed to separate the heat and noise from the condensing unit from interior living spaces and can be configured to operate indoors or outdoors in extreme temperature conditions ranging from -20 to 110F.
• Our Evaporators are built with high-output centrifugal fans which include variable speed settings for your choice of maximum cooling power at the high fan speed, or quieter operation (53.7 decibels) at the low fan speed.
• Adjustable humidity control combines a high-output compressor with flexible fan cycles to maintain a recommended level of moisture inside your cellar.
• Extra-large coils generate maximum cooling power inside the cellar.
• Excess condensate is managed through a 1/2" drain line that exits from a choice of knockouts in the evaporator.
• Commercial-grade Electrofin coating protects the evaporator coils from leaks and corrosion.
• An intuitive LED display panel mounted on the evaporator with a digital programmable thermostat is simple and easy to use. The remote thermostat is available as an upgrade.
• Energy-saver mode, quick-chill mode, and auto-defrost cycle provide convenient solutions to common cellar needs.
• The temperature setpoint range is 47F to 62F when the cooling unit is properly sized.
• The unit operates with minimal vibrations and less noise than comparable units from competitors.
• Audible and visual alarms and maintenance-needed indicators protect the cooling unit and the wine cellar.
• The common dedicated 25-amp circuit is required to power the unit.

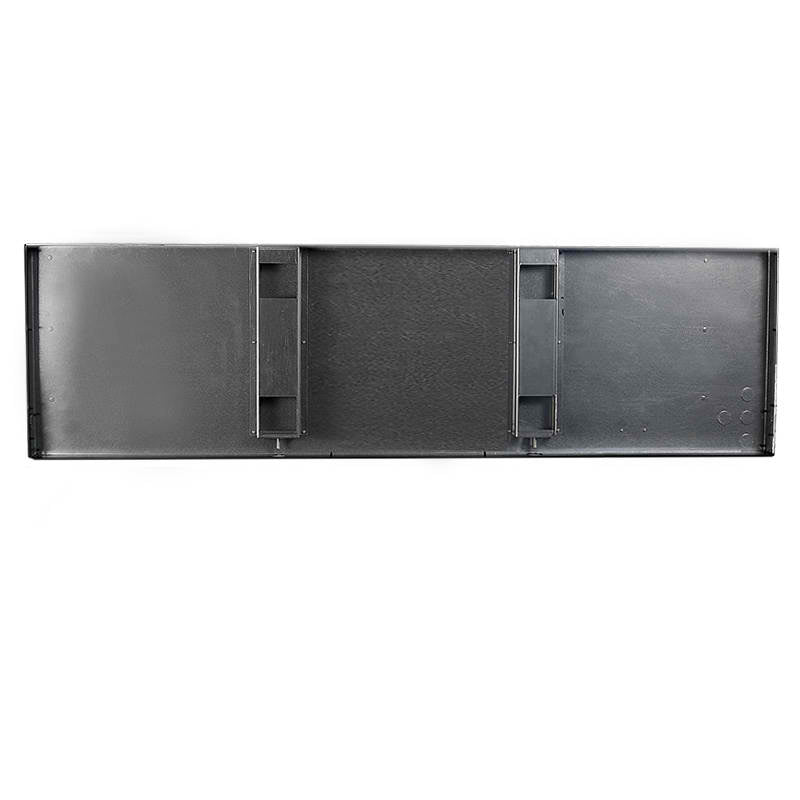

• Adjustable mounting brackets are included as standard equipment, and multiple knockouts and access points ensure easy installation.
• Factory-installed Expansion Valve and Liquid Line Solenoid Valve (optional) ensure maximum operating precision and range.
• The removable steel case and refrigerant access valve provide access to the internal components for servicing and repair.
• Sight Glass and Liquid Line Filter/Drier are included for easy installation and maintenance.
• Oversized Receiver allows for longline sets up to 100 equivalent feet and up to 30 vertical feet.
• Auto-reset high-pressure switch protects the system by interrupting power to the compressor when system pressure is too high.
• Evaporator and Condensing Unit are factory-pressurized and shipped with dry nitrogen to ensure leak-free installation.
• CellarPro's 2-Year/5-Year Warranty, the most thorough in the industry, protects the unit against manufacturing defects.
• An optional Extended Warranty (P/N 7528) is available for additional protection.
• ETL Tested and Certified to rigorous UL Standards for safety.

Configurations

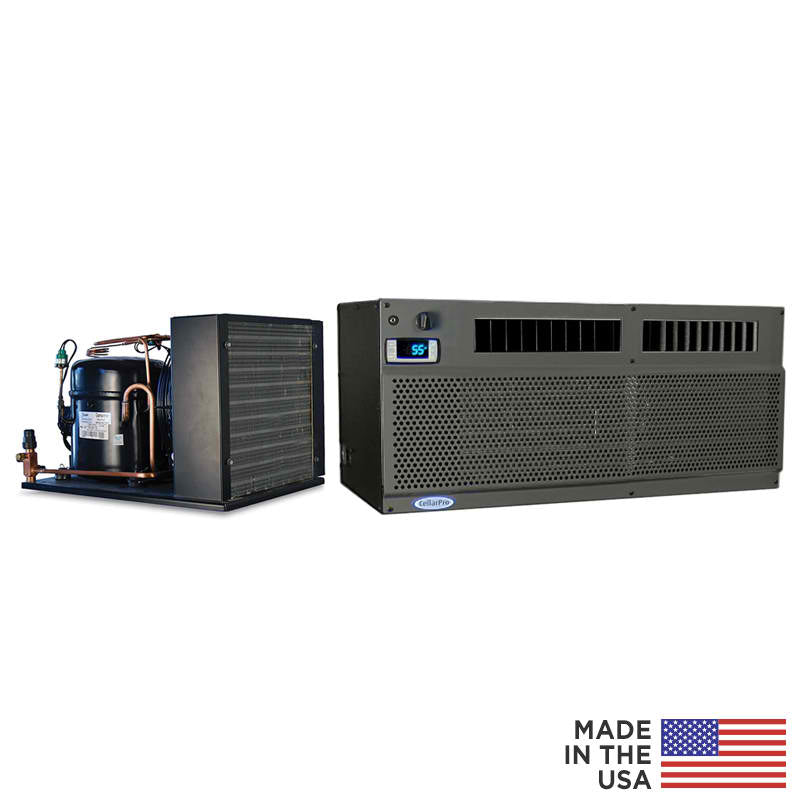

• CellarPro Mini-Split 8000S units are designed to be installed with the evaporator inside the cellar, and the condensing unit in a remote location.
• Our Split refrigeration systems offer a choice of wiring:
  1. The Condensing unit can be electronically controlled by and wired to the Evaporator (single power source on the Evaporator side). This configuration allows the Condensing unit to be used in temperatures down to 20F with the addition of our compressor heater, or down to -20F with the addition of our fan cycling switch AND compressor heater. This configuration requires a 15-amp dedicated circuit breaker for 3000S and 4000S systems and a 25-amp dedicated circuit breaker for 6000S and 8000S systems.
  2. The Condensing unit can be controlled by a Solenoid valve (dual power source, one each to the Evaporator and Condensing units.) This configuration allows the Condensing unit to be used in temperatures down to 20F with the addition of our compressor heater. This configuration requires the evaporator to be wired to a 15-amp circuit breaker, and the condensing unit to be wired to a dedicated 15-amp circuit breaker for 3000S and 4000S systems, a dedicated 20-amp circuit breaker for 6000S systems, and a dedicated 25-amp circuit breaker for 8000S systems
• 8000S evaporators cannot be ducted from a remote location and must be located inside the cellar.
• When the control panel is difficult to access, we offer a remote control display kit that is wired to the cooling unit and allows the digital display to be mounted inside or outside the cellar.
• The condensing unit requires 12 inches of unobstructed space in front of the coils and requires approx. 600-700 CFM of ventilation when installed in a confined space.
• For outdoor installations, we offer an outdoor hood to protect the condensing unit from the weather. All outdoor hoods include a compressor heater.
• The evaporator should never be exposed to temperatures below 32F.
• Access to the left and right sides of the evaporator unit is required for installation.
• All split systems must be installed and charged on-site by a qualified HVAC professional. Line-set equivalent feet must be calculated in accordance with ASHRAE guidelines; refer to our Line Sizing Chart for more information.
• A CellarPro cooling unit must always be used in the upright position, and should never be operated on its side or upside down.
• We ship these units strapped to a pallet via common carrier with curbside delivery. Inside delivery is available for an additional charge.

Configuration Scenarios

Specifications

• Capacity: 6713 BTUH @ 55F
• Size: 46 3/8w x 14 3/8d x 13 1/4h (in)
• Weight: 231 lb
• Power/Rating: 115V AC / 60 Hz

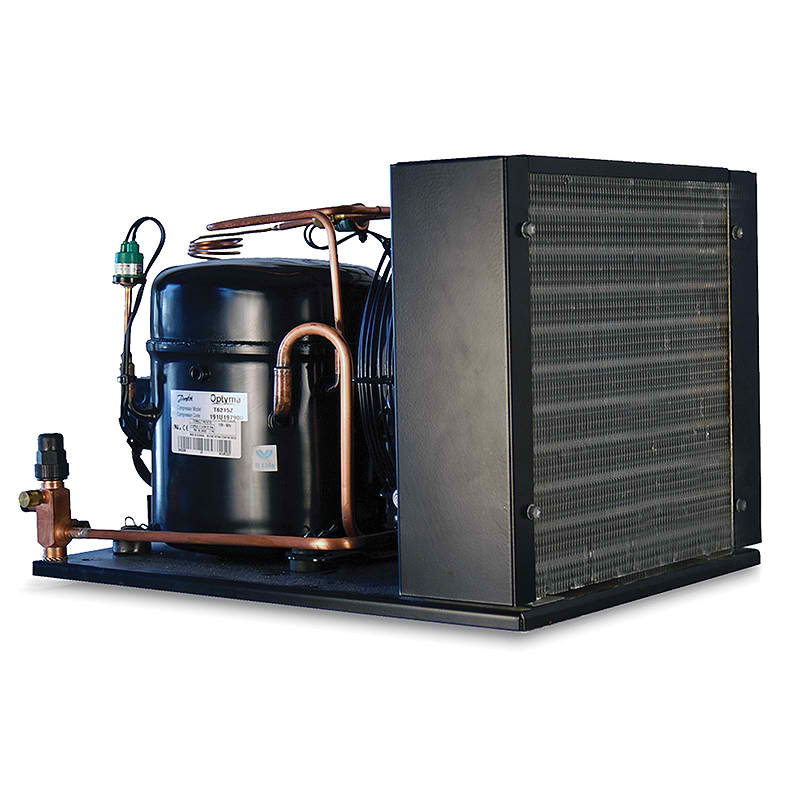

  Condensing Unit Dimensions:
  - 76 lbs
  - 16.8w x 20.8d x 14h

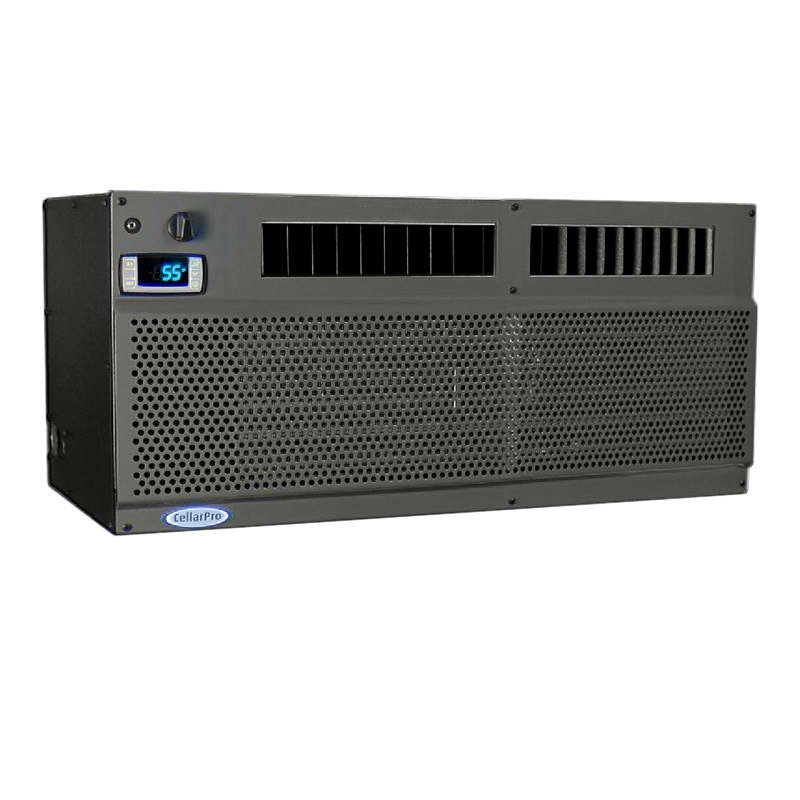

  Evaporator Unit Dimensions:
  - 85 lbs
  - 46.4w x 14.4d x 13.2h
  System Amps:
  - Common dedicated 25-amp circuit is required to power the unit.
  - Startup: 51.0 Amps
  - Unit Amp Rating: 15.4 Amps (high fan speed)
  - Total Watts: 1272 (med fan speed)
  BTUH @ 55F:
  -Low Fan Speed: 5961
  -Medium Fan Speed: 6346
  -High Fan Speed: 6713
  3/4 Ton Nominal
  Evaporator Decibels
  - Low Fan Speed: 54 dbA
  - Med Fan Speed: 58 dbA
  - High Fan Speed: 66 dbA
  Condensing Unit Decibels
  - Indoor: 67
  - Outdoor: 65
• Warranty: 2 Years (Entire System) To activate your warranty, you must complete and return our Split Installation Checklist.
  Optional Extended Warranty sold separately.
• SKU: 8000S
• UPC: 077757017650

Options and Upgrades

Cold Temperature

• Compressor Heater #1727: protects the unit when installed in environments that drop down to 20F.
• Fan Cycling Switch #6972: supports the unit in temperatures below 20F and as low as -20F when combined with our compressor heater.

Hoods

• Outdoor Hood #2010: allows you to install the condensing unit outdoors; all outdoor hoods include a Compressor Heater #1727.

Filters & Grills

• Use our filter & grill guide to find the cooling unit filter or duct filter and/or duct grill that is appropriate for your cooling unit.

Remote Thermostats, Displays & Probes

• Networkable Thermostats #27346 and #27310: Connect your cooling unit to a networkable, wi-fi-enabled thermostat (sold separately). Some limitations apply - read the networkable thermostat description for more information. Includes 10 feet of wiring.
• Remote Display #1603: lets you place the digital panel wherever you want, whether inside or outside the cellar. Includes 10 feet of wiring.
• Bottle Probe #1434: this remote thermostat with a 10-foot cord overrides the thermostat on the face of the evaporator, and allows it to monitor air or liquid temperatures at various locations inside the cellar.
• Extension cords available in 25-foot (#1780) and 50-foot (#1781) lengths.
