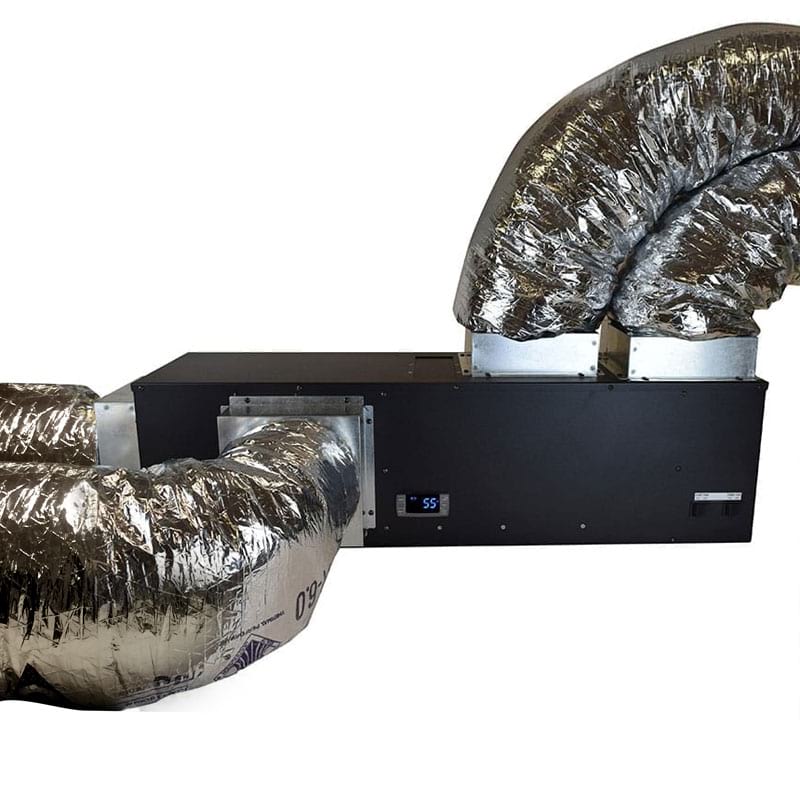

Allows CellarPro 1800H Houdini cooling units to be ducted up to 50 equivalent feet (25 feet per duct) per side (hot or cold or both) using 6-inch ducting with no reductions from start to finish .

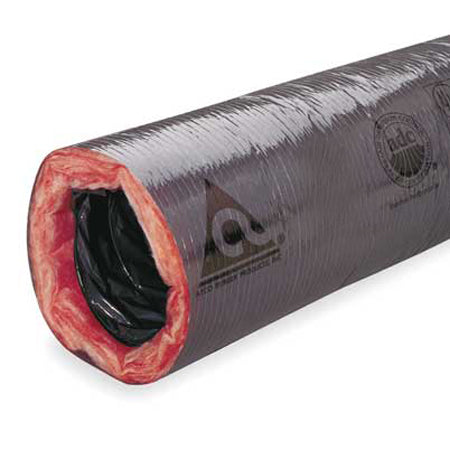

- 50 feet of 6-inch insulated ducting (R-6)
- Designed to work with all airflow openings on the 1800 Houdini cooling unit

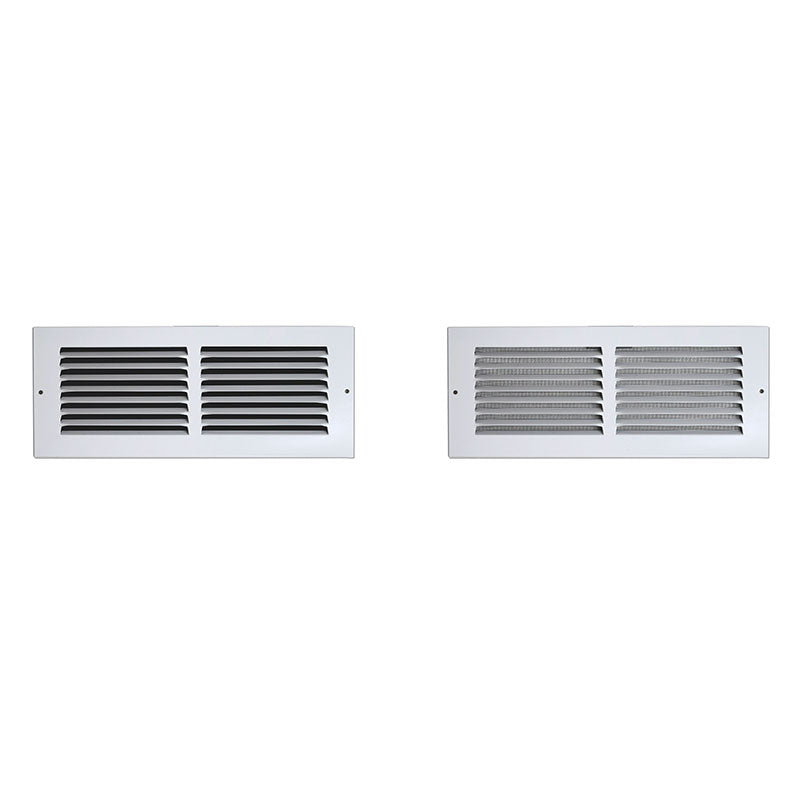

- Hot side ducting includes 2 register grills measuring 6 x 12 ( inches), one with a filter screen for fresh air intake.
Please refer to the following resources before purchasing this kit:
- This kit may only be used in conditioned, low humidity environments. Use our Low RH vs High RH Duct Kit Chart to determine whether this kit is appropriate for your installation.
- Use our ducting heat loss table and our duct correction table to correctly adjust the sizing of your cooling unit, because ducting will add to the thermal load of the cellar.
- Refer to our Bottle Probe Operating Instructions to correctly set the cooling unit depending on how you're using the Bottle Probe
- Capacity:100 Equivalent Feet
- Size:5 3/4w x 5 3/4d x 4 3/4h
- Weight:26 lb
- Power/Rating:115V, 60 Hz, 0.6 amps (Inline Fan)
- Warranty:1 Year

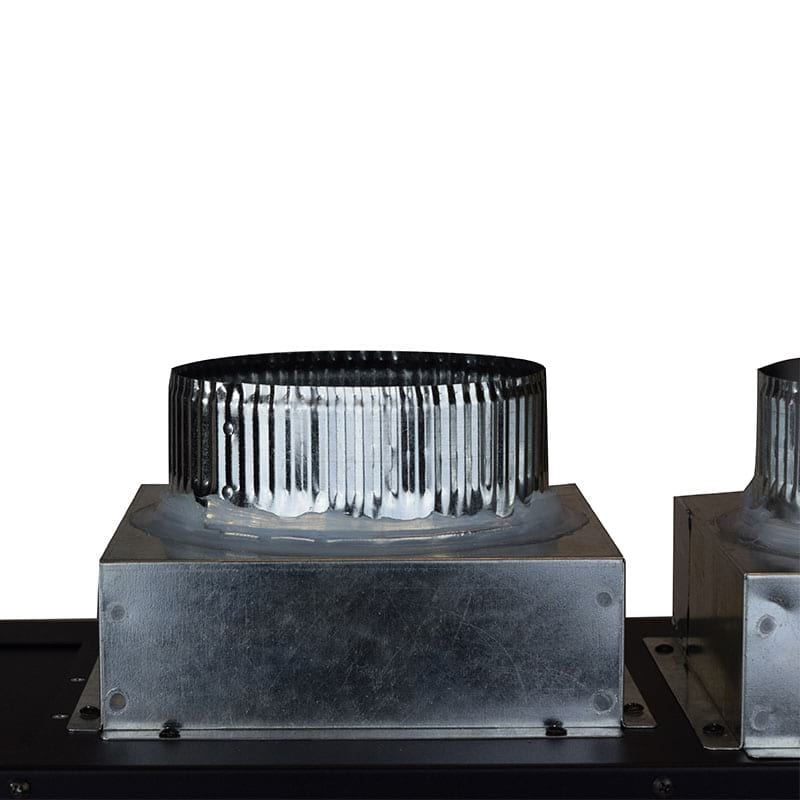

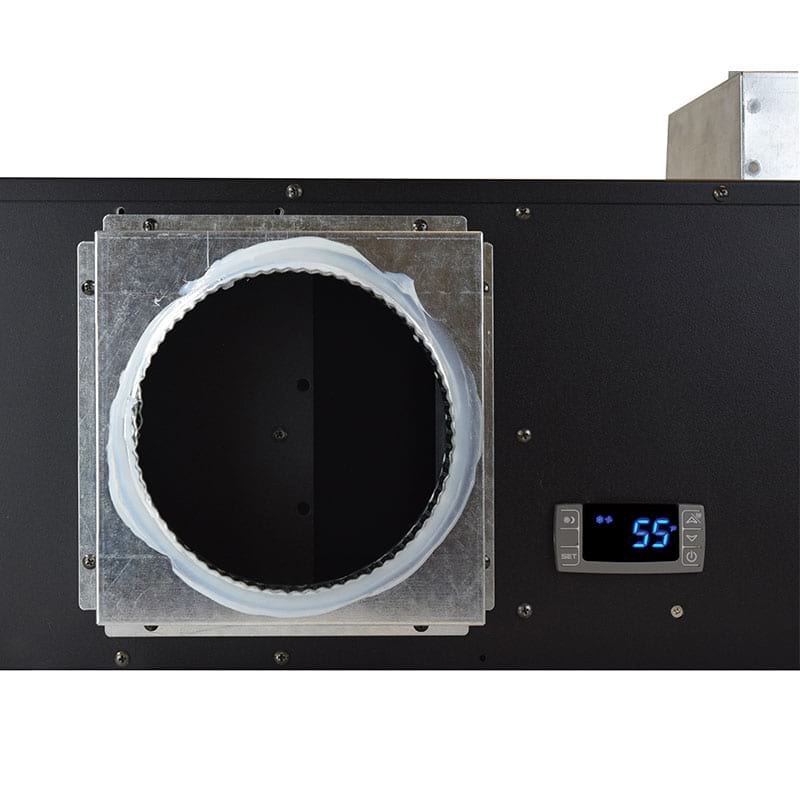

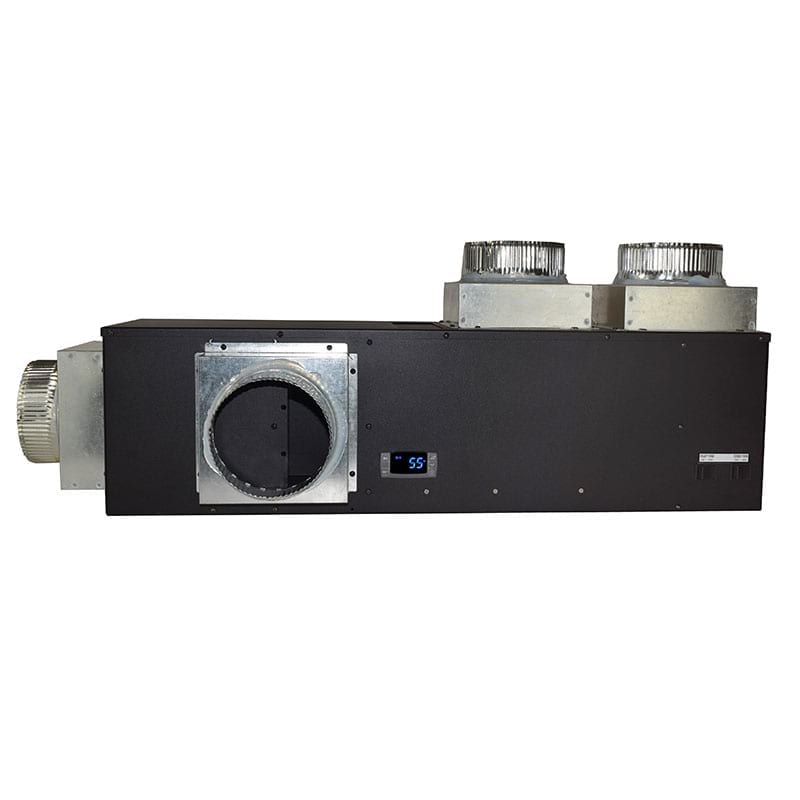

The height of the hood (2 1/2 inches) plus the height of the 6-inch duct collars (2 1/4 inches) is 4 3/4. The hood is designed to attach to the cooling unit for use with any of the airflows - hot or cold, intake or exhaust. Click on one of the following links for more information:
