Description
Panel-ready door lets you customize your icemaker to blend into your own cabinetry design
33.0" H x 14.5" W x 23.5" D
(84cm H x 37cm W x 60cm D)
- Commercial ENERGY STAR certification
- Flexible design allows built-in or freestanding use in 15" wide spaces
- Integrated door frame accepts full overlay panels for a true custom look
- Save time and energy with low maintenance automatic defrost
- Makes up to 50 lbs. of ice in a day cycle
- Commercially listed to NSF-7 standards

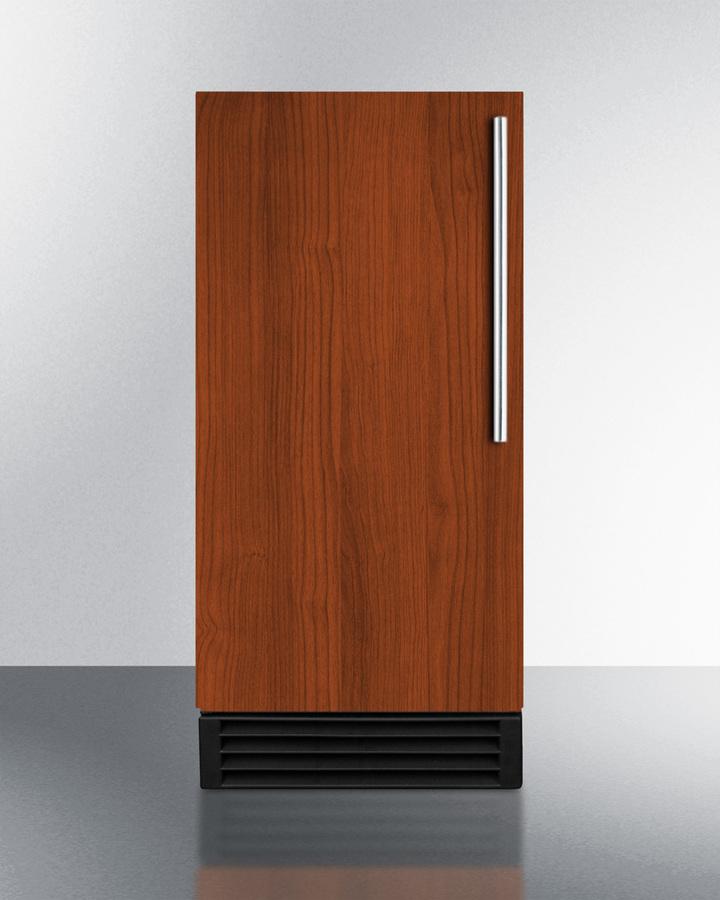

SUMMIT BIM44GIF is an auto defrost clear icemaker designed for true convenience in operation and placement. At just under 15" wide, the BIM44GIF is ideal for finishing any kitchen or wet bar.

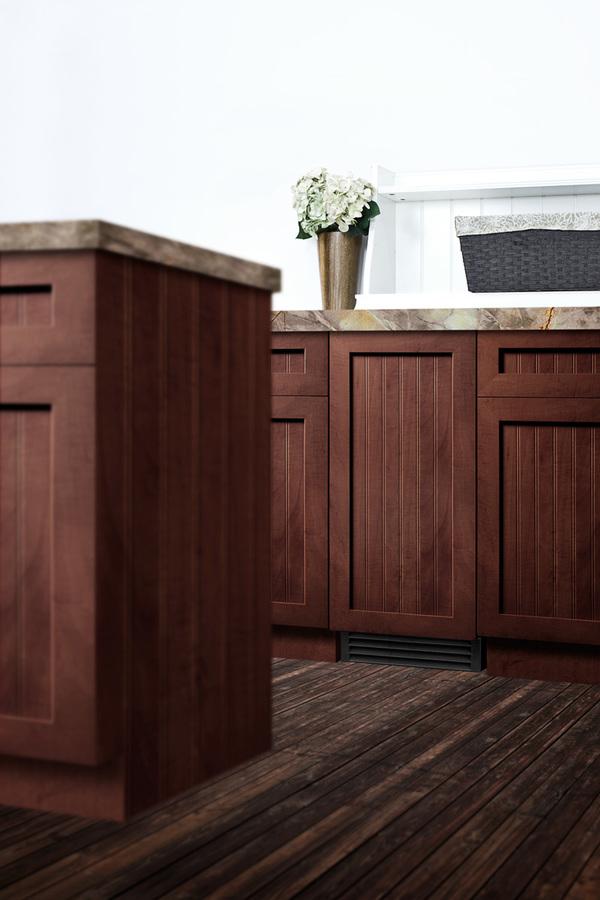

The door includes an integrated stainless steel frame that can accept full overlay panels for a seamless look that blends into matching cabinetry. Users supply their own handles. Automatic defrost makes maintenance simple and stress-free, while the BIM44GIF's front-breathing cooling system and fully finished sides allow built-in or freestanding use. This model now comes equipped with an internal pump.
The BIM44GIF can make up to 50 pounds of clear cube-shaped ice, with an adjustable bin capacity that can temporarily hold up to 25 pounds. This unit must be used with a drain. For this icemaker in an ADA compliant 32 1/2" height, see the BIM44GIFADA.
The BIM44GIF is NSF listed for commercial use and is ENERGY STAR certified for commercial use.
Features
ENERGY STAR certified commercial performance
Efficient performance for commercial use
Commercially approved
NSF listed for use in commercial establishments
Built-in capable
Make the best use of space by installing your appliance under the counter
Built-in pump
Internal pump allows more flexibility in placing the unit
Panel-ready door
Stainless steel door frame accepts full overlay panels to match adjacent cabinetry (panel size: 27 7/8" H x14 5/8" W and at least 3/4" thick; maximum weight: 10 lbs.)
Automatic defrost
Reduced maintenance with auto defrost system
Insulated storage bin
Ice stays frozen longer inside this cold-protected bin
Clear ice cube production
Makes cubes sized at 3/4" x 3/4" x 1"
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
Specifications
| Overview |
| Height of Cabinet |
33.0" (84 cm) |
| Width |
14.5" (37 cm) |
| Depth |
23.5" (60 cm) |
| Defrost Type |
Automatic |
| Door |
Panel-Ready |
| Cabinet |
Black |
| US Electrical Safety |
UL |
| Canadian Electrical Safety |
ULC |
| Sanitation |
NSF |
| Amps |
4.8 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
100.0 lbs. (45 kg) |
| Shipping Weight |
105.0 lbs. (48 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| Icemaker |
| Door Swing |
LHD |
| Reversible |
Factory Reversible |
| Drain Required |
Yes |
| Daily Ice Production |
50.0 lbs. (23 kg) |
| Ice Storage Capacity |
25.0 lbs. (11 kg) |
| Ice Shape |
Cube |
| Size of Cube |
3/4" x 3/4" x 1" |
| Number of Ice Cube Sizes |
1 |
| Fan Type |
Exterior |
| Refrigerant Type |
R134a |
| Refrigerant Amount |
3.88 oz. |
| High Side PSI |
350.0 |
| Low Side PSI |
130.0 |
| Interior Height |
18.5" (47 cm) |
| Interior Width |
12.0" (30 cm) |
| Interior Depth |
16.0" (41 cm) |
| Level Legs |
4 |
