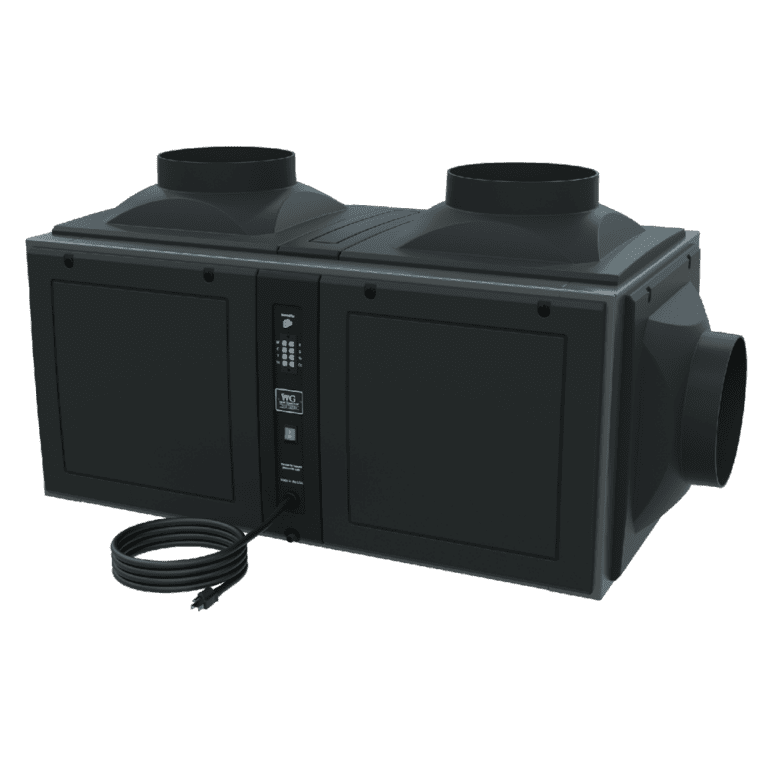

The DP50 Wine Guardian Pro ducted wine cooling unit is ideal for small to midsize wine storage spaces, specialty HVAC applications such as server room air conditioning, and art storage and has a max capacity of 6,320 BTU/H.
The DP50 is a 60Hz system, which is standard in most of North America (incl. USA & Canada).
The DP50 Wine Guardian Pro ducted unit is ideal for small to midsize wine storage spaces and specialty HVAC applications such as server room air conditioning and art storage. The self-contained, fully ductable DP50 produces a max capacity of 6,570 BTU/H and has many standard features including low ambient protection, while electric heat is optional. The DP50 is equipped with enhanced refrigeration controls and is compatible with modern smart thermostats. Additional duct collar connections are also located on the condensing section of this cooling unit.
The DP50 is a 60Hz system, which is standard in most of North America (incl. USA & Canada).
Wine Guardian DP50 Options & Upgrades
-
Remote Sensor for Wine Guardian® Wine Cellar Cooling Units
-
Sentinel Series Integrated Humidifier for Models D050, D088, D200, DP50, DP88, DP200, DS050, DS088, DS200, SP50, SP88, SP200
-
Sentinel Series Duct Collar for Models D050, D088, D200, DP50, DP88, DP200, DS050, DS088, DS200, SP50, SP88, SP200
-
Flexible Ductwork | 10 inches (25.4cm)
-
Sentinel Series Duct Collar Kit for Models D050, D088, DP50, DP88, DS050, DS088, SP50, SP88
-
Remote Interface Controller and Thermostat
Wine Guardian DP50 Specifications
| Model |
DP50 |
|---|---|
| Line Frequency |
60 Hz |
| Capacity |
2700 – 6320 BTU |
| Volume |
650 – 3000 ft³ |
| Length |
41.5" |
| Width |
22.5" |
| Height |
19" |
| Weight |
125 lbs |
| Electrical |
115/1/60 |
Wine Guardian DP50 Options
WATER-COOLED
Includes a factory-configured integral water-cooled condensing coil and water-regulating valve. This wine cellar cooling system is ideal for geothermal, cooling tower, and lake water applications. The unit does not require warm condenser air connections, making it an excellent solution when warm-condenser-air venting is not possible.
HEATER
Protects wine cellars from dangerously low temperatures. Adjustable activation from 2 - 6°F (-17 - -14°C) below your setpoint.
INTEGRATED HUMIDIFIER
Humidifiers help ensure perfect long-term wine storage conditions by adding humidity back into your wine space. The Integrated Humidifier attaches directly to your Wine Guardian cooling system using the same power source and remote controller.
FREESTANDING HUMIDIFIER
The Freestanding Humidifier is installed inside your wine space to provide optimal humidity for perfect long-term wine storage. The Humidifier can be controlled by your existing Wine Guardian controller.
Wine Guardian DP50 Documents and Resources
Pro Ducted Quick Start Installation Guide
This cooling unit can be classed as Self-Contained. It can be installed as a Ducted System.
