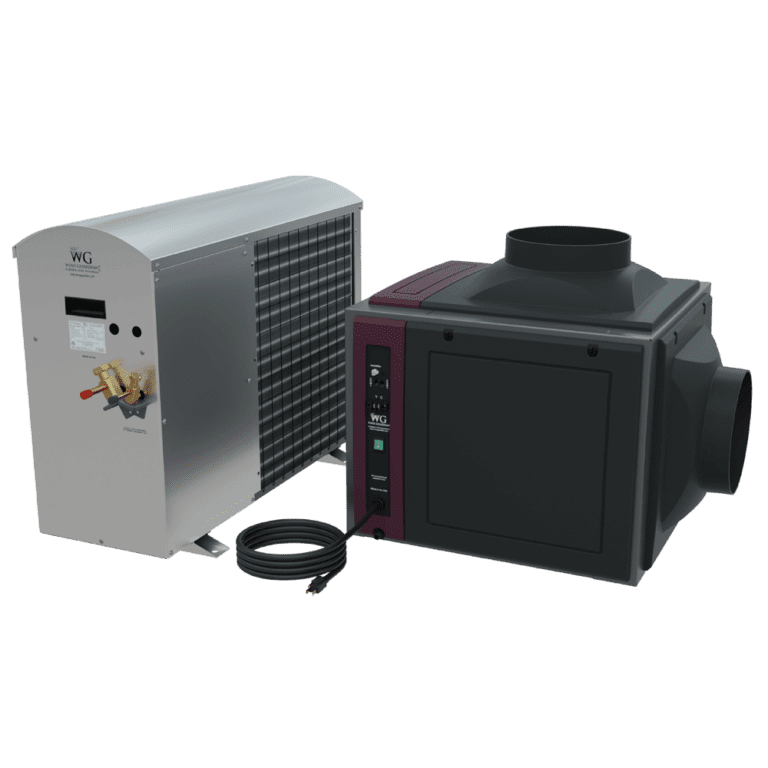

The DS200 split wine cooling unit with ductable fan-coil is recommended for large residential and commercial wine storage applications. Contractor installation is required.
The DS200 is a 60Hz system, which is standard in most of North America (incl. USA & Canada). The unit has a max capacity of 14,900 BTU/h (3.81 Kilowatts).
The DS200 split wine cooling unit with ductable fan-coil is recommended for large residential and commercial applications. Let one of our trained technicians assist to determine if the DS200 is suitable for your wine storage application. Contractor installation is required. Max capacity of 14,900 BTU/h (3.81 Kilowatts).
The condensing unit is patented. US Patent No. D791295.
Wine Guardian DS200 Options & Upgrades
-
Remote Sensor for Wine Guardian® Wine Cellar Cooling Units
-
Sentinel Series Integrated Humidifier for Models D050, D088, D200, DP50, DP88, DP200, DS050, DS088, DS200, SP50, SP88, SP200
-
Sentinel Series Duct Collar for Models D050, D088, D200, DP50, DP88, DP200, DS050, DS088, DS200, SP50, SP88, SP200
-
Flexible Ductwork | 10 inches (25.4cm)
-
Sentinel Series Duct Collar Kit for Models D050, D088, DP50, DP88, DS050, DS088, SP50, SP88
-
Remote Interface Controller and Thermostat
Wine Guardian DS200 Specifications
| Model |
DS200
|
| Line Frequency |
60 Hz
|
| Capacity |
8000 – 15785 BTU
|
| Volume |
1500 – 7000 ft³
|
| Length |
23.8"
34" (condenser)
|
| Width |
25"
12.3" (condenser)
|
| Height |
19.7"
26.07" (condenser)
|
| Weight |
69 lbs
120 lbs (condenser)
|
| Electrical |
208-230/1/60
|
Wine Guardian DS200 Options
ALL WINE TEMPERATURES BUNDLE
For extended wine-cellar temperature ranges. Allows a Wine Guardian unit to control to an extended temperature range from 45°F(7° C) to 64°F(18° C), perfect for single to multiple cabinet applications and small wine rooms in which serving-temperature cooling is preferred.
This bundle also contains an integral electric heater coil and controls to protect wine cellars from dangerously low temperatures. It is ideal for areas where ambient temperatures fall below 50°F/10°C.
EXTREME CLIMATE PROTECTION BUNDLE
For Self-Contained Ducted systems: Contains an integral compressor crankcase heater and controls to protect the system against low temperatures (required when inlet air to the condenser coil is below 40°F/5°C). The bundle also contains an integral high-capacity condenser fan and coil for operation at elevated ambient temperatures. This bundle should be considered when inlet air to the condenser coil is above 100°F/38°C (condenser air inlet cannot exceed 120°F/49°C).
For Ducted Split systems: Unit protection in extreme climate conditions (on the condenser section only). It is required for continuous operation in climates that fall below 20°F. Enables the system to operate in temperatures as low as -20°F.
INTEGRATED HUMIDIFIER
Humidifiers help ensure perfect long-term wine storage conditions by adding humidity back into your wine space. The Integrated Humidifier attaches directly to your Wine Guardian cooling system using the same power source and remote controller.
FREESTANDING HUMIDIFIER
The Freestanding Humidifier is installed inside your wine space to provide optimal humidity for perfect long-term wine storage. The Humidifier can be controlled by your existing Wine Guardian controller.
