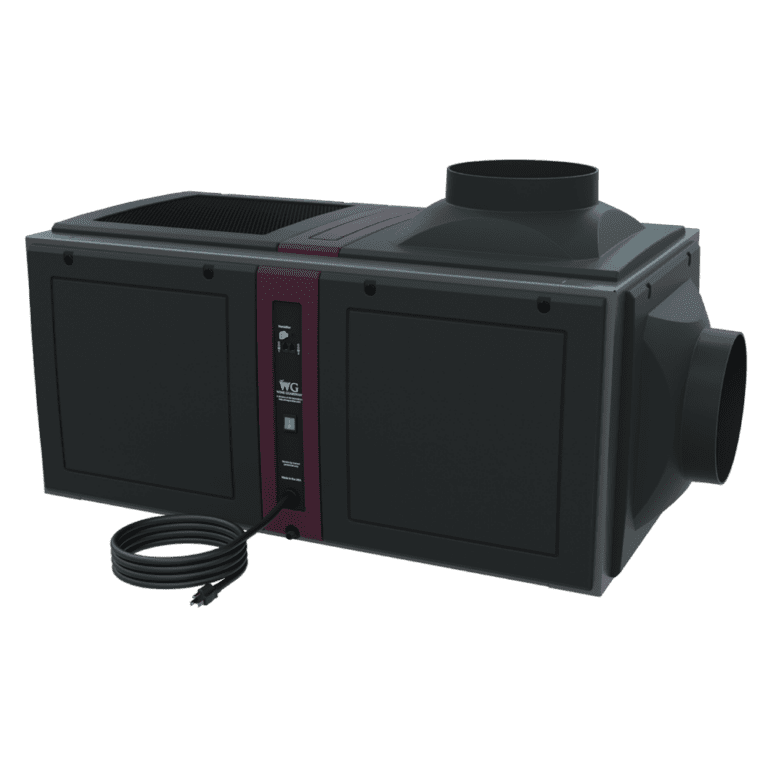

The D200 is a ducted wine room cooling unit for large residential and commercial applications. The D200 is a fully ductable and self-contained wine cooling unit.
The D200 is a 60Hz system, which is standard in most of North America (incl. USA & Canada). Unit capacity is 8000 – 14,100 BTUH.
The D200 is a ducted wine room cooling unit for large residential and commercial applications. The D200 is fully ductable and self-contained. Let one of our trained technicians assist to determine if the D200 is suitable for your wine storage application. Contractor installation is recommended. The maximum capacity is 14,100 BTU/h (4.13 Kilowatts). A D200WC water-cooled configuration is available.
Wine Guardian D200 Options & Upgrades
-
Remote Sensor for Wine Guardian® Wine Cellar Cooling Units
-
Sentinel Series Integrated Humidifier for Models D050, D088, D200, DP50, DP88, DP200, DS050, DS088, DS200, SP50, SP88, SP200
-
Sentinel Series Duct Collar for Models D050, D088, D200, DP50, DP88, DP200, DS050, DS088, DS200, SP50, SP88, SP200
-
Flexible Ductwork | 10 inches (25.4cm)
-
Sentinel Series Duct Collar Kit for Models D050, D088, DP50, DP88, DS050, DS088, SP50, SP88
-
Remote Interface Controller and Thermostat
Wine Guardian D200 Specifications
| Line Frequency |
60 Hz
|
| Model |
D200
|
| Capacity |
8000 – 15680 BTU
|
| Volume |
1500 – 7000 ft³
|
| Length |
41.5"
|
| Width |
22.5"
|
| Height |
19"
|
| Weight |
206 lbs
|
| Electrical |
208-230/1/60
|
Wine Guardian D200 Options
ALL WINE TEMPERATURES BUNDLE
For extended wine-cellar temperature ranges. Allows a Wine Guardian unit to control an extended temperature range from 45°F(7° C) to 64°F(18° C), perfect for single to multiple cabinet applications and small wine rooms in which serving-temperature cooling is preferred.
This bundle also contains an integral electric heater coil and controls to protect wine cellars from dangerously low temperatures. It is ideal for areas where ambient temperatures fall below 50°F/10°C.
EXTREME CLIMATE PROTECTION BUNDLE
For Self-Contained Ducted systems: Contains an integral compressor crankcase heater and controls to protect the system against low temperatures (required when inlet air to the condenser coil is below 40°F/5°C). The bundle also contains an integral high-capacity condenser fan and coil for operation at elevated ambient temperatures. This bundle should be considered when inlet air to the condenser coil is above 100°F/38°C (condenser air inlet cannot exceed 120°F/49°C).
For Ducted Split systems: Unit protection in extreme climate conditions (on the condenser section only). It is required for continuous operation in climates that fall below 20°F. Enables the system to operate in temperatures as low as -20°F.
ULTIMATE BUNDLE
Contains all the features in the All Wine Temperatures Bundle and the Extreme Climate Protection Bundle.
WATER-COOLED
Includes a factory-configured integral water-cooled condensing coil and water-regulating valve. This wine cellar cooling system is ideal for geothermal, cooling tower, and lake water applications. The unit does not require warm condenser air connections, making it an excellent solution when warm-condenser-air venting is not possible.
SERVING TEMPERATURE
Allows the system to control to an extended temperature range from 42°F to 64°F (5°C to 18°C). This option is ideal for single to multiple cabinet applications and small wine rooms where consumption-temperature cooling is preferred. It also allows the user to rotate wine stock and change set point from season to season, making it ideal for restaurants, wine bars, clubs, etc.
INTEGRATED HUMIDIFIER
Humidifiers help ensure perfect long-term wine storage conditions by adding humidity back into your wine space. The Integrated Humidifier attaches directly to your Wine Guardian cooling system using the same power source and remote controller.
FREESTANDING HUMIDIFIER
The Freestanding Humidifier is installed inside your wine space to provide optimal humidity for perfect long-term wine storage. The Humidifier can be controlled by your existing Wine Guardian controller.
