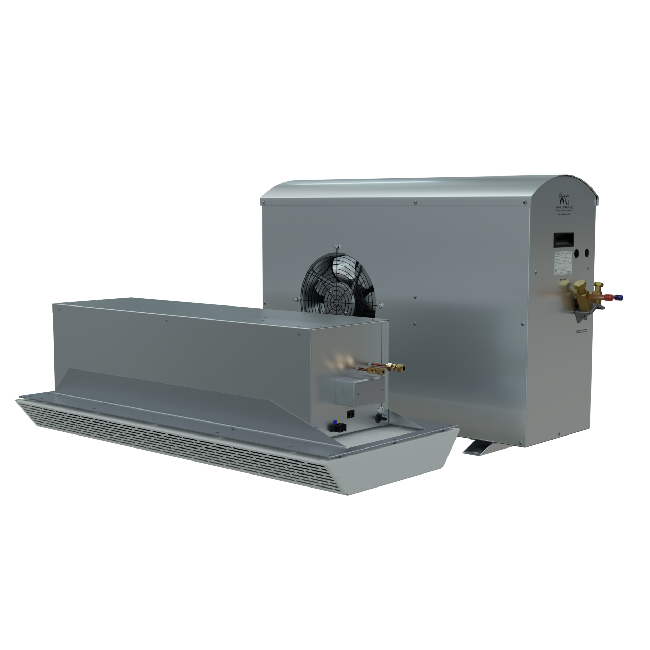

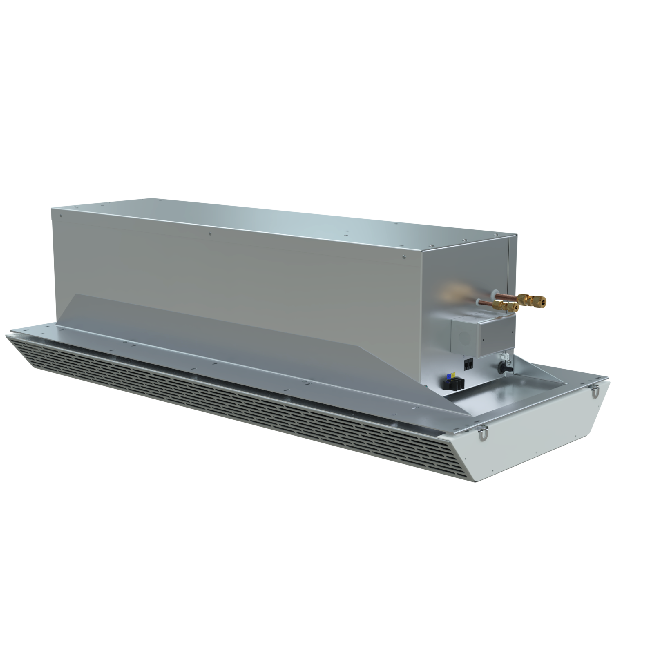

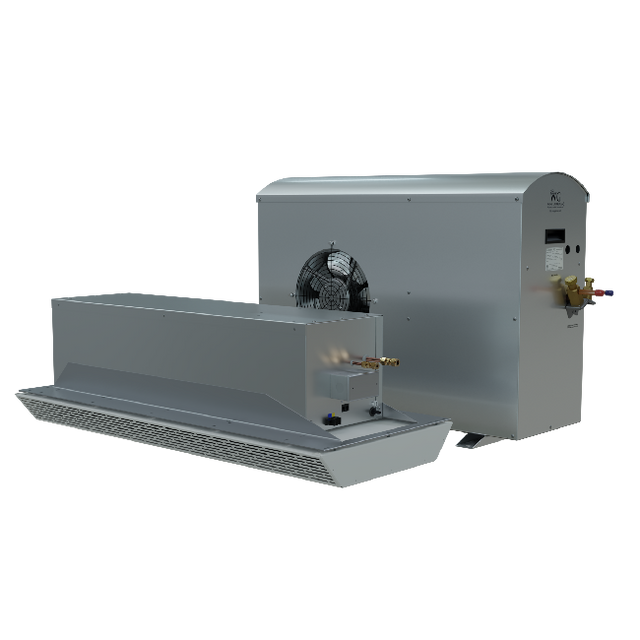

Wine Guardian’s CS050 ceiling mounted wine cooling unit is ideal for small- to mid-size wine rooms which cannot accommodate a traditional unit. This split system is ideal for applications such as all-glass wine storage spaces and fits comfortably between standard joist construction. Maximum capacity is 4,300 BTU/H.
The CS050 is a 60Hz system, which is standard in most of North America (incl. USA & Canada).
Wine Guardian’s CS050 ceiling mounted wine cooling unit is ideal for small- to mid-size wine rooms which cannot accommodate a traditional unit. This split system is ideal for applications such as all-glass wine storage spaces and fits comfortably between standard joist construction. Maximum capacity is 4,300 BTU/H.

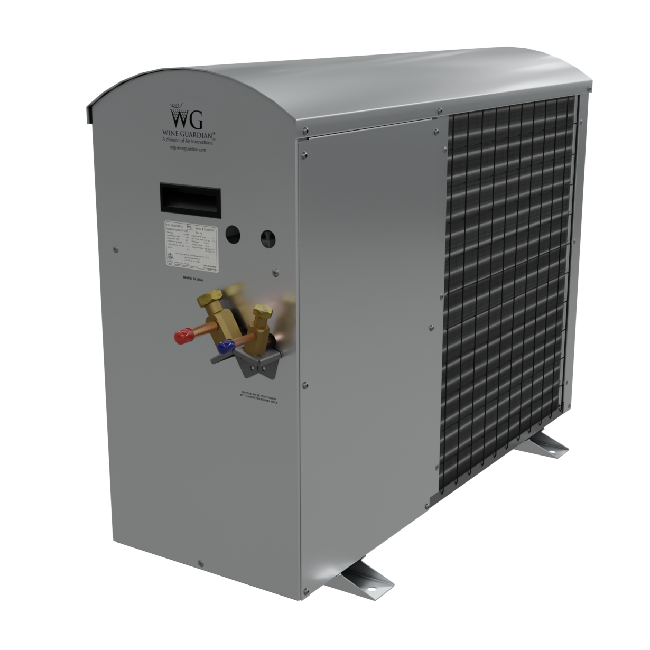

The condensing unit is patented. US Patent No. D791295.

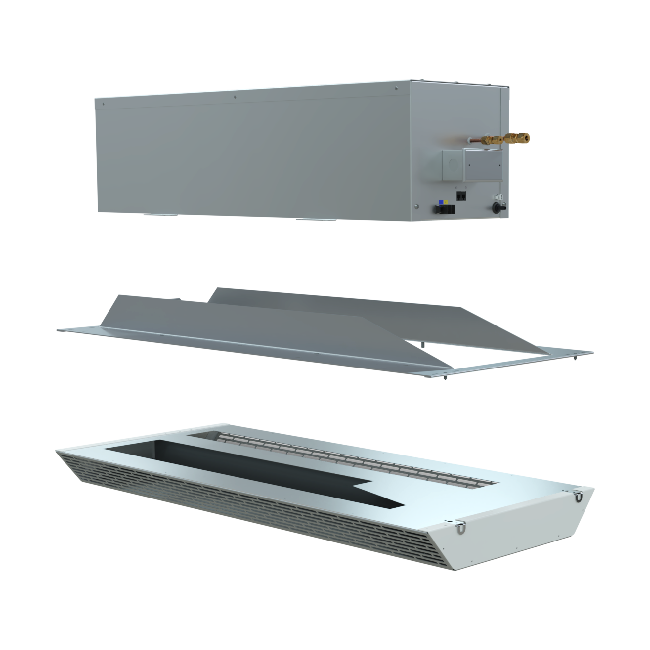

Grille design is patented. U.S. Patent No. 11,536,467.
Wine Guardian CS050 Options & Upgrades
Wine Guardian CS050 Specifications
| Model |
CS050 (Ceiling Mounted)
|
| Line Frequency |
60 Hz
|
| Capacity |
1000 – 4050 BTU
|
| Volume |
250 – 2200 ft³
|
| Volume max |
2200
|
| Volume min |
250
|
| Length |
43.25" (evaporator)
34" (condenser)
|
| Width |
18.125" (evaporator)
12.3" (condenser)
|
| Height |
13.25" (evaporator)
26" (condenser)
|
| Weight |
48 lbs
76 lbs (condenser)
|
| Electrical |
115/1/60
208-230/1/60 (condenser)
|
Wine Guardian CS050 Options
EXTREME CLIMATE PROTECTION BUNDLE
For Self-Contained Ducted systems: Contains an integral compressor crankcase heater and controls to protect the system against low temperatures (required when inlet air to the condenser coil is below 40°F/5°C). The bundle also contains an integral high-capacity condenser fan and coil for operation at elevated ambient temperatures. This bundle should be considered when inlet air to the condenser coil is above 100°F/38°C (condenser air inlet cannot exceed 120°F/49°C).
For Ducted Split systems: Unit protection in extreme climate conditions (on the condenser section only). It is required for continuous operation in climates that fall below 20°F. Enables the system to operate in temperatures as low as -20°F.
SERVING TEMPERATURE
Allows the system to control to an extended temperature range from 42°F to 64°F (5°C to 18°C). This option is ideal for single to multiple cabinet applications and small wine rooms where consumption-temperature cooling is preferred. It also allows the user to rotate wine stock and change set point from season to season, making it ideal for restaurants, wine bars, clubs, etc.
FREESTANDING HUMIDIFIER
The Freestanding Humidifier is installed inside your wine space to provide optimal humidity for perfect long-term wine storage. The Humidifier can be controlled by your existing Wine Guardian controller.
Wine Guardian CS050 Documents and Resources
Ceiling Mount System Product Brochure
Ceiling Mount System Manual (English)
Ceiling Mount System Specifications Sheet
Ceiling Mount System Quick Start Installation Guide (Multi-Language)
Ceiling Mount System CAD Drawing (PDF)
Condenser CAD Drawing (PDF)
