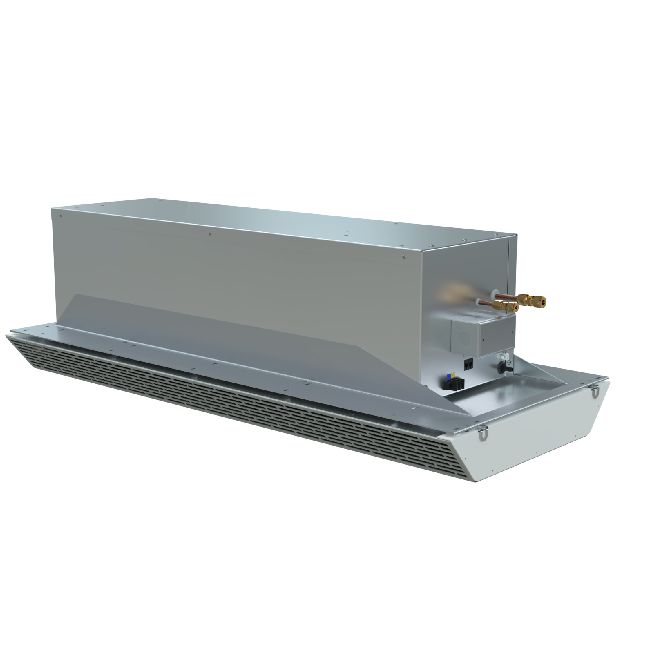

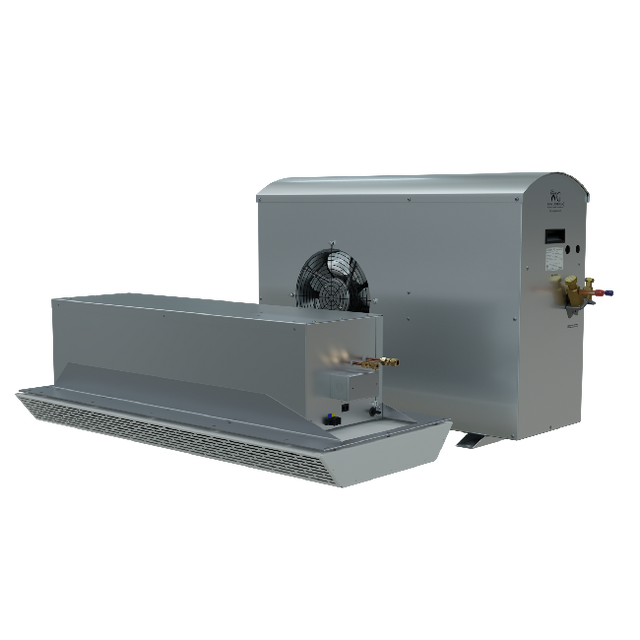

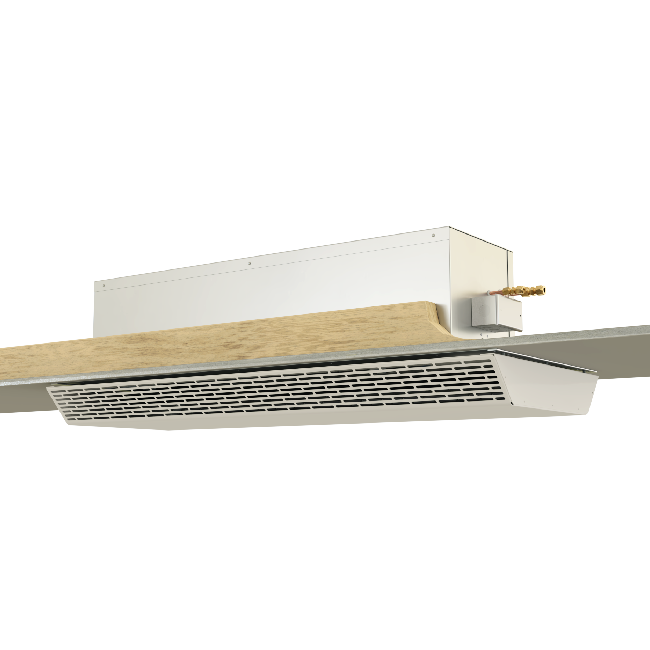

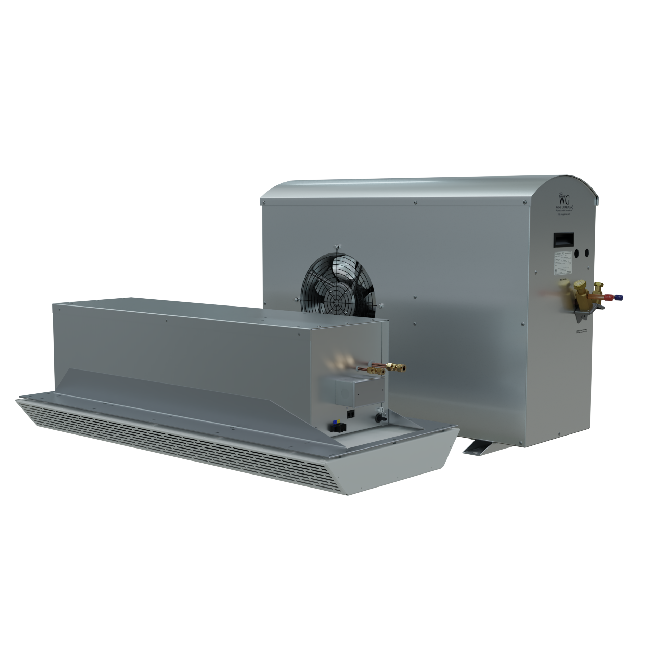

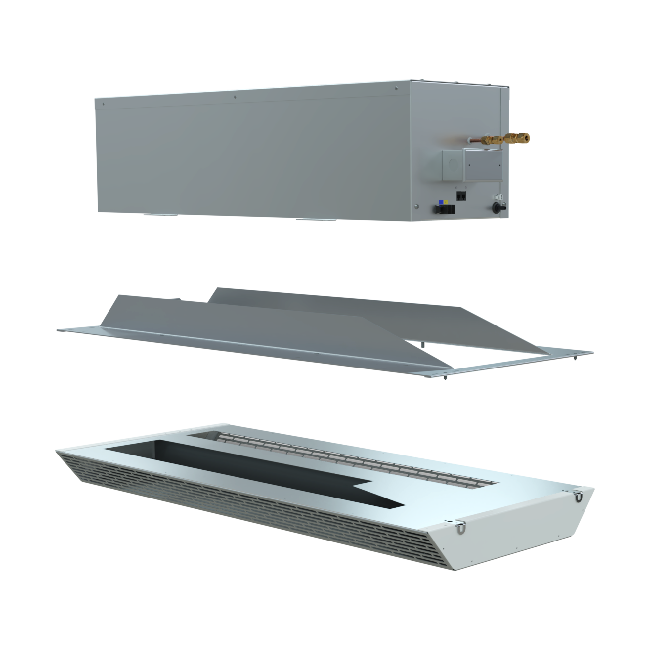

The CS025 ceiling mount wine room cooling unit is a quiet, split wine conditioning system that is ideal for small- to mid-size wine rooms with no space to install a traditional unit. This unit was designed specifically for ceiling mounting and fits comfortably between standard joist construction— making it ideal for applications such as a wine storage display with living space around it or an all-glass wine room. The maximum capacity for the CS025 ceiling mount wine cooling system is 2,900 BTU/H.
The CS025 is a 60Hz system, which is standard in most of North America (incl. USA & Canada).
The CS025 wine conditioning system for ceiling mounting is a quiet wine cooling system that is ideal for wine storage spaces for small- to mid-size wine rooms with no space to install a traditional unit. This unit was designed specifically for ceiling mounting and fits comfortably between standard joist construction— making it ideal for applications such as a wine storage display with living space around it or an all-glass wine room. The maximum capacity for the CS025 ceiling mount wine cooling system is 2,900 BTU/H.

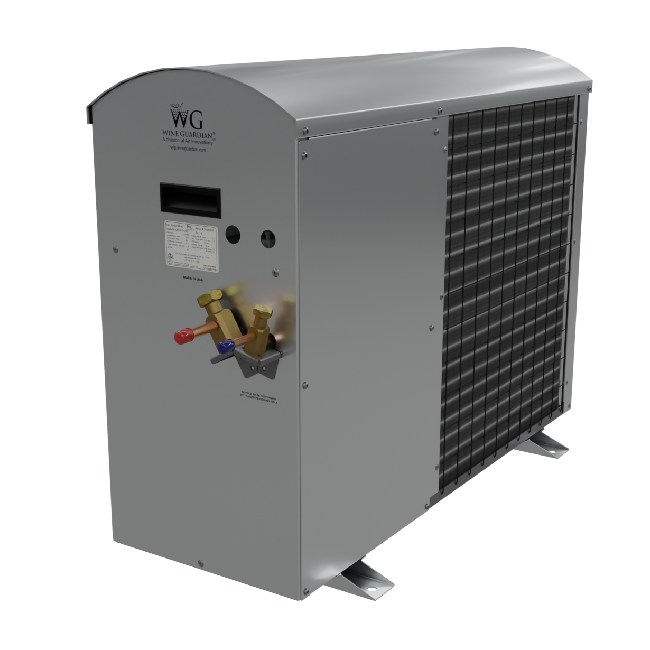

The condensing unit is patented. US Patent No. D791295.
The grille design is patented. U.S. Patent No. 11,536,467.
Wine Guardian CS025 Options & Upgrades
Wine Guardian CS025 Specifications
| Model |
CS025 (Ceiling Mounted)
|
| Line Frequency |
60 Hz
|
| Capacity |
400 – 2755 BTU
|
| Volume |
100 – 1200 ft³
|
| Length |
43.25" (evaporator)
34" (condenser)
|
| Width |
18.25" (evaporator)
12.3" (condenser)
|
| Height |
13.25" (evaporator)
26" (condenser)
|
| Weight |
48 lbs (evaporator)
75 lbs (condenser)
|
| Electrical |
115/1/60
208-230/1/60 (condenser)
|
Wine Guardian CS025 Options
EXTREME CLIMATE PROTECTION BUNDLE
For Self-Contained Ducted systems: Contains an integral compressor crankcase heater and controls to protect the system against low temperatures (required when inlet air to the condenser coil is below 40°F/5°C). The bundle also contains an integral high-capacity condenser fan and coil for operation at elevated ambient temperatures. This bundle should be considered when inlet air to the condenser coil is above 100°F/38°C (condenser air inlet cannot exceed 120°F/49°C).
For Ducted Split systems: Unit protection in extreme climate conditions (on the condenser section only). It is required for continuous operation in climates that fall below 20°F. Enables the system to operate in temperatures as low as -20°F.
SERVING TEMPERATURE
Allows the system to control to an extended temperature range from 42°F to 64°F (5°C to 18°C). This option is ideal for single to multiple cabinet applications and small wine rooms where consumption-temperature cooling is preferred. It also allows the user to rotate wine stock and change set point from season to season, making it ideal for restaurants, wine bars, clubs, etc.
FREESTANDING HUMIDIFIER
The Freestanding Humidifier is installed inside your wine space to provide optimal humidity for perfect long-term wine storage. The Humidifier can be controlled by your existing Wine Guardian controller.
Wine Guardian CS025 Documents and Resources
Ceiling Mount System Product Brochure
Ceiling Mount System Manual (English)
Ceiling Mount System Specifications Sheet
Ceiling Mount System Quick Start Installation Guide (Multi-Language)
Ceiling Mount System CAD Drawing (PDF)
Condenser CAD Drawing (PDF)
