25.25" H x 15.25" W x 18.25" D
(64cm H x 39cm W x 46cm D)
Typically ships within 48 hours!
- Compact size for easy placement
- Flexible design allows built-in or freestanding use
- Professional exterior for modern look
- Produces up to 12 lbs. of crescent-shaped ice in a day cycle
- No drain required for operation

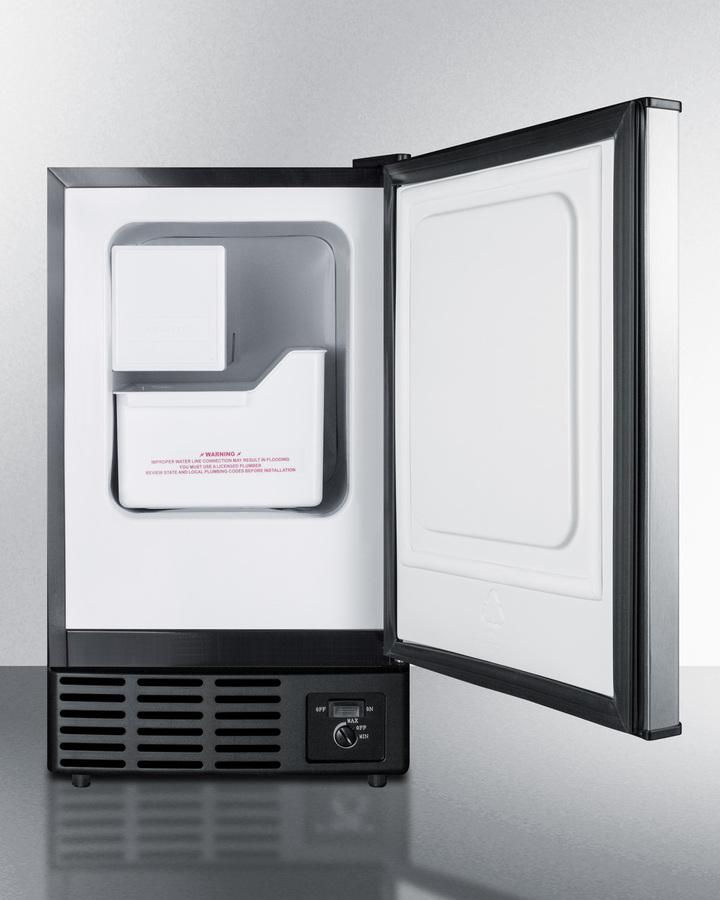

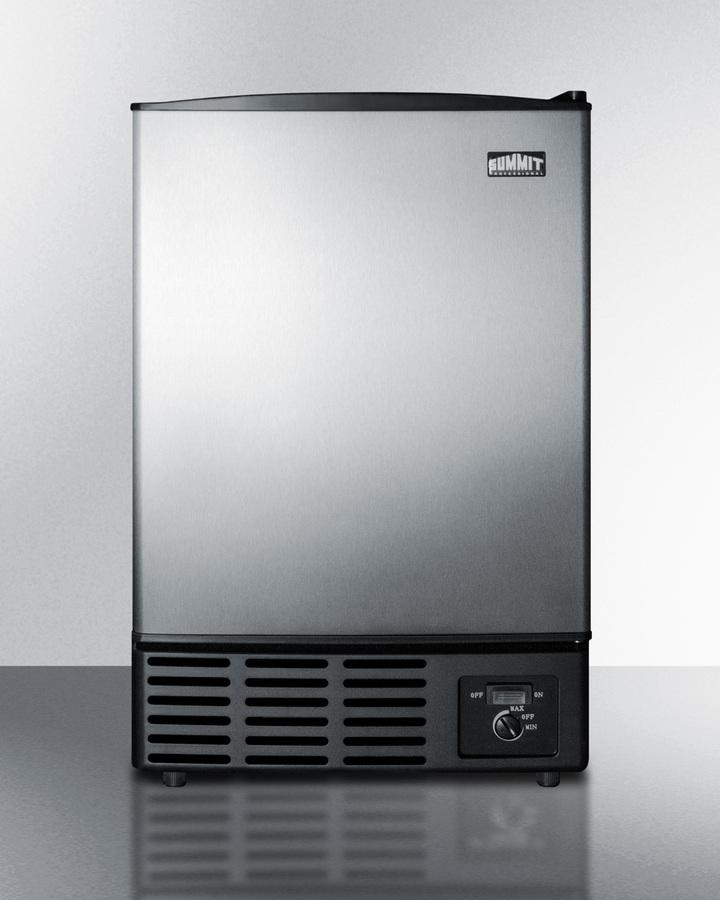

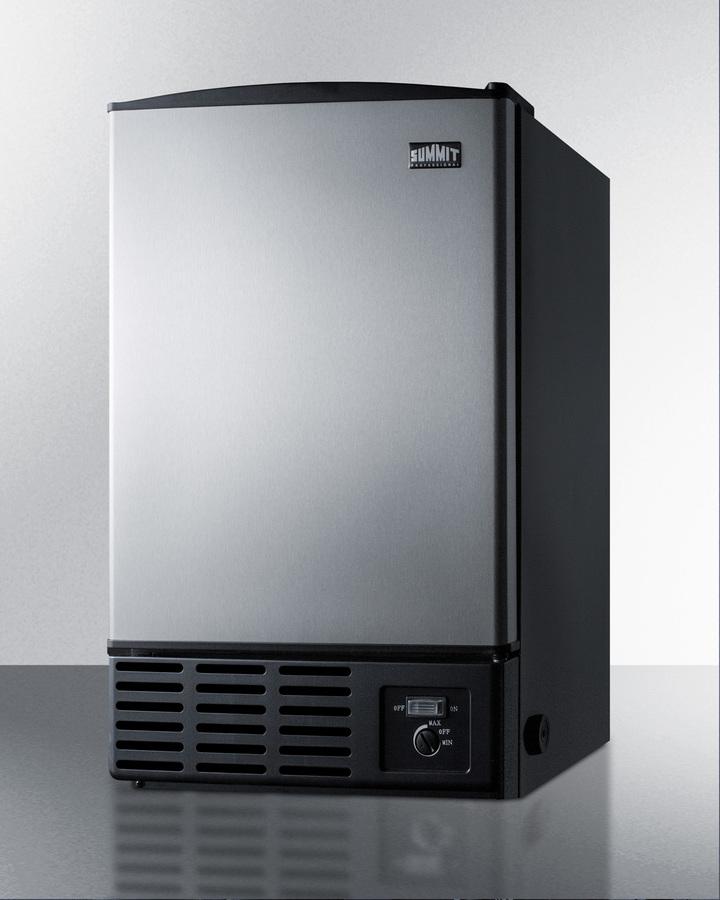

SUMMIT BIM25 is a compact icemaker with a modern look and convenient design.
Sized at 15" wide, the BIM25 can produce up to 12 pounds of crescent-shaped ice per day, storing it in a removable insulated bin. This unit features a fully finished black cabinet with a stainless steel door for an attractive look. The front-breathing system allows the unit to be installed under counters. A side defrost drain is included for easier cleaning. No drain or pump is required for use. This unit includes a connection hose, but other hardware must be supplied by your plumber.
With its compact size and easy operation, the BIM25 is the perfect unit for home bars, apartment units, yacht kitchens, and other settings looking to offer a reliable icemaker in attractive style.
Built-in capable
Make the best use of space by installing your icemaker under the counter and flush with other cabinets
Mid-sized capacityProduces and stores up to 12 pounds of ice per day cycle Insulated storage bin
Ice stays solid longer in this cold-protected bin Manual defrost
Side drain included for easier cleanup Ice scoop included
Large plastic ice scoop included for your convenience Fully finished cabinet
Allows the icemaker to be used freestanding 100% CFC free
Environmentally friendly design without ozone-damaging chemicals
Overview | |
---|---|
Height of Cabinet | 24.75" (63 cm) |
Height to Hinge Cap | 25.25" (64 cm) |
Width | 15.25" (39 cm) |
Depth | 18.25" (46 cm) |
Depth with door at 90° | 31.75" (81 cm) |
Capacity | 1.0 cu.ft. (28 L) |
Defrost Type | Manual |
Door | Stainless Steel |
Cabinet | Black |
US Electrical Safety | UL |
Canadian Electrical Safety | ULC |
Amps | 1.7 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 50.0 lbs. (23 kg) |
Shipping Weight | 53.0 lbs. (24 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Icemaker | |
Door Swing | RHD |
Reversible | Factory Reversible |
Daily Ice Production | 12.0 lbs. (5 kg) |
Ice Storage Capacity | 12.0 lbs. (5 kg) |
Ice Shape | Crescent |
Number of Ice Cube Sizes | 1 |
Refrigerant Type | R134a |
Refrigerant Amount | 2.12 oz. |
High Side PSI | 250.0 |
Low Side PSI | 110.0 |
Interior Height | 11.5" (29 cm) |
Interior Width | 10.0" (25 cm) |
Interior Depth | 12.63" (32 cm) |
Level Legs | 2 |

BIM25.pdf

BIM25_ICE_MAKER__A-C_2000_.dwg

BIM25_manual.pdf
