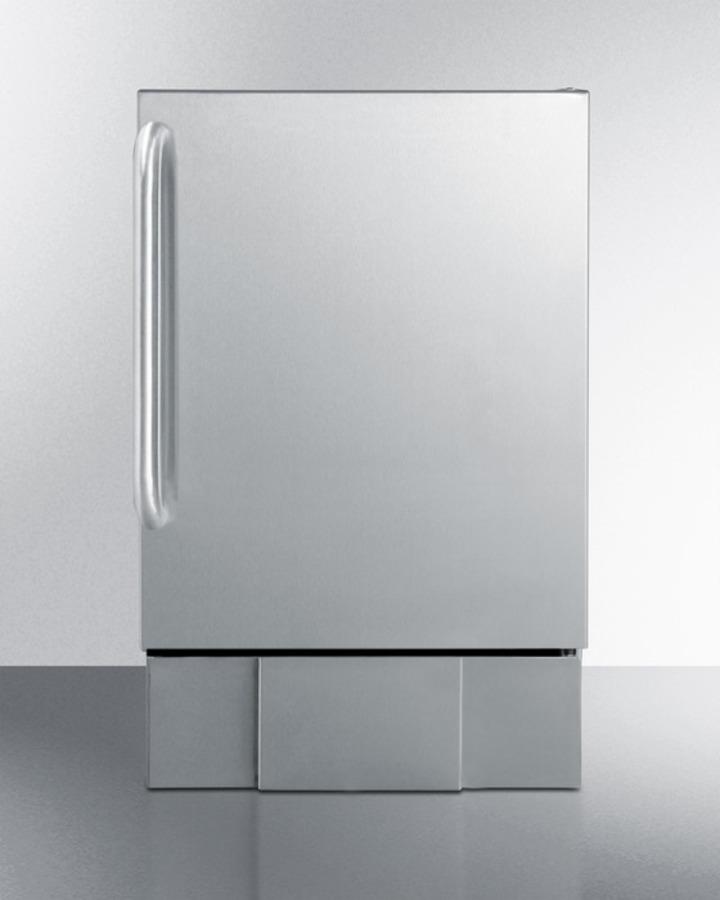

Summit 15.13" Indoor/Outdoor Built In Ice Maker BIM24OS

by Summit
Sold out
Original price $2,050.00 - Original price $2,050.00
Original price
$2,050.00
$2,050.00 - $2,050.00
Current price $2,050.00

Have questions? Contact Us or Schedule a Free Consultation with a wine cellar specialist.

Description

25.25" H x 15.13" W x 20.63" D

(64cm H x 38cm W x 52cm D)

Typically ships within 48 hours!

  • U.L. approved for outdoor use, with three levels of weatherproofing in design
  • Complete construction in durable 304 grade stainless steel
  • Flexible design allows built-in or freestanding use, with optional bases available to raise unit height for ADA or standard counters
  • Produces up to 10 lbs. of crescent-shaped ice in a day cycle

SUMMIT brings a convenient freeze to the outdoors with the BIM24OS, a compact icemaker with U.L. approval for outdoor use.

Fully wrapped in 304 grade stainless steel, the BIM24OS is designed to stand up to nature with elegant style. The weatherproof design includes a completely sealed back that protects all electrical components and SUMMIT's integrated Ground Fault Circuit Interrupter (GFCI) adds an extra level of protection and automatically resets the unit in the event of power failure.

At just over 15" wide, the BIM24OS is easy to place and can be used built-in or freestanding above or below the counter. Storage bases are available in two sizes: Base 32 to raise the height to an ADA compliant 32", or Base 34 to make it adjustable from 33" to 34 ¾" high. The BIM24OS can produce up to 12 lbs. of crescent shaped cubes in a day cycle, storing it in a carefully insulated storage bin.

Operation does not require a drain. Our signature 12" towel bar handle completes the package.

Features
U.L. approved for outdoor use
Weatherproof design rated safe for outdoor operation
Ground Fault Circuit Interrupter
Our integrated GFCI exceeds U.L. requirements for safety by protecting your unit from shocks and circuit breaks
Complete 304 grade stainless steel construction
Durable exterior with lasting elegance
Professional towel bar handle
A curved stainless steel handle provides generous room for a comfortable grip
Built-in capable
Make the best use of space by installing your appliance under the counter and flush with other cabinets
Fully finished cabinet
Allows the icemaker to be used freestanding
Insulated storage bin
Ice maintains solid crescent shape longer in cold storage bin
Sealed back
No exposed electrical components
Storage base options
Bases available to raise unit height; Base 32 brings BIM24OS to ADA compliant counter height, Base 34 raises it to fit under standard counters
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
Specifications

Overview
Height of Cabinet 24.88" (63 cm)
Height to Hinge Cap 25.25" (64 cm)
Width 15.13" (38 cm)
Depth 20.63" (52 cm)
Depth with Handle 23.13" (59 cm)
Depth with door at 90° 34.25" (87 cm)
Capacity 1.0 cu.ft. (28 L)
Defrost Type Manual
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Shipping Weight 98.0 lbs. (44 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Icemaker
Door Swing RHD
Reversible No
Daily Ice Production 12.0 lbs. (5 kg)
Ice Storage Capacity 12.0 lbs. (5 kg)
Ice Shape Crescent
Number of Ice Cube Sizes 1
Refrigerant Type R600a
Refrigerant Amount 0.63 oz.
Interior Height 11.75" (30 cm)
Interior Width 10.0" (25 cm)
Interior Depth 13.0" (33 cm)
Level Legs 2



Downloads

BROCHURE w/ DRAWINGS
BIM24OS.pdf


TECHNICAL DRAWING (.dwg)
BIM24OSICEMAKER_ARCH.dwg
