SUMMIT's collection of built-in wine cellars provides the perfect conditions for storing your collection under the counter.

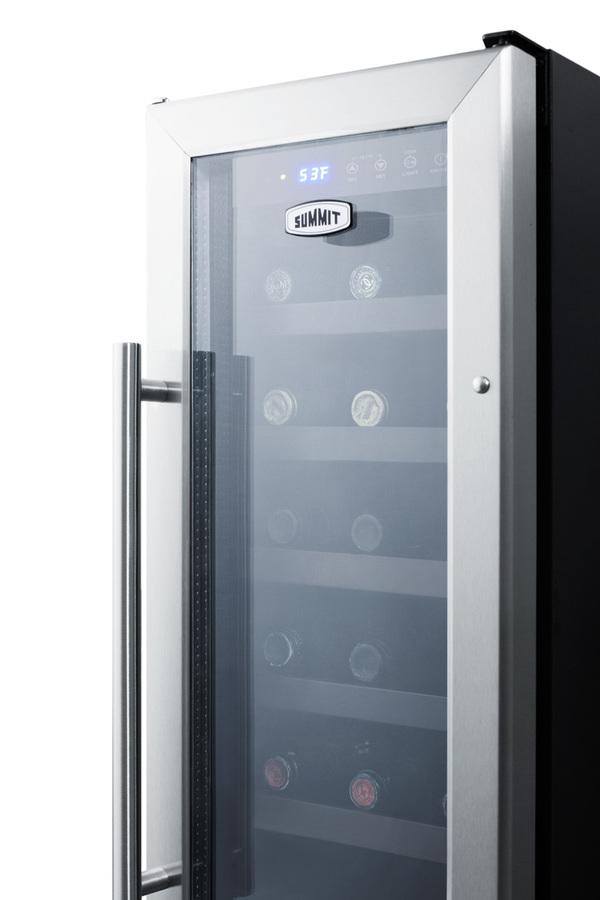

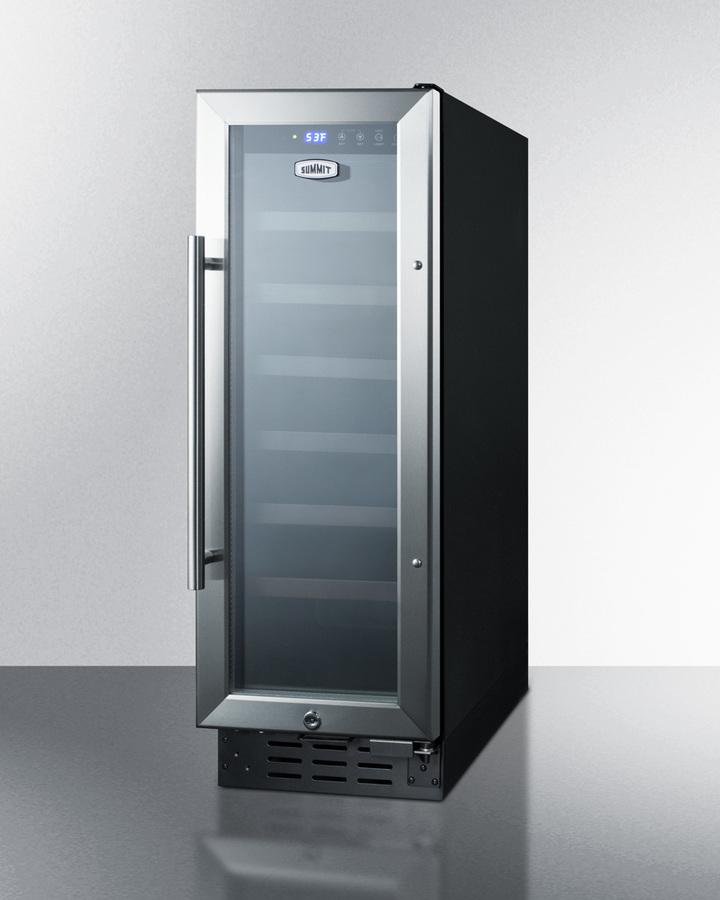

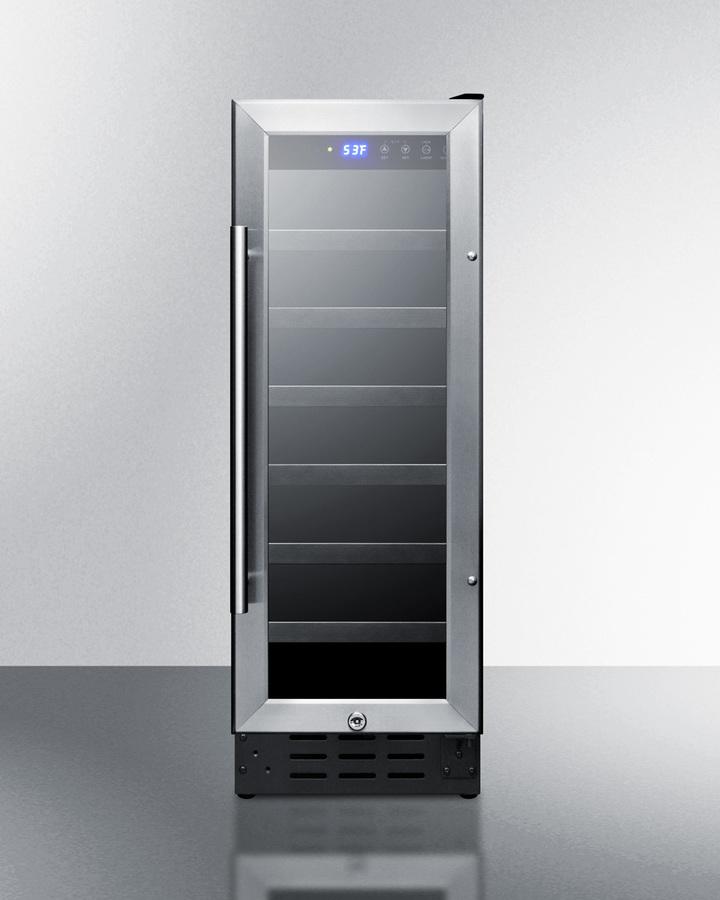

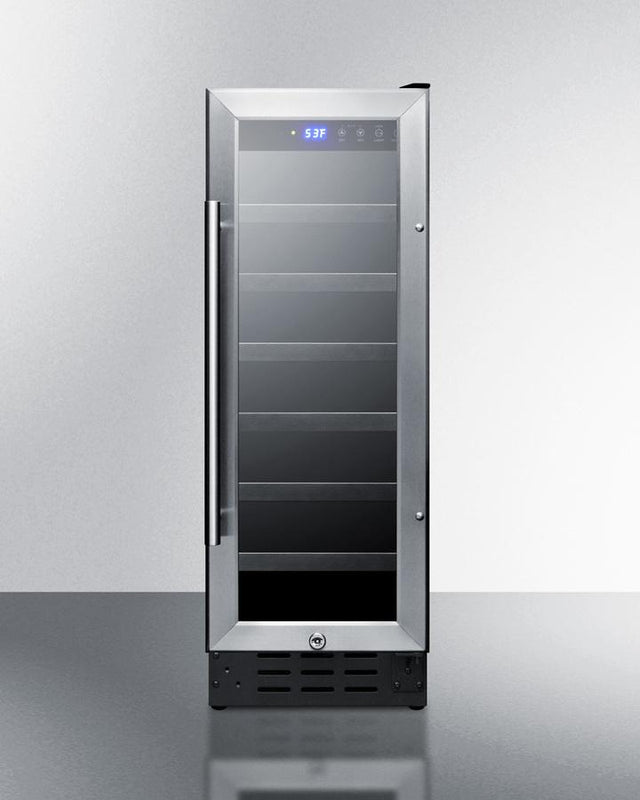

At just 12" wide, SUMMIT SWC1224B features a front-breathing design for built-in installation under counters, but also has a fully finished cabinet for alternate freestanding use. The interior can store up to 21 standard Bordeaux style or wider Burgundy style bottles. The reversible glass door features stainless steel trim and a professional handle, with a factory installed lock to prevent unsupervised access.
Inside, the SWC1224B includes six wooden shelves in a jet black finish and a floor specially slotted to hold bottles. Recessed LED lighting offers an attractive and efficient display. The digital thermostat allows easy temperature management in Celsius or Fahrenheit, with indicator lights to show the proper storage temperature for red, white, or sparkling wine.

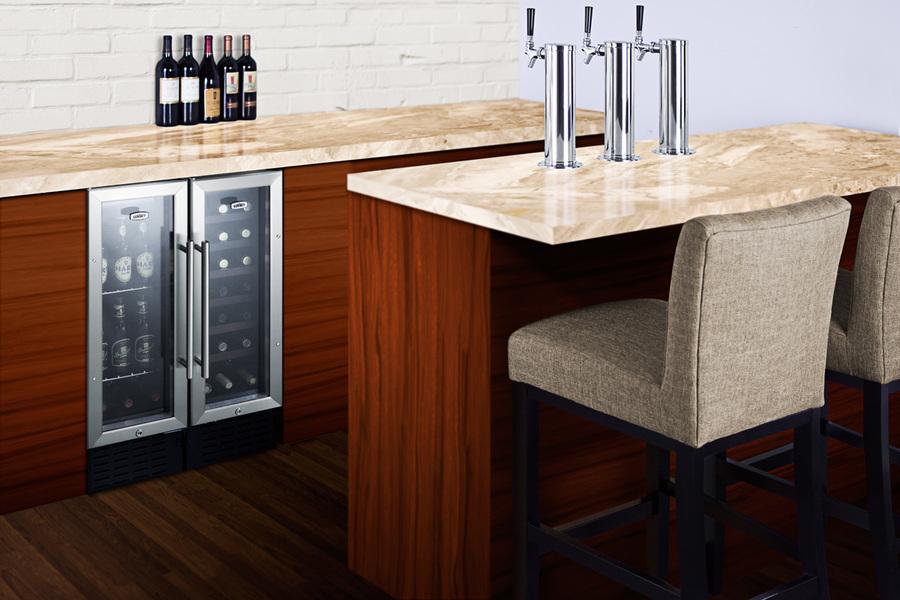

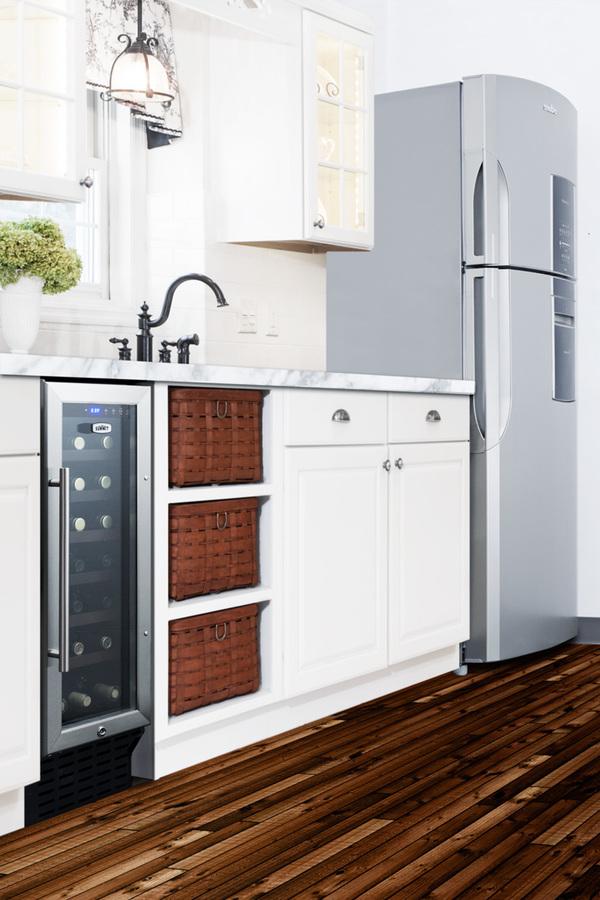

With its slim fit and user-friendly features, the SWC1224B is perfect for a 12" cutout in any wet bar or kitchen. This unit is ETL-S listed to NSF-7 standards and meets UL-471. For a matching beverage center, see the SCR1225B.
Built-in capable
Make the best use of space by installing your appliance under the counter
Commercially approved
Meets UL Commercial Standard 471 and is ETL-S listed to NSF-7 commercial standards
Glass door with stainless steel trim
Provides a full display of your stored collection with a heat-safe double tempered design
Factory installed lock
Keyed security on the wine cellar door
21 bottle capacity

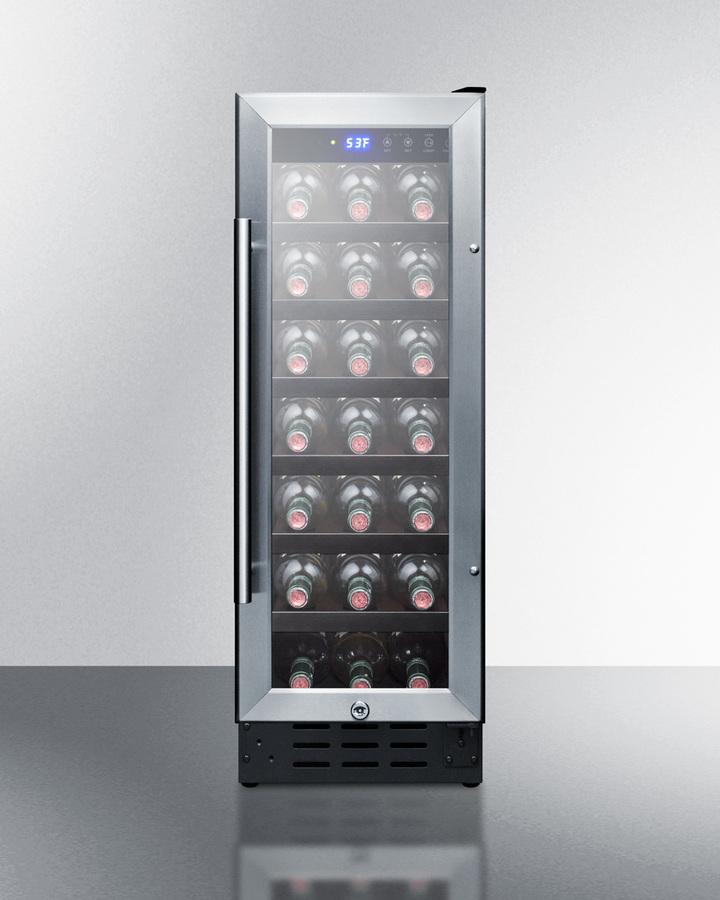

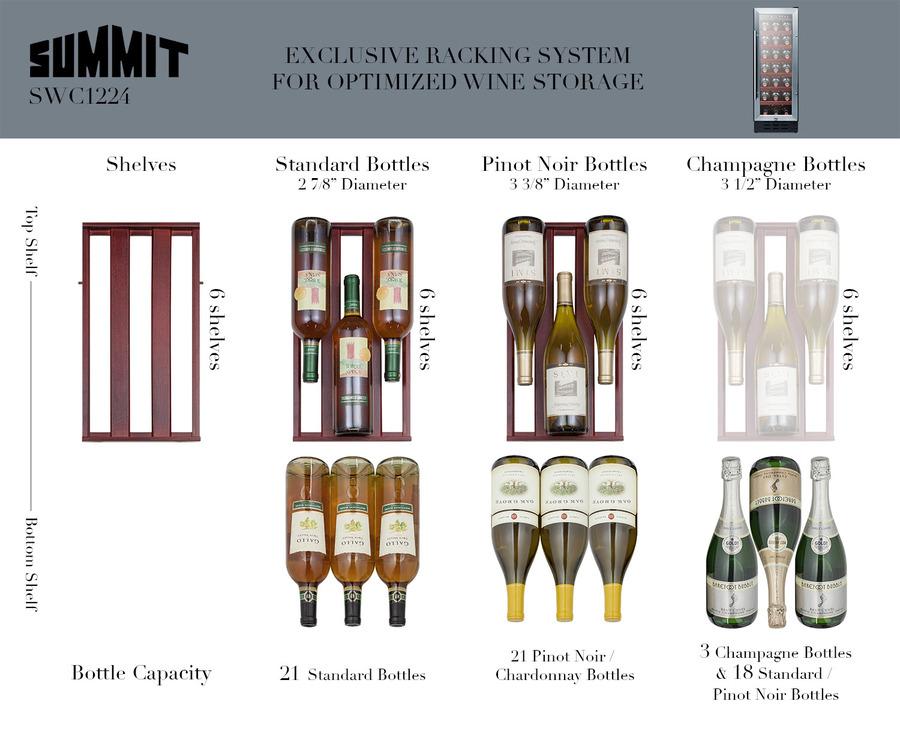

Interior can hold 21 bottles in standard Bordeaux style or wider Burgundy style
Digital thermostat
Electronic controls for precise temperature management, with indicator lights for red, white, and sparkling wines
Digital display
Temperature readout can be shown in Celsius or Fahrenheit
Wooden shelves
Slide-out shelves offer the perfect storage for bottles
LED lighting
On/off button to illuminate your collection
Automatic defrost
Reduced maintenance and steady temperature performance
Professional handle
Stainless steel look for added elegance
Flush back
Space saving design with easier cleanability
Reversible door
Keep your options flexible with a reversible door that is easy to switch when your arrangement changes
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
Specifications
| Overview |
| Height of Cabinet |
34.38" (87 cm) |
| Width |
11.88" (30 cm) |
| Depth |
22.38" (57 cm) |
| Depth with Handle |
24.13" (61 cm) |
| Depth with door at 90° |
33.0" (84 cm) |
| Bottles |
21 bottles |
| Defrost Type |
Automatic |
| Door |
Glass |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Amps |
1.25 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
66.0 lbs. (30 kg) |
| Shipping Weight |
70.0 lbs. (32 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| Wine Cellar |
| Number of Zones |
1 |
| Door Swing |
RHD |
| Reversible |
Yes |
| Adjustable Shelves |
Yes |
| Shelf Type |
Wood |
| Shelf Qty |
6 |
| Thermostat Type |
Digital |
| Interior Light |
Yes |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.88 oz. |
| High Side PSI |
150.0 |
| Low Side PSI |
50.0 |
| Interior Height 1 |
25.0" (64 cm) |
| Interior Width 1 |
9.13" (23 cm) |
| Interior Depth 1 |
17.0" (43 cm) |
| Compressor Step Height |
3.75" (10 cm) |
| Compressor Step Width |
9.13" (23 cm) |
| Compressor Step Depth |
4.5" (11 cm) |
| Level Legs |
4 |
