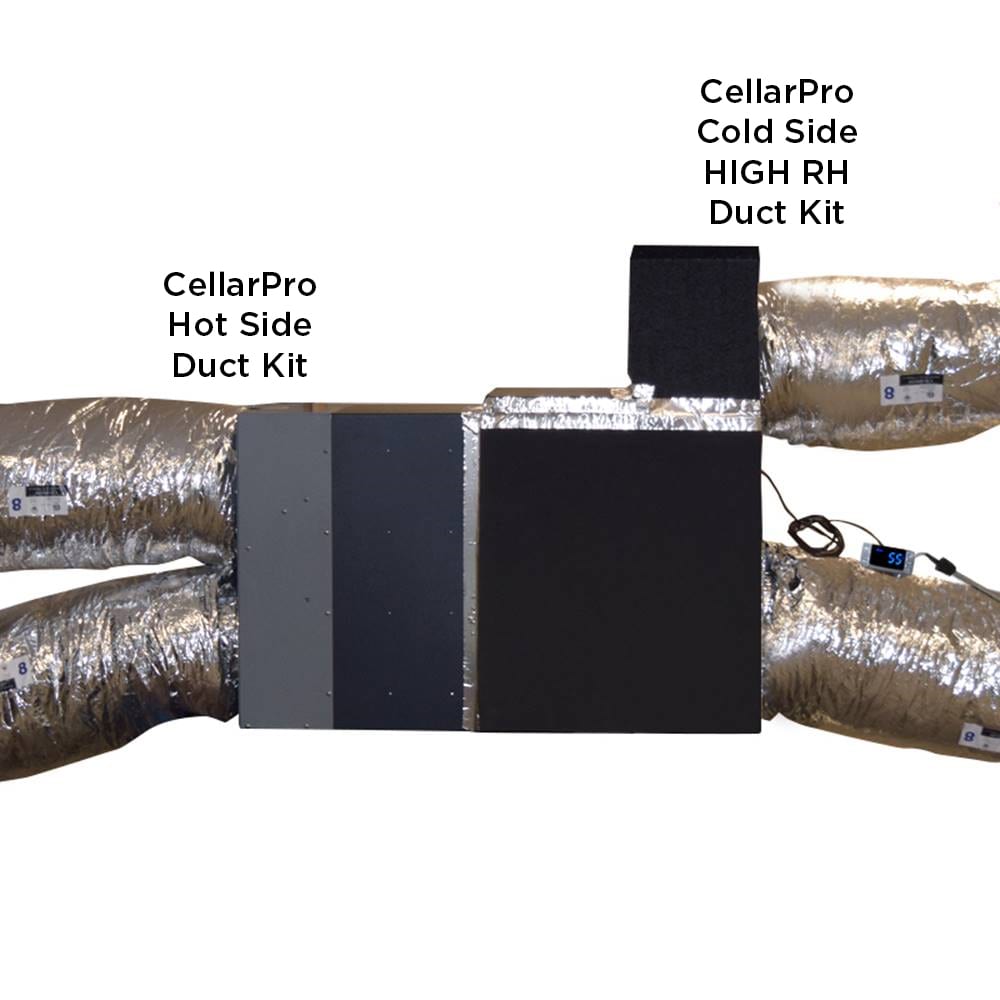

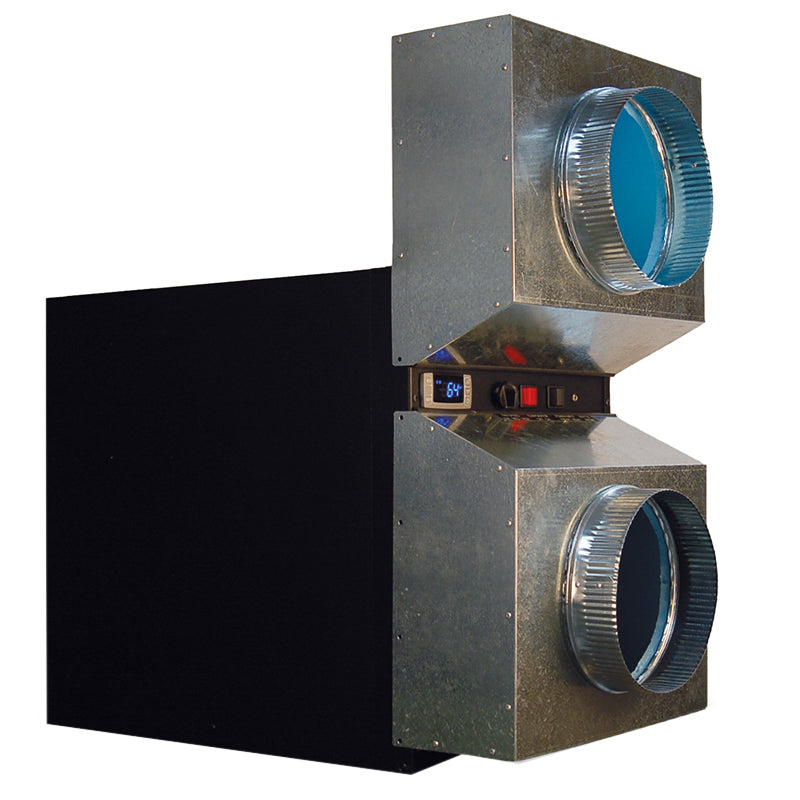

CellarPro VS/Split Duct Kit (Cold Side) HIGH RH (P/N 7426). Duct openings are designed to attach to 2 insulated 8-inch ducts (included) for evaporator intake and exhaust. Custom design allows access to controls and switches on the face of the cooling unit.
Requires 9 inches of additional height at the front of the cooling unit.
Kit includes: Insulated duct hood, 50 feet (2x25) of 8-inch insulated (R-6) ducting, remote control display kit and bottle probe.
The high fan speed setting MUST be used when our unit is ducted.
Our cold-side duct hoods allow the cold air intake and exhaust to be ducted up to 50 equivalent feet (25 feet per opening).
- Attaches easily to the front of 3200/4200 VS and 3000S/4000S Split refrigeration systems
- Appropriate for Unconditioned / High-humidity environments
- Provides access to cooling unit control panel and switches
- Designed for easy hook-up to insulated 8" ducting (included)
- Both openings must be ducted (total of 100 equivalent feet) to/from the cellar
- Maintains accurate temperatures inside the wine cellar

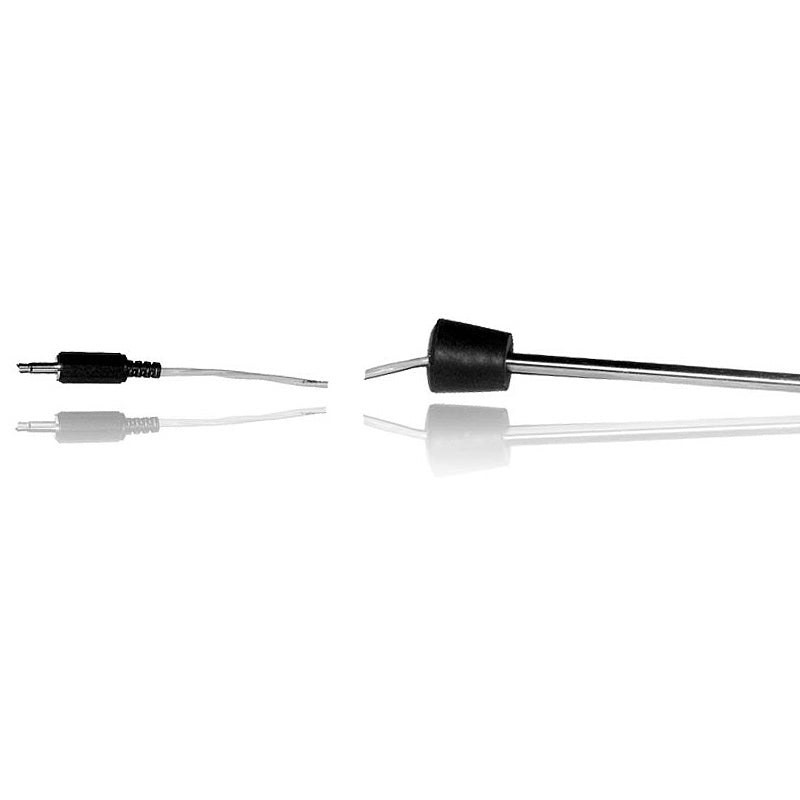

- Includes our remote thermostat bottle probe (measures air or liquid temperatures)
- Includes our remote control display kit
