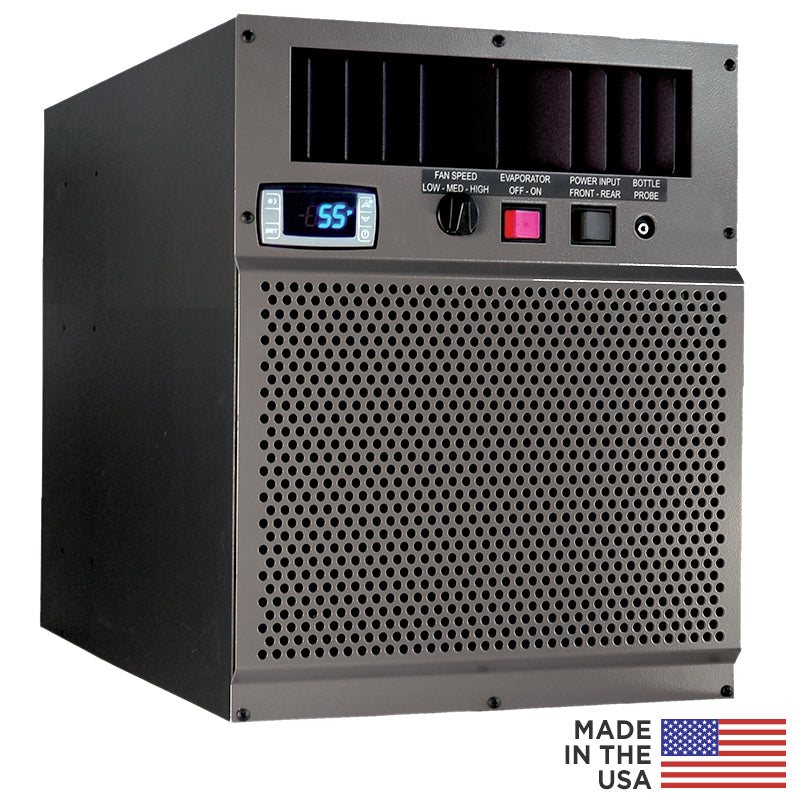

CellarPro 3200VSx Self-Contained Cooling Unit (up to 800 cubic feet)

• CellarPro 3200VSx units are self-enclosed, fully-charged units designed to be installed through an external wall and sized to fit in between standard wall studs.
• 3200VSx units can be located remotely from the cellar with the addition of one of our front duct packages (however, the entire unit cannot be located in an external environment). Offered with or without insulated flex ducting, in a choice of configurations for low or high humidity conditions, our cold-side duct packages allow these cooling units to be ducted up to 50 equivalent feet away from the cellar and requires 8-inch (or greater) ducting from start to finish.
• When calculating equivalent feet, each 90-degree turn counts for 8 feet.
• For remote or inaccessible installations, we offer a remote control display kit which is wired to the cooling unit and allows the digital display to be mounted inside or outside the cellar.
• 3200VSx units require fresh air intake at the rear of the cooling unit, and are designed to handle shaded environments ranging from 20F to 110F.
• For installation in environments below 20F down to -20F, it will be necessary to add our Fan-Cycling Switch (P/N 6972).
• The front of the cooling unit should never be exposed to temperatures below 32F.
• A CellarPro cooling unit must always be used in the upright position, and should never be operated on its side or upside down.
• We ship these units strapped to a pallet via common carrier with curbside delivery. Inside delivery is available for an additional charge.



* Venting to the exterior may require the addition of compressor heater (temps below 40°F) and fan cycling switch (temps below 20°F).

• Capacity:3040 BTUH @ 55F
• Sizing:Click here to view sizing table
• Size:14 1/2w x 27 3/5d x 19 7/10h (in)
• Weight:140 lb
• Power/Rating:115V AC / 60 Hz
  Compressor Amps:
  - Startup: 30.0 Amps
  - Unit Amp Rating: 9.2 Amps (high fan speed)
  - Total Watts with Evaporator On / Med Fan: 808
  - Total Watts with Evaporator Off / Med Fan: 608
  - Compatible with Dedicated 15-Amp Circuit
  BTUH @ 55F:
  -Low Fan Speed: 2487
  -Medium Fan Speed: 2876
  -High Fan Speed: 3040
  1/3 Ton Nominal
• Warranty:2 Years (Entire System) / 5 Years (Compressor)
  Optional Extended Warranty sold separately.
• UPC:077757016547




Cold Temperature

• Compressor Heater #1727: protects the unit when installed in environments that drop down to 20F - INCLUDED.
• Fan Cycling Switch #6972: supports the unit in temperatures below 20F and as low as -20F when combined with our compressor heater.

Duct Hoods

• Duct Hoods (Cold Side) (#7408 for low-humidity environments or #7427 for high-humidity environments) and Kits (#1476 for low-humidity environments or #7426 for high-humidity environments): permits the cooling unit to be located remotely, up to 50 equivalent feet away from the cellar.
• Duct Kits are the same as Duct Hoods, and also include 2 x 25-feet of 8-inch insulated (R-6) flex ducting.

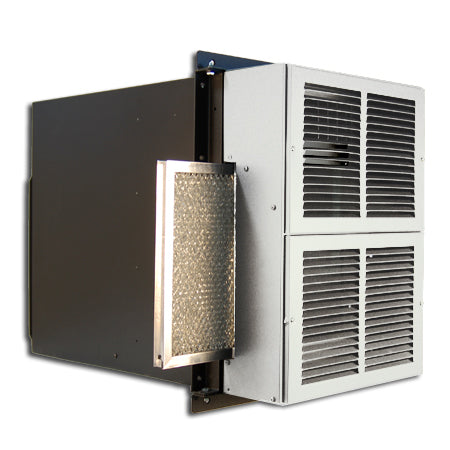

Filters & Grills

• Use our filter & grill guide to find the cooling unit filter or duct filter and/or duct grill that is appropriate for your cooling unit.

Remote Thermostats, Displays & Probes

• Networkable Thermostats #27346 and #27310: connect your cooling unit to a networkable, wi-fi enabled thermostat (sold separately). Some limitations apply - read the networkable thermostat description for more information. Includes 10 feet of wiring.
• Remote Display #1603: lets you place the digital panel wherever you want, whether inside or outside the cellar. Includes 10 feet of wiring.
• Remote bottle Probe #1434: this remote probe with a 10-foot cord overrides the probe on the face of the cooling unit, and allows it to monitor air or liquid temperatures at various locations inside the cellar.
• Extension cords available in 25-foot (#1780) and 50-foot (#1781) lengths.

DID YOU KNOW?
Nobody protects your wine cellar better than CellarPro Cooling Systems! In the event your cooling unit fails and the failed components are covered by our warranty, we'll send a replacement cooling unit to you per the terms of our Replacement Unit Program

CellarPro Replacement Unit Program
If your CellarPro cooling unit fails and the parts that failed are still covered by warranty, we'll send a replacement cooling unit to you, as follows:

1. Your cooling unit must be registered at CellarPro
2. Your cooling unit must have been properly sized, installed and maintained
3. Your cooling unit may not have been permanently modified, damaged or disfigured

Please note:

• Replacement units are factory-refurbished cooling units with a similar build date as your original unit
• You are responsible for the shipping cost to send the replacement unit to you and return the original unit to us, and the cost (if any) to remove the original unit and install the replacement unit
• In order to send a replacement unit, we require a deposit, which will be refunded minus shipping costs upon the return and pending the inspection of the original unit
• If the original unit failed due to improper intallation or use, the failure is not covered by warranty and we will deduct the cost of the repairs from the refund of your deposit
