As an authorized VintageView dealer, Wine Cellar HQ carries the brand's full wall-mounted lineup - from minimalist wine pegs to expansive, floor-to-ceiling racking columns. Modular and label-forward by design, these systems scale from a small kitchen display to a large-format commercial cellar.
About VintageView
Label-Forward Wine Storage, Built to Display
As an authorized VintageView dealer, Wine Cellar HQ offers the brand's wall-mounted systems for collectors who want their bottles seen, not just stored. Each series is engineered to hold bottles securely while keeping labels facing out, so a wall of wine reads as a display piece in a kitchen, dining room, or cellar.
91
Wall-Mounted Products Carried
4
Series - W, Vino, Evolution & Helix
3
Depth Options - Single, Double, Triple
Browse the Full Wall-Mounted Lineup
Filter by series, depth, capacity, or bottle orientation below to find the right fit for your wall.
Shop 91 WCHQ VintageView Wall Mounted Wine Racks Products
Shop by Series
Find Your VintageView Series
Every VintageView wall-mounted series shares the same commitment to keeping bottles secure and visible, in a range of styles and footprints.
W Series
27 products

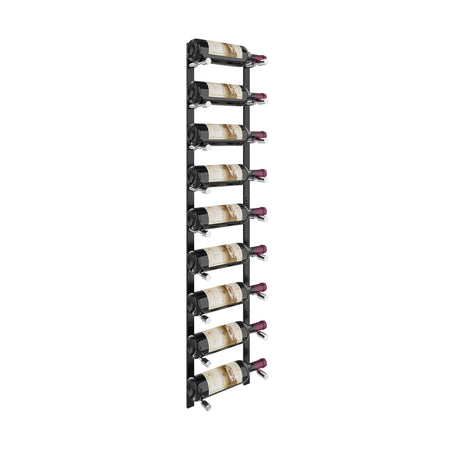

Modular metal columns that stack single, double, or triple deep, built for structured, architectural wall displays.
View Series
Vino Series
28 products

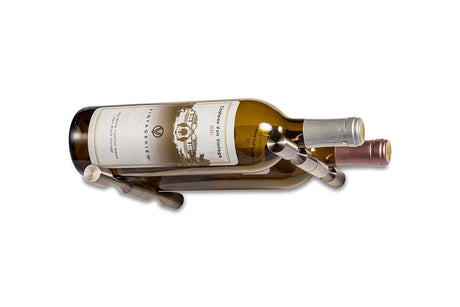

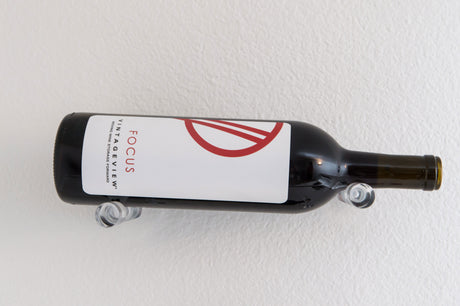

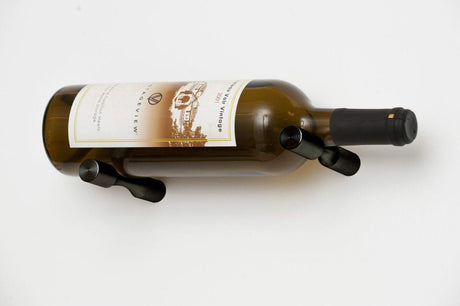

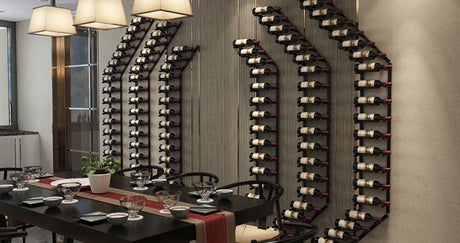

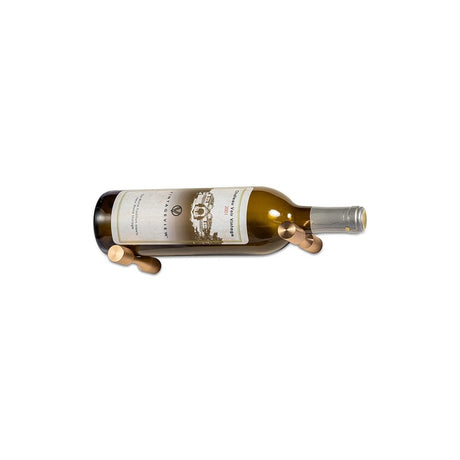

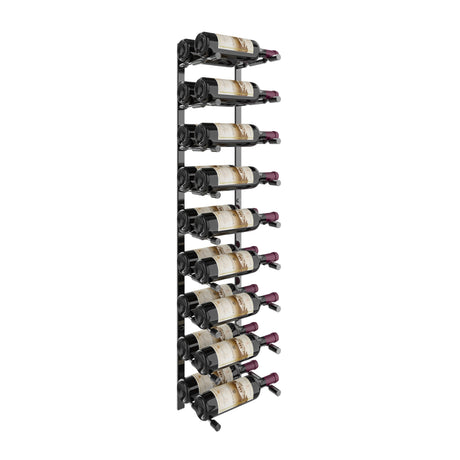

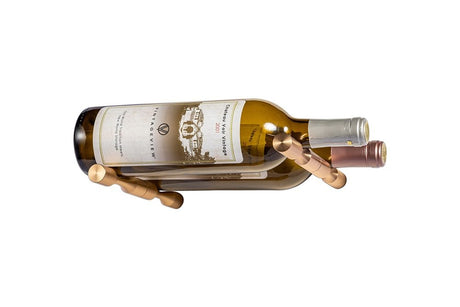

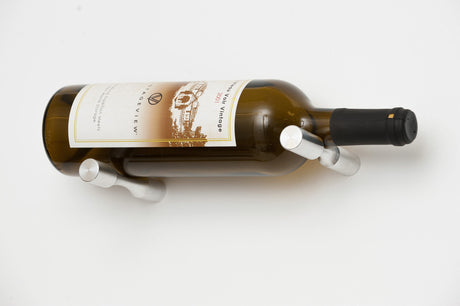

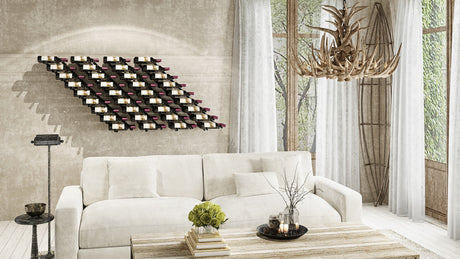

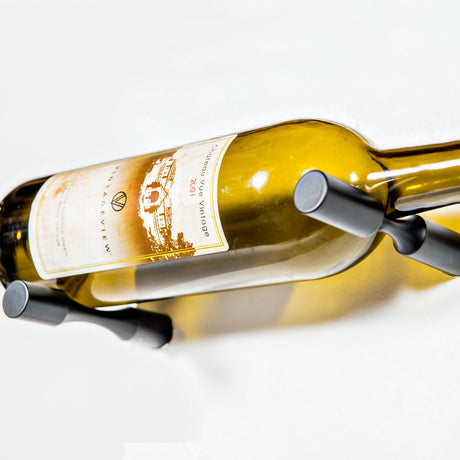

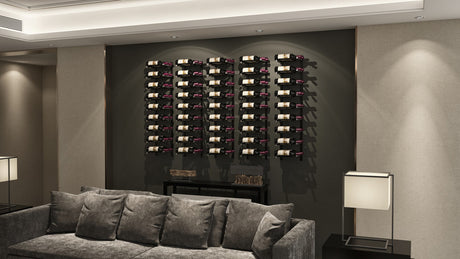

Individual wall pegs in label-forward (Vino Pins) or cork-forward (Vino Rails) styles, for flexible, bottle-by-bottle displays.
View Series
Evolution Series
26 products
Wine Wall and Low Profile formats - wall-mounted like the rest of the collection, or floor-to-ceiling with VintageView's Post System for larger, made-to-fit displays.
View Series
Helix Series
8 products
VintageView's R Series racking, the most minimalist format in the lineup, holding bottles by the neck for a clean, low-profile display.
View Series
Product Specs
What to Look For
Use these attributes to filter the collection above and narrow in on the right rack for your space.
Capacity
1–20 bottles up to 201+ bottles, modular and expandable
Depth
Single, double, or triple depth racking
Bottle Position
Horizontal, tilted, or vertical storage
Orientation
Label forward, cork forward, or angled display
Category Type
Metal, acrylic, wine pegs, or modular systems
Dimensions
Heights from under 1" up to 96"+; widths from 1" up to 95"
How It's Built
Metal Racking, Label-Forward by Design
The large majority of VintageView's wall-mounted collection is built from metal racking components, engineered to cradle bottles securely while keeping labels visible. A smaller set of acrylic-front options is also available for a lighter, more contemporary display.
Installation
Mounted to Your Wall
Every rack in this collection is designed for wall installation, though the method and hardware vary by series. Here's what to expect for each.
W Series
Installs into wood studs or drywall. For drywall: a toggle bolt at the top hole plus spiral drywall anchors below. For wood: six screws directly into the stud.
- Included: base/neck strips, mounting hole caps, couplers, drywall anchors, screws, toggle bolts
- Tools needed: drill, 1/16" and 1/2" bits, Phillips screwdriver, level, tape measure
Vino Series
Wood-surface installs use wood lag studs driven with a hex key. Drywall installs require VintageView's Drywall Collars plus toggle bolts, a different SKU than the wood-mount version. Collars are mandatory for drywall, not optional, per VintageView's own installation terms.
- Included: Vino Pins or Rails, wood lags (or drywall collars + toggle bolts for drywall), hex key, nuts, plotting guide
- Tools needed: drill, 5/32" bit (plus 5/8" spade bit for drywall), level, 10mm wrenches or M6 driver
Evolution Series
The Evolution Wine Wall, the primary format in this collection, mounts directly to the wall much like the other three series: M6 toggle bolts for drywall, wood screws for wood (min 1/2" thick), or a masonry screw with an expanding anchor for concrete, brick, or stucco. It can also be extended horizontally with separately-sold Extension Kits. For taller or floor-to-ceiling displays, Evolution offers a Wine Wall Post System instead - posts are cut to length with a metal cutting saw, then anchored to both the floor and ceiling with surface-specific fasteners. The Low Profile format uses this same floor-to-ceiling Post System.
- Included (wall-mount): Wine Wall Mounting Brackets, Evolution Wine Rods, Evolution Screws, 5mm Allen key, M6 toggle bolts or wood screws
- Tools needed: drill, 5/8" paddle bit (drywall) or 1/8" bit (wood), 4' level, measuring tape
Helix Series
Installs into drywall or hard wood (min 1/2" thick) using toggle bolts for drywall or wood screws for wood. Concrete, brick, or stucco surfaces need a masonry screw and concrete anchor (not included). Racks stack vertically for custom-height displays.
- Included: Helix rack, drywall toggle bolts, wood screws, mounting hole covers
- Tools needed: drill, 1/16" and 1/2" bits, Phillips screwdriver, level, tape measure
Weight capacity varies by model - check the individual product page for the capacity of the exact rack you're considering.
Frequently Asked Questions
Wall-Mounted Wine Racks, Explained
As an authorized VintageView dealer, Wine Cellar HQ answers the questions we hear most from customers choosing a wall-mounted system.
What's the difference between the W, Vino, Evolution, and Helix series?
As an authorized VintageView dealer, Wine Cellar HQ carries all four wall-mounted series, and each takes a different approach to the same goal of secure, visible bottle storage. The W Series uses modular metal columns that stack single, double, or triple deep for a structured, architectural display. The Vino Series is built around individual wall pegs, in label-forward Vino Pins or cork-forward Vino Rails, for a more flexible, bottle-by-bottle arrangement. The Evolution series includes the Wine Wall format, which mounts directly to the wall like the other series or floor-to-ceiling with VintageView's Post System for larger displays, and the ultra-slim Low Profile format, which uses that same floor-to-ceiling Post System. Helix, VintageView's R Series racking under a different name, is the most minimalist option, holding bottles by the neck for a clean, low-profile look.
What does "label forward" mean, and can I choose a different orientation?
Label-forward storage means bottles sit with the label facing outward so the wine is identifiable at a glance, which is the signature look of VintageView's racking. Most of this collection is configured this way, though cork-forward and angled orientations are also available for collectors who prefer that look. Sorting by the Orientation filter on this page will narrow the results to exactly the display style you want.
How many bottles can a wall-mounted VintageView rack hold, and can I expand it later?
Capacity across this collection ranges from small displays of around 1 to 20 bottles up to large-format systems of 201 bottles or more. Many of these systems, including the modular options in this collection, are designed to be expanded over time by adding matching sections, which is worth planning for if you expect your collection to grow. As an authorized dealer, Wine Cellar HQ can help you confirm which specific model supports future expansion before you buy.
Do I need a professional to install a wall-mounted wine rack?
The install method varies by series, but each uses standard hand tools rather than specialized equipment - a drill, level, and tape measure, plus a Phillips screwdriver or hex key/wrench depending on the series. W Series mounts into wood studs or drywall, using a toggle bolt and drywall anchors for drywall or six screws directly into a stud for wood. Vino Series (Pins or Rails) mounts to wood with lag studs, or to drywall using VintageView's required Drywall Collars and toggle bolts. Helix mounts into drywall or hard wood with toggle bolts or wood screws, and can also go into concrete, brick, or stucco with a masonry screw and anchor. Evolution's Wine Wall format mounts to the wall the same way, with M6 toggle bolts for drywall, wood screws for wood, or a masonry screw and anchor for concrete, brick, or stucco - it can also be installed floor-to-ceiling with a Post System for larger displays, which is how the Low Profile format is always installed. Weight capacity isn't stated in any of the four install guides. Check the individual product page or contact Wine Cellar HQ before installing.
What's the difference between single, double, and triple depth racking?

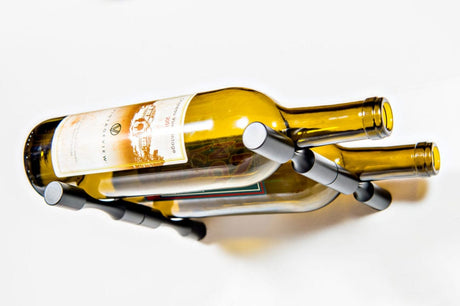

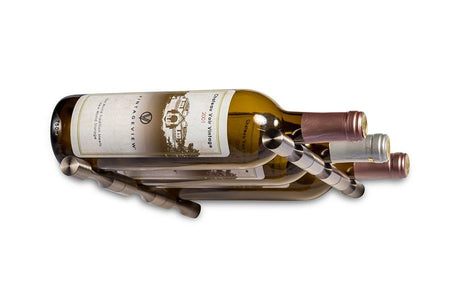

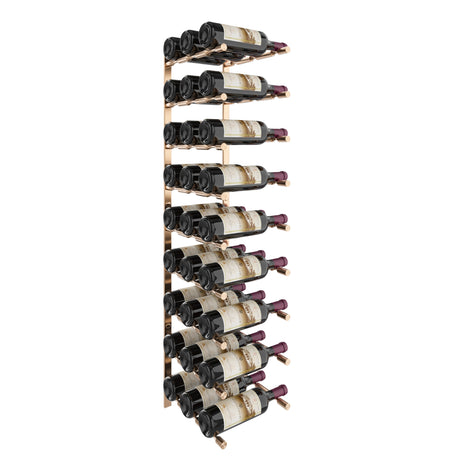

Depth refers to how many bottles sit front-to-back in a single cradle position. Single depth holds one bottle per position and keeps the rack close to the wall, double depth stacks two bottles front-to-back to increase capacity in the same footprint, and triple depth fits three, which is best suited to collectors who want maximum storage from a compact wall space. This collection includes all three depths, filterable above, so you can match capacity to the wall space you have available.
Ready to Build Your Wall of Wine?
As an authorized VintageView dealer, Wine Cellar HQ can help you pick the right series, depth, and capacity for your space.
